DATASENSING

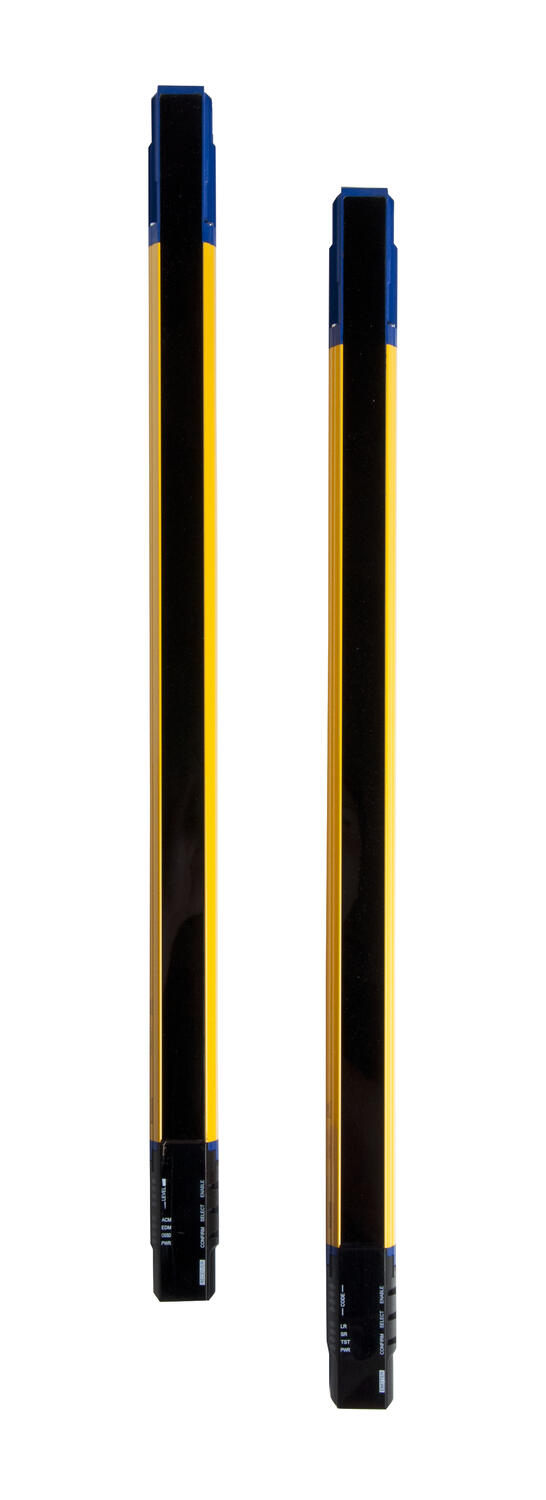

SG4-Extended (Finger) is a safety light curtain with a range of up to 7 metres and has extra functionality including muting and blanking programmable by push button or PC.
Â
This Type 4 light curtain maintains the highest safety level according to the latest safety standards EN ISO 13849-1 and EN 62061.
Â
SG4-Extended has built-in monitored reset, an input for monitoring of external contactors and two solid state safety outputs which are also electronically monitored.
Â
This means that the SG4-Extended can work as a "standalone" unit if required and is not in need of any special control unit.
Additional features | Muting, override, blanking, EDM, reset, cascade |
---|---|
Approvals | CE, cULus, TÜV |
Cable connection receiver | M12, 12-pole for blanking; M12, 12-pole + M12, 5-pole for muting |
Cable connection transmitter | M12, 5-pole |
Cable length max | 50 m |
Contact current max | 0.5 A |
DC | 99 % |
Function | Manual/automatic restart, EDM, Override, Muting, Blanking |
In compliance with | EMC, LVD, MD |
IP class | IP65 |
Material of body | Aluminium |
MTTFd | 444 year(s) |
Number of beams | 32 |
PL | e (EN ISO 13849-1) |
Power consumption | Transmitter max 3 W. Receiver 5 W (without load) |
---|---|
Protection height | 300 mm |
Range | 0,2-7 m |
Reaction time | 20 ms |
Resolution | 14 mm |
Safe outputs | 2 OSSD |
SIL | 3 (EN IEC 62061) |
Supply voltage | 24 V DC |
T1 (Life time in years) | 20 |
Temperature operational max | 50 °C |
Temperature operational min | 0 °C |
Type | 4 |
Voltage tolerance | ±20 % |
SG4-Extended (Finger) is a safety light curtain with a range of up to 7 metres and has extra functionality including muting and blanking programmable by push button or PC.
Â
This Type 4 light curtain maintains the highest safety level according to the latest safety standards EN ISO 13849-1 and EN 62061.
Â
SG4-Extended has built-in monitored reset, an input for monitoring of external contactors and two solid state safety outputs which are also electronically monitored.
Â
This means that the SG4-Extended can work as a "standalone" unit if required and is not in need of any special control unit.
Whether you're working with opaque materials or transparent items like glass or plastic, these sensors deliver reliable performance across a wide range of applications.
OEM Automatics Safety Experts guide you through the process of setting up your light curtains & barriers, to protect your people and equipment.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
LIDAR, Radar, and Laser scanners are all powerful technologies used to enhance safety in industrial and automated environments. But how do you choose the right one for your application?
Optimise your production line with encoders, inclinometers, displays and slip rings
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Number of beams | Protection height | Reaction time | Price | ||
---|---|---|---|---|---|---|
![]()
SG4-14-030-OO-P 14mm Res Type
Art:
SG4-14-030-OO-P
Copied
|
32
|
300 mm
|
20 ms
|
| ||
![]()
957901250 Type 4 14mm Finger Res 450mm Prot Height PROG
Art:
SG4-14-045-OO-P
Copied
|
48
|
450 mm
|
25 ms
|
| ||
![]()
SG4-14-060-OO-P 600mm H TYPE 4
Art:
SG4-14-060-OO-P
Copied
|
64
|
600 mm
|
29 ms
|
| ||
![]()
957901270 Type 4 14mm Finger Res 750mm Prot Height PROG
Art:
SG4-14-075-OO-P
Copied
|
80
|
750 mm
|
34 ms
|
| ||
![]()
SG4-14-090-OO-P 14mm Res Type
Art:
SG4-14-090-OO-P
Copied
|
96
|
900 mm
|
38 ms
|
| ||
![]()
957901290 Type 4 14mm Finger Res 300mm Prot Height PROG
Art:
SG4-14-105-OO-P
Copied
|
112
|
1050 mm
|
43 ms
|
| ||
![]()
957901300 Type 4 14mm Finger Res 1200mm Prot Height PROG
Art:
SG4-14-120-OO-P
Copied
|
128
|
1200 mm
|
47 ms
|
| ||
![]()
957901310 Type 4 14mm Finger Res 1350mm Prot Height PROG
Art:
SG4-14-135-OO-P
Copied
|
144
|
1350 mm
|
52 ms
|
| ||
![]()
957901320 Type 4 14mm Finger Res 1500mm Prot Height PROG
Art:
SG4-14-150-OO-P
Copied
|
160
|
1500 mm
|
56 ms
|
| ||
![]()
LJUSRIDÅ L=1650mm/14mm/0-7M
Art:
SG4-14-165-OO-P
Copied
|
176
|
1650 mm
|
61 ms
|
| ||
![]()
957901340 Type 4 14mm Finger Res 1800mm Prot Height PROG
Art:
SG4-14-180-OO-P
Copied
|
192
|
1800 mm
|
65 ms
|
|
Select a variant in the list
