KÜBLER

Kuebler - Wire Encoders A50 SERIE D8.6A1

The Kübler Miniature Wire Giver A50 is designed for simpler applications with lower speeds.

The housing can be combined with digital and analogue encoder.

Maximum wire length is 1250mm.



Read more
  • Max measuring length 1 250 mm
  • -20 to +85 °C
  • Titanium anodized aluminum housing
  • Compact dimensions

Selected variant

Available in several variants

Selected variant

Technical data

Product description

The Kübler Miniature Wire Giver A50 is designed for simpler applications with lower speeds.

The housing can be combined with digital and analogue encoder.

Maximum wire length is 1250mm.



Ordering information

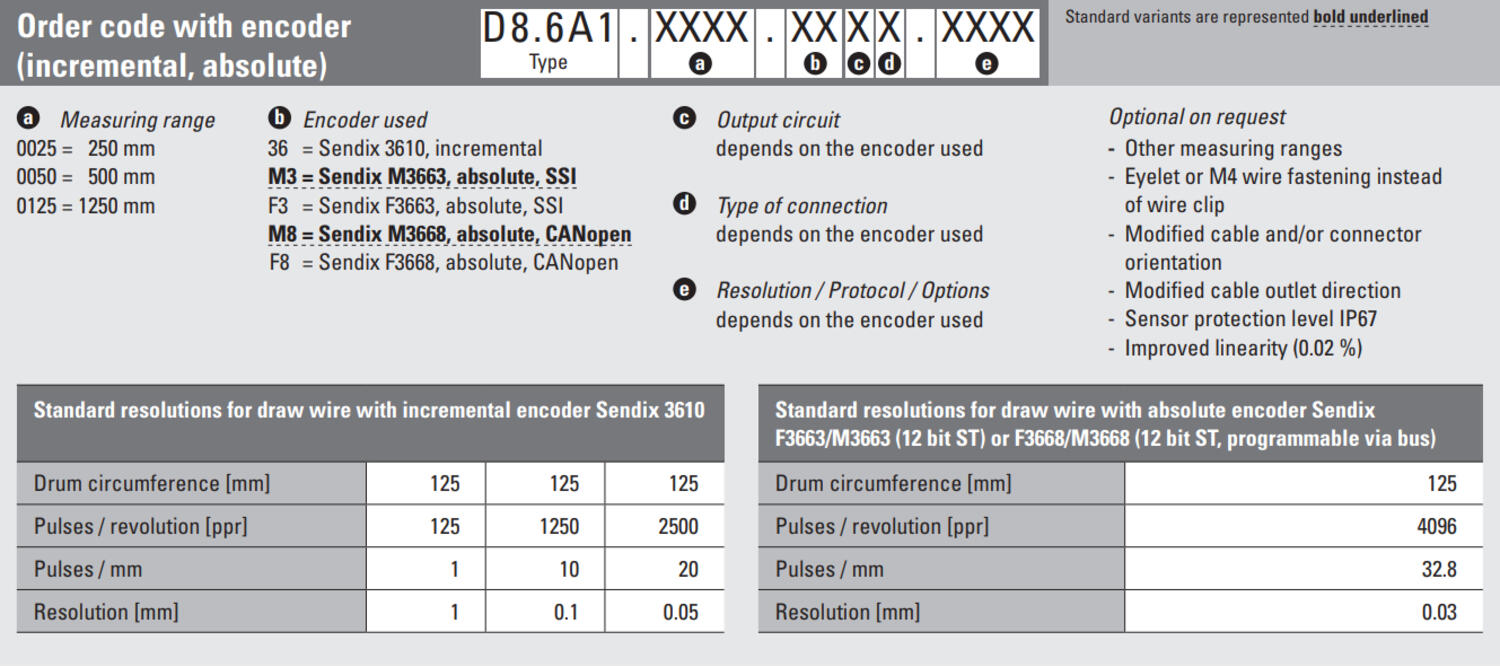

Please refer to the images below for ordering information.

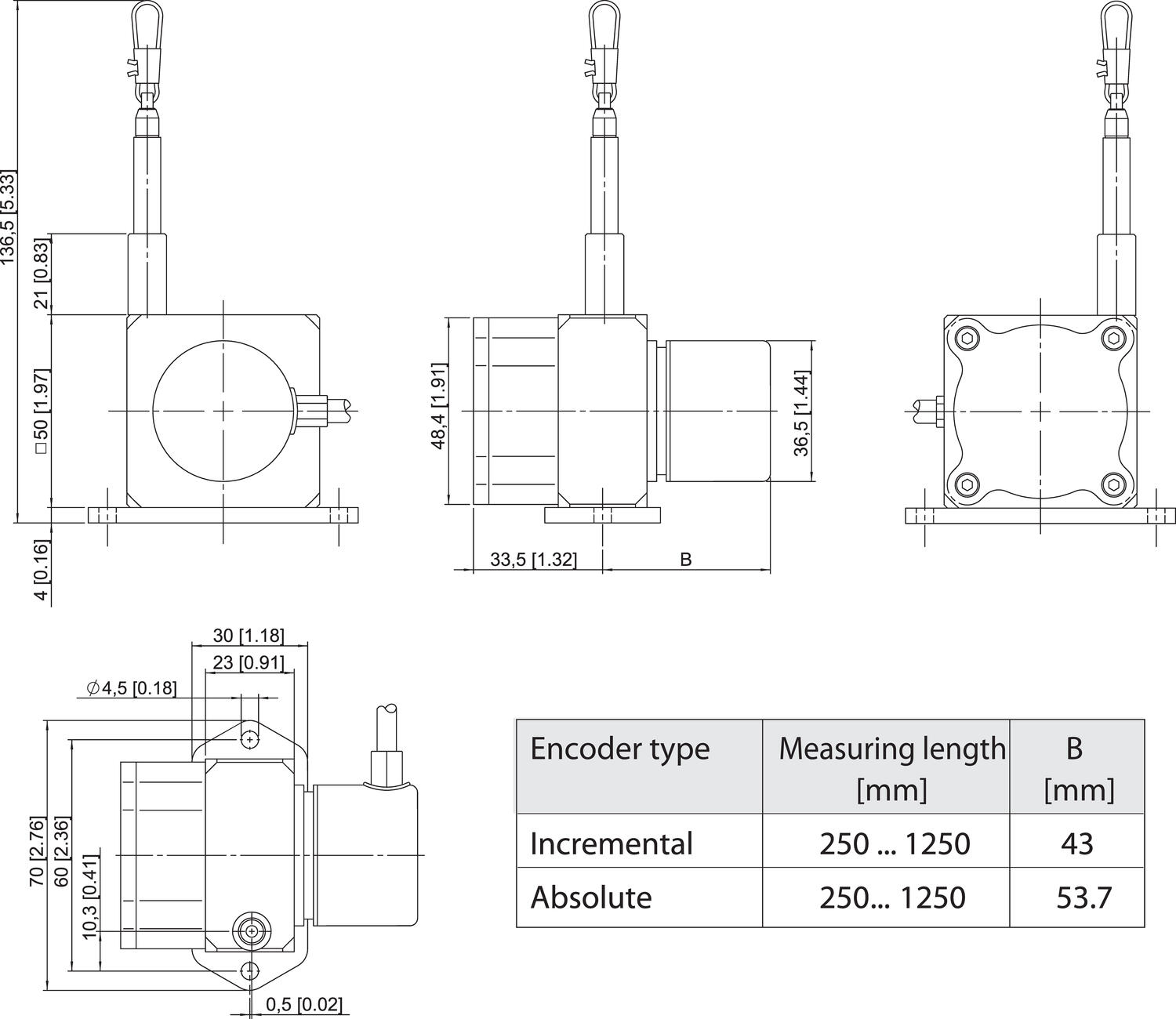

 Sendix M3668 absolute encoder with a measurement range of up to 1250 mm and high resolution

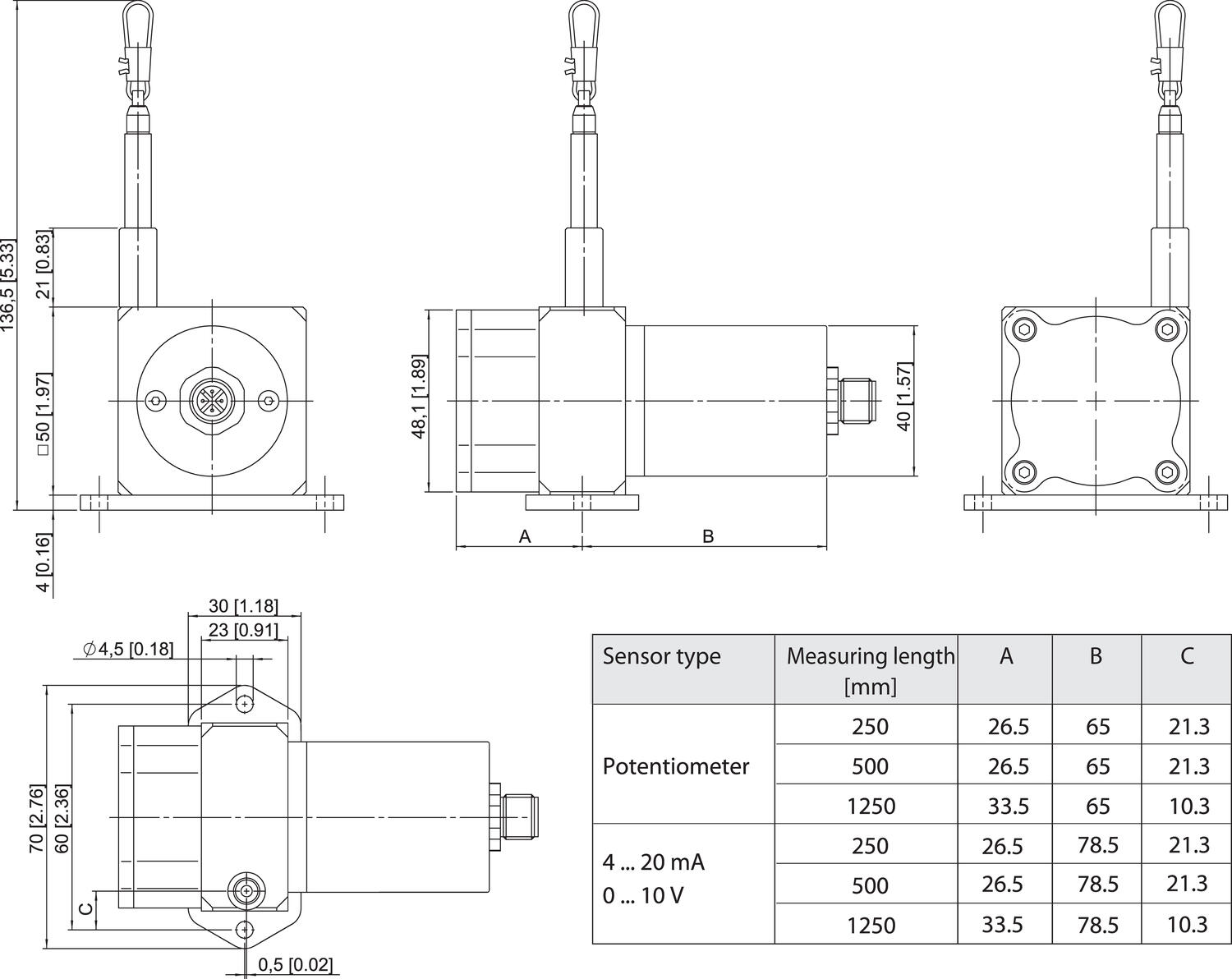

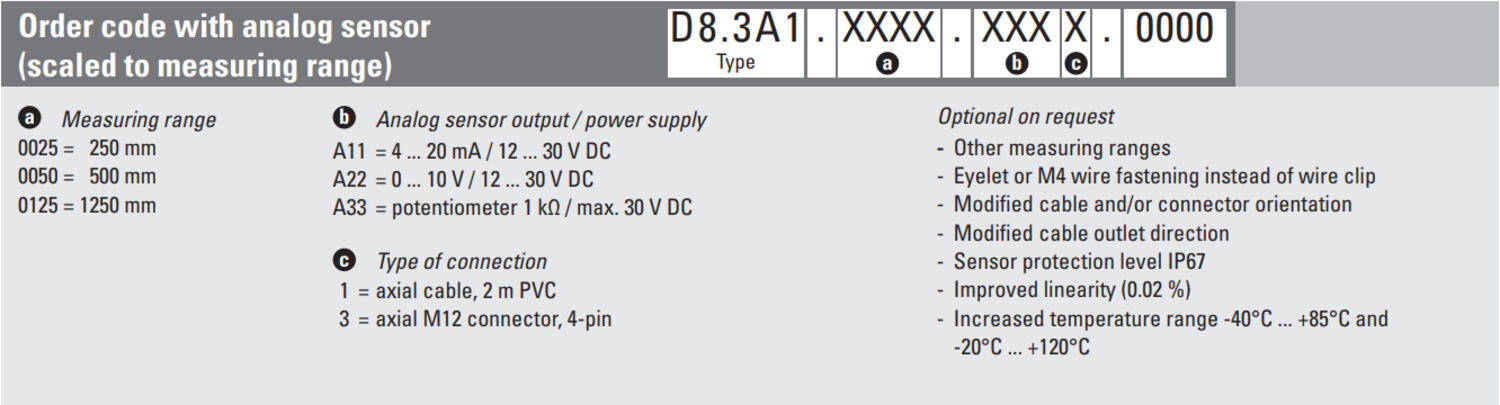

Analog sensor D8.3A1 with measurement range options and IP67 protection level
