DATALOGIC
Datalogic PowerScan PD9130

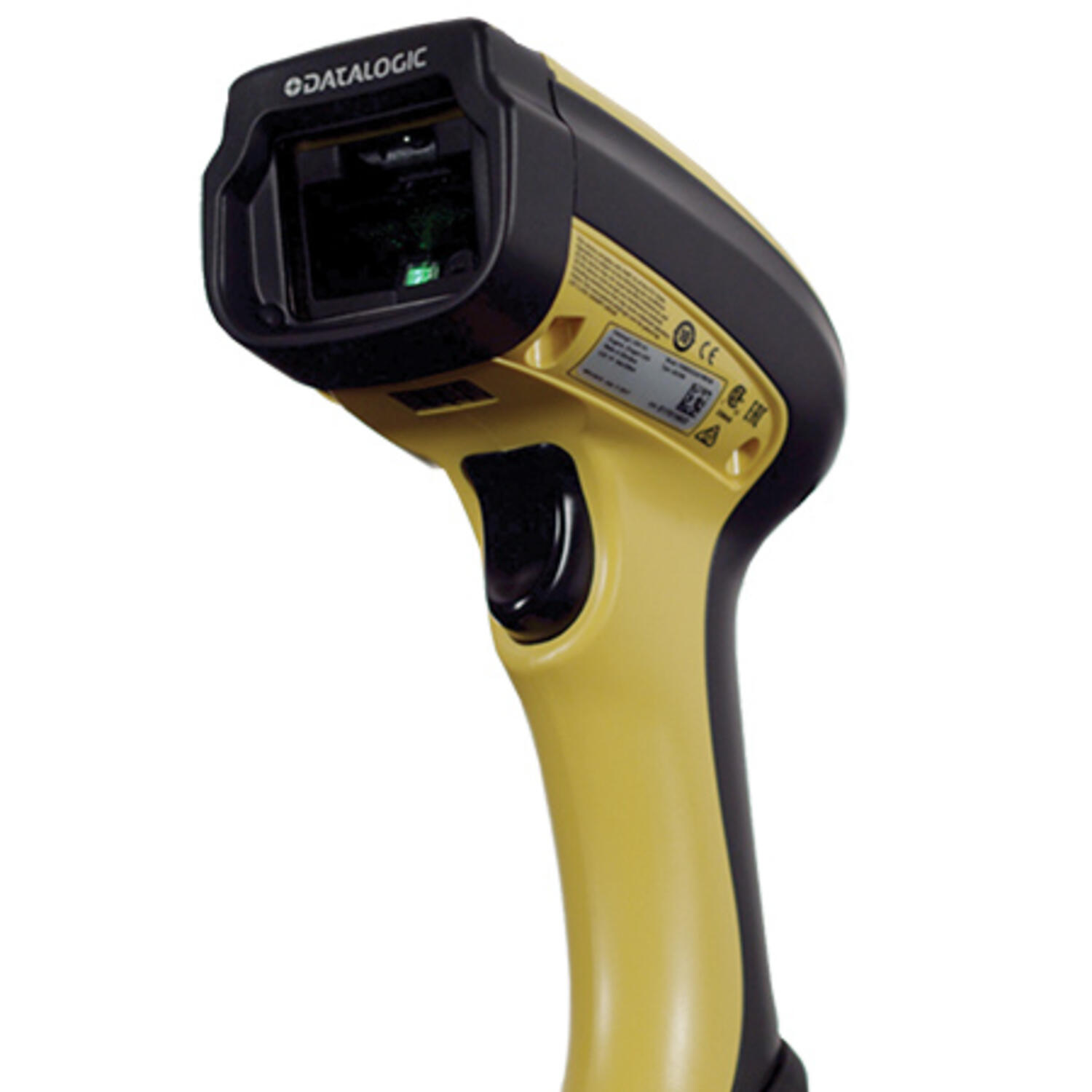

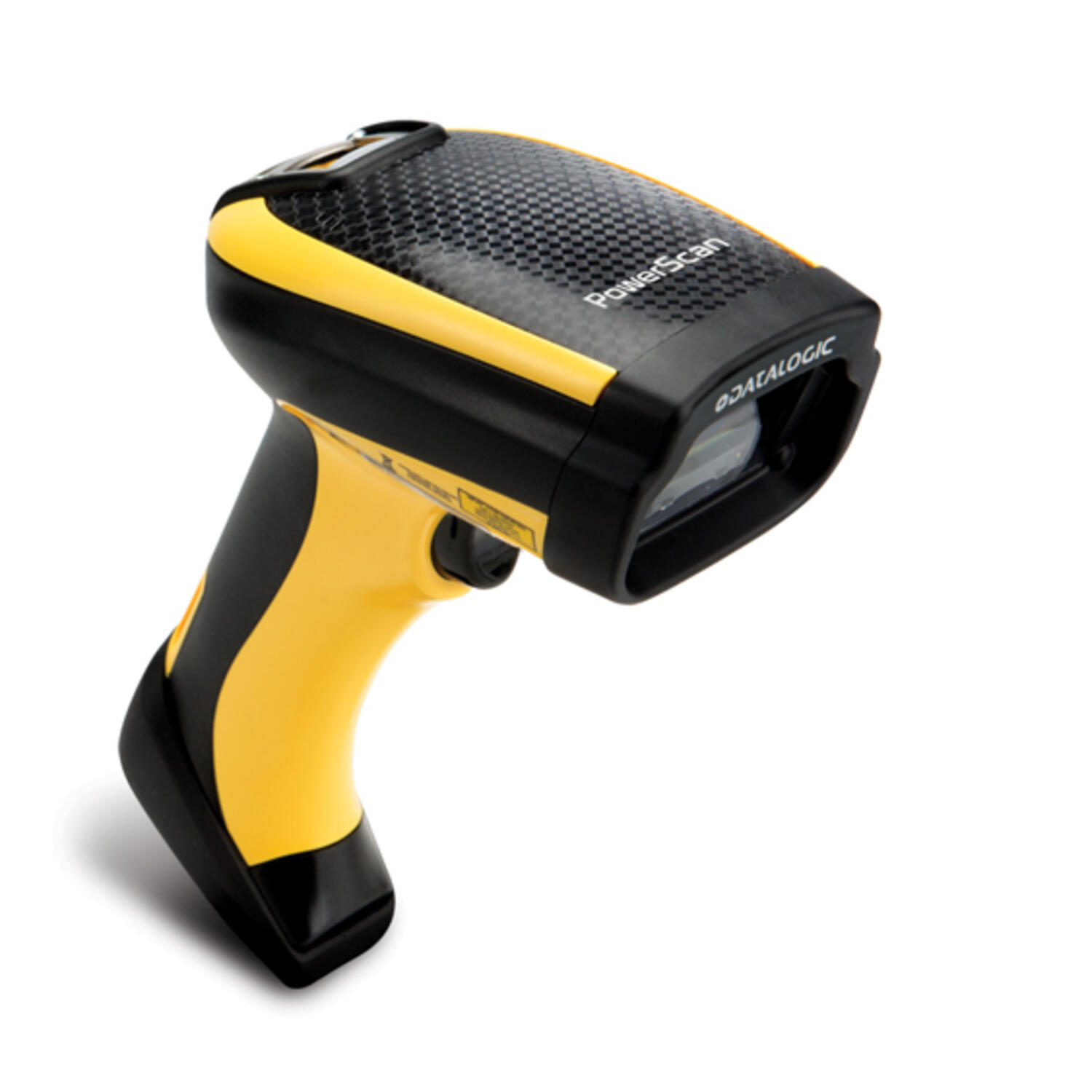

The PowerScan PD9130 linear imager is a corded device offering state-of-the-art performance in an industrial product.  This linear imager introduces Datalogic’s new and innovative scanning technology, implementing a green scanning line which has the same definition of a laser beam with all the benefits of a linear imager.
Â

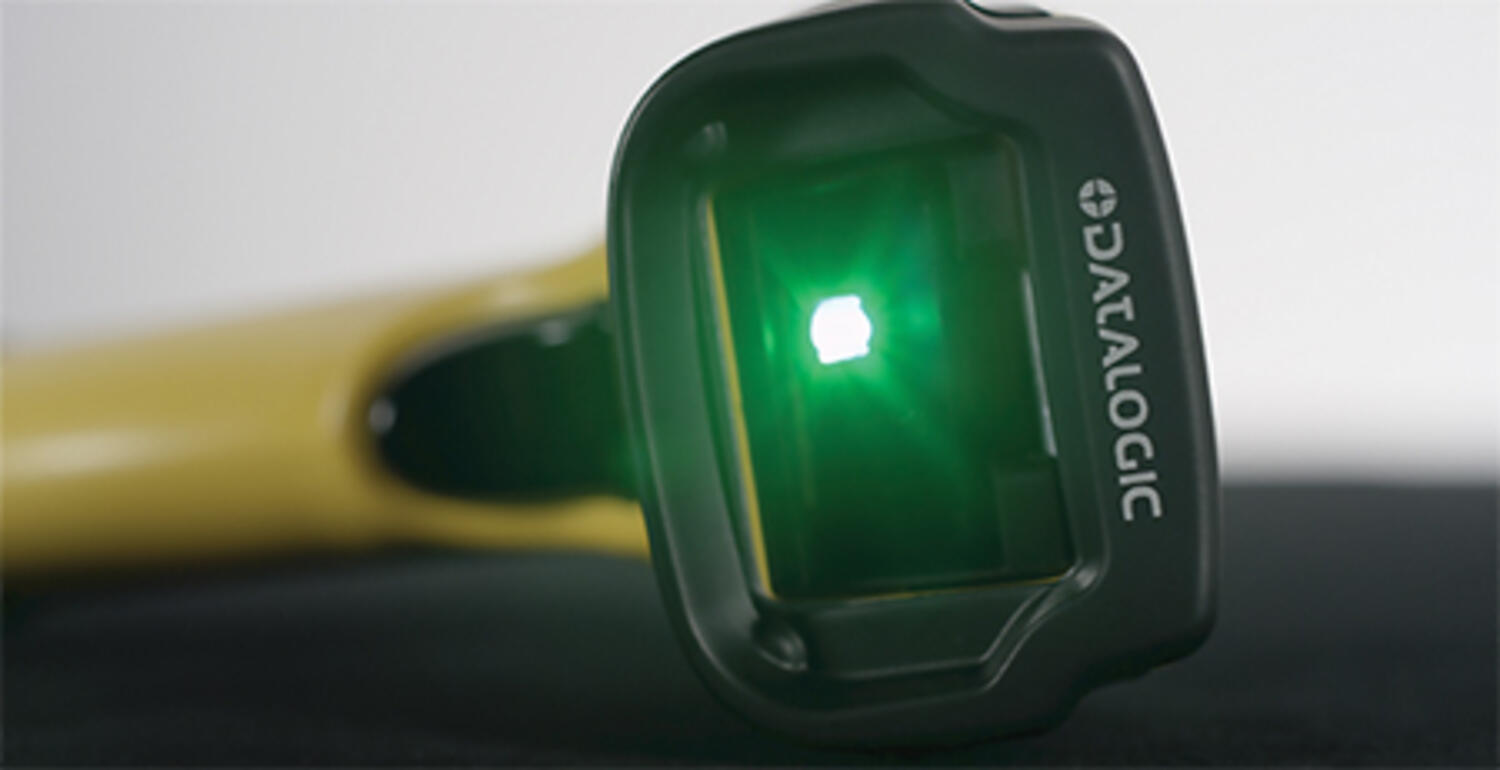

The PD9130 imager features Datalogic’s exclusive 3 Green Lights (3GL™) for superior good read feedback. The patented ‘Green Spot’ technology directly on the code and dual Good Read LEDs on the top of the cap increase visibility at any angle.
Â
The PD9130 imager’s mechanics have been developed and tested to withstand extreme environmental conditions, maintaining consistent reading performance without degrading performance or reliability. Its ergonomic enclosure is lightweight and well-balanced to ensure optimal operator comfort during scan-intensive operations.
Â
All models have multi-interface capabilities featuring the most popular interfaces; RS-232, Keyboard Wedge and USB.
Â
- Detects 1D code types
- Reads up to 2.5 mils codes
- Datalogic’s exclusive 3 Green Lights (3GL™)
- Interfaces: RS-232, Keyboard Wedge and USB
Selected variant
Technical data
| 1D Code types | Code 39, Code 93, Code 128, EAN128, Codabar, Plessey, Code 32, Code 11, MSI, GS1 DataBar linear codes, IATA, Follet 2/5, Code 4, Code 5, Codablock F, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 39 Full ASCII, Interleaved 2/5, Standard 2/5, Code 39 CIP, Industrial 2/5, Datalogic 2/5 |
|---|---|
| Additional features | Kit includes: Scanner PD9130 and Cable CAB-434 |
| Approvals | RoHS |
| Colour | Black, Yellow |
| Dimension (mm) | 212 x 110 x 74 |
| Drop resistance | Withstands 50 drops from 6.6ft onto concrete surface |
| Humidity | 0-95% (Non-condensing) |
| Interface | Keyboard wedge, RS-232, USB |
| IP class | IP65 |
| Kit | Yes |
| Light source | Green LED |
| Readable code types | 1D / Linear Codes |
|---|---|
| Reading angle window | Pitch:+/-75°; Tilt: +/- 45°; Skew: +/-70° |
| Resolution | 2.5 mils |
| Storage temperature max | 70 °C |
| Storage temperature min | -40 °C |
| Temperature operational max | 50 °C |
| Temperature operational min | -20 °C |
| Weight | 340 g |
| Wireless | No |
Downloads
Product description
The PowerScan PD9130 linear imager is a corded device offering state-of-the-art performance in an industrial product.  This linear imager introduces Datalogic’s new and innovative scanning technology, implementing a green scanning line which has the same definition of a laser beam with all the benefits of a linear imager.
Â
The PD9130 imager features Datalogic’s exclusive 3 Green Lights (3GL™) for superior good read feedback. The patented ‘Green Spot’ technology directly on the code and dual Good Read LEDs on the top of the cap increase visibility at any angle.
Â
The PD9130 imager’s mechanics have been developed and tested to withstand extreme environmental conditions, maintaining consistent reading performance without degrading performance or reliability. Its ergonomic enclosure is lightweight and well-balanced to ensure optimal operator comfort during scan-intensive operations.
Â
All models have multi-interface capabilities featuring the most popular interfaces; RS-232, Keyboard Wedge and USB.
Â
