DATALOGIC

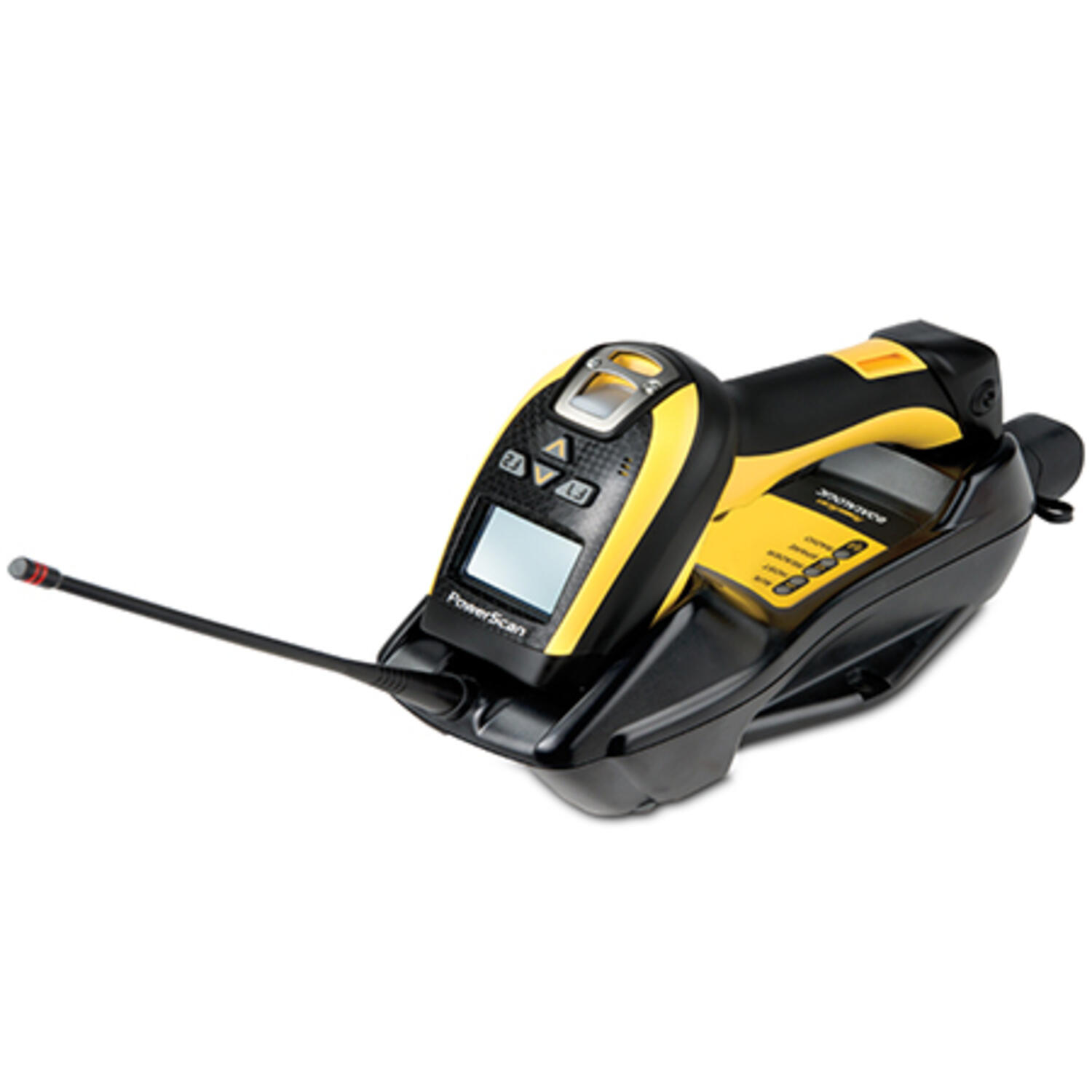

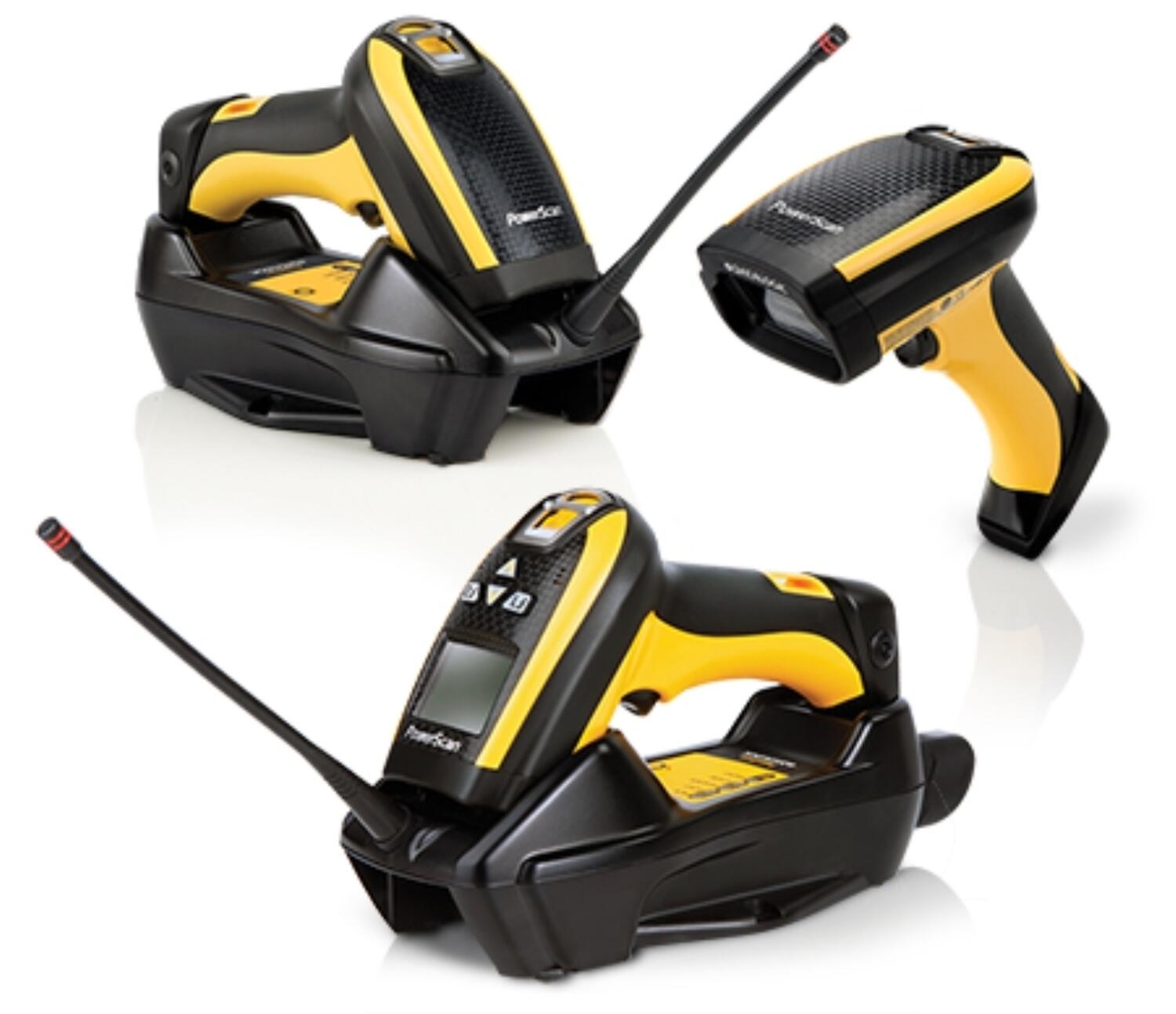

Datalogic PowerScan PBT/PM9100

  • Detects 1D code types
  • Reads up to 2.5 mils codes
  • 60,000+ reads per charge
  • Interfaces: keyboard wedge, RS-232, USB

Selected variant

Available in several variants
DATALOGIC17.eps

Save page as PDF

Technical data / Documents

Accessories & Related products

Selected variant

Technical data

1D Code types Code 39, Code 93, Code 128, EAN128, Codabar, Plessey, Code 32, Code 11, MSI, GS1 DataBar linear codes, IATA, Follet 2/5, Code 4, Code 5, Codablock F, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 39 Full ASCII, Interleaved 2/5, Standard 2/5, Code 39 CIP, Industrial 2/5, Datalogic 2/5
Additional features Removable battery
Approvals RoHS
Battery Lithium-ion 3350 mA
Charge time 4.5 hrs
Colour Black, Yellow
Dimension (mm) 212 x 110 x 74
Drop resistance Withstands 50 drops from 6.6ft onto concrete surface
Humidity 0-95% (Non-condensing)
Interface Keyboard wedge, RS-232, USB
IP class IP65
Kit No
Light source Green LED
Readable code types 1D / Linear Codes
Reading angle window Pitch:+/-75°; Tilt: +/- 45°; Skew: +/-70°
Reads per charge 60000
Resolution 2.5 mils
Storage temperature max 70 °C
Storage temperature min -40 °C
Temperature operational max 50 °C
Temperature operational min -20 °C
Weight 405 g
Wireless Yes
Wireless technology Datalogic STAR Cordless System

Downloads

Accessories

Related

Barcode scanner technology: choosing the right technology for your application
Learning hub

Barcode Scanner Technology: Choosing The Right Technology For Your Application

OEM Automatic's barcode scanner experts have broken down barcode technology to help you choose the right scanner for your application!

What is fault masking & how to prevent it with IDEM Z-series products
Learning hub

What is fault masking? & how to prevent it

Discover how fault masking is compromising the safety of your workplace and find out how OEM Automatic can help you to prevent it completely. Creating a safe and secure work environment.

Learn more about radar systems - discover inxpects certified safety radar system
Learning hub

Discover safety radar sensors

Learn more about Inxpect radar systems. The worlds first SIL 2/PL d certified, radar-based safety system for use around hazardous machinery.

Datalogic d24 area sensors
Product news

Detection and measurement area sensors

Whether you're working with opaque materials or transparent items like glass or plastic, these sensors deliver reliable performance across a wide range of applications.

Learning hub

Setting up light curtains & Barriers

OEM Automatics Safety Experts guide you through the process of setting up your light curtains & barriers, to protect your people and equipment.

Photoneo motioncam 3d
Product news

Q&A on 2d and 3d imaging - Motioncam 3d

A Q&A on 3D and 2D imagery, the NEW Motioncam-3D by Photoneo.

Parts 1D Code types Additional features Kit Weight Wireless technology Price
Datalogic powerscan heavy duty handheld barcode scanner
PowerScan PM9100, 433 MHz, Linear Imager, Removable Battery
Art:
PM9100-433RB Copied
Code 39, Code 93, Code 128, EAN128, Codabar, Plessey, Code 32, Code 11, MSI, GS1 DataBar linear codes, IATA, Follet 2/5, Code 4, Code 5, Codablock F, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 39 Full ASCII, Interleaved 2/5, Standard 2/5, Code 39 CIP, Industrial 2/5, Datalogic 2/5
Removable battery
No
405 g
Datalogic STAR Cordless System
Datalogic powerscan heavy duty handheld barcode scanner
PowerScan PM9100, 910 MHz, Linear Imager, Removable Battery
Art:
PM9100-910RB Copied
Code 39, Code 93, Code 128, EAN128, Codabar, Plessey, Code 32, Code 11, MSI, GS1 DataBar linear codes, IATA, Follet 2/5, Code 4, Code 5, Codablock F, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 39 Full ASCII, Interleaved 2/5, Standard 2/5, Code 39 CIP, Industrial 2/5, Datalogic 2/5
Removable battery
No
405 g
Datalogic STAR Cordless System
PowerScan PM9100, 433,USB KIT EU (Base,Cable,Power adapter/cord)
Art:
PM9100-433RBK10 Copied
Code 39, Code 93, Code 128, EAN128, Codabar, Plessey, Code 32, Code 11, MSI, GS1 DataBar linear codes, IATA, Follet 2/5, Code 4, Code 5, Codablock F, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 39 Full ASCII, Interleaved 2/5, Standard 2/5, Code 39 CIP, Industrial 2/5, Datalogic 2/5
Kit includes: Scanner PM9100-433RB, Base BC9030-433, Cable CAB-438, Power Adapter 8-0935, Power Cord 6003-0940
Yes
405 g
Datalogic STAR Cordless System
PowerScan PM9100, 910,RS-232 KIT EU (Base,Cable,Power adapter/cord)
Art:
PM9100-910RBK10 Copied
Code 39, Code 93, Code 128, EAN128, Codabar, Plessey, Code 32, Code 11, MSI, GS1 DataBar linear codes, IATA, Follet 2/5, Code 4, Code 5, Codablock F, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 39 Full ASCII, Interleaved 2/5, Standard 2/5, Code 39 CIP, Industrial 2/5, Datalogic 2/5
Kit includes: Scanner PM9100-910RB, Base BC9030-910, Cable CAB-438, Power Adapter 8-0935, Power Cord 6003-0941
Yes
405 g
Datalogic STAR Cordless System
PowerScan PM9100, 433,RS-232 KIT EU (Base,Cable,Power adapter/cord)
Art:
PM9100-433RBK20 Copied
Code 39, Code 93, Code 128, EAN128, Codabar, Plessey, Code 32, Code 11, MSI, GS1 DataBar linear codes, IATA, Follet 2/5, Code 4, Code 5, Codablock F, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 39 Full ASCII, Interleaved 2/5, Standard 2/5, Code 39 CIP, Industrial 2/5, Datalogic 2/5
Kit includes: Scanner PM9100-433RB, Base BC9030-433, Cable CAB-433, Power Adapter 8-0935, Power Cord 6003-0940
Yes
405 g
Datalogic STAR Cordless System
PowerScan PM9100 910, RS-232 KIT US Base, cable, power)
Art:
PM9100-910RBK20 Copied
Code 39, Code 93, Code 128, Codabar, Plessey, Code 32, Code 11, MSI, GS1 DataBar linear codes, IATA, Follet 2/5, Code 4, Code 5, Codablock F, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 39 Full ASCII, Interleaved 2/5, Standard 2/5, Code 39 CIP, Industrial 2/5, Datalogic 2/5
Kit includes: Scanner PM9100-910RB, Base BC9030-910, Cable CAB-433, Power Adapter 8-0935, Power Cord 6003-0941
Yes
405 g
Datalogic STAR Cordless System
Datalogic powerscan heavy duty handheld barcode scanner
PowerScan PBT9100, Bluetooth, Linear Imager, Removable Battery
Art:
PBT9100-RB Copied
Code 39, Code 93, Code 128, EAN128, Codabar, Plessey, Code 32, Code 11, MSI, GS1 DataBar linear codes, IATA, Follet 2/5, Code 4, Code 5, Codablock F, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 39 Full ASCII, Interleaved 2/5, Standard 2/5, Code 39 CIP, Industrial 2/5, Datalogic 2/5
Removable battery
No
405 g
Bluetooth Wireless Technology
PowerScan PBT9100, Removable batt, USB kit EU, (Base,cable,power)
Art:
PBT9100-RBK10EU Copied
Code 39, Code 93, Code 128, EAN128, Codabar, Plessey, Code 32, Code 11, MSI, GS1 DataBar linear codes, IATA, Follet 2/5, Code 4, Code 5, Codablock F, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 39 Full ASCII, Interleaved 2/5, Standard 2/5, Code 39 CIP, Industrial 2/5, Datalogic 2/5
Kit includes: Scanner PBT9100-RB, Base BC9030-BT, Cable CAB-438, Power Adapter 8-0935, Power Cord 6003-0940
Yes
405 g
Bluetooth Wireless Technology
PowerScan PBT9100, Removable batt, USB kit US (Base,cable,power)
Art:
PBT9100-RBK10US Copied
Code 39, Code 93, Code 128, EAN128, Codabar, Plessey, Code 32, Code 11, MSI, GS1 DataBar linear codes, IATA, Follet 2/5, Code 4, Code 5, Codablock F, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 39 Full ASCII, Interleaved 2/5, Standard 2/5, Code 39 CIP, Industrial 2/5, Datalogic 2/5
Kit includes: Scanner PBT9100-RB, Base BC9030-BT, Cable CAB-438, Power Adapter 8-0935, Power Cord 6003-0941
Yes
405 g
Bluetooth Wireless Technology
PowerScan PBT9100, Removable batt, RS-232 kit EU, (Base,cable,power)
Art:
PBT9100-RBK20EU Copied
Code 39, Code 93, Code 128, EAN128, Codabar, Plessey, Code 32, Code 11, MSI, GS1 DataBar linear codes, IATA, Follet 2/5, Code 4, Code 5, Codablock F, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 39 Full ASCII, Interleaved 2/5, Standard 2/5, Code 39 CIP, Industrial 2/5, Datalogic 2/5
Kit includes: Scanner PBT9100-RB, Base BC9030-BT, Cable CAB-433, Power Adapter 8-0935, Power Cord 6003-0940
Yes
405 g
Bluetooth Wireless Technology
PowerScan PBT9100, Removable batt, RS-232 kit US (Base,cable,power)
Art:
PBT9100-RBK20US Copied
Code 39, Code 93, Code 128, EAN128, Codabar, Plessey, Code 32, Code 11, MSI, GS1 DataBar linear codes, IATA, Follet 2/5, Code 4, Code 5, Codablock F, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 39 Full ASCII, Interleaved 2/5, Standard 2/5, Code 39 CIP, Industrial 2/5, Datalogic 2/5
Kit inlcudes: Scanner PBT9100-RB, Base BC9030-BT, Cable CAB-433, Power Adapter 8-0935, Power Cord 6003-0941
Yes
405 g
Bluetooth Wireless Technology
PowerScan PM9100, 433 MHz, Linear Imager, Display/16-Key, RB
Art:
PM9100-DK433RB Copied
Code 39, Code 93, Code 128, EAN128, Codabar, Plessey, Code 32, Code 11, MSI, GS1 DataBar linear codes, IATA, Follet 2/5, Code 4, Code 5, Codablock F, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 39 Full ASCII, Interleaved 2/5, Standard 2/5, Code 39 CIP, Industrial 2/5, Datalogic 2/5
Removable battery, 16-key keypad display
No
435 g
Datalogic STAR Cordless System
PowerScan PM9100, 433 MHz, Linear Imager, Display/4-Key , RB
Art:
PM9100-D433RB Copied
Code 39, Code 93, Code 128, EAN128, Codabar, Plessey, Code 32, Code 11, MSI, GS1 DataBar linear codes, IATA, Follet 2/5, Code 4, Code 5, Codablock F, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 39 Full ASCII, Interleaved 2/5, Standard 2/5, Code 39 CIP, Industrial 2/5, Datalogic 2/5
Removable battery, 4-key keypad display
No
435 g
Datalogic STAR Cordless System
PowerScan PM9100, Display, USB KIT EU (Base,cable,power adapter/cord)
Art:
PM9100-D433RBK10 Copied
Code 39, Code 93, Code 128, EAN128, Codabar, Plessey, Code 32, Code 11, MSI, GS1 DataBar linear codes, IATA, Follet 2/5, Code 4, Code 5, Codablock F, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 39 Full ASCII, Interleaved 2/5, Standard 2/5, Code 39 CIP, Industrial 2/5, Datalogic 2/5
Kit includes: Scanner PM9100-D433RB, Base BC9030-433,Cable CAB-438, Power Adapter 8-0935, Power Cord 6003-0940
Yes
435 g
Datalogic STAR Cordless System
PowerScan PM9100, Display, RS-232 KIT EU (Base,cable,power adapter/cord)
Art:
PM9100-D433RBK20 Copied
Code 39, Code 93, Code 128, EAN128, Codabar, Plessey, Code 32, Code 11, MSI, GS1 DataBar linear codes, IATA, Follet 2/5, Code 4, Code 5, Codablock F, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 39 Full ASCII, Interleaved 2/5, Standard 2/5, Code 39 CIP, Industrial 2/5, Datalogic 2/5
Kit includes: Scanner PM9100-D433RB, Base BC9030-433, Cable CAB-433, Power Adapter 8-0935, Power Cord 6003-0940
Yes
435 g
Datalogic STAR Cordless System
PowerScan PM9100, Display, RS-232 KIT EU (Base,cable,power adapter/cord)
Art:
PM9100-D910RBK20 Copied
Code 39, Code 93, Code 128, EAN128, Codabar, Plessey, Code 32, Code 11, MSI, GS1 DataBar linear codes, IATA, Follet 2/5, Code 4, Code 5, Codablock F, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 39 Full ASCII, Interleaved 2/5, Standard 2/5, Code 39 CIP, Industrial 2/5, Datalogic 2/5
Kit includes: Scanner PM9100-D910RB, Base BC9030-910, Cable CAB-433, Power Adapter 8-0935, Power Cord 6003-0941
Yes
435 g
Datalogic STAR Cordless System
PowerScan PM9100, 910 MHz, Linear Imager, Display/16-Key, RB
Art:
PM9100-DK910RB Copied
Code 39, Code 93, Code 128, EAN128, Codabar, Plessey, Code 32, Code 11, MSI, GS1 DataBar linear codes, IATA, Follet 2/5, Code 4, Code 5, Codablock F, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 39 Full ASCII, Interleaved 2/5, Standard 2/5, Code 39 CIP, Industrial 2/5, Datalogic 2/5
Removable battery, 16-key keypad display
No
435 g
Datalogic STAR Cordless System
PowerScan PM9100, 910 MHz, Linear Imager, Display/4-Key , RB
Art:
PM9100-D910RB Copied
Code 39, Code 93, Code 128, EAN128, Codabar, Plessey, Code 32, Code 11, MSI, GS1 DataBar linear codes, IATA, Follet 2/5, Code 4, Code 5, Codablock F, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 39 Full ASCII, Interleaved 2/5, Standard 2/5, Code 39 CIP, Industrial 2/5, Datalogic 2/5
Removable battery, 4-key keypad display
No
435 g
Datalogic STAR Cordless System
PowerScan PM9100, Display, USB KIT EU (Base,cable,power adapter/cord)
Art:
PM9100-D910RBK10 Copied
Code 39, Code 93, Code 128, EAN128, Codabar, Plessey, Code 32, Code 11, MSI, GS1 DataBar linear codes, IATA, Follet 2/5, Code 4, Code 5, Codablock F, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 39 Full ASCII, Interleaved 2/5, Standard 2/5, Code 39 CIP, Industrial 2/5, Datalogic 2/5
Kit includes: Scanner PM9100-D910RB, Base BC9030-910, Cable CAB-438, Power Adapter 8-0935, Power Cord 6003-0941
Yes
435 g
Datalogic STAR Cordless System
