DATALOGIC

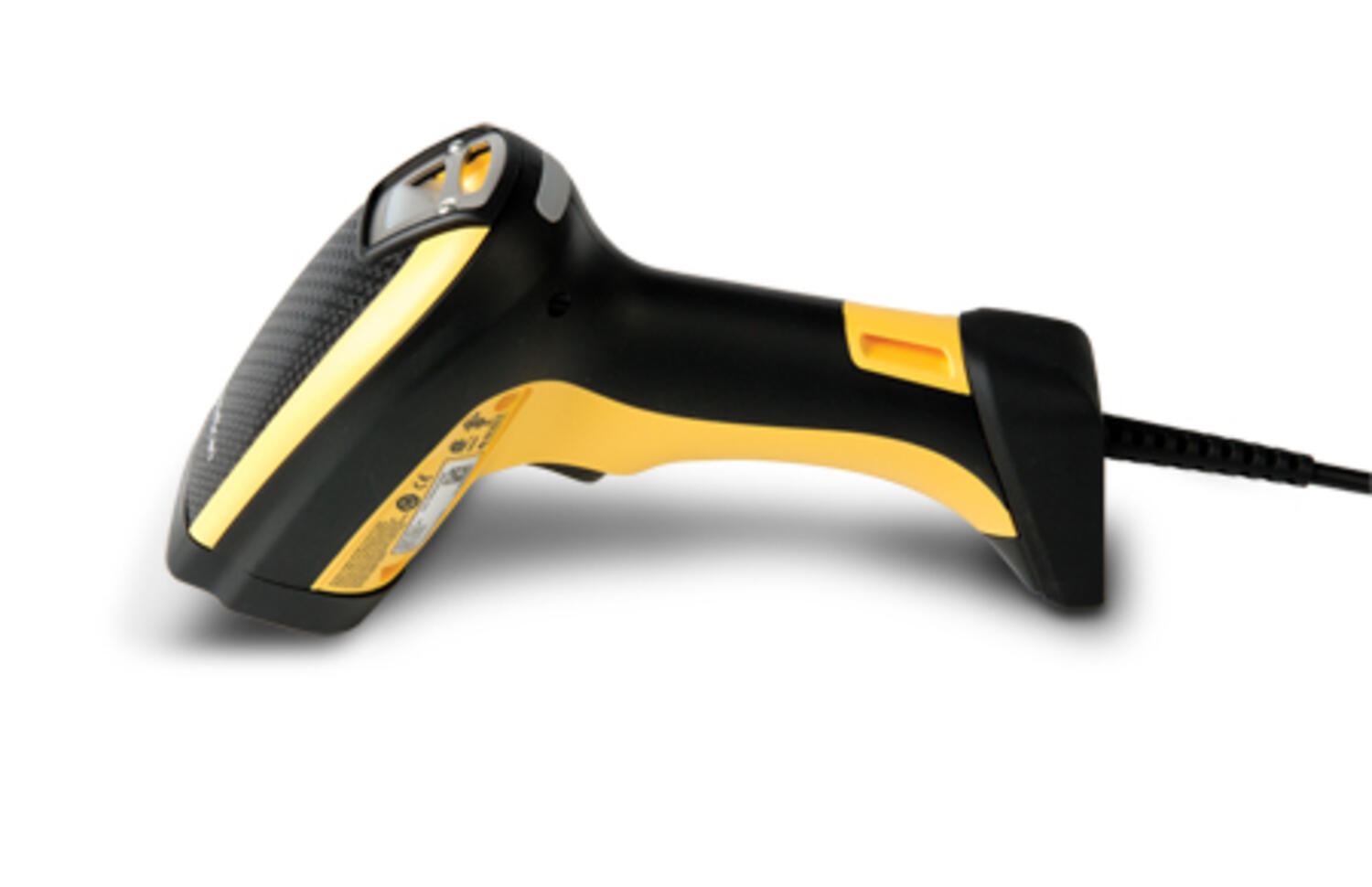

Datalogic PowerScan 9300 AR Series

**OBSOLETE - Please contact [email protected] for possible replacements**

  • Detects 1D code types
  • Auto range models up to 11.5m
  • 40,000+ reads per charge and 35 scans per sec
  • Interfaces: Keyboard wedge, RS-232, USB, RS-485

Selected variant

Available in several variants
DATALOGIC17.eps

Save page as PDF

Technical data / Documents

Accessories & Related products

Selected variant

Technical data

1D Code types Code 39, Code 93, Code 128, EAN128, Codabar, Code 32, MSI, GS1 DataBar linear codes, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 39 Full ASCII, Interleaved 2/5, Standard 2/5
Approvals RoHS
Colour Yellow, Black
Dimension (mm) 212 x 110 x 74
Drop resistance Withstands 50 drops from 6.6ft onto concrete surface
Humidity 0-95% (Non-condensing)
Interface Keyboard wedge, RS-232, USB
IP class IP65
Kit No
Light source 630-680nm VLD
Readable code types 1D / Linear Codes
Reading angle window Pitch:+/-60°; Tilt: +/- 10°; Skew: +/-65°
Reading speed 35+/-5 scans/sec
Storage temperature max 70 °C
Storage temperature min -40 °C
Temperature operational max 50 °C
Temperature operational min -20 °C
Weight 375 g
Wireless No

Downloads

Accessories

Parts Additional features Battery Charge time Interface Kit Reads per charge Weight Wireless Wireless technology Price
Datalogic powerscan heavy duty handheld barcode scanner
**Obsolete - Please contact [email protected] for the replacement**
Art:
PD9330-AR Copied
Keyboard wedge, RS-232, USB
No
375 g
No
Datalogic powerscan heavy duty handheld barcode scanner
**Obsolete - Please contact [email protected] for the replacement**
Art:
PD9330-ARK1 Copied
Kit includes: PD9330-AR Scanner and Cable CAB-550
Keyboard wedge, RS-232, USB
Yes
375 g
No
Datalogic powerscan heavy duty handheld barcode scanner
**Obsolete - Please contact [email protected] for the replacement**
Art:
PD9330-ARK2 Copied
Kit includes: PD9330-AR Scanner and Cable CAB-434
Keyboard wedge, RS-232, USB
Yes
375 g
No
Datalogic powerscan heavy duty handheld barcode scanner
**Obsolete - Please contact [email protected] for the replacement**
Art:
PM9300AR-SD-433K1C Copied
Power supply 8-0935 and power cord not included
Lithium-ion 3350 mAh
4.5 hrs
Keyboard wedge, RS-232, RS-485, USB
Yes
40000
435 g
Yes
Datalogic STAR Cordless System
Datalogic powerscan heavy duty handheld barcode scanner
**Obsolete - Please contact [email protected] for the replacement**
Art:
PM9300AR-SD-910K1C Copied
Power supply 8-0935 and power cord not included
Lithium-ion 3350 mAh
4.5 hrs
Keyboard wedge, RS-232, RS-485, USB
Yes
40000
435 g
Yes
Datalogic STAR Cordless System
Datalogic powerscan heavy duty handheld barcode scanner
**Obsolete - Please contact [email protected] for the replacement**
Art:
PBT9300-ARRB Copied
Removable battery
Lithium-ion 3350 mAh
4.5 hrs
Keyboard wedge, RS-232, USB
No
40000
435 g
Yes
Bluetooth Wireless Technology
Datalogic powerscan heavy duty handheld barcode scanner
**Obsolete - Please contact [email protected] for the replacement**
Art:
PBT9300-ARRBK20EU Copied
Kit includes: PBT9300-ARRB Scanner, BC9030-BT Base, EU Power Brick/Cord and CAB-433 Cable
Lithium-ion 3350 mAh
4.5 hrs
Keyboard wedge, RS-232, USB
Yes
40000
435 g
Yes
Bluetooth Wireless Technology
Datalogic powerscan heavy duty handheld barcode scanner
**Obsolete - Please contact [email protected] for the replacement**
Art:
PBT9300-ARRBK10US Copied
Kit includes: PBT9300-ARRB Scanner, BC9030-BT Base, US Power Brick/Cord and CAB-438 Cable
Lithium-ion 3350 mAh
4.5 hrs
Keyboard wedge, RS-232, USB
Yes
40000
435 g
Yes
Bluetooth Wireless Technology
Datalogic powerscan heavy duty handheld barcode scanner
**Obsolete - Please contact [email protected] for the replacement**
Art:
PM9300-DKAR433RB Copied
Display/16-Key, Removable battery
Lithium-ion 3350 mAh
4.5 hrs
Keyboard wedge, RS-232, RS-485, USB
No
40000
465 g
Yes
Datalogic STAR Cordless System
Datalogic powerscan heavy duty handheld barcode scanner
**Obsolete - Please contact [email protected] for the replacement**
Art:
PM9300-DAR433RB Copied
Display/4-Key, Removable battery
Lithium-ion 3350 mAh
4.5 hrs
Keyboard wedge, RS-232, RS-485, USB
No
40000
465 g
Yes
Datalogic STAR Cordless System
Datalogic powerscan heavy duty handheld barcode scanner
**Obsolete - Please contact [email protected] for the replacement**
Art:
PM9300-AR433RB Copied
Removable battery
Lithium-ion 3350 mAh
4.5 hrs
Keyboard wedge, RS-232, RS-485, USB
No
40000
435 g
Yes
Datalogic STAR Cordless System
Datalogic powerscan heavy duty handheld barcode scanner
**Obsolete - Please contact [email protected] for the replacement**
Art:
PM9300-DKAR910RB Copied
Display/16-Key, Removable battery
Lithium-ion 3350 mAh
4.5 hrs
Keyboard wedge, RS-232, RS-485, USB
No
40000
465 g
Yes
Datalogic STAR Cordless System
Datalogic powerscan heavy duty handheld barcode scanner
**Obsolete - Please contact [email protected] for the replacement**
Art:
PM9300-DAR910RB Copied
Display/4-Key, Removable battery
Lithium-ion 3350 mAh
4.5 hrs
Keyboard wedge, RS-232, RS-485, USB
No
40000
465 g
Yes
Datalogic STAR Cordless System
Datalogic powerscan heavy duty handheld barcode scanner
**Obsolete - Please contact [email protected] for the replacement**
Art:
PM9300-AR910RB Copied
Removable battery
Lithium-ion 3350 mAh
4.5 hrs
Keyboard wedge, RS-232, RS-485, USB
No
40000
435 g
Yes
Datalogic STAR Cordless System
Datalogic powerscan heavy duty handheld barcode scanner
**Obsolete - Please contact [email protected] for the replacement**
Art:
PM9300-AR433RBK20 Copied
Kit includes: PM9300-AR433RB Scanner, BC9030-433 Base, EU Power Brick/Cord and CAB-433 Cable
Lithium-ion 3350 mAh
4.5 hrs
Keyboard wedge, RS-232, RS-485, USB
Yes
40000
435 g
Yes
Datalogic STAR Cordless System
Datalogic powerscan heavy duty handheld barcode scanner
**Obsolete - Please contact [email protected] for the replacement**
Art:
PM9300-AR910RBK20 Copied
Kit includes: PM9300-AR910RB Scanner, BC9030-910 Base, US Power Brick/Cord and CAB-433 Cable
Lithium-ion 3350 mAh
4.5 hrs
Keyboard wedge, RS-232, RS-485, USB
Yes
40000
435 g
Yes
Datalogic STAR Cordless System
Datalogic powerscan heavy duty handheld barcode scanner
**Obsolete - Please contact [email protected] for the replacement**
Art:
PM9300-AR433RBK10 Copied
Kit includes: PM9300-AR433RB Scanner, BC9030-433 Base, EU Power Brick/Cord and CAB-438 Cable
Lithium-ion 3350 mAh
4.5 hrs
Keyboard wedge, RS-232, RS-485, USB
Yes
40000
435 g
Yes
Datalogic STAR Cordless System
Datalogic powerscan heavy duty handheld barcode scanner
**Obsolete - Please contact [email protected] for the replacement**
Art:
PM9300-AR910RBK10 Copied
Kit includes: PM9300-AR910RB Scanner, BC9030-910 Base, US Power Brick/Cord and CAB-438 Cable
Lithium-ion 3350 mAh
4.5 hrs
Keyboard wedge, RS-232, RS-485, USB
Yes
40000
435 g
Yes
Datalogic STAR Cordless System
