Last time buy of the MATRIX410N is 31.12.2023. The possible replacement product would be from the MATRIX320N family.
Â
You can find the web page here: Datalogic Matrix 320 Imager MATRIX320700-030 | OEM Automatic Ltd
Â
The Matrix 410Nâ„¢ has an ultra-fast image sensor performing at 2.0 megapixels and a frme rate of 45 frames per second, and is a 2D imager purpose built for the most complex traceability application in material handling and logistics.
Â
With multiple communication interface options increasing flexibility and cost effectiveness, the Matrix 410Nâ„¢ offers Ethernet connectivity embedded, including standard communication such as TCP/IP, HTTP, FTP, as well as common industrial fieldbus communication protocols, like PROFINET IO, EtherNet/IP, Modbus TCP/IP. Equipped with features for increased ease of use and configurability, the Matrix 410Nâ„¢ has the option for a single or multi-device layout for scanning over large areas or multiple signs.
Â
An easy to use grapgical use interface is powred by DL.CODE, supporting in-line monitoring functionality, including live image display, reading statistics and diagnostics. With image saving capability for reading case review, e.g. no reads, the Matrix 410N can store up to 3,000 images either onboard or at an external FTP client.
| 1D Code types | Code 39, Code 128, Interleaved 2/5 |
|---|---|
| 2D Code Types | Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code |
| Digital inputs | 2 |
| Digital outputs | 2 |

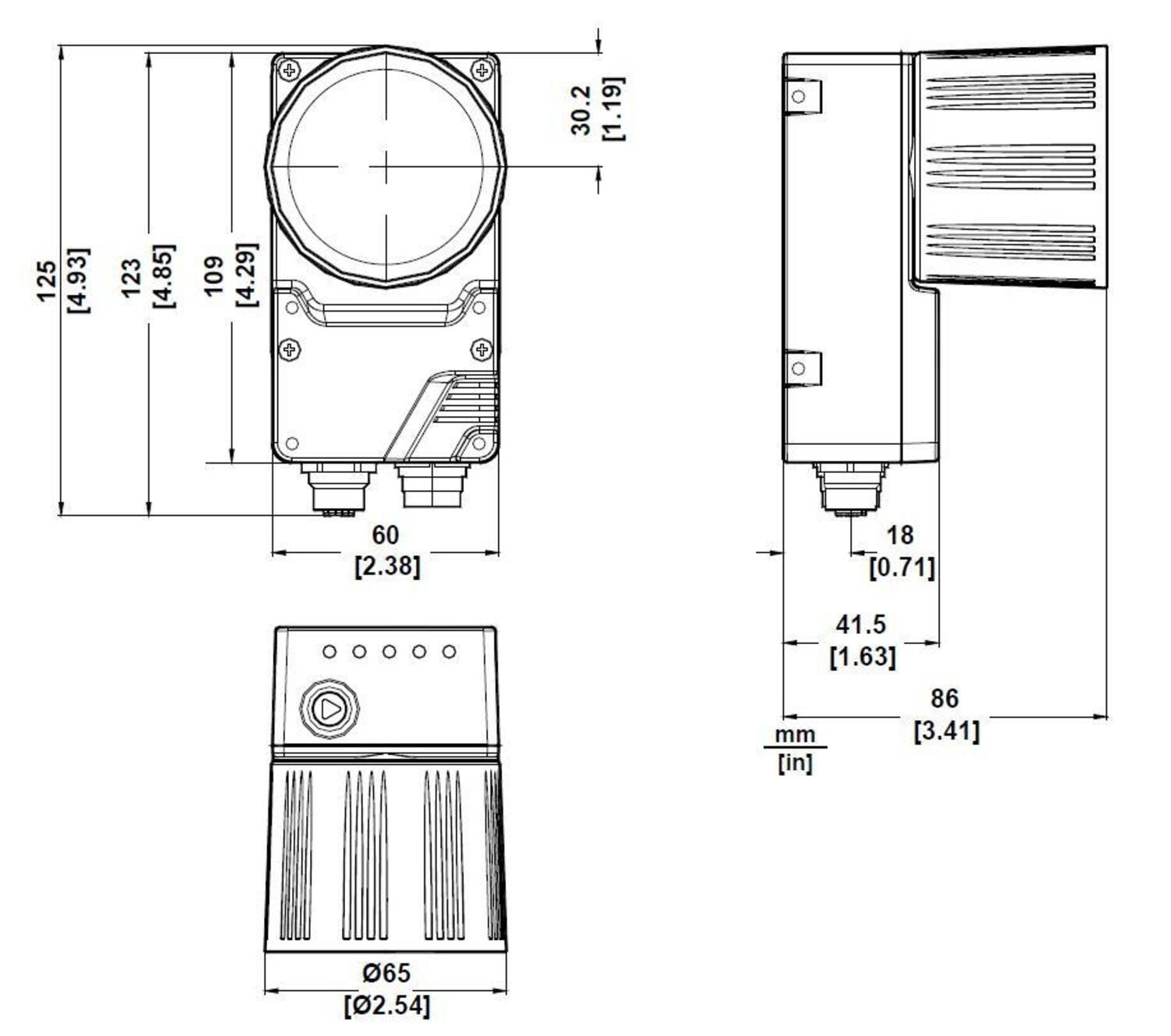

| Dimension (mm) | 123 x 60.5 x 87 |
| Frame rate max | 60 fps |
| Integrated communication interface | RS232 + RS232/RS422/RS485, Ethernet IEEE 802.3 Base T & IEEE 802.3U 100 BaseTX compliant, ID-NET |
| IP class | IP67 |
| Material of body | Aluminium |
| Postal Code Types | Planet Code, Postnet, Royal Mail Code (RM4SCC), Japan Postal |
| Power consumption | 8 W |
| Programming options | X-PRESS Human Machine Interface, Windows-based SW (DL.CODE) Ethernet link |
|---|---|
| Readable code types | 1D / Linear Codes, 2D Codes, Postal Codes, Stacked Codes |
| Sensor Type | CMOS |
| Stacked Code Types | Pharmacode, Micro PDF 417, PDF 417, UPC/EAN, GS1 Databar Family |
| Storage temperature max | 70 °C |
| Storage temperature min | -20 °C |
| Supply voltage | 10-30 V DC |
| Temperature operational max | 50 °C |
| Temperature operational min | 0 °C |
| Weight | 482 g |
Last time buy of the MATRIX410N is 31.12.2023. The possible replacement product would be from the MATRIX320N family.
Â
You can find the web page here: Datalogic Matrix 320 Imager MATRIX320700-030 | OEM Automatic Ltd
Â
The Matrix 410Nâ„¢ has an ultra-fast image sensor performing at 2.0 megapixels and a frme rate of 45 frames per second, and is a 2D imager purpose built for the most complex traceability application in material handling and logistics.
Â
With multiple communication interface options increasing flexibility and cost effectiveness, the Matrix 410Nâ„¢ offers Ethernet connectivity embedded, including standard communication such as TCP/IP, HTTP, FTP, as well as common industrial fieldbus communication protocols, like PROFINET IO, EtherNet/IP, Modbus TCP/IP. Equipped with features for increased ease of use and configurability, the Matrix 410Nâ„¢ has the option for a single or multi-device layout for scanning over large areas or multiple signs.
Â
An easy to use grapgical use interface is powred by DL.CODE, supporting in-line monitoring functionality, including live image display, reading statistics and diagnostics. With image saving capability for reading case review, e.g. no reads, the Matrix 410N can store up to 3,000 images either onboard or at an external FTP client.
OEM Automatic's barcode scanner experts have broken down barcode technology to help you choose the right scanner for your application!
We are pleased to announce that OEM Automatic Ltd has acquired Motion29 Ltd. Bringing together the expertise, products, and services of both organisations under both the OEM and Motion29 brands, strengthening our overall offering.
Discover how fault masking is compromising the safety of your workplace and find out how OEM Automatic can help you to prevent it completely. Creating a safe and secure work environment.
Learn more about Inxpect radar systems. The worlds first SIL 2/PL d certified, radar-based safety system for use around hazardous machinery.
Whether you're working with opaque materials or transparent items like glass or plastic, these sensors deliver reliable performance across a wide range of applications.
Have you ever wondered if there's any difference between cable coils and cable reels?
Our cable experts take you through the advantages of using cable coils.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Frame rate max | Price | ||
|---|---|---|---|---|
MATRIX 410N 500-010 1.3MP-60FPS-ETH - Replaced by - MATRIX320700-030 - CM 2MP 1/3"
Art:
MATRIX410N500010
Copied
|
60 fps
|
|
||
|
MATRIX 410N 700-010 2.0MP-45FPS-ETH - Replaced by - MATRIX320700-030 - CM 2MP 1/3"
Art:
MATRIX410N700010
Copied
|
45 fps
|
|
