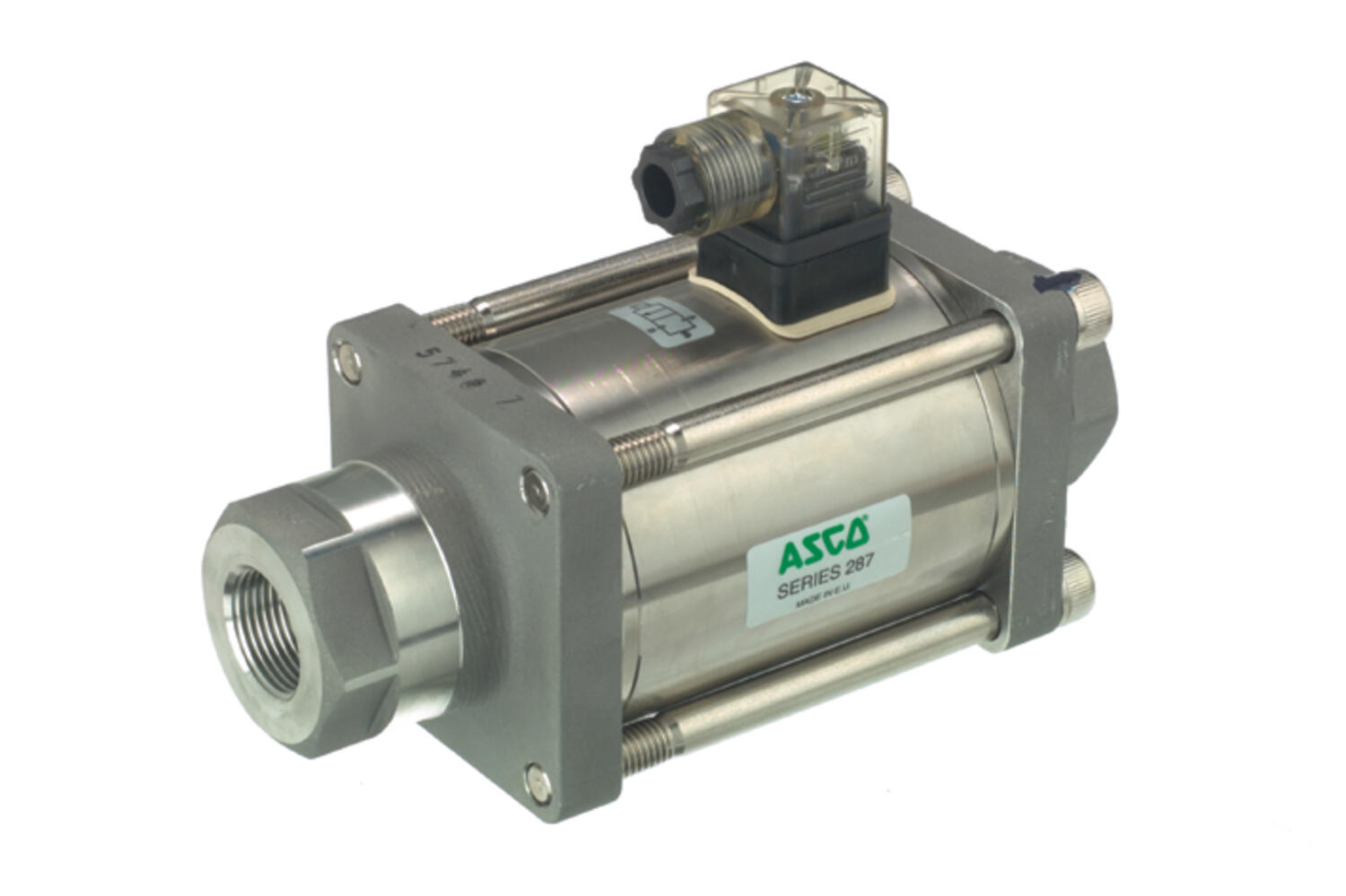

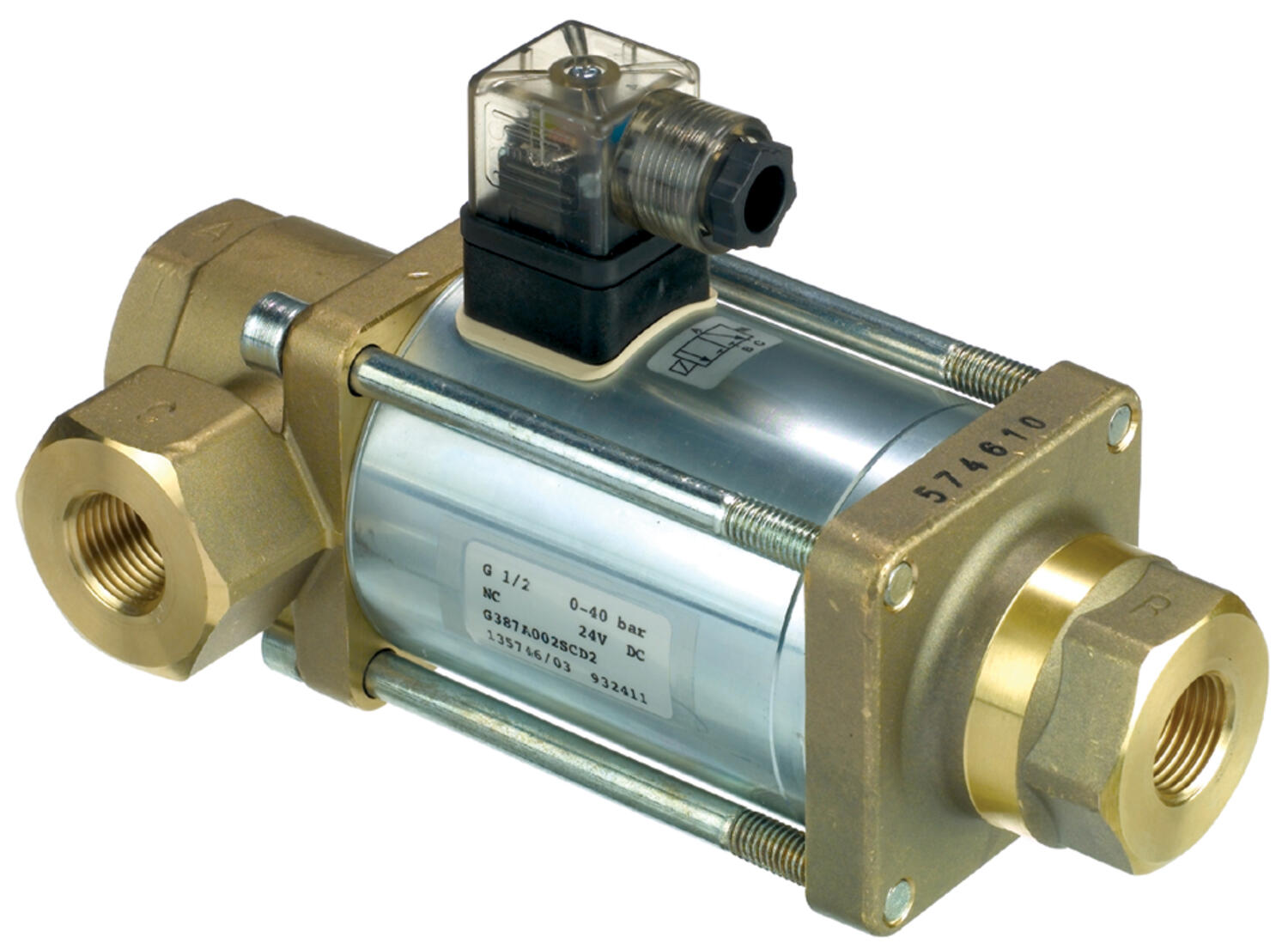

Coaxial valves are used in applications for high pressure and high flows. The coaxial valve can accomodate flow in both dircetions. Coaxial valves are available in electrically controlled versions and pressure controlled namur versions.
Model SCG287 | Function |
|
Model SCG387 | Function |
|
Model G287/Namur | Function |
|
Model G387/Namur | Function |
|
For more information contact OEM Automatic, product area Pressure & Flow and order a separate catalogue.
Connection | 3/8 BSP |
---|---|
Differential air pressure max | 40 bar |
Differential oil pressure max | 40 bar |
Differential pressure max | 40 bar |
Differential pressure min | 0 bar |
Differential water pressure max | 40 bar |
Flow max | 36.6 l/min |
Function 1 | 2/2 |
Function 2 | Normally Closed |
---|---|
Material body | Brass |
Temperature of media from | -20 °C |
Temperature of media to | 100 °C |
Throughput | 10 mm |
Voltage AC | 230 V |
Coaxial valves are used in applications for high pressure and high flows. The coaxial valve can accomodate flow in both dircetions. Coaxial valves are available in electrically controlled versions and pressure controlled namur versions.
Model SCG287 | Function |
|
Model SCG387 | Function |
|
Model G287/Namur | Function |
|
Model G387/Namur | Function |
|
For more information contact OEM Automatic, product area Pressure & Flow and order a separate catalogue.
OEM Automatics water and wastewater application specialists have gathered all our solutions in one place. Our products are used in everything from small municipal water works to larger regional plants.
Whether you’re pumping water, chocolate, oil or peanut butter knowing the product’s viscosity is essential to selecting the right pump. Find out more about viscosity and which pump may be suitable for your application!
Whether you're looking to upgrade your current solution or secure a more robust float switch for your next project, Taurus delivers performance you can count on.
When choosing between a pressure switch and a pressure sensor, the key lies in understanding your application. Our Pressure Monitoring experts breaks down the two devices for you.
Pumps are now officially part of our product offering! As we build our pump portfolio, we’re proud to announce that we are an official distributor of SAMOA Industrial, a well-established name in the fluid handling industry.
OEM Automatic's barcode scanner experts have broken down barcode technology to help you choose the right scanner for your application!
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Connection | Differential pressure max | Flow max | Function 2 | Material body | Throughput | Price | ||
---|---|---|---|---|---|---|---|---|---|
![]()
Art:
SCG287A001
Copied
|
3/8 BSP
|
40 bar
|
36.6 l/min
|
Normally Closed
|
Brass
|
10 mm
|
| ||
![]()
Art:
SCG287A009
Copied
|
3/8 BSP
|
|
36.6 l/min
|
Normally Closed
|
Stainless steel
|
10 mm
|
| ||
![]()
Art:
SCG287A002
Copied
|
1/2 BSP
|
40 bar
|
86.6 l/min
|
Normally Closed
|
Brass
|
15 mm
|
| ||
![]()
Art:
SCG287A010
Copied
|
1/2 BSP
|
|
86.6 l/min
|
Normally Closed
|
Stainless steel
|
15 mm
|
| ||
![]()
Art:
SCG287A003
Copied
|
3/4 BSP
|
40 bar
|
125 l/min
|
Normally Closed
|
Brass
|
20 mm
|
| ||
![]()
Art:
SCG287A011
Copied
|
3/4 BSP
|
|
125 l/min
|
Normally Closed
|
Stainless steel
|
20 mm
|
| ||
![]()
Art:
SCG287A004
Copied
|
3/4 BSP
|
40 bar
|
203.3 l/min
|
Normally Closed
|
Brass
|
20 mm
|
| ||
![]()
Art:
SCG287A012
Copied
|
G1
|
|
203.3 l/min
|
Normally Closed
|
Stainless steel
|
20 mm
|
| ||
![]()
Art:
SCG287A005
Copied
|
3/8 BSP
|
|
36.6 l/min
|
Normally open
|
Brass
|
10 mm
|
| ||
![]()
Art:
SCG287A013
Copied
|
3/8 BSP
|
|
36.6 l/min
|
Normally open
|
Stainless steel
|
10 mm
|
| ||
![]()
Art:
SCG287A006
Copied
|
1/2 BSP
|
|
86.6 l/min
|
Normally open
|
Brass
|
15 mm
|
| ||
![]()
Art:
SCG287A014
Copied
|
1/2 BSP
|
|
86.6 l/min
|
Normally open
|
Stainless steel
|
15 mm
|
| ||
![]()
Art:
SCG287A007
Copied
|
3/4 BSP
|
|
125 l/min
|
Normally open
|
Brass
|
20 mm
|
| ||
![]()
Art:
SCG287A015
Copied
|
3/4 BSP
|
|
125 l/min
|
Normally open
|
Stainless steel
|
20 mm
|
| ||
![]()
Art:
SCG287A008
Copied
|
G1
|
|
203.3 l/min
|
Normally open
|
Brass
|
20 mm
|
| ||
![]()
Art:
SCG287A016
Copied
|
G1
|
40 bar
|
203.3 l/min
|
Normally open
|
Stainless steel
|
20 mm
|
|
