Selected variant
Technical data
| Approvals | FDA |
|---|---|
| Area of apllication | Water, Food |
| IP class | IP67, IP69K |
| Material cover | PMMA |
| Material detector | Sapphire |
| Material of connection | Stainless steel 316L |
| Material of seals | EPDM food approved |
| Material of sensor housing | Stainless steel 1.4305 |
| Pressure resistance max | 10 bar |
|---|---|
| Supply voltage dc max | 36 V DC |
| Supply voltage dc min | 18 V DC |
| Temperature ambient from | -10 °C |
| Temperature ambient to | 60 °C |
| Temperature of media from | 0 °C |
| Temperature of media to | 100 °C |
Ordering information

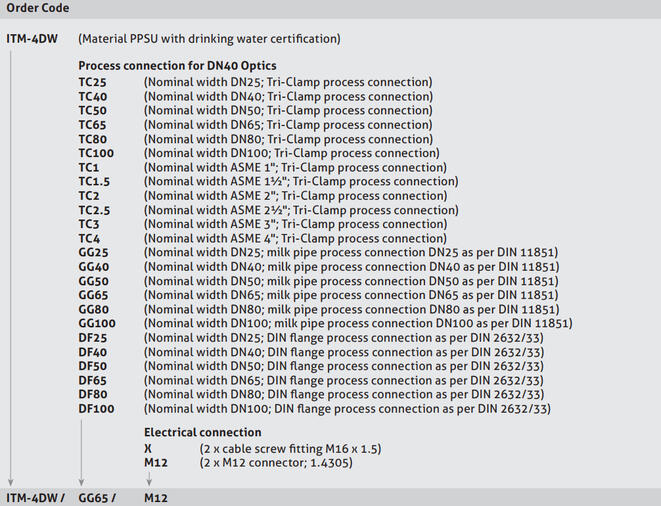

Please refer to the image below for ordering information.
