Selected variant
Technical data
General Data |
|
|---|---|
| Flow factor / flow coefficient | 0,45 |
| IP class | IP65 |
Material Data |
|
| Material body | Brass |
| Material of seals | FPM |
Temperature Data |
|
| Temperature of media from | -20 °C |
| Temperature of media to | 120 °C |
Additional Data |
|
|---|---|
| Response time | 100 ms |
| Viscosity max | 65 cSt |
| Weight | 0.95 kg |
| Power consumption | 10 W |
| Throughput | 5.7 mm |
| Type of valve | Solenoid valve |
| Voltage AC | 230 V |
| Temperature operational min | -40 °C |
| Temperature operational max | 55 °C |
| Material coil | Epoxy |
| Connection port 1-2 | G1/4 |
| Connection port 3 | G1/4 |
| Differential air pressure max | 10 bar |
| Differential pressure max | 10 bar |
| Differential pressure min | 0 bar |
| Differential water pressure max | 10 bar |
| Flow max | 7.5 l/min |

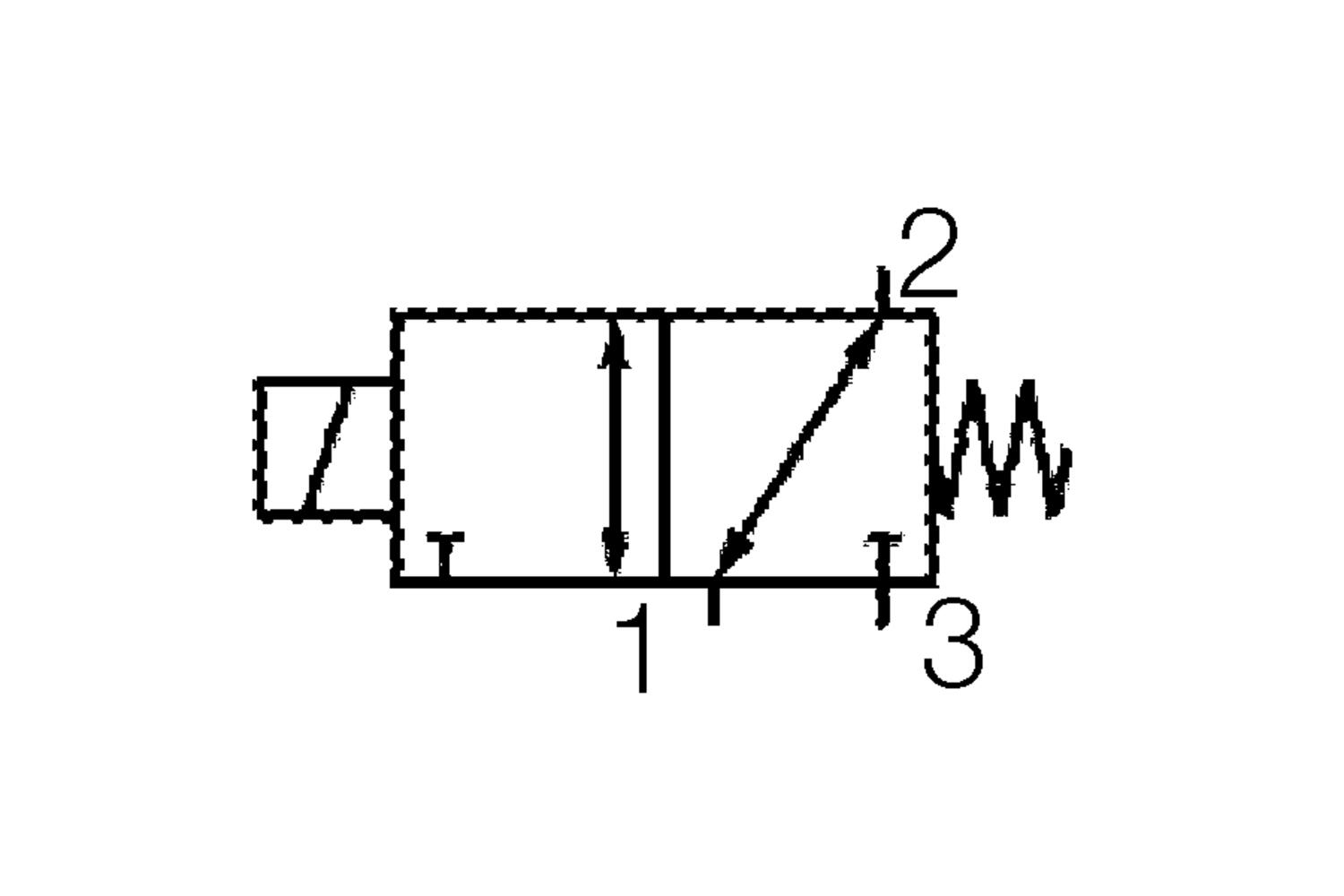

| Function 1 | 3/2 |
| Function 2 | Universal |
| Material plunger | Stainless steel |
| Material glide ring | PTFE |
| Material seat seal | FPM |
| Material spring | Stainless steel |
