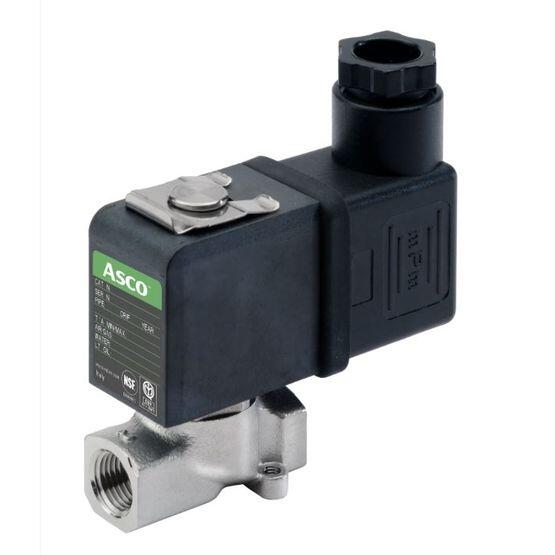

Emerson ASCO Solenoid Valve Series 256 Stainless steel

Direct Acting

The Emerson ASCO 256 Stainless Steel Solenoid Valve is a direct acting, 2/2-way valve available in normally closed or open configurations. It comes in multiple port sizes, including G1/8", G1/4", 1/8" NPT, and 1/4" NPT, offering installation flexibility. Designed to shut off both liquid and gaseous fluids, it supports a wide range of seal materials such as FPM, EPDM, NBR, RUBY, and HNBR. With an operating pressure differential of up to 30 bar and an IP67 protection rating, it ensures reliable performance even in demanding environments.
  • 2/2 Normally Closed or Open G1/8", G1/4", 1/8" NPT, 1/4" NPT
  • FPM, EPDM, NBR, RUBY & HNBR Seals Available
  • Suitable To Shut Off Liquid & Gasesous Fluids
  • Operating Pressure Differential: Up to 30 Bar
  • IP67

Selected variant

Available in several variants
ASCO_produktniva.tif

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

General Data
Function 2/2, Normally Closed
Connection 1/4 NPT
Electrical connection DIN 46350 - 3 pole plug connector
Operating Pressure Differential 0-30 bar
Flow factor / flow coefficient 0.1
Voltage / Frequency 110V/50 Hz
IP class IP67

Material Data
Material body Stainless steel 316
Material of seals EPDM
Material seat Stainless steel 303
Material of core tube Stainless steel

*Invisible Heading*
Material internal parts Brass, Stainless steel, Copper
Encapsulation material thermoplastic

Temperature Data
Temperature ambient from -10 °C
Temperature ambient to 60 °C
Temperature of media from -10 °C
Temperature of media to 140 °C

Additional Data
Viscosity max 40 cSt
Continuous duty ED 100%
Insulation class F (155°C) pending H (180°C)

Downloads

Product description

The Emerson ASCO 256 Stainless Steel Solenoid Valve is a compact, direct acting solution ideal for precise control of a wide range of fluids. This 2/2-way valve, available in normally closed or open configurations, supports various port sizes including G1/8", G1/4", 1/8" NPT, and 1/4" NPT, making it adaptable to many system requirements. Its high-quality construction and availability of multiple seal options—FPM, EPDM, NBR, RUBY, and HNBR—ensure compatibility with both aggressive and inert liquids and gases. Designed to handle an operating pressure differential of up to 30 bar, it also features an IP67 rating, offering excellent resistance to dust and water ingress.

Built for demanding industrial environments, the ASCO 256 is suitable for applications in industrial automation, analytical instrumentation, medical devices, and process control systems. Its stainless-steel body ensures corrosion resistance and long-term reliability, even in harsh conditions. The valve’s fast response time and compact design make it a go-to choice for OEMs and system integrators looking for dependable performance in tight spaces. Whether shutting off liquid or gaseous fluids, the ASCO 256 delivers efficient and consistent operation across a broad range of industries.

Accessories

Related

Tecnoplastic float switch
Product news

Float switches built to perform and ready to ship

Whether you're looking to upgrade your current solution or secure a more robust float switch for your next project, Taurus delivers performance you can count on.

SAMOA pumps
Product news

We offer air diaphragm pumps by SAMOA

Pumps are now officially part of our product offering! As we build our pump portfolio, we’re proud to announce that we are an official distributor of SAMOA Industrial, a well-established name in the fluid handling industry.

jungs process systems hyghspin
Blog Learning hub

7 advantages of using HYGHSPIN twin screw pumps

This blog post demonstrates 7 strong reasons production plants choose the HYGHSPIN twin screw pump by Jung Process Systems

suco pressure switches
Blog Learning hub

Select the pressure switch for you a step by step guide

When selecting a SUCO mechanical pressure switch, it's essential to consider several key factors...

emerson 327c
Product news Blog

Function test without opening the enclosure Emerson 327c

When it comes to solenoid valves, reliability and ease of maintenance are essential. That’s why our new Emerson, high flow solenoid valve is designed with unique features that streamline testing, commissioning, and ongoing operation.

IATECH, the industrial automation technology exhibition OEM automatic
Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

Parts Function Connection Operating Pressure Differential Flow factor / flow coefficient Voltage / Frequency Material of seals Material seat Temperature of media from Temperature of media to Power consumption Response time Weight Power consumption Throughput Voltage dc Differential pressure max Flow max Function 2 Manual operation Material of body Voltage AC Price
2/2 N.C., 1/4" NPT, 0-30 bar, 0.1, EPDM, 110V/50Hz, IP67,
Art:
8256C111S1E00F0 Copied
2/2, Normally Closed
1/4 NPT
0-30 bar
0.1
110V/50 Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-30 bar, 0.1, EPDM, 24VDC, IP67,
Art:
8256C111S1E00F1 Copied
2/2, Normally Closed
1/4 NPT
0-30 bar
0.1
24VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-30 bar, 0.1, EPDM, 12VDC, IP67,
Art:
8256C111S1E00F3 Copied
2/2, Normally Closed
1/4 NPT
0-30 bar
0.1
12VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-30 bar, 0.1, EPDM, 230V/50Hz, IP67,
Art:
8256C111S1E00FH Copied
2/2, Normally Closed
1/4 NPT
0-30 bar
0.1
230V/50Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-30 bar, 0.1, EPDM, 24/50Hz, IP67,
Art:
8256C111S1E00FQ Copied
2/2, Normally Closed
1/4 NPT
0-30 bar
0.1
24V/50Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-30 bar, 0.1, FPM, 110V/50Hz, IP67,
Art:
8256C111S1V00F0 Copied
2/2, Normally Closed
1/4 NPT
0-30 bar
0.1
110V/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-30 bar, 0.1, FPM, 24VDC, IP67,
Art:
8256C111S1V00F1 Copied
2/2, Normally Closed
1/4 NPT
0-30 bar
0.1
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-30 bar, 0.1, FPM, 12VDC, IP67,
Art:
8256C111S1V00F3 Copied
2/2, Normally Closed
1/4 NPT
0-30 bar
0.1
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-30 bar, 0.1, FPM, 230V/50Hz, IP67,
Art:
8256C111S1V00FH Copied
2/2, Normally Closed
1/4 NPT
0-30 bar
0.1
230V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-30 bar, 0.1, FPM, 24/50Hz, IP67,
Art:
8256C111S1V00FQ Copied
2/2, Normally Closed
1/4 NPT
0-30 bar
0.1
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-18 bar, 0.18, EPDM, 24VDC, IP67,
Art:
8256C113S1E00F1 Copied
2/2, Normally Closed
1/4 NPT
0-18 bar
0.18
24VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-18 bar, 0.18, EPDM, 12VDC, IP67,
Art:
8256C113S1E00F3 Copied
2/2, Normally Closed
1/4 NPT
0-18 bar
0.18
12VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-18 bar, 0.18, FPM, 24VDC, IP67,
Art:
8256C113S1V00F1 Copied
2/2, Normally Closed
1/4 NPT
0-18 bar
0.18
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-18 bar, 0.18, FPM, 12VDC, IP67,
Art:
8256C113S1V00F3 Copied
2/2, Normally Closed
1/4 NPT
0-18 bar
0.18
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-6 bar, 0.3, EPDM, 24VDC, IP67,
Art:
8256C115S1E00F1 Copied
2/2, Normally Closed
1/4 NPT
0-6 bar
0.3
24VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-6 bar, 0.3, EPDM, 12VDC, IP67,
Art:
8256C115S1E00F3 Copied
2/2, Normally Closed
1/4 NPT
0-6 bar
0.3
12VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-6 bar, 0.3, FPM, 24VDC, IP67,
Art:
8256C115S1V00F1 Copied
2/2, Normally Closed
1/4 NPT
0-6 bar
0.3
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-6 bar, 0.3, FPM, 12VDC, IP67,
Art:
8256C115S1V00F3 Copied
2/2, Normally Closed
1/4 NPT
0-6 bar
0.3
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-3 bar, 0.4, EPDM, 24VDC, IP67,
Art:
8256C116S1E00F1 Copied
2/2, Normally Closed
1/4 NPT
0-3 bar
0.4
24VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-3 bar, 0.4, EPDM, 12VDC, IP67,
Art:
8256C116S1E00F3 Copied
2/2, Normally Closed
1/4 NPT
0-3 bar
0.4
12VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-3 bar, 0.4, FPM, 24VDC, IP67,
Art:
8256C116S1V00F1 Copied
2/2, Normally Closed
1/4 NPT
0-3 bar
0.4
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-3 bar, 0.4, FPM, 12VDC, IP67,
Art:
8256C116S1V00F3 Copied
2/2, Normally Closed
1/4 NPT
0-3 bar
0.4
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-2 bar, 0.48, EPDM, 24VDC, IP67,
Art:
8256C117S1E00F1 Copied
2/2, Normally Closed
1/4 NPT
0-2 bar
0.48
24VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-2 bar, 0.48, EPDM, 12VDC, IP67,
Art:
8256C117S1E00F3 Copied
2/2, Normally Closed
1/4 NPT
0-2 bar
0.48
12VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-2 bar, 0.48, FPM, 24VDC, IP67,
Art:
8256C117S1V00F1 Copied
2/2, Normally Closed
1/4 NPT
0-2 bar
0.48
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-2 bar, 0.48, FPM, 12VDC, IP67,
Art:
8256C117S1V00F3 Copied
2/2, Normally Closed
1/4 NPT
0-2 bar
0.48
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-30 bar, 0.1, EPDM, 24VDC, IP67,
Art:
8256C127S1E00F1 Copied
2/2, Normally Closed
1/4 NPT
0-30 bar
0.1
24VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-30 bar, 0.1, EPDM, 12VDC, IP67,
Art:
8256C127S1E00F3 Copied
2/2, Normally Closed
1/4 NPT
0-30 bar
0.1
12VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-30 bar, 0.1, FPM, 24VDC, IP67,
Art:
8256C127S1V00F1 Copied
2/2, Normally Closed
1/4 NPT
0-30 bar
0.1
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-30 bar, 0.1, FPM, 12VDC, IP67,
Art:
8256C127S1V00F3 Copied
2/2, Normally Closed
1/4 NPT
0-30 bar
0.1
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-20 bar, 0.18, EPDM, 110V/50Hz, IP67,
Art:
8256C129S1E00F0 Copied
2/2, Normally Closed
1/4 NPT
0-20 bar
0.18
110V/50 Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-20 bar, 0.18, EPDM, 24VDC, IP67,
Art:
8256C129S1E00F1 Copied
2/2, Normally Closed
1/4 NPT
0-20 bar
0.18
24VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-20 bar, 0.18, EPDM, 12VDC, IP67,
Art:
8256C129S1E00F3 Copied
2/2, Normally Closed
1/4 NPT
0-20 bar
0.18
12VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-20 bar, 0.18, EPDM, 230V/50Hz, IP67,
Art:
8256C129S1E00FH Copied
2/2, Normally Closed
1/4 NPT
0-20 bar
0.18
230V/50Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-20 bar, 0.18, EPDM, 24/50Hz, IP67,
Art:
8256C129S1E00FQ Copied
2/2, Normally Closed
1/4 NPT
0-20 bar
0.18
24V/50Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-20 bar, 0.18, FPM, 110V/50Hz, IP67,
Art:
8256C129S1V00F0 Copied
2/2, Normally Closed
1/4 NPT
0-20 bar
0.18
110V/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-20 bar, 0.18, FPM, 24VDC, IP67,
Art:
8256C129S1V00F1 Copied
2/2, Normally Closed
1/4 NPT
0-20 bar
0.18
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-20 bar, 0.18, FPM, 12VDC, IP67,
Art:
8256C129S1V00F3 Copied
2/2, Normally Closed
1/4 NPT
0-20 bar
0.18
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-20 bar, 0.18, FPM, 230V/50Hz, IP67,
Art:
8256C129S1V00FH Copied
2/2, Normally Closed
1/4 NPT
0-20 bar
0.18
230V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-20 bar, 0.18, FPM, 24/50Hz, IP67,
Art:
8256C129S1V00FQ Copied
2/2, Normally Closed
1/4 NPT
0-20 bar
0.18
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-15 bar, 0.3, EPDM, 110V/50Hz, IP67,
Art:
8256C131S1E00F0 Copied
2/2, Normally Closed
1/4 NPT
0-15 bar
0.3
110V/50 Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-12 bar, 0.3, EPDM, 24VDC, IP67,
Art:
8256C131S1E00F1 Copied
2/2, Normally Closed
1/4 NPT
0-12 bar
0.3
24VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-12 bar, 0.3, EPDM, 12VDC, IP67,
Art:
8256C131S1E00F3 Copied
2/2, Normally Closed
1/4 NPT
0-12 bar
0.3
12VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-15 bar, 0.3, EPDM, 230V/50Hz, IP67,
Art:
8256C131S1E00FH Copied
2/2, Normally Closed
1/4 NPT
0-15 bar
0.3
230V/50Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-15 bar, 0.3, EPDM, 24/50Hz, IP67,
Art:
8256C131S1E00FQ Copied
2/2, Normally Closed
1/4 NPT
0-15 bar
0.3
24V/50Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-15 bar, 0.3, FPM, 110V/50Hz, IP67,
Art:
8256C131S1V00F0 Copied
2/2, Normally Closed
1/4 NPT
0.3
110V/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-12 bar, 0.3, FPM, 24VDC, IP67,
Art:
8256C131S1V00F1 Copied
2/2, Normally Closed
1/4 NPT
0-12 bar
0.3
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-12 bar, 0.3, FPM, 12VDC, IP67,
Art:
8256C131S1V00F3 Copied
2/2, Normally Closed
1/4 NPT
0-12 bar
0.3
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-15 bar, 0.3, FPM, 230V/50Hz, IP67,
Art:
8256C131S1V00FH Copied
2/2, Normally Closed
1/4 NPT
0-15 bar
0.3
230V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-15 bar, 0.3, FPM, 24/50Hz, IP67,
Art:
8256C131S1V00FQ Copied
2/2, Normally Closed
1/4 NPT
0-15 bar
0.3
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-8 bar, 0.4, EPDM, 110V/50Hz, IP67,
Art:
8256C132S1E00F0 Copied
2/2, Normally Closed
1/4 NPT
0-8 bar
0.4
110V/50 Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-6 bar, 0.4, EPDM, 24VDC, IP67,
Art:
8256C132S1E00F1 Copied
2/2, Normally Closed
1/4 NPT
0-6 bar
0.4
24VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-6 bar, 0.4, EPDM, 12VDC, IP67,
Art:
8256C132S1E00F3 Copied
2/2, Normally Closed
1/4 NPT
0-6 bar
0.4
12VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-8 bar, 0.4, EPDM, 230V/50Hz, IP67,
Art:
8256C132S1E00FH Copied
2/2, Normally Closed
1/4 NPT
0-8 bar
0.4
230V/50Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-8 bar, 0.4, EPDM, 24/50Hz, IP67,
Art:
8256C132S1E00FQ Copied
2/2, Normally Closed
1/4 NPT
0-8 bar
0.4
24V/50Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-8 bar, 0.4, FPM, 110V/50Hz, IP67,
Art:
8256C132S1V00F0 Copied
2/2, Normally Closed
1/4 NPT
0-8 bar
0.4
110V/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-6 bar, 0.4, FPM, 24VDC, IP67,
Art:
8256C132S1V00F1 Copied
2/2, Normally Closed
1/4 NPT
0-6 bar
0.4
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-6 bar, 0.4, FPM, 12VDC, IP67,
Art:
8256C132S1V00F3 Copied
2/2, Normally Closed
1/4 NPT
0-6 bar
0.4
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-8 bar, 0.4, FPM, 230V/50Hz, IP67,
Art:
8256C132S1V00FH Copied
2/2, Normally Closed
1/4 NPT
0-8 bar
0.4
230V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-8 bar, 0.4, FPM, 24/50Hz, IP67,
Art:
8256C132S1V00FQ Copied
2/2, Normally Closed
1/4 NPT
0-8 bar
0.4
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-5 bar, 0.48, EPDM, 110V/50Hz, IP67,
Art:
8256C133S1E00F0 Copied
2/2, Normally Closed
1/4 NPT
0-5 bar
0.48
110V/50 Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-4 bar, 0.48, EPDM, 24VDC, IP67,
Art:
8256C133S1E00F1 Copied
2/2, Normally Closed
1/4 NPT
0-4 bar
0.48
24VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-4 bar, 0.48, EPDM, 12VDC, IP67,
Art:
8256C133S1E00F3 Copied
2/2, Normally Closed
1/4 NPT
0-4 bar
0.48
12VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-5 bar, 0.48, EPDM, 230V/50Hz, IP67,
Art:
8256C133S1E00FH Copied
2/2, Normally Closed
1/4 NPT
0-5 bar
0.48
230V/50Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-5 bar, 0.48, EPDM, 24/50Hz, IP67,
Art:
8256C133S1E00FQ Copied
2/2, Normally Closed
1/4 NPT
0-5 bar
0.48
24V/50Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/4" NPT, 0-5 bar, 0.48, FPM, 110V/50Hz, IP67,
Art:
8256C133S1V00F0 Copied
2/2, Normally Closed
1/4 NPT
0-5 bar
0.48
110V/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-4 bar, 0.48, FPM, 24VDC, IP67,
Art:
8256C133S1V00F1 Copied
2/2, Normally Closed
1/4 NPT
0-4 bar
0.48
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-4 bar, 0.48, FPM, 12VDC, IP67,
Art:
8256C133S1V00F3 Copied
2/2, Normally Closed
1/4 NPT
0-4 bar
0.48
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-5 bar, 0.48, FPM, 230V/50Hz, IP67,
Art:
8256C133S1V00FH Copied
2/2, Normally Closed
1/4 NPT
0-5 bar
0.48
230V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/4" NPT, 0-5 bar, 0.48, FPM, 24/50Hz, IP67,
Art:
8256C133S1V00FQ Copied
2/2, Normally Closed
1/4 NPT
0-5 bar
0.48
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-30 bar, 0.051, EPDM, 110V/50Hz, IP67,
Art:
8256C144S1E00F0 Copied
2/2, Normally Closed
1/8 NPT
0-30 bar
0.051
110V/50 Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-20 bar, 0.051, EPDM, 24VDC, IP67,
Art:
8256C144S1E00F1 Copied
2/2, Normally Closed
1/8 NPT
0-20 bar
0.051
24VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-20 bar, 0.051, EPDM, 12VDC, IP67,
Art:
8256C144S1E00F3 Copied
2/2, Normally Closed
1/8 NPT
0-20 bar
0.051
12VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-30 bar, 0.051, EPDM, 230V/50Hz, IP67,
Art:
8256C144S1E00FH Copied
2/2, Normally Closed
1/8 NPT
0-30 bar
0.051
230V/50Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-30 bar, 0.051, EPDM, 24/50Hz, IP67,
Art:
8256C144S1E00FQ Copied
2/2, Normally Closed
1/8 NPT
0-30 bar
0.051
24V/50Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-30 bar, 0.051, EPDM, 110V/50Hz, IP67,
Art:
8256C144S1E01F0 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-30 bar
0.051
110V/50 Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-20 bar, 0.051, EPDM, 24VDC, IP67,
Art:
8256C144S1E01F1 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-20 bar
0.051
24VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-20 bar, 0.051, EPDM, 12VDC, IP67,
Art:
8256C144S1E01F3 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-20 bar
0.051
12VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-30 bar, 0.051, EPDM, 230V/50Hz, IP67,
Art:
8256C144S1E01FH Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-30 bar
0.051
230V/50Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-30 bar, 0.051, EPDM, 24/50Hz, IP67,
Art:
8256C144S1E01FQ Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-30 bar
0.051
24V/50Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-30 bar, 0.051, FPM, 110V/50Hz, IP67,
Art:
8256C144S1V00F0 Copied
2/2, Normally Closed
1/8 NPT
0-30 bar
0.051
110V/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-20 bar, 0.051, FPM, 24VDC, IP67,
Art:
8256C144S1V00F1 Copied
2/2, Normally Closed
1/8 NPT
0-20 bar
0.051
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-20 bar, 0.051, FPM, 12VDC, IP67,
Art:
8256C144S1V00F3 Copied
2/2, Normally Closed
1/8 NPT
0-20 bar
0.051
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-30 bar, 0.051, FPM, 230V/50Hz, IP67,
Art:
8256C144S1V00FH Copied
2/2, Normally Closed
1/8 NPT
0-30 bar
0.051
230V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-30 bar, 0.051, FPM, 24/50Hz, IP67,
Art:
8256C144S1V00FQ Copied
2/2, Normally Closed
1/8 NPT
0-30 bar
0.051
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-30 bar, 0.051, FPM, 110V/50Hz, IP67,
Art:
8256C144S1V01F0 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-30 bar
0.051
110V/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-20 bar, 0.051, FPM, 24VDC, IP67,
Art:
8256C144S1V01F1 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-20 bar
0.051
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-20 bar, 0.051, FPM, 12VDC, IP67,
Art:
8256C144S1V01F3 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-20 bar
0.051
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-30 bar, 0.051, FPM, 230V/50Hz, IP67,
Art:
8256C144S1V01FH Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-30 bar
0.051
230V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-30 bar, 0.051, FPM, 24/50Hz, IP67,
Art:
8256C144S1V01FQ Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-30 bar
0.051
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-30 bar, 0.08, EPDM, 110V/50Hz, IP67,
Art:
8256C145S1E00F0 Copied
2/2, Normally Closed
1/8 NPT
0-30 bar
0.08
110V/50 Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-12 bar, 0.08, EPDM, 24VDC, IP67,
Art:
8256C145S1E00F1 Copied
2/2, Normally Closed
1/8 NPT
0-12 bar
0,08
12VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-12 bar, 0.08, EPDM, 12VDC, IP67,
Art:
8256C145S1E00F3 Copied
2/2, Normally Closed
1/8 NPT
0-12 bar
0,08
12VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-30 bar, 0.08, EPDM, 230V/50Hz, IP67,
Art:
8256C145S1E00FH Copied
2/2, Normally Closed
1/8 NPT
0-30 bar
0.08
230V/50Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-30 bar, 0.08, EPDM, 24/50Hz, IP67,
Art:
8256C145S1E00FQ Copied
2/2, Normally Closed
1/8 NPT
0-30 bar
0.08
24V/50Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-30 bar, 0.08, EPDM, 110V/50Hz, IP67,
Art:
8256C145S1E01F0 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-30 bar
0.08
110V/50 Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-12 bar, 0.08, EPDM, 24VDC, IP67,
Art:
8256C145S1E01F1 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-12 bar
0.08
24VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-12 bar, 0.08, EPDM, 12VDC, IP67,
Art:
8256C145S1E01F3 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-12 bar
0.08
12VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-30 bar, 0.08, EPDM, 230V/50Hz, IP67,
Art:
8256C145S1E01FH Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-30 bar
0.08
230V/50Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-30 bar, 0.08, EPDM, 24/50Hz, IP67,
Art:
8256C145S1E01FQ Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-30 bar
0.08
24V/50Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-30 bar, 0.08, FPM, 110V/50Hz, IP67,
Art:
8256C145S1V00F0 Copied
2/2, Normally Closed
1/8 NPT
0-30 bar
0.08
110V/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-12 bar, 0.08, FPM, 24VDC, IP67,
Art:
8256C145S1V00F1 Copied
2/2, Normally Closed
1/8 NPT
0-12 bar
0.08
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-12 bar, 0.08, FPM, 12VDC, IP67,
Art:
8256C145S1V00F3 Copied
2/2, Normally Closed
1/8 NPT
0-12 bar
0.08
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-30 bar, 0.08, FPM, 230V/50Hz, IP67,
Art:
8256C145S1V00FH Copied
2/2, Normally Closed
1/8 NPT
0-30 bar
0.08
230V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-30 bar, 0.08, FPM, 24/50Hz, IP67,
Art:
8256C145S1V00FQ Copied
2/2, Normally Closed
1/8 NPT
0-30 bar
0.08
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-30 bar, 0.08, FPM, 110V/50Hz, IP67,
Art:
8256C145S1V01F0 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-30 bar
0.08
110V/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-12 bar, 0.08, FPM, 24VDC, IP67,
Art:
8256C145S1V01F1 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-12 bar
0.08
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-12 bar, 0.08, FPM, 12VDC, IP67,
Art:
8256C145S1V01F3 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-12 bar
0.08
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-30 bar, 0.08, FPM, 230V/50Hz, IP67,
Art:
8256C145S1V01FH Copied
2/2, Manual Override, Normally Closed
1/8 NPT
0-30 bar
0.08
230V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-30 bar, 0.08, FPM, 24/50Hz, IP67,
Art:
8256C145S1V01FQ Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-30 bar
0.08
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-15 bar, 0.12, EPDM, 110V/50Hz, IP67,
Art:
8256C146S1E00F0 Copied
2/2, Normally Closed
1/8 NPT
0-15 bar
0.12
110V/50 Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-6 bar, 0.12, EPDM, 24VDC, IP67,
Art:
8256C146S1E00F1 Copied
2/2, Normally Closed
1/8 NPT
0-6 bar
0.12
24VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-6 bar, 0.12, EPDM, 12VDC, IP67,
Art:
8256C146S1E00F3 Copied
2/2, Normally Closed
1/8 NPT
0-6 bar
0.12
12VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-15 bar, 0.12, EPDM, 230V/50Hz, IP67,
Art:
8256C146S1E00FH Copied
2/2, Normally Closed
1/8 NPT
0-15 bar
0.12
230V/50Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-15 bar, 0.12, EPDM, 24/50Hz, IP67,
Art:
8256C146S1E00FQ Copied
2/2, Normally Closed
1/8 NPT
0-15 bar
0.12
24V/50Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-15 bar, 0.12, EPDM, 110V/50Hz, IP67,
Art:
8256C146S1E01F0 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-15 bar
0.12
110V/50 Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-6 bar, 0.12, EPDM, 24VDC, IP67,
Art:
8256C146S1E01F1 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-6 bar
0.12
24VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-6 bar, 0.12, EPDM, 12VDC, IP67,
Art:
8256C146S1E01F3 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-6 bar
0.12
12VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-15 bar, 0.12, EPDM, 230V/50Hz, IP67,
Art:
8256C146S1E01FH Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-15 bar
0.12
230V/50Hz
FPM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-15 bar, 0.12, EPDM, 24/50Hz, IP67,
Art:
8256C146S1E01FQ Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-15 bar
0.12
24V/50Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-15 bar, 0.12, FPM, 110V/50Hz, IP67,
Art:
8256C146S1V00F0 Copied
2/2, Normally Closed
1/8 NPT
0-15 bar
0.12
110V/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-6 bar, 0.12, FPM, 24VDC, IP67,
Art:
8256C146S1V00F1 Copied
2/2, Normally Closed
1/8 NPT
0-6 bar
0.12
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-6 bar, 0.12, FPM, 12VDC, IP67,
Art:
8256C146S1V00F3 Copied
2/2, Normally Closed
1/8 NPT
0-6 bar
0.12
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-15 bar, 0.12, FPM, 230V/50Hz, IP67,
Art:
8256C146S1V00FH Copied
2/2, Normally Closed
1/8 NPT
0-15 bar
0.12
230V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-15 bar, 0.12, FPM, 24/50Hz, IP67,
Art:
8256C146S1V00FQ Copied
2/2, Normally Closed
1/8 NPT
0-15 bar
0.12
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-15 bar, 0.12, FPM, 110V/50Hz, IP67,
Art:
8256C146S1V01F0 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-15 bar
0.12
110V/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-6 bar, 0.12, FPM, 24VDC, IP67,
Art:
8256C146S1V01F1 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-6 bar
0.12
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-6 bar, 0.12, FPM, 12VDC, IP67,
Art:
8256C146S1V01F3 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-6 bar
0.12
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-15 bar, 0.12, FPM, 230V/50Hz, IP67,
Art:
8256C146S1V01FH Copied
Normally Closed, 2/2, Manual Override
1/8 NPT
0-15 bar
0.12
230V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-15 bar, 0.12, FPM, 24/50Hz, IP67,
Art:
8256C146S1V01FQ Copied
1/8 NPT
0-15 bar
0.12
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-13 bar, 0.14, EPDM, 110V/50Hz, IP67,
Art:
8256C147S1E00F0 Copied
2/2, Normally Closed
1/8 NPT
0-13 bar
0.14
110V/50 Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-4 bar, 0.14, EPDM, 24VDC, IP67,
Art:
8256C147S1E00F1 Copied
2/2, Normally Closed
1/8 NPT
0-4 bar
0.14
24VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-4 bar, 0.14, EPDM, 12VDC, IP67,
Art:
8256C147S1E00F3 Copied
2/2, Normally Closed
1/8 NPT
0-4 bar
0.14
12VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-13 bar, 0.14, EPDM, 230V/50Hz, IP67,
Art:
8256C147S1E00FH Copied
2/2, Normally Closed
1/8 NPT
0-13 bar
0.14
230V/50Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-13 bar, 0.14, EPDM, 24/50Hz, IP67,
Art:
8256C147S1E00FQ Copied
2/2, Normally Closed
1/8 NPT
0-13 bar
0.14
24V/50Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-13 bar, 0.14, EPDM, 110V/50Hz, IP67,
Art:
8256C147S1E01F0 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-13 bar
0.14
110V/50 Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-4 bar, 0.14, EPDM, 24VDC, IP67,
Art:
8256C147S1E01F1 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-4 bar
0.14
24VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-4 bar, 0.14, EPDM, 12VDC, IP67,
Art:
8256C147S1E01F3 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-4 bar
0.14
12VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-13 bar, 0.14, EPDM, 230V/50Hz, IP67,
Art:
8256C147S1E01FH Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-13 bar
0.14
230V/50Hz
FPM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-13 bar, 0.14, EPDM, 24/50Hz, IP67,
Art:
8256C147S1E01FQ Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-13 bar
0.14
24V/50Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-13 bar, 0.14, FPM, 110V/50Hz, IP67,
Art:
8256C147S1V00F0 Copied
2/2, Normally Closed
1/8 NPT
0-13 bar
0.14
110V/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-4 bar, 0.14, FPM, 24VDC, IP67,
Art:
8256C147S1V00F1 Copied
2/2, Normally Closed
1/8 NPT
0-4 bar
0.14
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-4 bar, 0.14, FPM, 12VDC, IP67,
Art:
8256C147S1V00F3 Copied
2/2, Normally Closed
1/8 NPT
0-4 bar
0.14
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-13 bar, 0.14, FPM, 230V/50Hz, IP67,
Art:
8256C147S1V00FH Copied
2/2, Normally Closed
1/8 NPT
0-13 bar
0.14
230V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-13 bar, 0.14, FPM, 24/50Hz, IP67,
Art:
8256C147S1V00FQ Copied
2/2, Normally Closed
1/8 NPT
0-13 bar
0.14
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-13 bar, 0.14, FPM, 110V/50Hz, IP67,
Art:
8256C147S1V01F0 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-13 bar
0.14
110V/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-4 bar, 0.14, FPM, 24VDC, IP67,
Art:
8256C147S1V01F1 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-4 bar
0.14
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-4 bar, 0.14, FPM, 12VDC, IP67,
Art:
8256C147S1V01F3 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-4 bar
0.14
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-13 bar, 0.14, FPM, 230V/50Hz, IP67,
Art:
8256C147S1V01FH Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-13 bar
0.14
230V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-13 bar, 0.14, FPM, 24/50Hz, IP67,
Art:
8256C147S1V01FQ Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-13 bar
0.14
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-7 bar, 0.18, EPDM, 110V/50Hz, IP67,
Art:
8256C148S1E00F0 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-7 bar
0.18
110V/50 Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-2 bar, 0.18, EPDM, 24VDC, IP67,
Art:
8256C148S1E00F1 Copied
2/2, Normally Closed
1/8 NPT
0-2 bar
0.18
24VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-2 bar, 0.18, EPDM, 12VDC, IP67,
Art:
8256C148S1E00F3 Copied
2/2, Normally Closed
1/8 NPT, 1 1/2 BSP
0-2 bar
0.18
12VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-7 bar, 0.18, EPDM, 230V/50Hz, IP67,
Art:
8256C148S1E00FH Copied
2/2, Normally Closed
1/8 NPT
0-7 bar
0.18
230V/50Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-7 bar, 0.18, EPDM, 24/50Hz, IP67,
Art:
8256C148S1E00FQ Copied
2/2, Normally Closed
1/8 NPT
0-7 bar
0.18
24V/50Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-7 bar, 0.18, EPDM, 110V/50Hz, IP67,
Art:
8256C148S1E01F0 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-7 bar
0.18
110v/50 Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-2 bar, 0.18, EPDM, 24VDC, IP67,
Art:
8256C148S1E01F1 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-2 bar
0.18
24VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-2 bar, 0.18, EPDM, 12VDC, IP67,
Art:
8256C148S1E01F3 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-2 bar
0.18
12VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-7 bar, 0.18, EPDM, 230V/50Hz, IP67,
Art:
8256C148S1E01FH Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-7 bar
0.18
230V/50Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-7 bar, 0.18, EPDM, 24/50Hz, IP67,
Art:
8256C148S1E01FQ Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-7 bar
0.18
24V/50Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-7 bar, 0.18, FPM, 110V/50Hz, IP67,
Art:
8256C148S1V00F0 Copied
2/2, Normally Closed
1/8 NPT
0-7 bar
0.18
110V/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-2 bar, 0.18, FPM, 24VDC, IP67,
Art:
8256C148S1V00F1 Copied
2/2, Normally Closed
1/8 NPT
0-2 bar
0.18
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-2 bar, 0.18, FPM, 12VDC, IP67,
Art:
8256C148S1V00F3 Copied
2/2, Normally Closed
1/8 NPT
0-2 bar
0.18
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-7 bar, 0.18, FPM, 230V/50Hz, IP67,
Art:
8256C148S1V00FH Copied
2/2, Normally Closed
1/8 NPT
0-7 bar
0.18
230V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-7 bar, 0.18, FPM, 24/50Hz, IP67,
Art:
8256C148S1V00FQ Copied
2/2, Normally Closed
1/8 NPT
0-7 bar
0.18
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-7 bar, 0.18, FPM, 110V/50Hz, IP67,
Art:
8256C148S1V01F0 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-7 bar
0.18
110V/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-2 bar, 0.18, FPM, 24VDC, IP67,
Art:
8256C148S1V01F1 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-2 bar
0.18
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-2 bar, 0.18, FPM, 12VDC, IP67,
Art:
8256C148S1V01F3 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-2 bar
0.18
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-7 bar, 0.18, FPM, 230V/50Hz, IP67,
Art:
8256C148S1V01FH Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-7 bar
0.18
230V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-7 bar, 0.18, FPM, 24/50Hz, IP67,
Art:
8256C148S1V01FQ Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-7 bar
0.18
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-26 bar, 0.051, EPDM, 24VDC, IP67,
Art:
8256C159S1E00F1 Copied
2/2, Normally Closed
1/8 NPT
0-26 bar
0.051
24VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-26 bar, 0.051, EPDM, 12VDC, IP67,
Art:
8256C159S1E00F3 Copied
2/2, Normally Closed
1/8 NPT
0-26 bar
0.051
12VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-26 bar, 0.051, EPDM, 24VDC, IP67,
Art:
8256C159S1E01F1 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-26 bar
0.051
24VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-26 bar, 0.051, EPDM, 12VDC, IP67,
Art:
8256C159S1E01F3 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-26 bar
0.051
12VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-26 bar, 0.051, FPM, 24VDC, IP67,
Art:
8256C159S1V00F1 Copied
2/2, Normally Closed
1/8 NPT
0-26 bar
0.051
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-26 bar, 0.051, FPM, 12VDC, IP67,
Art:
8256C159S1V00F3 Copied
2/2, Normally Closed
1/8 NPT
0-26 bar
0.051
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-26 bar, 0.051, FPM, 24VDC, IP67,
Art:
8256C159S1V01F1 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-26 bar
0.051
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-26 bar, 0.051, FPM, 12VDC, IP67,
Art:
8256C159S1V01F3 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-26 bar
0.051
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-16 bar, 0.08, EPDM, 24VDC, IP67,
Art:
8256C160S1E00F1 Copied
2/2, Normally Closed
1/8 NPT
0-16 bar
0.08
24VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-16 bar, 0.08, EPDM, 12VDC, IP67,
Art:
8256C160S1E00F3 Copied
2/2, Normally Closed
1/8 NPT
0-16 bar
0.08
12VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-16 bar, 0.08, EPDM, 24VDC, IP67,
Art:
8256C160S1E01F1 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-16 bar
0.08
24VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-16 bar, 0.08, EPDM, 12VDC, IP67,
Art:
8256C160S1E01F3 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-16 bar
0.08
12VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-16 bar, 0.08, FPM, 24VDC, IP67,
Art:
8256C160S1V00F1 Copied
2/2, Normally Closed
1/8 NPT
0-16 bar
0.08
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-16 bar, 0.08, FPM, 12VDC, IP67,
Art:
8256C160S1V00F3 Copied
2/2, Normally Closed
1/8 NPT
0-16 bar
0.08
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-16 bar, 0.08, FPM, 24VDC, IP67,
Art:
8256C160S1V01F1 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-16 bar
0.08
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-16 bar, 0.08, FPM, 12VDC, IP67,
Art:
8256C160S1V01F3 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-16 bar
0.08
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-7 bar, 0.11, EPDM, 24VDC, IP67,
Art:
8256C161S1E00F1 Copied
2/2, Normally Closed
1/8 NPT
0-7 bar
0.11
24VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-7 bar, 0.11, EPDM, 12VDC, IP67,
Art:
8256C161S1E00F3 Copied
2/2, Normally Closed
1/8 NPT
0-7 bar
0.11
12VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-7 bar, 0.11, EPDM, 24VDC, IP67,
Art:
8256C161S1E01F1 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-7 bar
0.11
24VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-7 bar, 0.11, EPDM, 12VDC, IP67,
Art:
8256C161S1E01F3 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-7 bar
0.11
12VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-7 bar, 0.11, FPM, 24VDC, IP67,
Art:
8256C161S1V00F1 Copied
2/2, Normally Closed
1/8 NPT
0-7 bar
0.11
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-7 bar, 0.11, FPM, 12VDC, IP67,
Art:
8256C161S1V00F3 Copied
2/2, Normally Closed
1/8 NPT
0-7 bar
0.11
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-7 bar, 0.11, FPM, 24VDC, IP67,
Art:
8256C161S1V01F1 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-7 bar
0.11
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-7 bar, 0.11, FPM, 12VDC, IP67,
Art:
8256C161S1V01F3 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-7 bar
0.11
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-6 bar, 0.14, EPDM, 24VDC, IP67,
Art:
8256C162S1E00F1 Copied
2/2, Normally Closed
1/8 NPT
0-6 bar
0.14
24VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-6 bar, 0.14, EPDM, 12VDC, IP67,
Art:
8256C162S1E00F3 Copied
2/2, Normally Closed
1/8 NPT
0-6 bar
0.14
12VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-6 bar, 0.14, EPDM, 24VDC, IP67,
Art:
8256C162S1E01F1 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-6 bar
0.14
24VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-6 bar, 0.14, EPDM, 12VDC, IP67,
Art:
8256C162S1E01F3 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-6 bar
0.14
12VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-6 bar, 0.14, FPM, 24VDC, IP67,
Art:
8256C162S1V00F1 Copied
2/2, Normally Closed
1/8 NPT
0-6 bar
0.14
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-6 bar, 0.14, FPM, 12VDC, IP67,
Art:
8256C162S1V00F3 Copied
2/2, Normally Closed
1/8 NPT
0-6 bar
0.14
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-6 bar, 0.14, FPM, 24VDC, IP67,
Art:
8256C162S1V01F1 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-6 bar
0.14
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-6 bar, 0.14, FPM, 12VDC, IP67,
Art:
8256C162S1V01F3 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-6 bar
0.14
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-3 bar, 0.18, EPDM, 24VDC, IP67,
Art:
8256C163S1E00F1 Copied
2/2, Normally Closed
1/8 NPT
0-3 bar
0.18
24VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-3 bar, 0.18, EPDM, 12VDC, IP67,
Art:
8256C163S1E00F3 Copied
2/2, Normally Closed
1/8 NPT
0-3 bar
0.18
12VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-3 bar, 0.18, EPDM, 24VDC, IP67,
Art:
8256C163S1E01F1 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-3 bar
0.18
24VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-3 bar, 0.18, EPDM, 12VDC, IP67,
Art:
8256C163S1E01F3 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-3 bar
0.18
12VDC
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.C., 1/8" NPT, 0-3 bar, 0.18, FPM, 24VDC, IP67,
Art:
8256C163S1V00F1 Copied
2/2, Normally Closed
1/8 NPT
0-3 bar
0.18
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., 1/8" NPT, 0-3 bar, 0.18, FPM, 12VDC, IP67,
Art:
8256C163S1V00F3 Copied
2/2, Normally Closed
1/8 NPT
0-3 bar
0.18
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-3 bar, 0.18, FPM, 24VDC, IP67,
Art:
8256C163S1V01F1 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-3 bar
0.18
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, 1/8" NPT, 0-3 bar, 0.18, FPM, 12VDC, IP67,
Art:
8256C163S1V01F3 Copied
2/2, Normally Closed, Manual Override
1/8 NPT
0-3 bar
0.18
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.O., 1/8" NPT, 0-17 bar, 0.05, EPDM, 110V/50Hz, IP67,
Art:
8256C242S1E00F0 Copied
2/2, Normally open
1/8 NPT
0-17 bar
0.05
110V/50 Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.O., 1/8" NPT, 0-17 bar, 0.05, EPDM, 230V/50Hz, IP67,
Art:
8256C242S1E00FH Copied
2/2, Normally open
1/8 NPT
0-17 bar
0.05
230V/50Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.O., 1/8" NPT, 0-17 bar, 0.05, EPDM, 24/50Hz, IP67,
Art:
8256C242S1E00FQ Copied
2/2, Normally open
1/8 NPT
0-17 bar
0.05
24V/50Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.O., 1/8" NPT, 0-17 bar, 0.05, FPM, 110V/50Hz, IP67,
Art:
8256C242S1V00F0 Copied
2/2, Normally open
1/8 NPT
0-17 bar
0.05
110V/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.O., 1/8" NPT, 0-17 bar, 0.05, FPM, 24/50Hz, IP67,
Art:
8256C242S1V00FQ Copied
2/2, Normally open
1/8 NPT
0-17 bar
0.05
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.O., 1/8" NPT, 0-17 bar, 0.08, EPDM, 110V/50Hz, IP67,
Art:
8256C243S1E00F0 Copied
2/2, Normally open
1/8 NPT
0-17 bar
0.08
110V/50 Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.O., 1/8" NPT, 0-17 bar, 0.08, EPDM, 230V/50Hz, IP67,
Art:
8256C243S1E00FH Copied
2/2, Normally open
1/8 NPT
0-17 bar
0.08
230V/50Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.O., 1/8" NPT, 0-17 bar, 0.08, EPDM, 24/50Hz, IP67,
Art:
8256C243S1E00FQ Copied
2/2, Normally open
1/8 NPT
0-17 bar
0.08
24V/50Hz
EPDM
Stainless steel 303
-10 °C
140 °C
2/2 N.O., 1/8" NPT, 0-17 bar, 0.08, FPM, 110V/50Hz, IP67,
Art:
8256C243S1V00F0 Copied
2/2, Normally open
1/8 NPT
0-17 bar
0.08
110V/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.O., 1/8" NPT, 0-17 bar, 0.08, FPM, 230V/50Hz, IP67,
Art:
8256C243S1V00FH Copied
2/2, Normally open
1/8 NPT
0-17 bar
0.08
230V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.O., 1/8" NPT, 0-17 bar, 0.08, FPM, 24/50Hz, IP67,
Art:
8256C243S1V00FQ Copied
2/2, Normally open
1/8 NPT
0-17 bar
0.08
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.O., 1/8" NPT, 0-17 bar, 0.05, EPDM, 24VDC, IP67,
Art:
8256C250S1E00F1 Copied
2/2, Normally Closed
1/8 NPT
0-17 bar
0.05
24VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.O., 1/8" NPT, 0-17 bar, 0.05, EPDM, 12VDC, IP67,
Art:
8256C250S1E00F3 Copied
2/2, Normally open
1/8 NPT
0-17 bar
0.05
12VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.O., 1/8" NPT, 0-17 bar, 0.05, FPM, 24VDC, IP67,
Art:
8256C250S1V00F1 Copied
2/2, Normally open
1/8 NPT
0-17 bar
0.05
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.O., 1/8" NPT, 0-17 bar, 0.05, FPM, 12VDC, IP67,
Art:
8256C250S1V00F3 Copied
2/2, Normally open
1/8 NPT
0-17 bar
0.05
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.O., 1/8" NPT, 0-10 bar, 0.08, EPDM, 24VDC, IP67,
Art:
8256C251S1E00F1 Copied
2/2, Normally open
1/8 NPT
0-10 bar
0.08
24VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.O., 1/8" NPT, 0-10 bar, 0.08, EPDM, 12VDC, IP67,
Art:
8256C251S1E00F3 Copied
2/2, Normally open
1/8 NPT
0-10 bar
0.08
12VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.O., 1/8" NPT, 0-10 bar, 0.08, FPM, 24VDC, IP67,
Art:
8256C251S1V00F1 Copied
2/2, Normally open
1/8 NPT
0-10 bar
0.08
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.O., 1/8" NPT, 0-10 bar, 0.08, FPM, 12VDC, IP67,
Art:
8256C251S1V00F3 Copied
2/2, Normally open
1/8 NPT
0-10 bar
0.08
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-30 bar, 0.1, EPDM, 110V/50Hz, IP67,
Art:
G256C111S1E00F0 Copied
2/2, Normally Closed
G1/4
0-30 bar
0.1
110V/50 Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-30 bar, 0.1, EPDM, 24VDC, IP67,
Art:
G256C111S1E00F1 Copied
2/2, Normally Closed
G1/4
0-30 bar
0.1
24VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-30 bar, 0.1, EPDM, 12VDC, IP67,
Art:
G256C111S1E00F3 Copied
2/2, Normally Closed
G1/4
0-30 bar
0.1
12VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-30 bar, 0.1, EPDM, 230V/50Hz, IP67,
Art:
G256C111S1E00FH Copied
2/2, Normally Closed
G1/4
0-30 bar
0.1
230V/50Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-30 bar, 0.1, EPDM, 24/50Hz, IP67,
Art:
G256C111S1E00FQ Copied
2/2, Normally Closed
G1/4
0-30 bar
0.1
24V/50Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-30 bar, 0.1, FPM, 110V/50Hz, IP67,
Art:
G256C111S1V00F0 Copied
2/2, Normally Closed
G1/4
0-30 bar
0.1
110V/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-30 bar, 0.1, FPM, 12VDC, IP67,
Art:
G256C111S1V00F3 Copied
2/2, Normally Closed
G1/4
0-30 bar
0.1
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-30 bar, 0.1, FPM, 24/50Hz, IP67,
Art:
G256C111S1V00FQ Copied
2/2, Normally Closed
G1/4
0-30 bar
0.1
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-18 bar, 0.18, EPDM, 24VDC, IP67,
Art:
G256C113S1E00F1 Copied
2/2, Normally Closed
G1/4
0-18 bar
0.18
24VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-18 bar, 0.18, EPDM, 12VDC, IP67,
Art:
G256C113S1E00F3 Copied
2/2, Normally Closed
G1/4
0-18 bar
0.18
12VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-18 bar, 0.18, FPM, 12VDC, IP67,
Art:
G256C113S1V00F3 Copied
2/2, Normally Closed
G1/4
0-18 bar
0.18
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-6 bar, 0.3, EPDM, 24VDC, IP67,
Art:
G256C115S1E00F1 Copied
2/2, Normally Closed
G1/4
0-6 bar
0.3
24VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-6 bar, 0.3, EPDM, 12VDC, IP67,
Art:
G256C115S1E00F3 Copied
2/2, Normally Closed
G1/4
0-6 bar
0.3
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-6 bar, 0.3, FPM, 12VDC, IP67,
Art:
G256C115S1V00F3 Copied
2/2, Normally Closed
G1/4
0-6 bar
0.3
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-3 bar, 0.4, EPDM, 24VDC, IP67,
Art:
G256C116S1E00F1 Copied
2/2, Normally Closed
G1/4
0-3 bar
0.4
24VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-3 bar, 0.4, EPDM, 12VDC, IP67,
Art:
G256C116S1E00F3 Copied
2/2, Normally Closed
G1/4
0-3 bar
0.4
12VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-3 bar, 0.4, FPM, 12VDC, IP67,
Art:
G256C116S1V00F3 Copied
2/2, Normally Closed
G1/4
0-3 bar
0.4
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-2 bar, 0.48, EPDM, 24VDC, IP67,
Art:
G256C117S1E00F1 Copied
2/2, Normally Closed
G1/4
0-2 bar
0.48
24VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-2 bar, 0.48, EPDM, 12VDC, IP67,
Art:
G256C117S1E00F3 Copied
2/2, Normally Closed
G1/4
0-2 bar
0.48
12VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-2 bar, 0.48, FPM, 12VDC, IP67,
Art:
G256C117S1V00F3 Copied
2/2, Normally Closed
G1/4
0-2 bar
0.48
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-30 bar, 0.1, EPDM, 24VDC, IP67,
Art:
G256C127S1E00F1 Copied
2/2, Normally Closed
G1/4
0-30 bar
0.1
24VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-30 bar, 0.1, EPDM, 12VDC, IP67,
Art:
G256C127S1E00F3 Copied
2/2, Normally Closed
G1/4
0-30 bar
0.1
12VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-30 bar, 0.1, FPM, 12VDC, IP67,
Art:
G256C127S1V00F3 Copied
2/2, Normally Closed
G1/4
0-30 bar
0.1
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-20 bar, 0.18, EPDM, 110V/50Hz, IP67,
Art:
G256C129S1E00F0 Copied
2/2, Normally Closed
G1/4
0-20 bar
0.18
110V/50 Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-20 bar, 0.18, EPDM, 24VDC, IP67,
Art:
G256C129S1E00F1 Copied
2/2, Normally Closed
G1/4
0-20 bar
0.18
24VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-20 bar, 0.18, EPDM, 12VDC, IP67,
Art:
G256C129S1E00F3 Copied
2/2, Normally Closed
G1/4
0-20 bar
0.18
12VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-20 bar, 0.18, EPDM, 230V/50Hz, IP67,
Art:
G256C129S1E00FH Copied
2/2, Normally Closed
G1/4
0-20 bar
0.18
230V/50Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-20 bar, 0.18, EPDM, 24/50Hz, IP67,
Art:
G256C129S1E00FQ Copied
2/2, Normally Closed
G1/4
0-20 bar
0.18
24V/50Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-20 bar, 0.18, FPM, 110V/50Hz, IP67,
Art:
G256C129S1V00F0 Copied
2/2, Normally Closed
G1/4
0-20 bar
0.18
110V/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-20 bar, 0.18, FPM, 12VDC, IP67,
Art:
G256C129S1V00F3 Copied
2/2, Normally Closed
G1/4
0-20 bar
0.18
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-20 bar, 0.18, FPM, 24/50Hz, IP67,
Art:
G256C129S1V00FQ Copied
2/2, Normally Closed
G1/4
0-20 bar
0.18
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-15 bar, 0.3, EPDM, 110V/50Hz, IP67,
Art:
G256C131S1E00F0 Copied
2/2, Normally Closed
G1/4
0-15 bar
0.3
110V/50 Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-12 bar, 0.3, EPDM, 24VDC, IP67,
Art:
G256C131S1E00F1 Copied
2/2, Normally Closed
G1/4
0-12 bar
0.3
24VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-12 bar, 0.3, EPDM, 12VDC, IP67,
Art:
G256C131S1E00F3 Copied
2/2, Normally Closed
G1/4
0-12 bar
0.3
12VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-15 bar, 0.3, EPDM, 230V/50Hz, IP67,
Art:
G256C131S1E00FH Copied
2/2, Normally Closed
G1/4
0-15 bar
0.3
230V/50Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-15 bar, 0.3, EPDM, 24/50Hz, IP67,
Art:
G256C131S1E00FQ Copied
2/2, Normally Closed
G1/4
0-15 bar
0.3
24V/50Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-15 bar, 0.3, FPM, 110V/50Hz, IP67,
Art:
G256C131S1V00F0 Copied
2/2, Normally Closed
G1/4
0-15 bar
0.3
110V/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-12 bar, 0.3, FPM, 24VDC, IP67,
Art:
G256C131S1V00F1 Copied
2/2, Normally Closed
G1/4
0-12 bar
0.3
24VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-12 bar, 0.3, FPM, 12VDC, IP67,
Art:
G256C131S1V00F3 Copied
2/2, Normally Closed
G1/4
0-12 bar
0.3
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-15 bar, 0.3, FPM, 230V/50Hz, IP67,
Art:
G256C131S1V00FH Copied
2/2, Normally Closed
G1/4
0-15 bar
0.3
230V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-15 bar, 0.3, FPM, 24/50Hz, IP67,
Art:
G256C131S1V00FQ Copied
2/2, Normally Closed
G1/4
0-15 bar
0.3
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-8 bar, 0.4, FPM, 230V/50Hz, IP67,
Art:
G256C132S1V00FH Copied
2/2, Normally Closed
G1/4
0-8 bar
0.4
230V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-8 bar, 0.4, FPM, 24/50Hz, IP67,
Art:
G256C132S1V00FQ Copied
2/2, Normally Closed
G1/4
0-8 bar
0.4
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-5 bar, 0.48, EPDM, 110V/50Hz, IP67,
Art:
G256C133S1E00F0 Copied
2/2, Normally Closed
G1/4
0-5 bar
0.48
110V/50 Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-4 bar, 0.48, EPDM, 24VDC, IP67,
Art:
G256C133S1E00F1 Copied
2/2, Normally Closed
G1/4
0-4 bar
0.48
24VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-4 bar, 0.48, EPDM, 12VDC, IP67,
Art:
G256C133S1E00F3 Copied
2/2, Normally Closed
G1/4
0-4 bar
0.48
12VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-5 bar, 0.48, EPDM, 230V/50Hz, IP67,
Art:
G256C133S1E00FH Copied
2/2, Normally Closed
G1/4
0-5 bar
0.48
230V/50Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-5 bar, 0.48, EPDM, 24/50Hz, IP67,
Art:
G256C133S1E00FQ Copied
2/2, Normally Closed
G1/4
0-5 bar
0.48
24V/50Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-5 bar, 0.48, FPM, 110V/50Hz, IP67,
Art:
G256C133S1V00F0 Copied
2/2, Normally Closed
G1/4
0-5 bar
0.48
110V/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-4 bar, 0.48, FPM, 12VDC, IP67,
Art:
G256C133S1V00F3 Copied
2/2, Normally Closed
G1/4
0-4 bar
0.48
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/4", 0-5 bar, 0.48, FPM, 24/50Hz, IP67,
Art:
G256C133S1V00FQ Copied
2/2, Normally Closed
G1/4
0-5 bar
0.48
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-30 bar, 0.051, EPDM, 110V/50Hz, IP67,
Art:
G256C144S1E00F0 Copied
2/2, Normally Closed
G1/8
0-30 bar
0.051
110V/50 Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-20 bar, 0.051, EPDM, 24VDC, IP67,
Art:
G256C144S1E00F1 Copied
2/2, Normally Closed
G1/8
0-20 bar
0.051
24VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-20 bar, 0.051, EPDM, 12VDC, IP67,
Art:
G256C144S1E00F3 Copied
2/2, Normally Closed
G1/8
0-20 bar
0.051
12VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-30 bar, 0.051, EPDM, 230V/50Hz, IP67,
Art:
G256C144S1E00FH Copied
2/2, Normally Closed
G1/8
0-30 bar
0.051
230V/50Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-30 bar, 0.051, EPDM, 24/50Hz, IP67,
Art:
G256C144S1E00FQ Copied
2/2, Normally Closed
G1/8
0-30 bar
0.051
24V/50Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-30 bar, 0.051, EPDM, 110V/50Hz, IP67,
Art:
G256C144S1E01F0 Copied
2/2, Normally Closed, Manual Override
G1/8
0-30 bar
0.051
110V/50 Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-20 bar, 0.051, EPDM, 24VDC, IP67,
Art:
G256C144S1E01F1 Copied
2/2, Normally Closed, Manual Override
G1/8
0-20 bar
0.051
24VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-20 bar, 0.051, EPDM, 12VDC, IP67,
Art:
G256C144S1E01F3 Copied
2/2, Normally Closed, Manual Override
G1/8
0-20 bar
0.051
12VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-30 bar, 0.051, EPDM, 230V/50Hz, IP67,
Art:
G256C144S1E01FH Copied
2/2, Normally Closed
G1/8
0-30 bar
0.051
230V/50Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-30 bar, 0.051, EPDM, 24/50Hz, IP67,
Art:
G256C144S1E01FQ Copied
2/2, Normally Closed, Manual Override
G1/8
0-30 bar
0.051
24V/50Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-30 bar, 0.051, FPM, 110V/50Hz, IP67,
Art:
G256C144S1V00F0 Copied
2/2, Normally Closed
G1/8
0-30 bar
0.051
110V/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-20 bar, 0.051, FPM, 12VDC, IP67,
Art:
G256C144S1V00F3 Copied
2/2, Normally Closed
G1/8
0-20 bar
0.051
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-30 bar, 0.051, FPM, 24/50Hz, IP67,
Art:
G256C144S1V00FQ Copied
2/2, Normally Closed
G1/8
0-30 bar
0.051
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-30 bar, 0.051, FPM, 110V/50Hz, IP67,
Art:
G256C144S1V01F0 Copied
2/2, Normally Closed, Manual Override
G1/8
0-30 bar
0.051
110V/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-20 bar, 0.051, FPM, 12VDC, IP67,
Art:
G256C144S1V01F3 Copied
2/2, Manual Override, Normally Closed
G1/8
0-20 bar
0.051
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-30 bar, 0.051, FPM, 24/50Hz, IP67,
Art:
G256C144S1V01FQ Copied
2/2, Normally Closed, Manual Override
G1/8
0-30 bar
0.051
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-30 bar, 0.08, EPDM, 110V/50Hz, IP67,
Art:
G256C145S1E00F0 Copied
2/2, Normally Closed
G1/8
0-30 bar
0.08
110V/50 Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-12 bar, 0.08, EPDM, 24VDC, IP67,
Art:
G256C145S1E00F1 Copied
2/2, Normally Closed
G1/8
0-12 bar
0.08
24VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-12 bar, 0.08, EPDM, 12VDC, IP67,
Art:
G256C145S1E00F3 Copied
2/2, Normally Closed
G1/8
0-12 bar
0.08
12VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-30 bar, 0.08, EPDM, 230V/50Hz, IP67,
Art:
G256C145S1E00FH Copied
2/2, Normally Closed
G1/8
0-30 bar
0.08
230V/50Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-30 bar, 0.08, EPDM, 24/50Hz, IP67,
Art:
G256C145S1E00FQ Copied
2/2, Normally Closed
G1/8
0-30 bar
0.08
24V/50Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-30 bar, 0.08, EPDM, 110V/50Hz, IP67,
Art:
G256C145S1E01F0 Copied
2/2, Normally Closed, Manual Override
G1/8
0-30 bar
0.08
110v/50 Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-12 bar, 0.08, EPDM, 24VDC, IP67,
Art:
G256C145S1E01F1 Copied
2/2, Normally Closed, Manual Override
G1/8
0-12 bar
0.08
24VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-12 bar, 0.08, EPDM, 12VDC, IP67,
Art:
G256C145S1E01F3 Copied
2/2, Normally Closed, Manual Override
G1/8
0-12 bar
0.08
12VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-30 bar, 0.08, EPDM, 230V/50Hz, IP67,
Art:
G256C145S1E01FH Copied
2/2, Normally Closed, Manual Override
G1/8
0-30 bar
0.08
230V/50Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-30 bar, 0.08, EPDM, 24/50Hz, IP67,
Art:
G256C145S1E01FQ Copied
2/2, Normally Closed, Manual Override
G1/8
0-30 bar
0.08
24V/50Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-30 bar, 0.08, FPM, 110V/50Hz, IP67,
Art:
G256C145S1V00F0 Copied
2/2, Normally Closed
G1/8
0-30 bar
0.08
110V/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-12 bar, 0.08, FPM, 12VDC, IP67,
Art:
G256C145S1V00F3 Copied
2/2, Normally Closed
G1/8
0-12 bar
0.08
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-30 bar, 0.08, FPM, 24/50Hz, IP67,
Art:
G256C145S1V00FQ Copied
2/2, Normally Closed
G1/8
0-30 bar
0.08
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-30 bar, 0.08, FPM, 110V/50Hz, IP67,
Art:
G256C145S1V01F0 Copied
2/2, Normally Closed, Manual Override
G1/8
0-30 bar
0.08
110V/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-12 bar, 0.08, FPM, 12VDC, IP67,
Art:
G256C145S1V01F3 Copied
2/2, Normally Closed, Manual Override
G1/8
0-12 bar
0.08
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-30 bar, 0.08, FPM, 24/50Hz, IP67,
Art:
G256C145S1V01FQ Copied
2/2, Normally Closed, Manual Override
G1/8
0-30 bar
0.08
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-15 bar, 0.12, EPDM, 110V/50Hz, IP67,
Art:
G256C146S1E00F0 Copied
2/2, Normally Closed
G1/8
0-15 bar
0.12
110V/50 Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-6 bar, 0.12, EPDM, 24VDC, IP67,
Art:
G256C146S1E00F1 Copied
2/2
G1/8
0-6 bar
0.12
24VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-6 bar, 0.12, EPDM, 12VDC, IP67,
Art:
G256C146S1E00F3 Copied
2/2, Normally Closed
G1/8
0-6 bar
0.12
12VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-15 bar, 0.12, EPDM, 230V/50Hz, IP67,
Art:
G256C146S1E00FH Copied
2/2, Normally Closed
G1/8
0-15 bar
0.12
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-15 bar, 0.12, EPDM, 24/50Hz, IP67,
Art:
G256C146S1E00FQ Copied
2/2, Normally Closed
G1/8
0-15 bar
0.12
24V/50Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-15 bar, 0.12, EPDM, 110V/50Hz, IP67,
Art:
G256C146S1E01F0 Copied
2/2, Normally Closed, Manual Override
G1/8
0-15 bar
0.12
110v/50 Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-6 bar, 0.12, EPDM, 24VDC, IP67,
Art:
G256C146S1E01F1 Copied
2/2, Normally Closed, Manual Override
G1/8
0-6 bar
0.12
24VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-6 bar, 0.12, EPDM, 12VDC, IP67,
Art:
G256C146S1E01F3 Copied
2/2, Normally Closed, Manual Override
G1/8
0-6 bar
0.12
12VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-15 bar, 0.12, EPDM, 230V/50Hz, IP67,
Art:
G256C146S1E01FH Copied
2/2, Manual Override, Normally Closed
G1/8
0-15 bar
0.12
230V/50Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-15 bar, 0.12, EPDM, 24/50Hz, IP67,
Art:
G256C146S1E01FQ Copied
2/2, Normally Closed, Manual Override
G1/8
0-15 bar
0.12
24V/50Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-15 bar, 0.12, FPM, 110V/50Hz, IP67,
Art:
G256C146S1V00F0 Copied
2/2, Normally Closed
G1/8
0-15 bar
0.12
110V/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-6 bar, 0.12, FPM, 12VDC, IP67,
Art:
G256C146S1V00F3 Copied
2/2, Normally Closed
G1/8
0-6 bar
0.12
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-15 bar, 0.12, FPM, 24/50Hz, IP67,
Art:
G256C146S1V00FQ Copied
2/2, Normally Closed
G1/8
0-15 bar
0.12
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-15 bar, 0.12, FPM, 110V/50Hz, IP67,
Art:
G256C146S1V01F0 Copied
2/2, Normally Closed, Manual Override
G1/8
0-15 bar
0.12
110V/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-6 bar, 0.12, FPM, 12VDC, IP67,
Art:
G256C146S1V01F3 Copied
2/2, Normally Closed, Manual Override
G1/8
0-6 bar
0.12
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-15 bar, 0.12, FPM, 24/50Hz, IP67,
Art:
G256C146S1V01FQ Copied
2/2, Normally Closed, Manual Override
G1/8
0-15 bar
0.12
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-13 bar, 0.14, EPDM, 110V/50Hz, IP67,
Art:
G256C147S1E00F0 Copied
2/2, Normally Closed
G1/8
0-13 bar
0.14
110V/50 Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-4 bar, 0.14, EPDM, 24VDC, IP67,
Art:
G256C147S1E00F1 Copied
2/2, Normally Closed
G1/8
0-4 bar
0.14
24VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-4 bar, 0.14, EPDM, 12VDC, IP67,
Art:
G256C147S1E00F3 Copied
2/2, Normally Closed
G1/8
0-4 bar
0.14
12VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-13 bar, 0.14, EPDM, 230V/50Hz, IP67,
Art:
G256C147S1E00FH Copied
2/2, Normally Closed
G1/8
0-13 bar
0.14
230V/50Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-13 bar, 0.14, EPDM, 24/50Hz, IP67,
Art:
G256C147S1E00FQ Copied
2/2, Normally Closed
G1/8
0-13 bar
0.14
24V/50Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-13 bar, 0.14, EPDM, 110V/50Hz, IP67,
Art:
G256C147S1E01F0 Copied
2/2, Normally Closed, Manual Override
G1/8
0-13 bar
0.14
110V/50 Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-4 bar, 0.14, EPDM, 24VDC, IP67,
Art:
G256C147S1E01F1 Copied
2/2, Normally Closed, Manual Override
G1/8
0-4 bar
0.14
24VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-4 bar, 0.14, EPDM, 12VDC, IP67,
Art:
G256C147S1E01F3 Copied
2/2, Normally Closed, Manual Override
G1/8
0-4 bar
0.14
12VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-13 bar, 0.14, EPDM, 230V/50Hz, IP67,
Art:
G256C147S1E01FH Copied
2/2, Normally Closed, Manual Override
G1/8
0-13 bar
0.14
230V/50Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-13 bar, 0.14, EPDM, 24/50Hz, IP67,
Art:
G256C147S1E01FQ Copied
2/2, Normally Closed, Manual Override
G1/8
0-13 bar
0.14
24V/50Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-13 bar, 0.14, FPM, 110V/50Hz, IP67,
Art:
G256C147S1V00F0 Copied
2/2, Normally Closed
G1/8
0-13 bar
0.14
110V/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-4 bar, 0.14, FPM, 12VDC, IP67,
Art:
G256C147S1V00F3 Copied
2/2, Normally Closed
G1/8
0-4 bar
0.14
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-13 bar, 0.14, FPM, 24/50Hz, IP67,
Art:
G256C147S1V00FQ Copied
2/2, Normally Closed
G1/8
0-13 bar
0.14
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-13 bar, 0.14, FPM, 110V/50Hz, IP67,
Art:
G256C147S1V01F0 Copied
2/2, Normally Closed, Manual Override
G1/8
0-13 bar
0.14
110V/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-4 bar, 0.14, FPM, 12VDC, IP67,
Art:
G256C147S1V01F3 Copied
G1/8
0-4 bar
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-13 bar, 0.14, FPM, 24/50Hz, IP67,
Art:
G256C147S1V01FQ Copied
2/2, Normally Closed, Manual Override
G1/8
0-13 bar
0.14
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-7 bar, 0.18, EPDM, 110V/50Hz, IP67,
Art:
G256C148S1E00F0 Copied
2/2, Normally Closed
G1/8
0-7 bar
0.18
110V/50 Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-2 bar, 0.18, EPDM, 24VDC, IP67,
Art:
G256C148S1E00F1 Copied
2/2, Normally Closed
G1/8
0-2 bar
0.18
24VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-2 bar, 0.18, EPDM, 12VDC, IP67,
Art:
G256C148S1E00F3 Copied
2/2, Normally Closed
G1/8
0-2 bar
0.18
12VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-7 bar, 0.18, EPDM, 230V/50Hz, IP67,
Art:
G256C148S1E00FH Copied
2/2, Normally Closed
G1/8
0-7 bar
0.18
230V/50Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-7 bar, 0.18, EPDM, 24/50Hz, IP67,
Art:
G256C148S1E00FQ Copied
2/2, Normally Closed
G1/8
0-7 bar
0.18
24V/50Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-7 bar, 0.18, EPDM, 110V/50Hz, IP67,
Art:
G256C148S1E01F0 Copied
2/2, Normally Closed, Manual Override
G1/8
0-7 bar
0.18
110V/50 Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-2 bar, 0.18, EPDM, 24VDC, IP67,
Art:
G256C148S1E01F1 Copied
2/2, Normally Closed, Manual Override
G1/8
0-2 bar
0.18
24VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-2 bar, 0.18, EPDM, 12VDC, IP67,
Art:
G256C148S1E01F3 Copied
2/2, Normally Closed, Manual Override
G1/8
0-2 bar
0.18
12VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-7 bar, 0.18, EPDM, 230V/50Hz, IP67,
Art:
G256C148S1E01FH Copied
2/2, Normally Closed, Manual Override
G1/8
0-7 bar
0.18
230V/50Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-7 bar, 0.18, EPDM, 24/50Hz, IP67,
Art:
G256C148S1E01FQ Copied
2/2, Normally Closed, Manual Override
G1/8
0-7 bar
0.18
24V/50Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-7 bar, 0.18, FPM, 110V/50Hz, IP67,
Art:
G256C148S1V00F0 Copied
2/2, Normally Closed
G1/8
0-7 bar
0.18
110V/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-2 bar, 0.18, FPM, 12VDC, IP67,
Art:
G256C148S1V00F3 Copied
2/2, Normally Closed
G1/8
0-2 bar
0.18
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-7 bar, 0.18, FPM, 24/50Hz, IP67,
Art:
G256C148S1V00FQ Copied
2/2, Normally Closed
G1/8
0-7 bar
0.18
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-7 bar, 0.18, FPM, 110V/50Hz, IP67,
Art:
G256C148S1V01F0 Copied
2/2, Normally Closed, Manual Override
G1/8
0-7 bar
0.18
110V/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-2 bar, 0.18, FPM, 12VDC, IP67,
Art:
G256C148S1V01F3 Copied
2/2, Normally Closed, Manual Override
G1/8
0-2 bar
0.18
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-7 bar, 0.18, FPM, 24/50Hz, IP67,
Art:
G256C148S1V01FQ Copied
2/2, Normally Closed, Manual Override
G1/8
0-7 bar
0.18
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-26 bar, 0.051, EPDM, 12VDC, IP67,
Art:
G256C159S1E00F3 Copied
2/2, Normally Closed
G1/8
0-26 bar
0.051
12VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-26 bar, 0.051, EPDM, 24VDC, IP67,
Art:
G256C159S1E01F1 Copied
2/2, Normally Closed, Manual Override
G1/8
0-26 bar
0.051
24VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-26 bar, 0.051, EPDM, 12VDC, IP67,
Art:
G256C159S1E01F3 Copied
2/2, Normally Closed, Manual Override
G1/8
0-26 bar
0.051
12VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-26 bar, 0.051, FPM, 12VDC, IP67,
Art:
G256C159S1V00F3 Copied
2/2, Normally Closed
G1/8
0-26 bar
0.051
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-26 bar, 0.051, FPM, 12VDC, IP67,
Art:
G256C159S1V01F3 Copied
2/2, Normally Closed, Manual Override
G1/8
0-26 bar
0.051
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-16 bar, 0.08, EPDM, 24VDC, IP67,
Art:
G256C160S1E00F1 Copied
2/2, Normally Closed
G1/8
0-16 bar
0.08
24VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-16 bar, 0.08, EPDM, 12VDC, IP67,
Art:
G256C160S1E00F3 Copied
2/2, Normally Closed
G1/8
0-16 bar
0.08
12VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-16 bar, 0.08, EPDM, 24VDC, IP67,
Art:
G256C160S1E01F1 Copied
2/2, Normally Closed, Manual Override
G1/8
0-16 bar
0.08
24VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-16 bar, 0.08, EPDM, 12VDC, IP67,
Art:
G256C160S1E01F3 Copied
2/2, Normally Closed, Manual Override
G1/8
0-16 bar
0.08
12VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-16 bar, 0.08, FPM, 12VDC, IP67,
Art:
G256C160S1V00F3 Copied
2/2, Normally Closed
G1/8
0-16 bar
0.08
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-16 bar, 0.08, FPM, 12VDC, IP67,
Art:
G256C160S1V01F3 Copied
2/2, Normally Closed, Manual Override
G1/8
0-16 bar
0.08
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-7 bar, 0.11, EPDM, 24VDC, IP67,
Art:
G256C161S1E00F1 Copied
2/2, Normally Closed
G1/8
0-7 bar
0.11
24VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-7 bar, 0.11, EPDM, 12VDC, IP67,
Art:
G256C161S1E00F3 Copied
2/2, Normally Closed
G1/8
0-7 bar
0.11
12VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-7 bar, 0.11, EPDM, 24VDC, IP67,
Art:
G256C161S1E01F1 Copied
2/2, Normally Closed, Manual Override
G1/8
0-7 bar
0.11
24VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-7 bar, 0.11, EPDM, 12VDC, IP67,
Art:
G256C161S1E01F3 Copied
2/2, Normally Closed, Manual Override
G1/8
0-7 bar
0.11
12VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-7 bar, 0.11, FPM, 12VDC, IP67,
Art:
G256C161S1V00F3 Copied
2/2, Normally Closed
G1/8
0-7 bar
0.11
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-7 bar, 0.11, FPM, 12VDC, IP67,
Art:
G256C161S1V01F3 Copied
2/2, Normally open, Manual Override
G1/8
0-7 bar
0.11
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-6 bar, 0.14, EPDM, 24VDC, IP67,
Art:
G256C162S1E00F1 Copied
2/2, Normally Closed
G1/8
0-6 bar
0.14
24VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-6 bar, 0.14, EPDM, 12VDC, IP67,
Art:
G256C162S1E00F3 Copied
2/2, Normally Closed
G1/8
0-6 bar
0.14
12VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-6 bar, 0.14, EPDM, 24VDC, IP67,
Art:
G256C162S1E01F1 Copied
2/2, Normally Closed, Manual Override
G1/8
0-6 bar
0.14
24VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-6 bar, 0.14, EPDM, 12VDC, IP67,
Art:
G256C162S1E01F3 Copied
2/2, Normally Closed, Manual Override
G1/8
0-6 bar
0.14
12VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-6 bar, 0.14, FPM, 12VDC, IP67,
Art:
G256C162S1V00F3 Copied
2/2, Normally Closed
G1/8
0-6 bar
0.14
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-6 bar, 0.14, FPM, 12VDC, IP67,
Art:
G256C162S1V01F3 Copied
2/2, Normally Closed, Manual Override
G1/8
0-6 bar
0.14
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-3 bar, 0.18, EPDM, 24VDC, IP67,
Art:
G256C163S1E00F1 Copied
2/2, Normally Closed
G1/8
0-3 bar
0.18
24VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-3 bar, 0.18, EPDM, 12VDC, IP67,
Art:
G256C163S1E00F3 Copied
2/2, Normally Closed
G1/8
0-3 bar
0.18
12VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-3 bar, 0.18, EPDM, 24VDC, IP67,
Art:
G256C163S1E01F1 Copied
2/2, Normally Closed, Manual Override
G1/8
0-3 bar
0.18
24VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-3 bar, 0.18, EPDM, 12VDC, IP67,
Art:
G256C163S1E01F3 Copied
2/2, Normally Closed, Manual Override
G1/8
0-3 bar
0.18
12VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.C., G1/8", 0-3 bar, 0.18, FPM, 12VDC, IP67,
Art:
G256C163S1V00F3 Copied
2/2, Normally Closed
G1/8
0-3 bar
0.18
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.C. Manual Override, G1/8", 0-3 bar, 0.18, FPM, 12VDC, IP67,
Art:
G256C163S1V01F3 Copied
2/2, Normally Closed, Manual Override
G1/8
0-3 bar
0.18
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.O., G1/8", 0-17 bar, 0.05, EPDM, 110V/50Hz, IP67,
Art:
G256C242S1E00F0 Copied
2/2, Normally open
G1/8
0-17 bar
0.05
110v/50 Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.O., G1/8", 0-17 bar, 0.05, EPDM, 230V/50Hz, IP67,
Art:
G256C242S1E00FH Copied
2/2, Normally Closed
G1/8
0-17 bar
0.05
230V/50Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.O., G1/8", 0-17 bar, 0.05, EPDM, 24/50Hz, IP67,
Art:
G256C242S1E00FQ Copied
2/2, Normally open
G1/8
0-17 bar
0.05
24V/50Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.O., G1/8", 0-17 bar, 0.05, FPM, 110V/50Hz, IP67,
Art:
G256C242S1V00F0 Copied
2/2, Normally open
G1/8
0-17 bar
0.05
110V/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.O., G1/8", 0-17 bar, 0.05, FPM, 24/50Hz, IP67,
Art:
G256C242S1V00FQ Copied
2/2, Normally open
G1/8
0-17 bar
0.05
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.O., G1/8", 0-17 bar, 0.08, EPDM, 110V/50Hz, IP67,
Art:
G256C243S1E00F0 Copied
2/2, Normally open
G1/8
0-17 bar
0.08
110V/50 Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.O., G1/8", 0-17 bar, 0.08, EPDM, 230V/50Hz, IP67,
Art:
G256C243S1E00FH Copied
2/2, Normally open
G1/8
0-17 bar
0.08
230V/50Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.O., G1/8", 0-17 bar, 0.08, EPDM, 24/50Hz, IP67,
Art:
G256C243S1E00FQ Copied
2/2, Normally open
G1/8
0-17 bar
0.08
24V/50Hz
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.O., G1/8", 0-17 bar, 0.08, FPM, 110V/50Hz, IP67,
Art:
G256C243S1V00F0 Copied
2/2, Normally open
G1/8
0-17 bar
0.08
110v/50 Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.O., G1/8", 0-17 bar, 0.08, FPM, 24/50Hz, IP67,
Art:
G256C243S1V00FQ Copied
2/2, Normally open
G1/8
0-17 bar
0.08
24V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.O., G1/8", 0-17 bar, 0.05, EPDM, 24VDC, IP67,
Art:
G256C250S1E00F1 Copied
2/2, Normally open
G1/8
0-17 bar
0.05
24VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.O., G1/8", 0-17 bar, 0.05, EPDM, 12VDC, IP67,
Art:
G256C250S1E00F3 Copied
2/2, Normally open
G1/8
0-17 bar
0.05
12VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.O., G1/8", 0-17 bar, 0.05, FPM, 12VDC, IP67,
Art:
G256C250S1V00F3 Copied
2/2, Normally open
G1/8
0-17 bar
0.05
12VDC
FPM
Stainless steel 303
0 °C
130 °C
2/2 N.O., G1/8", 0-10 bar, 0.08, EPDM, 24VDC, IP67,
Art:
G256C251S1E00F1 Copied
2/2, Normally open
G1/8
0-10 bar
0.08
24VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.O., G1/8", 0-10 bar, 0.08, EPDM, 12VDC, IP67,
Art:
G256C251S1E00F3 Copied
2/2, Normally open
G1/8
0-10 bar
0.08
12VDC
EPDM
Stainless steel 303
0 °C
130 °C
2/2 N.O., G1/8", 0-10 bar, 0.08, FPM, 12VDC, IP67,
Art:
G256C251S1V00F3 Copied
2/2, Normally open
G1/8
0-10 bar
0.08
12VDC
FPM
Stainless steel 303
0 °C
130 °C
256 Stainless.jpg
2/2 N.C., G1/4", 0-30 bar, 0.1, FPM, 24VDC, IP67,
Art:
G256C111S1V00F1 Copied
2/2, Normally Closed
G1/4
0-30 bar
0.1
24VDC
FPM
Stainless steel 303
0 °C
130 °C
0.3 kg
5 W
1.6 mm
24 V
30 bar
1.59 l/min
Normally Closed
No
Stainless steel 316
256 Stainless.jpg
2/2 N.C., G1/4", 0-18 bar, 0.18, FPM, 24VDC, IP67,
Art:
G256C113S1V00F1 Copied
2/2, Normally Closed
G1/4
0-18 bar
0.18
24VDC
FPM
Stainless steel 303
0 °C
130 °C
0.3 kg
5 W
2.4 mm
24 V
18 bar
2.99 l/min
Normally Closed
No
Stainless steel 316
256 Stainless.jpg
2/2 N.C., G1/4", 0-6 bar, 0.3, FPM, 24VDC, IP67,
Art:
G256C115S1V00F1 Copied
2/2, Normally Closed
G1/4
0-6 bar
0.3
24VDC
FPM
Stainless steel 303
0 °C
130 °C
0.3 kg
5 W
3.2 mm
24 V
6 bar
5.03 l/min
Normally Closed
No
Stainless steel 316
256 Stainless.jpg
2/2 N.C., G1/4", 0-3 bar, 0.4, FPM, 24VDC, IP67,
Art:
G256C116S1V00F1 Copied
2/2, Normally Closed
G1/4
0-3 bar
0.4
24VDC
FPM
Stainless steel 303
0 °C
130 °C
0.3 kg
5 W
4.5 mm
24 V
3 bar
6.64 l/min
Normally Closed
No
Stainless steel 316
256 Stainless.jpg
2/2 N.C., G1/4", 0-2 bar, 0.48, FPM, 24VDC, IP67,
Art:
G256C117S1V00F1 Copied
2/2, Normally Closed
G1/4
0-2 bar
0.48
24VDC
FPM
Stainless steel 303
0 °C
130 °C
0.3 kg
5 W
5 mm
24 V
2 bar
7.92 l/min
Normally Closed
No
Stainless steel 316
256 Stainless.jpg
2/2 N.C., G1/4", 0-30 bar, 0.1, FPM, 24VDC, IP67,
Art:
G256C127S1V00F1 Copied
2/2, Normally Closed
G1/4
0-30 bar
0.1
24VDC
FPM
Stainless steel 303
0 °C
130 °C
0.3 kg
9 W
1.6 mm
24 V
30 bar
1.59 l/min
Normally Closed
No
Stainless steel 316
256 Stainless.jpg
2/2 N.C., G1/4", 0-20 bar, 0.18, FPM, 24VDC, IP67,
Art:
G256C129S1V00F1 Copied
2/2, Normally Closed
G1/4
0-20 bar
0.18
24VDC
FPM
Stainless steel 303
0 °C
130 °C
0.3 kg
9 W
2.4 mm
24 V
20 bar
2.99 l/min
Normally Closed
No
Stainless steel 316
256 Stainless.jpg
2/2 N.C., G1/4", 0-20 bar, 0.18, FPM, 230V/50Hz, IP67,
Art:
G256C129S1V00FH Copied
2/2, Normally Closed
G1/4
0-20 bar
0.18
230V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
0.3 kg
9 W
2.4 mm
20 bar
2.99 l/min
Normally Closed
No
Stainless steel 316
230 V
256 Stainless.jpg
2/2 N.C., G1/4", 0-4 bar, 0.48, FPM, 24VDC, IP67,
Art:
G256C133S1V00F1 Copied
1/4 BSP
0.48
FPM
Stainless steel 303
0 °C
130 °C
0.3 kg
9 W
5 mm
24 V
4 bar
7.92 l/min
Normally Closed
No
Stainless steel 316
256 Stainless.jpg
2/2 N.C., G1/4", 0-5 bar, 0.48, FPM, 230V/50Hz, IP67,
Art:
G256C133S1V00FH Copied
2/2, Normally Closed
G1/4
0-5 bar
0.48
230V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
0.3 kg
9 W
5 mm
5 bar
7.92 l/min
Normally Closed
No
Stainless steel 316
230 V
256 Stainless.jpg
2/2 N.C., G1/8", 0-20 bar, 0.051, FPM, 24VDC, IP67,
Art:
G256C144S1V00F1 Copied
2/2, Normally Closed
G1/8
0-20 bar
0,051
24VDC
FPM
Stainless steel 303
0 °C
130 °C
0.116 kg
3.5 W
1.2 mm
24 V
20 bar
0.85 l/min
Normally Closed
No
256 Stainless.jpg
2/2 N.C., G1/8", 0-30 bar, 0.051, FPM, 230V/50Hz, IP67,
Art:
G256C144S1V00FH Copied
2/2, Normally Closed
G1/8
0-30 bar
0,051
230V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
0.116 kg
3 W
1.2 mm
30 bar
0.85 l/min
Normally Closed
No
230 V
256 Stainless.jpg
2/2 N.C. Manual Override, G1/8", 0-20 bar, 0.051, FPM, 24VDC, IP67,
Art:
G256C144S1V01F1 Copied
2/2, Normally Closed, Manual Override
G1/8
0-20 bar
0,051
24VDC
FPM
Stainless steel 303
0 °C
130 °C
0.116 kg
3.5 W
1.2 mm
24 V
20 bar
0.85 l/min
Normally Closed
Yes
Stainless steel 316
256 Stainless.jpg
2/2 N.C. Manual Override, G1/8", 0-30 bar, 0.051, FPM, 230V/50Hz, IP67,
Art:
G256C144S1V01FH Copied
2/2, Normally Closed, Manual Override
G1/8
0-30 bar
0,051
230V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
0.116 kg
3 W
1.2 mm
30 bar
0.85 l/min
Normally Closed
Yes
230 V
256 Stainless.jpg
2/2 N.C., G1/8", 0-12 bar, 0.08, FPM, 24VDC, IP67,
Art:
G256C145S1V00F1 Copied
2/2, Normally Closed
G1/8
0-12 bar
0.08
24VDC
FPM
Stainless steel 303
0 °C
130 °C
0.116 kg
3.5 W
1.6 mm
24 V
12 bar
1.33 l/min
Normally Closed
No
256 Stainless.jpg
2/2 N.C., G1/8", 0-30 bar, 0.08, FPM, 230V/50Hz, IP67,
Art:
G256C145S1V00FH Copied
2/2, Normally Closed
G1/8
0-30 bar
0.08
230V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
0.116 kg
3 W
1.6 mm
30 bar
1.33 l/min
Normally Closed
No
Stainless steel 316
230 V
256 Stainless.jpg
2/2 N.C. Manual Override, G1/8", 0-12 bar, 0.08, FPM, 24VDC, IP67,
Art:
G256C145S1V01F1 Copied
2/2, Normally Closed, Manual Override
G1/8
0-12 bar
0.08
24VDC
FPM
Stainless steel 303
0 °C
130 °C
0.116 kg
3.5 W
1.6 mm
24 V
12 bar
1.33 l/min
Normally Closed
Yes
256 Stainless.jpg
2/2 N.C. Manual Override, G1/8", 0-30 bar, 0.08, FPM, 230V/50Hz, IP67,
Art:
G256C145S1V01FH Copied
2/2, Normally Closed, Manual Override
G1/8
0-30 bar
0.08
230V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
0.116 kg
3 W
1.6 mm
30 bar
1.33 l/min
Normally Closed
Yes
Stainless steel 316
230 V
256 Stainless.jpg
2/2 N.C., G1/8", 0-6 bar, 0.12, FPM, 24VDC, IP67,
Art:
G256C146S1V00F1 Copied
2/2, Normally Closed
G1/8
0-6 bar
0.12
24VDC
FPM
Stainless steel 303
0 °C
130 °C
0.116 kg
3.5 W
2 mm
24 V
6 bar
1.99 l/min
Normally Closed
No
Stainless steel 316
256 Stainless.jpg
2/2 N.C., G1/8", 0-15 bar, 0.12, FPM, 230V/50Hz, IP67,
Art:
G256C146S1V00FH Copied
2/2, Normally Closed
G1/8
0-15 bar
0.12
230V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
0.116 kg
3 W
2 mm
15 bar
1.99 l/min
Normally Closed
No
Stainless steel 316
230 V
256 Stainless.jpg
2/2 N.C. Manual Override, G1/8", 0-6 bar, 0.12, FPM, 24VDC, IP67,
Art:
G256C146S1V01F1 Copied
2/2, Normally Closed, Manual Override
G1/8
0-6 bar
0.12
24VDC
FPM
Stainless steel 303
0 °C
130 °C
0.116 kg
3.5 W
2 mm
24 V
6 bar
1.99 l/min
Normally Closed
Yes
Stainless steel 316
256 Stainless.jpg
2/2 N.C. Manual Override, G1/8", 0-15 bar, 0.12, FPM, 230V/50Hz, IP67,
Art:
G256C146S1V01FH Copied
2/2, Normally Closed, Manual Override
G1/8
0-15 bar
0.12
230V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
0.116 kg
3 W
2 mm
15 bar
1.99 l/min
Normally Closed
Yes
Stainless steel 316
230 V
256 Stainless.jpg
2/2 N.C., G1/8", 0-4 bar, 0.14, FPM, 24VDC, IP67,
Art:
G256C147S1V00F1 Copied
2/2, Normally Closed
G1/8
0-4 bar
0.14
24VDC
FPM
Stainless steel 303
0 °C
130 °C
0.116 kg
3.5 W
2.4 mm
24 V
4 bar
2.32 l/min
Normally Closed
No
Stainless steel 316
256 Stainless.jpg
2/2 N.C., G1/8", 0-13 bar, 0.14, FPM, 230V/50Hz, IP67,
Art:
G256C147S1V00FH Copied
2/2, Normally Closed
G1/8
0-13 bar
0.14
230V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
0.116 kg
3 W
2.4 mm
13 bar
2.32 l/min
Normally Closed
No
Stainless steel 316
230 V
256 Stainless.jpg
2/2 N.C. Manual Override, G1/8", 0-4 bar, 0.14, FPM, 24VDC, IP67,
Art:
G256C147S1V01F1 Copied
1/8 BSP
0.14
FPM
Stainless steel 303
0 °C
130 °C
0.116 kg
3.5 W
2.4 mm
24 V
4 bar
2.32 l/min
Normally Closed
Yes
Stainless steel 316
256 Stainless.jpg
2/2 N.C. Manual Override, G1/8", 0-13 bar, 0.14, FPM, 230V/50Hz, IP67,
Art:
G256C147S1V01FH Copied
2/2, Normally Closed, Manual Override
G1/8
0-13 bar
0.14
230V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
0.116 kg
3 W
2.4 mm
13 bar
2.32 l/min
Normally Closed
Yes
Stainless steel 316
230 V
256 Stainless.jpg
2/2 N.C., G1/8", 0-2 bar, 0.18, FPM, 24VDC, IP67,
Art:
G256C148S1V00F1 Copied
2/2, Normally Closed
G1/8
0-2 bar
0.18
24VDC
FPM
Stainless steel 303
0 °C
130 °C
0.116 kg
3.5 W
3.2 mm
24 V
2 bar
2.99 l/min
Normally Closed
No
Stainless steel 316
256 Stainless.jpg
2/2 N.C., G1/8", 0-7 bar, 0.18, FPM, 230V/50Hz, IP67,
Art:
G256C148S1V00FH Copied
2/2, Normally Closed
G1/8
0-7 bar
0.18
230V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
0.116 kg
3 W
3.2 mm
7 bar
2.99 l/min
Normally Closed
No
Stainless steel 316
230 V
256 Stainless.jpg
2/2 N.C. Manual Override, G1/8", 0-2 bar, 0.18, FPM, 24VDC, IP67,
Art:
G256C148S1V01F1 Copied
2/2, Normally Closed, Manual Override
G1/8
0-2 bar
0.18
24VDC
FPM
Stainless steel 303
0 °C
130 °C
0.116 kg
3.5 W
3.2 mm
24 V
2 bar
2.99 l/min
Normally Closed
Yes
Stainless steel 316
256 Stainless.jpg
2/2 N.C. Manual Override, G1/8", 0-7 bar, 0.18, FPM, 230V/50Hz, IP67,
Art:
G256C148S1V01FH Copied
1/8 BSP
0.18
FPM
Stainless steel 303
0 °C
130 °C
0.116 kg
3 W
3.2 mm
7 bar
2.99 l/min
Normally Closed
Yes
Stainless steel 316
230 V
256 Stainless.jpg
2/2 N.C., G1/8", 0-26 bar, 0.051, FPM, 24VDC, IP67,
Art:
G256C159S1V00F1 Copied
2/2, Normally Closed
G1/8
0-26 bar
0,051
24VDC
FPM
Stainless steel 303
0 °C
130 °C
0.116 kg
5 W
1.2 mm
24 V
26 bar
0.85 l/min
Normally Closed
No
256 Stainless.jpg
2/2 N.C. Manual Override, G1/8", 0-26 bar, 0.051, FPM, 24VDC, IP67,
Art:
G256C159S1V01F1 Copied
2/2, Normally Closed, Manual Override
G1/8
0-26 bar
0,051
24VDC
FPM
Stainless steel 303
0 °C
130 °C
0.116 kg
5 W
1.2 mm
24 V
26 bar
0.85 l/min
Normally Closed
Yes
256 Stainless.jpg
2/2 N.C., G1/8", 0-16 bar, 0.08, FPM, 24VDC, IP67,
Art:
G256C160S1V00F1 Copied
2/2, Normally Closed
G1/8
0-16 bar
0.08
24VDC
FPM
Stainless steel 303
0 °C
130 °C
0.116 kg
5 W
1.6 mm
24 V
16 bar
1.33 l/min
Normally Closed
No
Stainless steel 316
256 Stainless.jpg
2/2 N.C. Manual Override, G1/8", 0-16 bar, 0.08, FPM, 24VDC, IP67,
Art:
G256C160S1V01F1 Copied
2/2, Normally Closed, Manual Override
G1/8
0-16 bar
0.08
24VDC
FPM
Stainless steel 303
0 °C
130 °C
0.116 kg
5 W
1.6 mm
24 V
16 bar
1.33 l/min
Normally Closed
Yes
Stainless steel 316
256 Stainless.jpg
2/2 N.C., G1/8", 0-7 bar, 0.11, FPM, 24VDC, IP67,
Art:
G256C161S1V00F1 Copied
2/2, Normally Closed
G1/8
0-7 bar
0.11
24VDC
FPM
Stainless steel 303
0 °C
130 °C
0.116 kg
5 W
2 mm
24 V
7 bar
1.83 l/min
Normally Closed
No
Stainless steel 316
256 Stainless.jpg
2/2 N.C. Manual Override, G1/8", 0-7 bar, 0.11, FPM, 24VDC, IP67,
Art:
G256C161S1V01F1 Copied
2/2, Normally Closed, Manual Override
G1/8
0-7 bar
0.11
24VDC
FPM
Stainless steel 303
0 °C
130 °C
0.116 kg
5 W
2 mm
24 V
7 bar
1.83 l/min
Normally Closed
Yes
Stainless steel 316
256 Stainless.jpg
2/2 N.C., G1/8", 0-6 bar, 0.14, FPM, 24VDC, IP67,
Art:
G256C162S1V00F1 Copied
2/2, Normally Closed
G1/8
0-6 bar
0.14
24VDC
FPM
Stainless steel 303
0 °C
130 °C
0.116 kg
5 W
2.4 mm
24 V
6 bar
2.32 l/min
Normally Closed
No
Stainless steel 316
256 Stainless.jpg
2/2 N.C. Manual Override, G1/8", 0-6 bar, 0.14, FPM, 24VDC, IP67,
Art:
G256C162S1V01F1 Copied
2/2, Normally Closed, Manual Override
G1/8
0-6 bar
0.14
24VDC
FPM
Stainless steel 303
0 °C
130 °C
0.116 kg
5 W
2.4 mm
24 V
6 bar
2.32 l/min
Normally Closed
Yes
Stainless steel 316
256 Stainless.jpg
2/2 N.C., G1/8", 0-3 bar, 0.18, FPM, 24VDC, IP67,
Art:
G256C163S1V00F1 Copied
2/2, Normally Closed
G1/8
0-3 bar
0.18
24VDC
FPM
Stainless steel 303
0 °C
130 °C
0.116 kg
5 W
3.2 mm
24 V
3 bar
2.99 l/min
Normally Closed
No
Stainless steel 316
256 Stainless.jpg
2/2 N.C. Manual Override, G1/8", 0-3 bar, 0.18, FPM, 24VDC, IP67,
Art:
G256C163S1V01F1 Copied
2/2, Normally Closed, Manual Override
G1/8
0-3 bar
0.18
24VDC
FPM
Stainless steel 303
0 °C
130 °C
0.116 kg
5 W
3.2 mm
24 V
3 bar
2.99 l/min
Normally Closed
Yes
Stainless steel 316
256 Stainless.jpg
2/2 N.O., G1/8", 0-17 bar, 0.05, FPM, 230V/50Hz, IP67,
Art:
G256C242S1V00FH Copied
2/2, Normally open
G1/8
0-17 bar
0.05
230V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
0.2 kg
6 W
1.2 mm
17 bar
0.85 l/min
Normally open
No
Stainless steel 316
230 V
256 Stainless.jpg
2/2 N.O., G1/8", 0-17 bar, 0.08, FPM, 230V/50Hz, IP67,
Art:
G256C243S1V00FH Copied
2/2, Normally open
G1/8
0-17 bar
0.08
230V/50Hz
FPM
Stainless steel 303
0 °C
130 °C
0.2 kg
6 W
1.6 mm
17 bar
1.33 l/min
Normally open
No
Stainless steel 316
230 V
256 Stainless.jpg
2/2 N.O., G1/8", 0-17 bar, 0.05, FPM, 24VDC, IP67,
Art:
G256C250S1V00F1 Copied
2/2, Normally open
G1/8
0-17 bar
0.05
24VDC
FPM
Stainless steel 303
0 °C
130 °C
0.2 kg
5.5 W
1.2 mm
24 V
17 bar
0.83 l/min
Normally open
No
Stainless steel 316
256 Stainless.jpg
2/2 N.O., G1/8", 0-10 bar, 0.08, FPM, 24VDC, IP67,
Art:
G256C251S1V00F1 Copied
2/2, Normally open
G1/8
0-10 bar
0.08
24VDC
FPM
Stainless steel 303
0 °C
130 °C
0.2 kg
5.5 W
1.6 mm
24 V
10 bar
1.33 l/min
Normally open
No
Stainless steel 316
256 Stainless.jpg
2/2 N.O., G1/4", 0-4 bar, 0.3, FPM, 230V/50Hz, IP67
Art:
G256C216S19DQFH Copied
2/2, Normally Closed
G1/4
0-4 bar
0.3
230V/50Hz
FPM
Stainless steel
0 °C
130 °C
9 W
70 ms
0.34 kg
3.2 mm
5 l/min
No

Selected variant

Select a variant in the list

Contact us
If you need any help, you can contact us in one of the following ways:
0116 284 9900
Send e-mail
Use live chat
Do you need help?
Logo

Cookie settings for OEM.CO.UK

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

You can accept all cookies or personalise your cookies preferences, you can also change your cookie preferences at any time by visiting our contact page.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
