JUNG PROCESS SYSTEMS

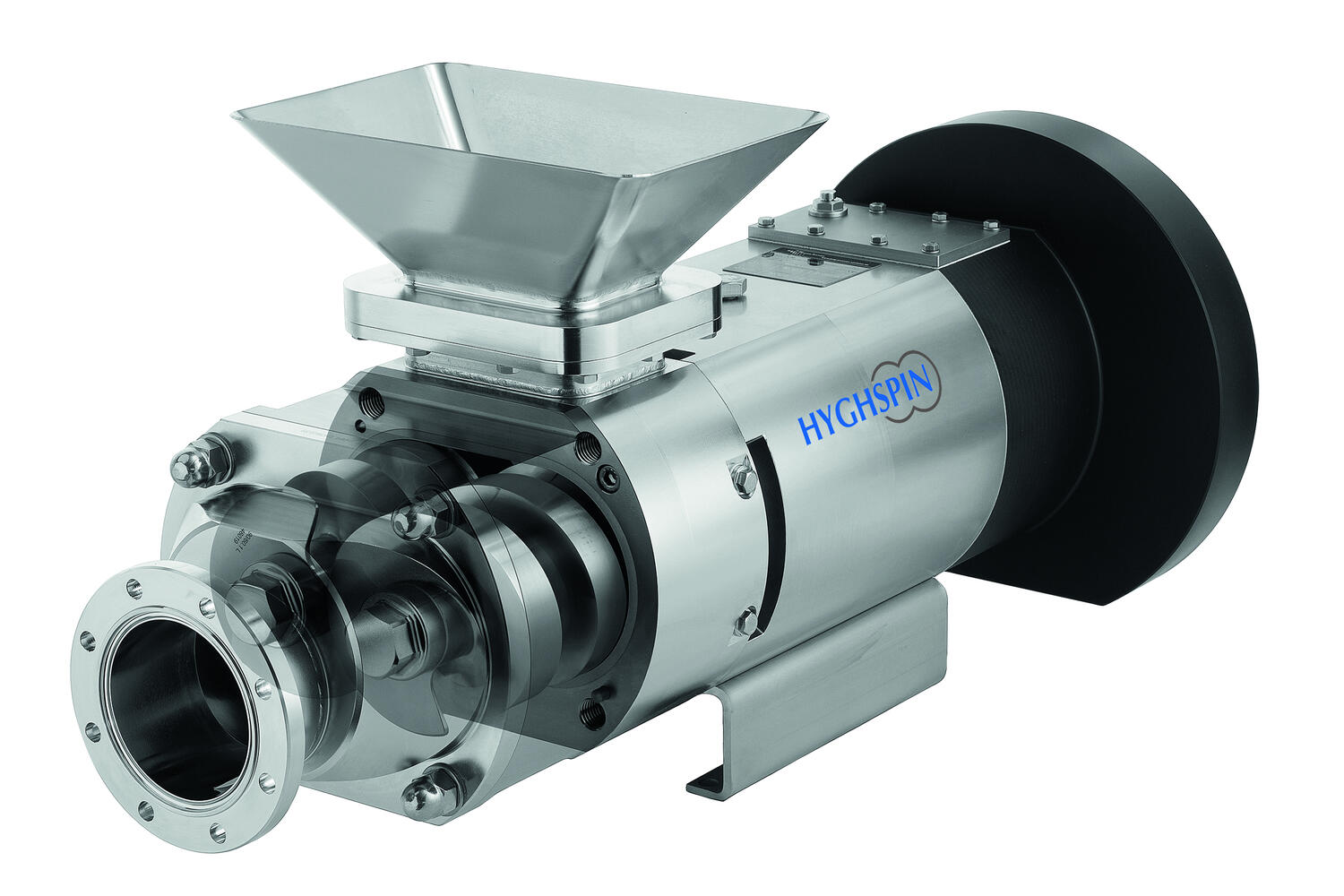

Jung HYGHSPIN Hopper series pump
Hygienic twin screw pump

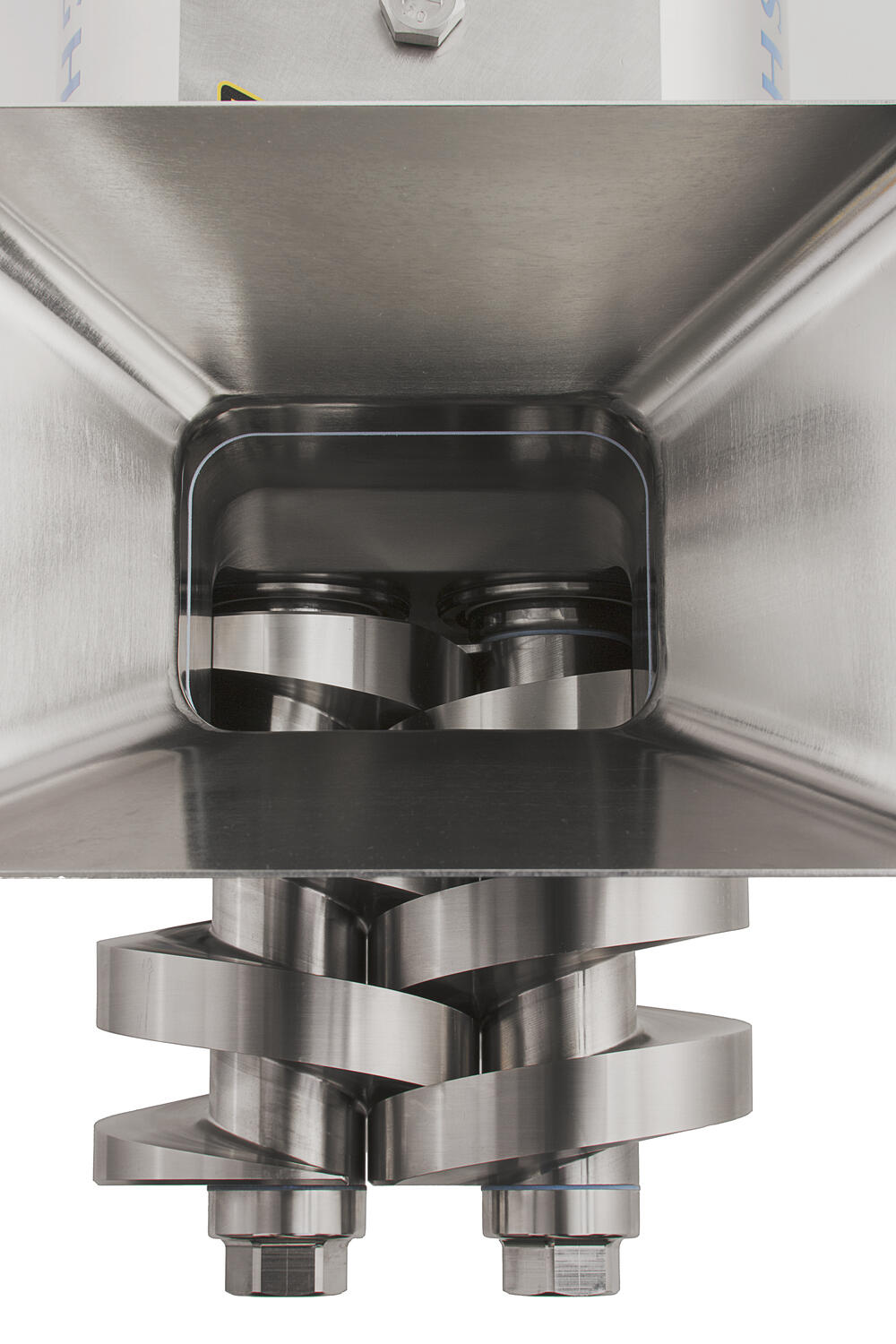

The HYGHSPIN Hopper is an addition to the worldwide tried and tested HYGHSPIN series of Twin Screw Pumps made of stainless steel. The innovative twin screw pump with a funnel opening is capable of transporting products with viscosities of up to 1000 Pas. Its conveyor screws are extended so that they can induct non-flow capable products below the inlet funnel in a similar principle to an extruder and then feed them into the pump chamber. This ensures a particularly gentle handling - an external extruder can be completely dispensed with.
The HYGHSPIN Hopper therefore provides a very attractive 3-in-1 solution: Feeding, conveying and cleaning take place in only one component. It is available in block design or with free shaft end.
- Flow 100l/h to 30m³/h
- Pressure up to 25 bar
- Viscosity up to 50,000,000 cSt
- Temperature -10°C to +130°C (160°C)
- Max. particle size 45mm
Selected variant
Technical data
| Connection type | Different sizes and connector standards by arrangement |
|---|---|
| Differential pressure | 20 bar |
| Flow max | 10 m³/h |
| Material of elastomers | EPDM, FPM, HNBR (Nitrile rubber), FFPM |
| Material of wetted parts | Stainless steel 316/316L (1.4401/1.4404), Stainless steel 1.4462, 1.4404, Stainless Steel 1.4539 |
| Maximum diameter of solid material | 20 mm |
| Pump orientation | Horizontal, vertical or lateral |
|---|---|
| Temperature operational max | 180 °C |
| Temperature operational min | -10 °C |
| Viscosity | 0.5 - 1,000,000 mPas |
Product description
The HYGHSPIN Hopper is an addition to the worldwide tried and tested HYGHSPIN series of Twin Screw Pumps made of stainless steel. The innovative twin screw pump with a funnel opening is capable of transporting products with viscosities of up to 1000 Pas. Its conveyor screws are extended so that they can induct non-flow capable products below the inlet funnel in a similar principle to an extruder and then feed them into the pump chamber. This ensures a particularly gentle handling - an external extruder can be completely dispensed with.
The HYGHSPIN Hopper therefore provides a very attractive 3-in-1 solution: Feeding, conveying and cleaning take place in only one component. It is available in block design or with free shaft end.
