Anderson Negele - Capacitive limit switch - Food NCS

NCS-01, NCS-02, NCS-11, NCS-12, NCS-L

  • Capacitive limit switch
  • Measuring range Dk ≥ 20
  • Operating pressure max 10 bar
  • Approvals: FDA; EHEDG; 3-A

Product description

Application/specified usage



Limit detection of media with low or no water content like syrup, fruit concentrates, alcohols and oils with a dielectric constant εr (Dk) ≥ 2

Ordering information

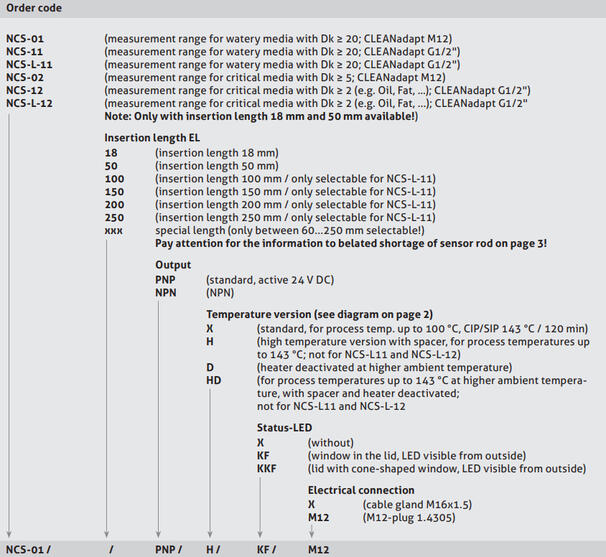

Please refer to the image below for ordering information.







Part numbers

Parts Price Length
9
9 mm
10,5 mm
10,5 mm
100, 150, 200, 250 mm
18 nebo 50 mm

Part

NCS-01

Technical data

Approvals 3-A, FDA
Area of apllication Food
IP class IP67, IP69K
Length 9
Material of connection Stainless steel 1.4305
Material of sensor housing Stainless steel 1.4305
Material of wetted parts PEEK, Stainless steel 316L
Pressure resistance max 10 bar
Supply voltage dc max 32 V DC
Supply voltage dc min 16 V DC
Surface finish 0,8 µm Ra
Temperature of media from 0 °C
Temperature of media to 125 °C
Weight 500 g
