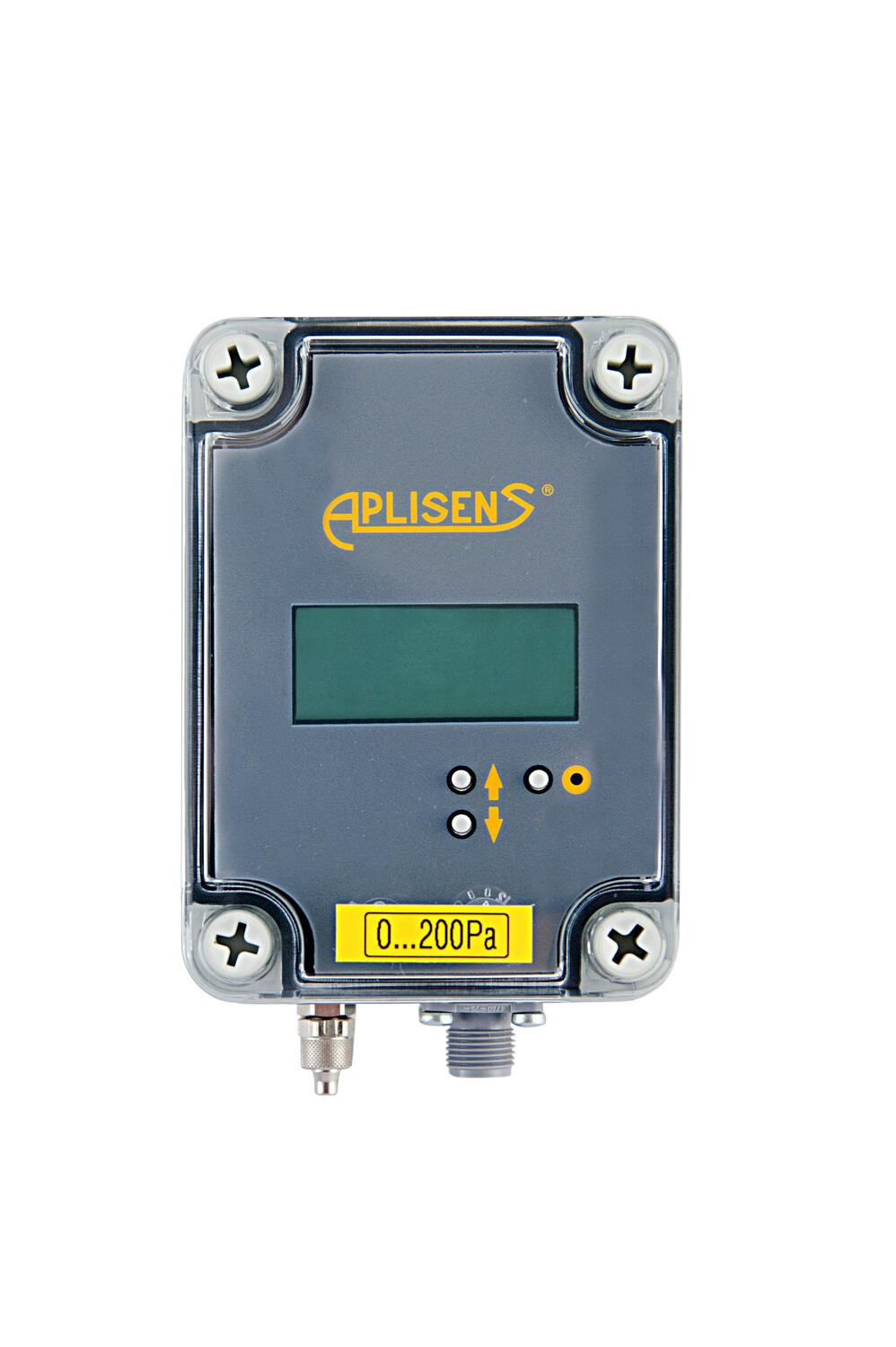

Aplisens - APRE-2000G Smart differential pressure sensors APRE-2000G

The Aplisens APRE-2000G Smart differential pressure transmitter is applicable to gases, to the measurements of their pressure, underpressure and differential pressure.



The ability to select the radical conversion characteristics also enables this differential pressure transmitter to be used in gas flow measurement systems using reduced pipes or other impeding elecments.



The APRE-2000G Smart uses HART protocol and the following metrological parameters can be configured through this:



  • Units of pressure
  • Start and end-points of the set range
  • Damping time constant
  • Conversion characteristics (radical, inversion, user's non-linear characteristics)



And through the data interchange with the probe you can also:



  • Identify the transmitter
  • Read the currently measured hydrostatic pressure value, output current and percenatge of measuring range



This smart differential pressure transmitter has an accuracy of 0.1%, with five standard measuring ranges to choose from and is also available in ATEX.

Application examples:



  • Blast pressure
  • Chimney draughts
  • Furnace chambers
  • Clean rooms
Read more
  • Pressure range -100 mbar to 100 mbar
  • Min range 0.2mbar
  • Three body styles available
  • ATEX version

Selected variant

Available in several variants

Selected variant

Technical data

Approvals ATEX
Connection M20x1.5, Hose connection 6 mm, 1/4 NPT
IP class IP65, IP66, IP67
Material Stainless steel AISI 304
Material of wetted parts Stainless steel AISI 304
Pressure range max 100 mbar
Pressure range min -100 mbar
Signal type 4-20 mA / Hart
Supply voltage dc max 36 V DC
Supply voltage dc min 7.5 V DC
Temperature of media from -10 °C
Temperature of media to 70 °C

Product description

The Aplisens APRE-2000G Smart differential pressure transmitter is applicable to gases, to the measurements of their pressure, underpressure and differential pressure.



The ability to select the radical conversion characteristics also enables this differential pressure transmitter to be used in gas flow measurement systems using reduced pipes or other impeding elecments.



The APRE-2000G Smart uses HART protocol and the following metrological parameters can be configured through this:



  • Units of pressure
  • Start and end-points of the set range
  • Damping time constant
  • Conversion characteristics (radical, inversion, user's non-linear characteristics)



And through the data interchange with the probe you can also:



  • Identify the transmitter
  • Read the currently measured hydrostatic pressure value, output current and percenatge of measuring range



This smart differential pressure transmitter has an accuracy of 0.1%, with five standard measuring ranges to choose from and is also available in ATEX.

Application examples:



  • Blast pressure
  • Chimney draughts
  • Furnace chambers
  • Clean rooms

Ordering information

Please refer to the image below for ordering information.



Accessories

Add product as a new cart row

You already added this product. Choose whether to increase quantity on the existing row or add the product as a new row.

Related

Parts Approvals Connection Deviation max Electrical connection IP class Manufacturer part no. Material Material of body Material of wetted parts Pressure range max Pressure range min Static pressure Supply voltage dc max Supply voltage dc min Temperature ambient from Temperature ambient to Temperature of media from Temperature of media to Price
2xØ6mm
0,25 %
DIN EN 175301-803-A
IP65

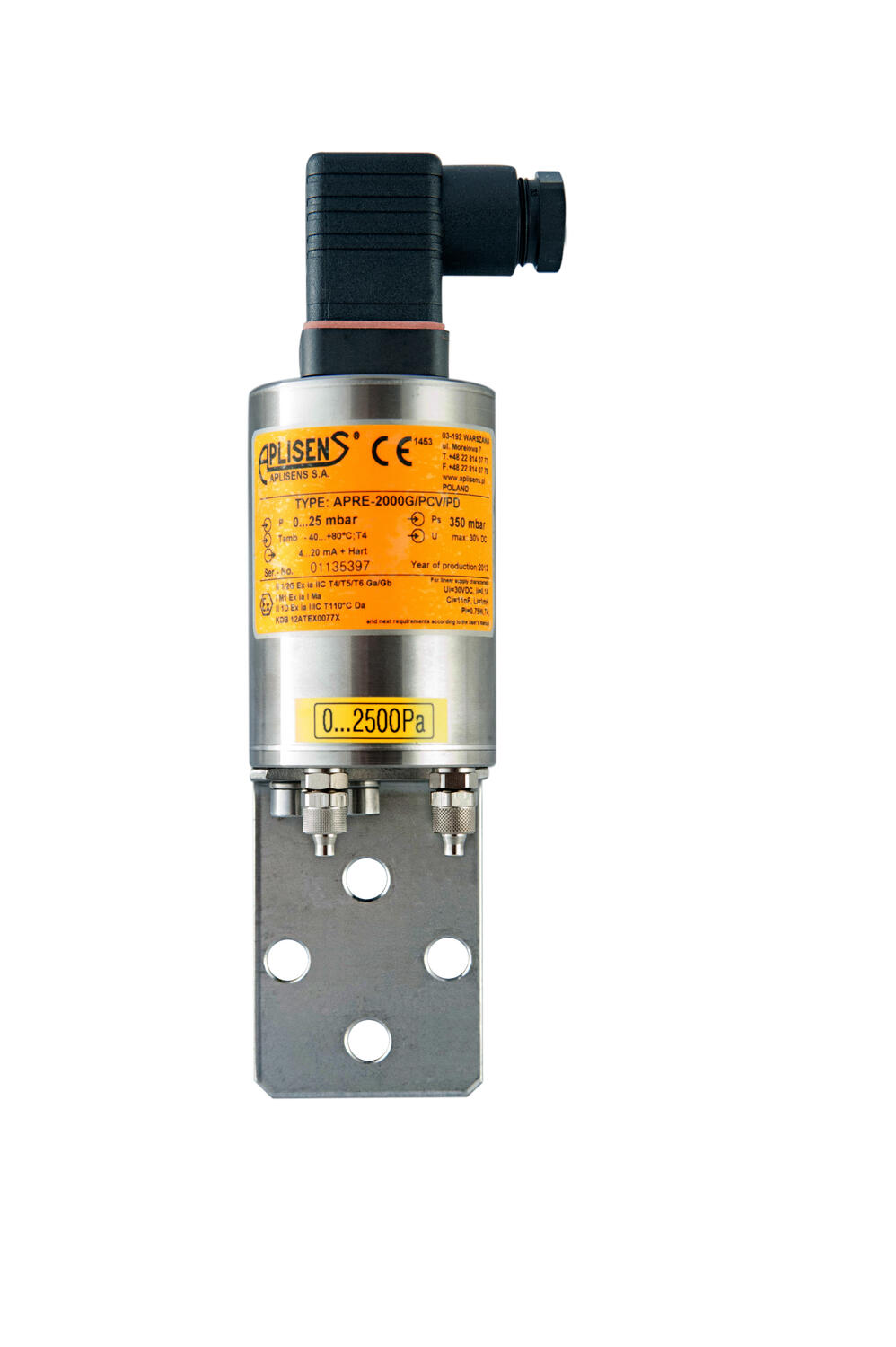

APRE2000G/PD/-2,5..2,5/ 0-62,5PA/PCV
Stainless steel AISI 304
Brass, Stainless steel 316L
0.625 mbar
0 mbar
0.35 bar
55 V DC
7.5 V DC
-30 °C
85 °C
-25 °C
120 °C
Ex-ia
2xØ6mm
0,075 %
DIN EN 175301-803-A
IP65
APRE2000G/EX/PD/0-25/ 0-2MBAR/PCV
Stainless steel AISI 304
Brass, Stainless steel 316L
2 mbar
0 mbar
0.35 bar
30 V DC
7.5 V DC
-25 °C
80 °C
-25 °C
120 °C
2xØ6mm
0,075 %
DIN EN 175301-803-A
IP65
APRE2000G/PD/0-25/0-5MBAR/PCV
Stainless steel AISI 304
Brass, Stainless steel 316L
5 mbar
0 mbar
0.35 bar
55 V DC
7.5 V DC
-30 °C
85 °C
-25 °C
120 °C
2xØ6mm
0,075 %
M12x1 4-pole
IP65
APRE2000G/N/-100..100/ 0-70MBAR/PCV
Plastic
Brass
70 mbar
0 mbar
1 bar
36 V DC
12 V DC
-25 °C
60 °C
-25 °C
120 °C
ATEX
M20x1.5, Hose connection 6 mm, 1/4 NPT
IP65, IP66, IP67
Stainless steel AISI 304
Stainless steel AISI 304
100 mbar
-100 mbar
36 V DC
7.5 V DC
-10 °C
70 °C
