Suco - 0167 Pressure Switch

Brass body

The SUCO 0167 is a compact diaphragm-style pressure switch housed in a robust brass body with a HEX‑24 (≈ 0.95″) thread interface. It supports maximum voltages up to 42 VAC/DC and handles resistive currents up to 4 A. Field-adjustable across four ranges the switch is available in either normally open or normally closed SPST configurations, with contact deviation as tight as ±0.2 bar for low-range units. Overpressure safety is rated at 35 bar (≈ 500 psi), with dynamic burst pressures significantly higher (up to 400 bar). It features a durable NBR (Buna-N), EPDM, FKM (Viton®), or silicone diaphragm capable of withstanding media temperatures from –40 °C to +120 °C (depending on material), IP65 protection via a polyamide cap, and a service life of around 1 million cycles at up to 50 bar switching pressure.

The 0167 switch is ideal for monitoring pressures in water systems, pneumatics, hydraulics, and light industrial machinery. Its field-adjustable setpoint allows on-site calibration during installation or maintenance, while the brass housing offers chemical resilience. Typical uses include triggering pump cycles, activating alarms for out-of-range pressures, and protecting against overpressure in applications such as cooling loops, domestic water supply, oxygen or brake-fluid monitoring, and medical or food-service equipment. Available with both spade or screw terminals and in various thread sizes (G¼″, ⅛″ NPT/BSP, M10×1), along with ready-wired or connector-equipped variants, it offers versatile integration into OEM and field systems.

Read more
  • Up to 42 V
  • Spade or screw terminals
  • Four adjusment ranges from 0,1..1 bar to 10..20 bar
  • Normally open or normally closed
  • Over pressure safety of 35 bar

Selected variant

Available in several variants
Suco logo 2024.png

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Adjustment range max 1 bar
Adjustment range min 0.1 bar
Approvals CSA US, RoHS II
Contact rating max 4 A
Deviation max ±0,2
Electrical connection Screw (M3)
Function Normally open
IP class IP00
Material membrane NBR
Material of body Brass
Material of wetted parts Brass, NBR
Max switching frequency/min 200
Mechanical life expectancy 1 million exchanges
Pressure max 35 bar
Process connection 1/4 BSP
Temperature ambient from -20 °C
Temperature ambient to 80 °C
Temperature of media from -40 °C
Temperature of media to 100 °C
Weight 90 g
Voltage ac/dc max 42 V
Voltage ac/dc min 10 V

Downloads

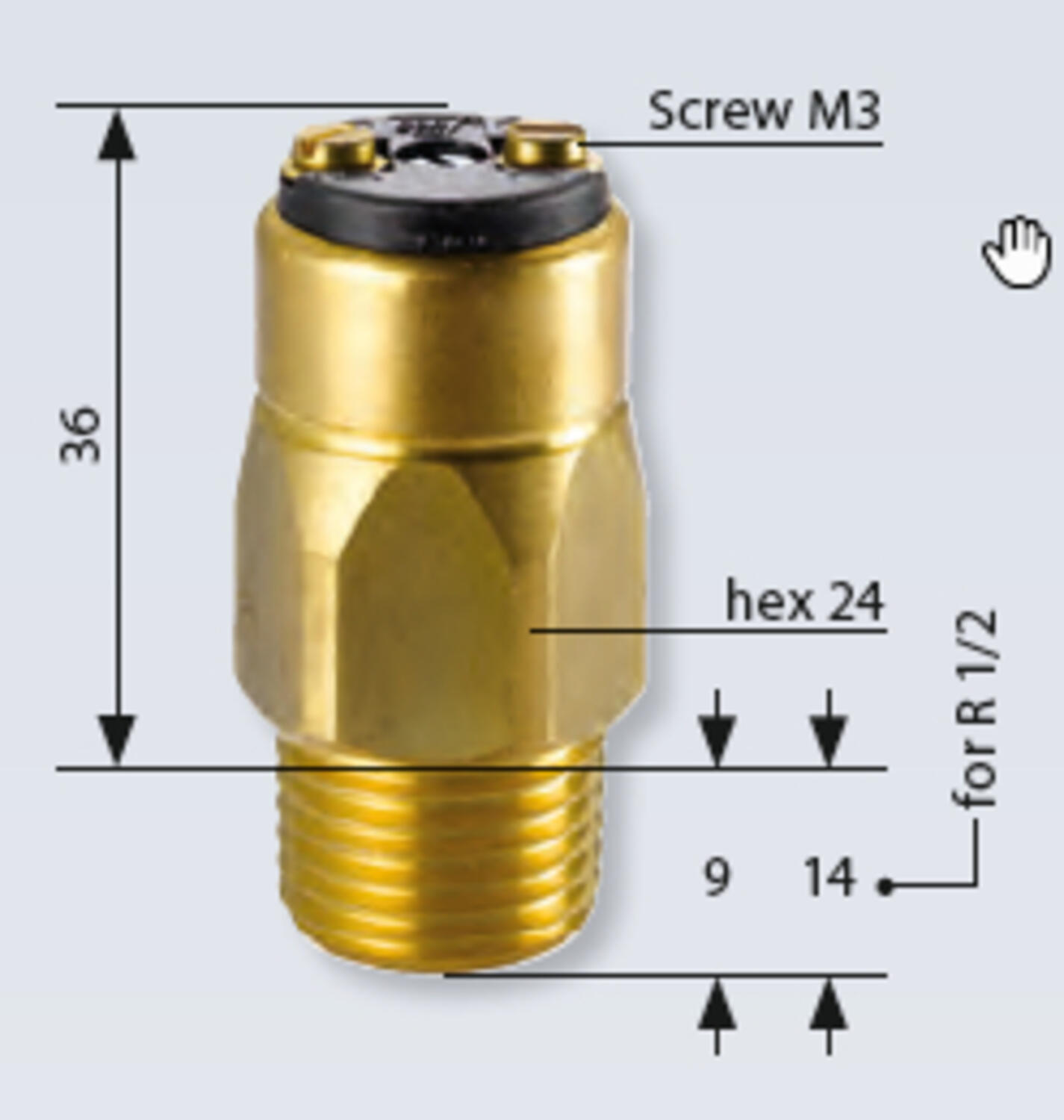

Measurements and connections

Product description

The SUCO 0167 is a compact diaphragm-style pressure switch housed in a robust brass body with a HEX‑24 (≈ 0.95″) thread interface. It supports maximum voltages up to 42 VAC/DC and handles resistive currents up to 4 A. Field-adjustable across four ranges the switch is available in either normally open or normally closed SPST configurations, with contact deviation as tight as ±0.2 bar for low-range units. Overpressure safety is rated at 35 bar (≈ 500 psi), with dynamic burst pressures significantly higher (up to 400 bar). It features a durable NBR (Buna-N), EPDM, FKM (Viton®), or silicone diaphragm capable of withstanding media temperatures from –40 °C to +120 °C (depending on material), IP65 protection via a polyamide cap, and a service life of around 1 million cycles at up to 50 bar switching pressure.

The 0167 switch is ideal for monitoring pressures in water systems, pneumatics, hydraulics, and light industrial machinery. Its field-adjustable setpoint allows on-site calibration during installation or maintenance, while the brass housing offers chemical resilience. Typical uses include triggering pump cycles, activating alarms for out-of-range pressures, and protecting against overpressure in applications such as cooling loops, domestic water supply, oxygen or brake-fluid monitoring, and medical or food-service equipment. Available with both spade or screw terminals and in various thread sizes (G¼″, ⅛″ NPT/BSP, M10×1), along with ready-wired or connector-equipped variants, it offers versatile integration into OEM and field systems.

Accessories

Related

water treatment plant tank- water and wastewater - OEM Automatic Solutions
Learning hub

Water & Wastewater Solutions

OEM Automatics water and wastewater application specialists have gathered all our solutions in one place. Our products are used in everything from small municipal water works to larger regional plants.

groups of pressure switches and sensors with reservoir background - pressure sensors or switches
Learning hub

How do I know if I need a pressure switch or a pressure sensor?

When choosing between a pressure switch and a pressure sensor, the key lies in understanding your application. Our Pressure Monitoring experts breaks down the two devices for you.

suco pressure switches
Blog Learning hub

Select the pressure switch for you a step by step guide

When selecting a SUCO mechanical pressure switch, it's essential to consider several key factors...

Selection of pumps - understanding velocity and why it matters when choosing a pump
Learning hub

understanding viscosity - And Why It Matters When Choosing A Pump

Whether you’re pumping water, chocolate, oil or peanut butter knowing the product’s viscosity is essential to selecting the right pump. Find out more about viscosity and which pump may be suitable for your application!

Tecnoplastic float switch
Product news

Float switches built to perform and ready to ship

Whether you're looking to upgrade your current solution or secure a more robust float switch for your next project, Taurus delivers performance you can count on.

SAMOA pumps
Product news

We offer air diaphragm pumps by SAMOA

Pumps are now officially part of our product offering! As we build our pump portfolio, we’re proud to announce that we are an official distributor of SAMOA Industrial, a well-established name in the fluid handling industry.

Parts Adjustment range max Adjustment range min Deviation max Electrical connection Function Material membrane Material of wetted parts Process connection Temperature of media from Temperature of media to Price
0167 screw new.jpg
0,1..1 bar, G1/4, No, NBR, Screw
Art:
0167401031037 Copied
1 bar
0.1 bar
±0,2
Screw (M3)
Normally open
NBR
Brass, NBR
1/4 BSP
-40 °C
100 °C
0167 screw new.jpg
0,1..1 bar, G1/4, No, EPDM, Screw
Art:
0167401032037 Copied
1 bar
0.1 bar
±0,2
Screw (M3)
Normally open
EPDM
EPDM, Brass
1/4 BSP
-30 °C
120 °C
0167 screw new.jpg
0,1..1 bar, G1/4, No, FKM, Screw
Art:
0167401033037 Copied
1 bar
0.1 bar
±0,2
Screw (M3)
Normally open
FKM
FKM, Brass
1/4 BSP
-5 °C
120 °C
0167 screw new.jpg
0,1..1 bar, G1/8, No, NBR, Screw
Art:
0167401281001 Copied
1 bar
0.1 bar
±0,2
Screw (M3)
Normally open
NBR
Brass, NBR
1/8 BSP
-40 °C
100 °C
0167 screw new.jpg
0,1..1 bar, G1/8, No, EPDM, Screw
Art:
0167401282001 Copied
1 bar
0.1 bar
±0,2
Screw (M3)
Normally open
EPDM
EPDM, Brass
1/8 BSP
-30 °C
120 °C
0167 screw new.jpg
0,1..1 bar, G1/8, No, FKM, Screw
Art:
0167401283001 Copied
1 bar
0.1 bar
±0,2
Screw (M3)
Normally open
FKM
FKM, Brass
1/8 BSP
-5 °C
120 °C
0167 screw new.jpg
0,1..1 bar, G1/4, Nc, NBR, Screw
Art:
0167402031038 Copied
1 bar
0.1 bar
±0,2
Screw (M3)
Normally Closed
NBR
Brass, NBR
1/4 BSP
-40 °C
100 °C
0167 screw new.jpg
0,1..1 bar, G1/4, Nc, EPDM, Screw
Art:
0167402032038 Copied
1 bar
0.1 bar
±0,2
Screw (M3)
Normally Closed
EPDM
EPDM, Brass
1/4 BSP
-30 °C
120 °C
0167 screw new.jpg
0,1..1 bar, G1/4, Nc, FKM, Screw
Art:
0167402033038 Copied
1 bar
0.1 bar
±0,2
Screw (M3)
Normally Closed
FKM
FKM, Brass
1/4 BSP
-5 °C
120 °C
0167 screw new.jpg
0,1..1 bar, G1/8, Nc, NBR, Screw
Art:
0167402281002 Copied
1 bar
0.1 bar
±0,2
Screw (M3)
Normally Closed
NBR
Brass, NBR
1/8 BSP
-40 °C
100 °C
0167 screw new.jpg
0,1..1 bar, G1/8, Nc, EPDM, Screw
Art:
0167402282002 Copied
1 bar
0.1 bar
±0,2
Screw (M3)
Normally Closed
EPDM
EPDM, Brass
1/8 BSP
-30 °C
120 °C
0167 screw new.jpg
0,1..1 bar, G1/8, Nc, FKM, Screw
Art:
0167402283002 Copied
1 bar
0.1 bar
±0,2
Screw (M3)
Normally Closed
FKM
FKM, Brass
1/8 BSP
-5 °C
120 °C
Suco - 0167 Pressure Switch brass body
0,1..1 bar, G1/4, No, NBR, Spade, Brass
Art:
0167403031039 Copied
1 bar
0.1 bar
±0,2
Spade (AMP 6,3x0,8 mm)
Normally open
NBR
Brass, NBR
1/4 BSP
-40 °C
100 °C
Suco - 0167 Pressure Switch brass body
0,1..1 bar, G1/4, No, EPDM, Spade, Brass
Art:
0167403032039 Copied
1 bar
0.1 bar
±0,2
Spade (AMP 6,3x0,8 mm)
Normally open
EPDM
EPDM, Brass
1/4 BSP
-30 °C
120 °C
Suco - 0167 Pressure Switch brass body
0,1..1 bar, G1/4, No, FKM, Spade, Brass
Art:
0167403033039 Copied
1 bar
0.1 bar
±0,2
Spade (AMP 6,3x0,8 mm)
Normally open
FKM
FKM, Brass
1/4 BSP
-5 °C
120 °C
Suco - 0167 Pressure Switch brass body
0,1..1 bar, G1/8, No, NBR, Spade, Brass
Art:
0167403281003 Copied
1 bar
0.1 bar
±0,2
Spade (AMP 6,3x0,8 mm)
Normally open
NBR
Brass, NBR
1/8 BSP
-40 °C
100 °C
Suco - 0167 Pressure Switch brass body
0,1..1 bar, G1/8, No, EPDM, Spade, Brass
Art:
0167403282003 Copied
1 bar
0.1 bar
±0,2
Spade (AMP 6,3x0,8 mm)
Normally open
EPDM
EPDM, Brass
1/8 BSP
-30 °C
120 °C
Suco - 0167 Pressure Switch brass body
0,1..1 bar, G1/8, No, FKM, Spade, Brass
Art:
0167403283003 Copied
1 bar
0.1 bar
±0,2
Spade (AMP 6,3x0,8 mm)
Normally open
FKM
FKM, Brass
1/8 BSP
-5 °C
120 °C
Suco - 0167 Pressure Switch brass body
0,1..1 bar, G1/4, Nc, NBR, Spade, Brass
Art:
0167404031040 Copied
1 bar
0.1 bar
±0,2
Spade (AMP 6,3x0,8 mm)
Normally Closed
NBR
Brass, NBR
1/4 BSP
-40 °C
100 °C
Suco - 0167 Pressure Switch brass body
0,1..1 bar, G1/4, Nc, EPDM, Spade, Brass
Art:
0167404032040 Copied
1 bar
0.1 bar
±0,2
Spade (AMP 6,3x0,8 mm)
Normally Closed
EPDM
EPDM, Brass
1/4 BSP
-30 °C
120 °C
Suco - 0167 Pressure Switch brass body
0,1..1 bar, G1/4, Nc, FKM, Spade, Brass
Art:
0167404033040 Copied
1 bar
0.1 bar
±0,2
Spade (AMP 6,3x0,8 mm)
Normally Closed
FKM
FKM, Brass
1/4 BSP
-5 °C
120 °C
Suco - 0167 Pressure Switch brass body
0,1..1 bar, G1/8, Nc, NBR, Spade, Brass
Art:
0167404281004 Copied
1 bar
0.1 bar
±0,2
Spade (AMP 6,3x0,8 mm)
Normally Closed
NBR
Brass, NBR
1/8 BSP
-40 °C
100 °C
Suco - 0167 Pressure Switch brass body
0,1..1 bar, G1/8, Nc, EPDM, Spade, Brass
Art:
0167404282004 Copied
1 bar
0.1 bar
±0,2
Spade (AMP 6,3x0,8 mm)
Normally Closed
EPDM
EPDM, Brass
1/8 BSP
-30 °C
120 °C
Suco - 0167 Pressure Switch brass body
0,1..1 bar, G1/8, Nc, FKM, Spade, Brass
Art:
0167404283004 Copied
1 bar
0.1 bar
±0,2
Spade (AMP 6,3x0,8 mm)
Normally Closed
FKM
FKM, Brass
1/8 BSP
-5 °C
120 °C
0167 screw new.jpg
1..10 bar, G1/4, No, NBR, Screw
Art:
0167405031041 Copied
10 bar
1 bar
±0,5
Screw (M3)
Normally open
NBR
Brass, NBR
1/4 BSP
-40 °C
100 °C
0167 screw new.jpg
1..10 bar, G1/4, No, EPDM, Screw
Art:
0167405032041 Copied
10 bar
1 bar
±0,5
Screw (M3)
Normally open
EPDM
EPDM, Brass
1/4 BSP
-30 °C
120 °C
0167 screw new.jpg
1..10 bar, G1/4, No, FKM, Screw
Art:
0167405033041 Copied
10 bar
1 bar
±0,5
Screw (M3)
Normally open
FKM
FKM, Brass
1/4 BSP
-5 °C
120 °C
0167 screw new.jpg
1..10 bar, G1/8, No, NBR, Screw
Art:
0167405281005 Copied
10 bar
1 bar
±0,5
Screw (M3)
Normally open
NBR
Brass, NBR
1/8 BSP
-40 °C
100 °C
0167 screw new.jpg
1..10 bar, G1/8, No, EPDM, Screw
Art:
0167405282005 Copied
10 bar
1 bar
±0,5
Screw (M3)
Normally open
EPDM
EPDM, Brass
1/8 BSP
-30 °C
120 °C
0167 screw new.jpg
1..10 bar, G1/8, No, FKM, Screw
Art:
0167405283005 Copied
10 bar
1 bar
±0,5
Screw (M3)
Normally open
FKM
FKM, Brass
1/8 BSP
-5 °C
120 °C
0167 screw new.jpg
1..10 bar, G1/4, Nc, NBR, Screw
Art:
0167406031042 Copied
10 bar
1 bar
±0,5
Screw (M3)
Normally Closed
NBR
Brass, NBR
1/4 BSP
-40 °C
100 °C
0167 screw new.jpg
1..10 bar, G1/4, Nc, EPDM, Screw
Art:
0167406032042 Copied
10 bar
1 bar
±0,5
Screw (M3)
Normally Closed
EPDM
EPDM, Brass
1/4 BSP
-30 °C
120 °C
0167 screw new.jpg
1..10 bar, G1/4, Nc, FKM, Screw
Art:
0167406033042 Copied
10 bar
1 bar
±0,5
Screw (M3)
Normally Closed
FKM
FKM, Brass
1/4 BSP
-5 °C
120 °C
0167 screw new.jpg
1..10 bar, G1/8, Nc, NBR, Screw
Art:
0167406281006 Copied
10 bar
1 bar
±0,5
Screw (M3)
Normally Closed
NBR
Brass, NBR
1/8 BSP
-40 °C
100 °C
0167 screw new.jpg
1..10 bar, G1/8, Nc, EPDM, Screw
Art:
0167406282006 Copied
10 bar
1 bar
±0,5
Screw (M3)
Normally Closed
EPDM
EPDM, Brass
1/8 BSP
-30 °C
120 °C
0167 screw new.jpg
1..10 bar, G1/8, Nc, FKM, Screw
Art:
0167406283006 Copied
10 bar
1 bar
±0,5
Screw (M3)
Normally Closed
FKM
FKM, Brass
1/8 BSP
-5 °C
120 °C
Suco - 0167 Pressure Switch brass body
0,5..3 bar, G1/4, No, NBR, Spade
Art:
0167423031070 Copied
3 bar
0.5 bar
±0,3
Spade (AMP 6,3x0,8 mm)
Normally open
NBR
Brass, NBR
1/4 BSP
-40 °C
100 °C
Suco - 0167 Pressure Switch brass body
0,5..3 bar, G1/4, Nc, NBR, Spade, Brass
Art:
0167424031070 Copied
3 bar
0.5 bar
±0,3
Spade (AMP 6,3x0,8 mm)
Normally Closed
NBR
Brass, NBR
1/4 BSP
-40 °C
100 °C
Suco - 0167 Pressure Switch brass body
1..10 bar, G1/4, No, NBR, Spade, Brass
Art:
0167407031043 Copied
10 bar
1 bar
±0,5
Spade (AMP 6,3x0,8 mm)
Normally open
NBR
Brass, NBR
1/4 BSP
-40 °C
100 °C
Suco - 0167 Pressure Switch brass body
1..10 bar, G1/4, No, EPDM, Spade, Brass
Art:
0167407032043 Copied
10 bar
1 bar
±0,5
Spade (AMP 6,3x0,8 mm)
Normally open
EPDM
EPDM, Brass
1/4 BSP
-30 °C
120 °C
Suco - 0167 Pressure Switch brass body
1..10 bar, G1/4, No, FKM, Spade, Brass
Art:
0167407033043 Copied
10 bar
1 bar
±0,5
Spade (AMP 6,3x0,8 mm)
Normally open
FKM
FKM, Brass
1/4 BSP
-5 °C
120 °C
Suco - 0167 Pressure Switch brass body
1..10 bar, G1/8, No, NBR, Spade, Brass
Art:
0167407281007 Copied
10 bar
1 bar
±0,5
Spade (AMP 6,3x0,8 mm)
Normally open
NBR
Brass, NBR
1/8 BSP
-40 °C
100 °C
Suco - 0167 Pressure Switch brass body
1..10 bar, G1/8, No, EPDM, Spade, Brass
Art:
0167407282007 Copied
10 bar
1 bar
±0,5
Spade (AMP 6,3x0,8 mm)
Normally open
EPDM
EPDM, Brass
1/8 BSP
-30 °C
120 °C
Suco - 0167 Pressure Switch brass body
1..10 bar, G1/8, No, FKM, Spade, Brass
Art:
0167407283007 Copied
10 bar
1 bar
±0,5
Spade (AMP 6,3x0,8 mm)
Normally open
FKM
FKM, Brass
1/8 BSP
-5 °C
120 °C
Suco - 0167 Pressure Switch brass body
1..10 bar, G1/4, Nc, NBR, Spade, Brass
Art:
0167408031044 Copied
10 bar
1 bar
±0,5
Spade (AMP 6,3x0,8 mm)
Normally Closed
NBR
Brass, NBR
1/4 BSP
-40 °C
100 °C
Suco - 0167 Pressure Switch brass body
1..10 bar, G1/4, Nc, EPDM, Spade, Brass
Art:
0167408032044 Copied
10 bar
1 bar
±0,5
Spade (AMP 6,3x0,8 mm)
Normally Closed
EPDM
EPDM, Brass
1/4 BSP
-30 °C
120 °C
Suco - 0167 Pressure Switch brass body
1..10 bar, G1/4, Nc, FKM, Spade, Brass
Art:
0167408033044 Copied
10 bar
1 bar
±0,5
Spade (AMP 6,3x0,8 mm)
Normally Closed
FKM
FKM, Brass
1/4 BSP
-5 °C
120 °C
Suco - 0167 Pressure Switch brass body
1..10 bar, G1/8, Nc, NBR, Spade, Brass
Art:
0167408281008 Copied
10 bar
1 bar
±0,5
Spade (AMP 6,3x0,8 mm)
Normally Closed
NBR
Brass, NBR
1/8 BSP
-40 °C
100 °C
Suco - 0167 Pressure Switch brass body
1..10 bar, G1/8, Nc, EPDM, Spade, Brass
Art:
0167408282008 Copied
10 bar
1 bar
±0,5
Spade (AMP 6,3x0,8 mm)
Normally Closed
EPDM
EPDM, Brass
1/8 BSP
-30 °C
120 °C
Suco - 0167 Pressure Switch brass body
1..10 bar, G1/8, Nc, FKM, Spade, Brass
Art:
0167408283008 Copied
10 bar
1 bar
±0,5
Spade (AMP 6,3x0,8 mm)
Normally Closed
FKM
FKM, Brass
1/8 BSP
-5 °C
120 °C
0167 screw new.jpg
10..20 bar, G1/4, No, NBR, Screw
Art:
0167409031045 Copied
20 bar
10 bar
±1
Screw (M3)
Normally open
NBR
Brass, NBR
1/4 BSP
-40 °C
100 °C
0167 screw new.jpg
10..20 bar, G1/4, No, EPDM, Screw
Art:
0167409032045 Copied
20 bar
10 bar
±1
Screw (M3)
Normally open
EPDM
EPDM, Brass
1/4 BSP
-30 °C
120 °C
0167 screw new.jpg
10..20 bar, G1/4, No, FKM, Screw
Art:
0167409033045 Copied
20 bar
10 bar
±1
Screw (M3)
Normally open
FKM
FKM, Brass
1/4 BSP
-5 °C
120 °C
0167 screw new.jpg
10..20 bar, G1/8, No, NBR, Screw
Art:
0167409281009 Copied
20 bar
10 bar
±1
Screw (M3)
Normally open
NBR
Brass, NBR
1/8 BSP
-40 °C
100 °C
0167 screw new.jpg
10..20 bar, G1/8, No, EPDM, Screw
Art:
0167409282009 Copied
20 bar
10 bar
±1
Screw (M3)
Normally open
EPDM
EPDM, Brass
1/8 BSP
-30 °C
120 °C
0167 screw new.jpg
10..20 bar, G1/8, No, FKM, Screw
Art:
0167409283009 Copied
20 bar
10 bar
±1
Screw (M3)
Normally open
FKM
FKM, Brass
1/8 BSP
-5 °C
120 °C
0167 screw new.jpg
10..20 bar, G1/4, Nc, NBR, Screw
Art:
0167410031046 Copied
20 bar
10 bar
±1
Screw (M3)
Normally Closed
NBR
Brass, NBR
1/4 BSP
-40 °C
100 °C
0167 screw new.jpg
10..20 bar, G1/4, Nc, EPDM, Screw
Art:
0167410032046 Copied
20 bar
10 bar
±1
Screw (M3)
Normally Closed
EPDM
EPDM, Brass
1/4 BSP
-30 °C
120 °C
0167 screw new.jpg
10..20 bar, G1/4, Nc, FKM, Screw
Art:
0167410033046 Copied
20 bar
10 bar
±1
Screw (M3)
Normally Closed
FKM
FKM, Brass
1/4 BSP
-5 °C
120 °C
0167 screw new.jpg
10..20 bar, G1/8, Nc, NBR, Screw
Art:
0167410281010 Copied
20 bar
10 bar
±1
Screw (M3)
Normally Closed
NBR
Brass, NBR
1/8 BSP
-40 °C
100 °C
0167 screw new.jpg
10..20 bar, G1/8, Nc, EPDM, Screw
Art:
0167410282010 Copied
20 bar
10 bar
±1
Screw (M3)
Normally Closed
EPDM
EPDM, Brass
1/8 BSP
-30 °C
120 °C
0167 screw new.jpg
10..20 bar, G1/8, Nc, FKM, Screw
Art:
0167410283010 Copied
20 bar
10 bar
±1
Screw (M3)
Normally Closed
FKM
FKM, Brass
1/8 BSP
-5 °C
120 °C
Suco - 0167 Pressure Switch brass body
10..20 bar, G1/4, No, NBR, Spade, Brass
Art:
0167411031047 Copied
20 bar
10 bar
±1
Spade (AMP 6,3x0,8 mm)
Normally open
NBR
Brass, NBR
1/4 BSP
-40 °C
100 °C
Suco - 0167 Pressure Switch brass body
10..20 bar, G1/4, No, EPDM, Spade
Art:
0167411032047 Copied
20 bar
10 bar
±1
Spade (AMP 6,3x0,8 mm)
Normally open
EPDM
EPDM, Brass
1/4 BSP
-30 °C
120 °C
Suco - 0167 Pressure Switch brass body
10..20 bar, G1/4, No, FKM, Spade
Art:
0167411033047 Copied
20 bar
10 bar
±1
Spade (AMP 6,3x0,8 mm)
Normally open
FKM
FKM, Brass
1/4 BSP
-5 °C
120 °C
Suco - 0167 Pressure Switch brass body
10..20 bar, G1/8, No, NBR, Spade
Art:
0167411281011 Copied
20 bar
10 bar
±1
Spade (AMP 6,3x0,8 mm)
Normally open
NBR
Brass, NBR
1/8 BSP
-40 °C
100 °C
Suco - 0167 Pressure Switch brass body
10..20 bar, G1/8, No, EPDM, Spade
Art:
0167411282011 Copied
20 bar
10 bar
±1
Spade (AMP 6,3x0,8 mm)
Normally open
EPDM
EPDM, Brass
1/8 BSP
-30 °C
120 °C
Suco - 0167 Pressure Switch brass body
10..20 bar, G1/8, No, FKM, Spade
Art:
0167411283011 Copied
20 bar
10 bar
±1
Spade (AMP 6,3x0,8 mm)
Normally open
FKM
FKM, Brass
1/8 BSP
-5 °C
120 °C
Suco - 0167 Pressure Switch brass body
10..20 bar, G1/4, Nc, NBR, Spade, Brass
Art:
0167412031048 Copied
20 bar
10 bar
±1
Spade (AMP 6,3x0,8 mm)
Normally Closed
NBR
Brass, NBR
1/4 BSP
-40 °C
100 °C
Suco - 0167 Pressure Switch brass body
10..20 bar, G1/4, Nc, EPDM, Spade
Art:
0167412032048 Copied
20 bar
10 bar
±1
Spade (AMP 6,3x0,8 mm)
Normally Closed
EPDM
EPDM, Brass
1/4 BSP
-30 °C
120 °C
Suco - 0167 Pressure Switch brass body
10..20 bar, G1/4, Nc, FKM, Spade
Art:
0167412033048 Copied
20 bar
10 bar
±1
Spade (AMP 6,3x0,8 mm)
Normally Closed
FKM
FKM, Brass
1/4 BSP
-5 °C
120 °C
Suco - 0167 Pressure Switch brass body
10..20 bar, G1/8, Nc, NBR, Spade
Art:
0167412281012 Copied
20 bar
10 bar
±1
Spade (AMP 6,3x0,8 mm)
Normally Closed
NBR
Brass, NBR
1/8 BSP
-40 °C
100 °C
Suco - 0167 Pressure Switch brass body
10..20 bar, G1/8, Nc, EPDM, Spade
Art:
0167412282012 Copied
20 bar
10 bar
±1
Spade (AMP 6,3x0,8 mm)
Normally Closed
EPDM
EPDM, Brass
1/8 BSP
-30 °C
120 °C
Suco - 0167 Pressure Switch brass body
10..20 bar, G1/8, Nc, FKM, Spade
Art:
0167412283012 Copied
20 bar
10 bar
±1
Spade (AMP 6,3x0,8 mm)
Normally Closed
FKM
FKM, Brass
1/8 BSP
-5 °C
120 °C
0167 screw new.jpg
0,5..3 bar, G1/4, No, NBR, Screw
Art:
0167421031070 Copied
3 bar
0.5 bar
±0,3
Screw (M3)
Normally open
NBR
Brass, NBR
1/4 BSP
-40 °C
100 °C
0167 screw new.jpg
0,5..3 bar, G1/4, No, EPDM, Screw
Art:
0167421032070 Copied
3 bar
0.5 bar
±0,3
Screw (M3)
Normally open
EPDM
EPDM, Brass
1/4 BSP
-30 °C
120 °C
0167 screw new.jpg
0,5..3 bar, G1/4, No, FKM, Screw
Art:
0167421033070 Copied
3 bar
0.5 bar
±0,3
Screw (M3)
Normally open
FKM
FKM, Brass
1/4 BSP
-5 °C
120 °C
0167 screw new.jpg
0,5..3 bar, G1/8, No, NBR, Screw
Art:
0167421281070 Copied
3 bar
0.5 bar
±0,3
Screw (M3)
Normally open
NBR
Brass, NBR
1/8 BSP
-40 °C
100 °C
0167 screw new.jpg
0,5..3 bar, G1/8, No, EPDM, Screw
Art:
0167421282070 Copied
3 bar
0.5 bar
±0,3
Screw (M3)
Normally open
EPDM
EPDM, Brass
1/8 BSP
-30 °C
120 °C
0167 screw new.jpg
0,5..3 bar, G1/8, No, FKM, Screw
Art:
0167421283070 Copied
3 bar
0.5 bar
±0,3
Screw (M3)
Normally open
FKM
FKM, Brass
1/8 BSP
-5 °C
120 °C
0167 screw new.jpg
0,5..3 bar, G1/4, Nc, NBR, Screw
Art:
0167422031070 Copied
3 bar
0.5 bar
±0,3
Screw (M3)
Normally Closed
NBR
Brass, NBR
1/4 BSP
-40 °C
100 °C
0167 screw new.jpg
0,5..3 bar, G1/4, Nc, EPDM, Screw
Art:
0167422032070 Copied
3 bar
0.5 bar
±0,3
Screw (M3)
Normally Closed
EPDM
EPDM, Brass
1/4 BSP
-30 °C
120 °C
0167 screw new.jpg
0,5..3 bar, G1/4, Nc, FKM, Screw
Art:
0167422033070 Copied
3 bar
0.5 bar
±0,3
Screw (M3)
Normally Closed
FKM
FKM, Brass
1/4 BSP
-5 °C
120 °C
0167 screw new.jpg
0,5..3 bar, G1/8, Nc, NBR, Screw
Art:
0167422281070 Copied
3 bar
0.5 bar
±0,3
Screw (M3)
Normally Closed
NBR
Brass, NBR
1/8 BSP
-40 °C
100 °C
0167 screw new.jpg
0,5..3 bar, G1/8, Nc, EPDM, Screw
Art:
0167422282070 Copied
3 bar
0.5 bar
±0,3
Screw (M3)
Normally Closed
EPDM
EPDM, Brass
1/8 BSP
-30 °C
120 °C
0167 screw new.jpg
0,5..3 bar, G1/8, Nc, FKM, Screw
Art:
0167422283070 Copied
3 bar
0.5 bar
±0,3
Screw (M3)
Normally Closed
FKM
FKM, Brass
1/8 BSP
-5 °C
120 °C
Suco - 0167 Pressure Switch brass body
0,5..3 bar, G1/4, No, EPDM, Spade, Brass
Art:
0167423032070 Copied
3 bar
0.5 bar
±0,3
Spade (AMP 6,3x0,8 mm)
Normally open
EPDM
EPDM, Brass
1/4 BSP
-30 °C
120 °C
Suco - 0167 Pressure Switch brass body
0,5..3 bar, G1/4, No, FKM, Spade
Art:
0167423033070 Copied
3 bar
0.5 bar
±0,3
Spade (AMP 6,3x0,8 mm)
Normally open
FKM
FKM, Brass
1/4 BSP
-5 °C
120 °C
Suco - 0167 Pressure Switch brass body
0,5..3 bar, G1/8, No, NBR, Spade
Art:
0167423281070 Copied
3 bar
0.5 bar
±0,3
Spade (AMP 6,3x0,8 mm)
Normally open
NBR
Brass, NBR
1/8 BSP
-40 °C
100 °C
Suco - 0167 Pressure Switch brass body
0,5..3 bar, G1/8, No, EPDM, Spade
Art:
0167423282070 Copied
3 bar
0.5 bar
±0,3
Spade (AMP 6,3x0,8 mm)
Normally open
EPDM
EPDM, Brass
1/8 BSP
-30 °C
120 °C
Suco - 0167 Pressure Switch brass body
0,5..3 bar, G1/8, No, FKM, Spade
Art:
0167423283070 Copied
3 bar
0.5 bar
±0,3
Spade (AMP 6,3x0,8 mm)
Normally open
FKM
FKM, Brass
1/8 BSP
-5 °C
120 °C
Suco - 0167 Pressure Switch brass body
0,5..3 bar, G1/4, Nc, EPDM, Spade
Art:
0167424032070 Copied
3 bar
0.5 bar
±0,3
Spade (AMP 6,3x0,8 mm)
Normally Closed
EPDM
EPDM, Brass
1/4 BSP
-30 °C
120 °C
Suco - 0167 Pressure Switch brass body
0,5..3 bar, G1/4, Nc, FKM, Spade
Art:
0167424033070 Copied
3 bar
0.5 bar
±0,3
Spade (AMP 6,3x0,8 mm)
Normally Closed
FKM
FKM, Brass
1/4 BSP
-5 °C
120 °C
Suco - 0167 Pressure Switch brass body
0,5..3 bar, G1/8, Nc, NBR, Spade
Art:
0167424281070 Copied
3 bar
0.5 bar
±0,3
Spade (AMP 6,3x0,8 mm)
Normally Closed
NBR
Brass, NBR
1/8 BSP
-40 °C
100 °C
Suco - 0167 Pressure Switch brass body
0,5..3 bar, G1/8, Nc, EPDM, Spade
Art:
0167424282070 Copied
3 bar
0.5 bar
±0,3
Spade (AMP 6,3x0,8 mm)
Normally Closed
EPDM
EPDM, Brass
1/8 BSP
-30 °C
120 °C
Suco - 0167 Pressure Switch brass body
0,5..3 bar, G1/8, Nc, FKM, Spade
Art:
0167424283070 Copied
3 bar
0.5 bar
±0,3
Spade (AMP 6,3x0,8 mm)
Normally Closed
FKM
FKM, Brass
1/8 BSP
-5 °C
120 °C

Selected variant

Select a variant in the list

Contact us
If you need any help, you can contact us in one of the following ways:
0116 284 9900
Send e-mail
Use live chat
Do you need help?
Logo

Cookie settings for OEM.CO.UK

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

You can accept all cookies or personalise your cookies preferences, you can also change your cookie preferences at any time by visiting our contact page.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
