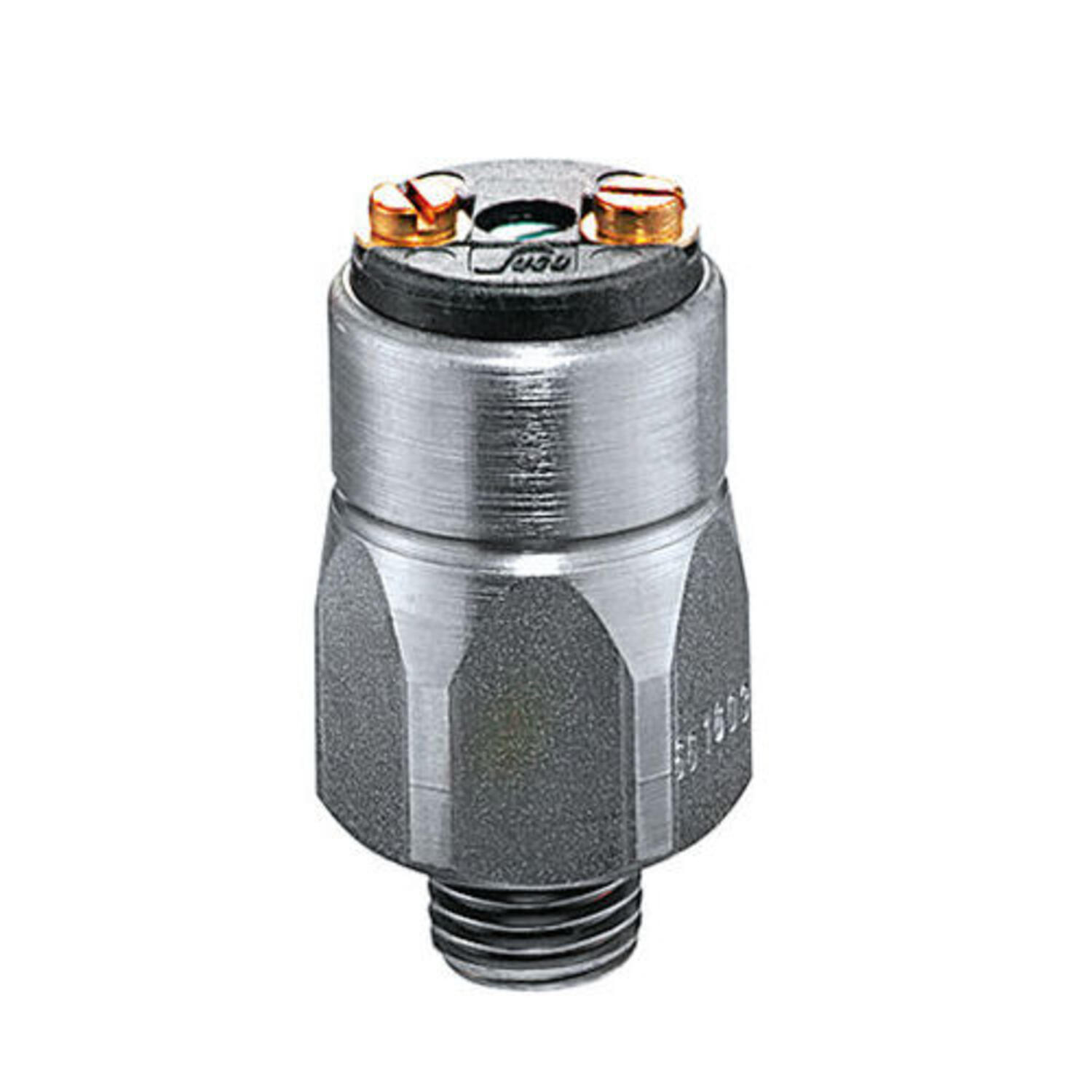

Suco - 0166/0169 Pressure Switch

Compact design

The SUCO 0166 (diaphragm) and 0169 (piston) series offer compact and cost-effective pressure monitoring in a robust zinc-plated steel body with a hex 24 head. Operating up to 42 V AC/DC and supporting up to 4 A resistive load, these switches feature either spade (AMP 6.3 × 0.8 mm) or M3 screw terminals and are available in six adjustable setpoint ranges. They provide stable switching accuracy (±0.2–0.5 bar depending on range) and overpressure resilience up to 300 bar (0166) or 600 bar (0169), with burst pressures reaching around 400 bar. Featuring IP65 protection when used with an optional cable cap, mechanical life expectancy of 1 million cycles at ≤50 bar, vibration resistance of 10 g, and shock tolerance up to 294 m/s², they deliver reliable performance across –40 °C to +120 °C.

In practical use, the 0166/0169 switches are ideal for hydraulic and pneumatic systems in industrial machinery, mobile hydraulics, and water treatment setups where on-site adjustability and rugged performance are required. The adjustable pressure range is easily set on installation, and units may also be factory pre-set and sealed for tamper prevention. Their reliable SPST output (NO or NC) is suited to pump control, safety shutdowns, alarms, and general system monitoring. The diaphragm type is well-suited for sensitive fluid applications, while the piston variant is better for higher pressures—offering OEMs flexibility in integrating these reliable, galvanically isolated switches without the need for external power.

Read more
  • Up to 42 V

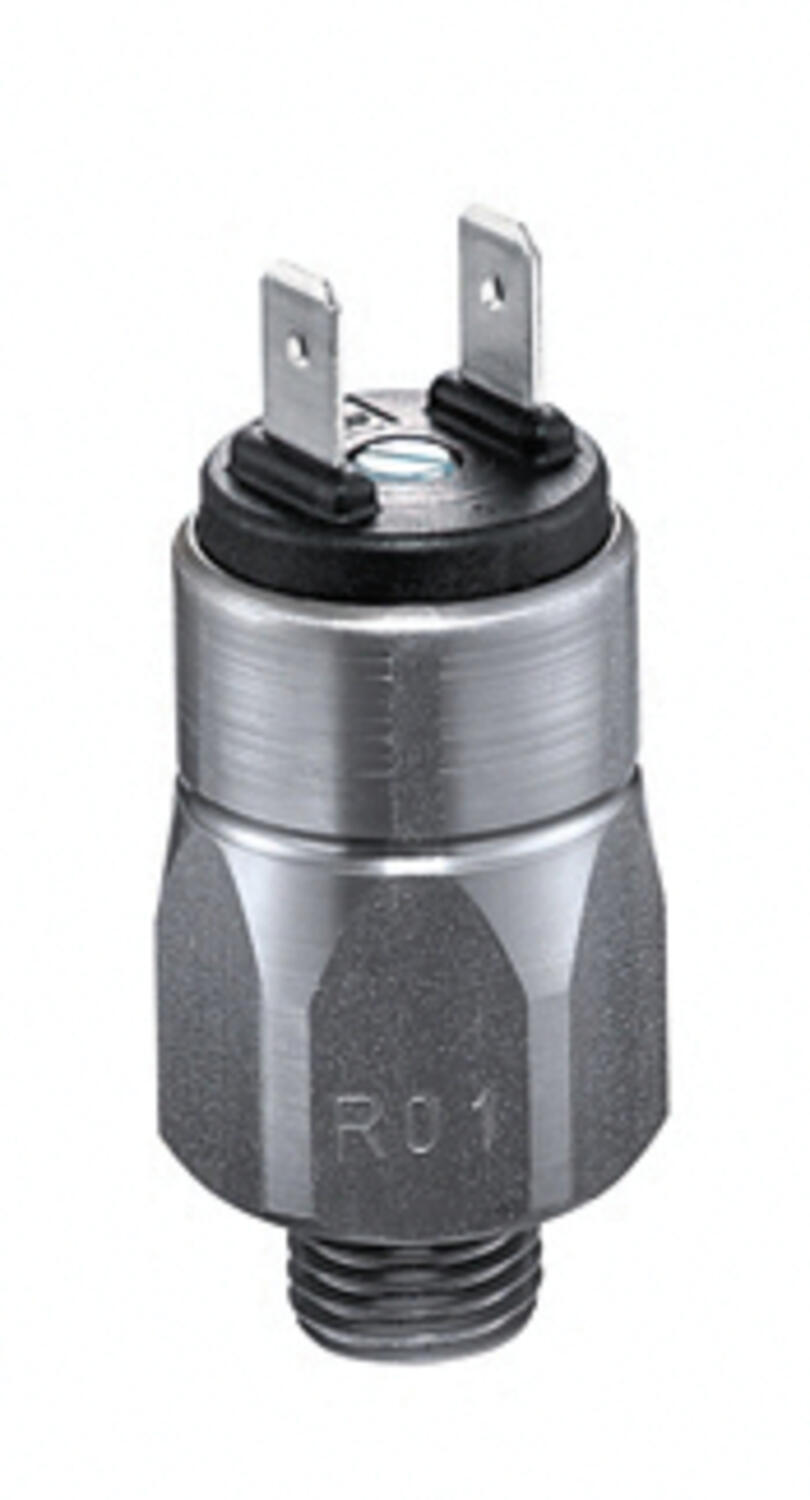

  • Spade or screw terminals
  • Six adjustment ranges from 0,1..1 bar to 50..150 bar
  • Normally open or normally closed
  • Overpressure safety of 300 bar or 600 bar

Selected variant

Available in several variants

Selected variant

Technical data

Adjustment range max 1 bar
Adjustment range min 0.1 bar
Approvals CSA US, RoHS II
Contact rating max 4 A
Deviation max ±0,2
Electrical connection Screw (M3)
Function Normally open
IP class IP00
Material membrane NBR
Material of body Galvanized steel
Material of wetted parts Galvanized steel, NBR
Max switching frequency/min 200
Mechanical life expectancy 1 million exchanges
Pressure max 400 bar
Process connection 1/4 BSP
Temperature ambient from -20 °C
Temperature ambient to 80 °C
Temperature of media from -40 °C
Temperature of media to 100 °C
Weight 90 g
Voltage ac/dc max 42 V
Voltage ac/dc min 10 V

Measurements and connections

Product description

The SUCO 0166 (diaphragm) and 0169 (piston) series offer compact and cost-effective pressure monitoring in a robust zinc-plated steel body with a hex 24 head. Operating up to 42 V AC/DC and supporting up to 4 A resistive load, these switches feature either spade (AMP 6.3 × 0.8 mm) or M3 screw terminals and are available in six adjustable setpoint ranges. They provide stable switching accuracy (±0.2–0.5 bar depending on range) and overpressure resilience up to 300 bar (0166) or 600 bar (0169), with burst pressures reaching around 400 bar. Featuring IP65 protection when used with an optional cable cap, mechanical life expectancy of 1 million cycles at ≤50 bar, vibration resistance of 10 g, and shock tolerance up to 294 m/s², they deliver reliable performance across –40 °C to +120 °C.

In practical use, the 0166/0169 switches are ideal for hydraulic and pneumatic systems in industrial machinery, mobile hydraulics, and water treatment setups where on-site adjustability and rugged performance are required. The adjustable pressure range is easily set on installation, and units may also be factory pre-set and sealed for tamper prevention. Their reliable SPST output (NO or NC) is suited to pump control, safety shutdowns, alarms, and general system monitoring. The diaphragm type is well-suited for sensitive fluid applications, while the piston variant is better for higher pressures—offering OEMs flexibility in integrating these reliable, galvanically isolated switches without the need for external power.

Accessories

Related

Parts Adjustment range max Adjustment range min Deviation max Electrical connection Function Material membrane Material of wetted parts Pressure max Process connection Temperature ambient from Temperature of media from Temperature of media to Price
1 bar
0.1 bar
±0,2
Screw (M3)
Normally open
NBR
Galvanized steel, NBR
400 bar
1/4 BSP
-20 °C
-40 °C
100 °C
1 bar
0.1 bar
±0,2
Screw (M3)
Normally open
EPDM
EPDM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-30 °C
120 °C
1 bar
0.1 bar
±0,2
Screw (M3)
Normally open
FKM
FKM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-5 °C
120 °C
1 bar
0.1 bar
±0,2
Screw (M3)
Normally open
NBR
Galvanized steel, NBR
400 bar
1/8 BSP
-20 °C
-40 °C
100 °C
1 bar
0.1 bar
±0,2
Screw (M3)
Normally open
EPDM
EPDM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-30 °C
120 °C
1 bar
0.1 bar
±0,2
Screw (M3)
Normally open
FKM
FKM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-5 °C
120 °C
1 bar
0.1 bar
±0,2
Screw (M3)
Normally Closed
NBR
Galvanized steel, NBR
400 bar
1/4 BSP
-40 °C
-40 °C
100 °C
1 bar
0.1 bar
±0,2
Screw (M3)
Normally Closed
EPDM
EPDM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-30 °C
120 °C
1 bar
0.1 bar
±0,2
Screw (M3)
Normally Closed
FKM
FKM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-5 °C
120 °C
1 bar
0.1 bar
±0,2
Screw (M3)
Normally Closed
NBR
Galvanized steel, NBR
400 bar
1/8 BSP
-20 °C
-40 °C
100 °C
1 bar
0.1 bar
±0,2
Screw (M3)
Normally Closed
EPDM
EPDM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-30 °C
120 °C
1 bar
0.1 bar
±0,2
Screw (M3)
Normally Closed
FKM
FKM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-5 °C
120 °C
1 bar
0.1 bar
±0,2
Spade (AMP 6,3x0,8 mm)
Normally open
NBR
Galvanized steel, NBR
400 bar
1/4 BSP
-40 °C
-40 °C
100 °C
1 bar
0.1 bar
±0,2
Spade (AMP 6,3x0,8 mm)
Normally open
EPDM
EPDM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-30 °C
120 °C
1 bar
0.1 bar
±0,2
Spade (AMP 6,3x0,8 mm)
Normally open
FKM
FKM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-5 °C
120 °C
1 bar
0.1 bar
±0,2
Spade (AMP 6,3x0,8 mm)
Normally open
NBR
Galvanized steel, NBR
400 bar
1/8 BSP
-20 °C
-40 °C
100 °C
1 bar
0.1 bar
±0,2
Spade (AMP 6,3x0,8 mm)
Normally open
EPDM
EPDM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-30 °C
120 °C
1 bar
0.1 bar
±0,2
Spade (AMP 6,3x0,8 mm)
Normally open
FKM
FKM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-5 °C
120 °C
1 bar
0.1 bar
±0,2
Spade (AMP 6,3x0,8 mm)
Normally Closed
NBR
Galvanized steel, NBR
400 bar
1/4 BSP
-40 °C
-40 °C
100 °C
1 bar
0.1 bar
±0,2
Spade (AMP 6,3x0,8 mm)
Normally Closed
EPDM
EPDM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-30 °C
120 °C
1 bar
0.1 bar
±0,2
Spade (AMP 6,3x0,8 mm)
Normally Closed
FKM
FKM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-5 °C
120 °C
1 bar
0.1 bar
±0,2
Spade (AMP 6,3x0,8 mm)
Normally Closed
NBR
Galvanized steel, NBR
400 bar
1/8 BSP
-20 °C
-40 °C
100 °C
1 bar
0.1 bar
±0,2
Spade (AMP 6,3x0,8 mm)
Normally Closed
EPDM
EPDM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-30 °C
120 °C
1 bar
0.1 bar
±0,2
Spade (AMP 6,3x0,8 mm)
Normally Closed
FKM
FKM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-5 °C
120 °C
3 bar
0.5 bar
±0,3
Screw (M3)
Normally open
EPDM
EPDM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-30 °C
120 °C
3 bar
0.5 bar
±0,3
Screw (M3)
Normally open
FKM
FKM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-5 °C
120 °C
3 bar
0.5 bar
±0,3
Screw (M3)
Normally open
NBR
Galvanized steel, NBR
400 bar
1/8 BSP
-20 °C
-40 °C
100 °C
3 bar
0.5 bar
±0,3
Screw (M3)
Normally open
EPDM
EPDM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-30 °C
120 °C
3 bar
0.5 bar
±0,3
Screw (M3)
Normally open
FKM
FKM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-5 °C
120 °C
3 bar
0.5 bar
±0,3
Screw (M3)
Normally Closed
NBR
Galvanized steel, NBR
400 bar
1/4 BSP
-40 °C
-40 °C
100 °C
3 bar
0.5 bar
±0,3
Screw (M3)
Normally Closed
EPDM
EPDM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-30 °C
120 °C
3 bar
0.5 bar
±0,3
Screw (M3)
Normally Closed
FKM
FKM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-5 °C
120 °C
3 bar
0.5 bar
±0,3
Screw (M3)
Normally Closed
NBR
Galvanized steel, NBR
400 bar
1/8 BSP
-20 °C
-40 °C
100 °C
3 bar
0.5 bar
±0,3
Screw (M3)
Normally Closed
EPDM
EPDM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-30 °C
120 °C
3 bar
0.5 bar
±0,3
Screw (M3)
Normally Closed
FKM
FKM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-5 °C
120 °C
3 bar
0.5 bar
±0,3
Spade (AMP 6,3x0,8 mm)
Normally open
NBR
Galvanized steel, NBR
400 bar
1/4 BSP
-40 °C
-40 °C
100 °C
3 bar
0.5 bar
±0,3
Spade (AMP 6,3x0,8 mm)
Normally open
EPDM
EPDM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-30 °C
120 °C
3 bar
0.5 bar
±0,3
Spade (AMP 6,3x0,8 mm)
Normally open
FKM
FKM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-5 °C
120 °C
3 bar
0.5 bar
±0,3
Spade (AMP 6,3x0,8 mm)
Normally open
NBR
Galvanized steel, NBR
400 bar
1/8 BSP
-40 °C
-40 °C
100 °C
3 bar
0.5 bar
±0,3
Spade (AMP 6,3x0,8 mm)
Normally open
EPDM
EPDM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-30 °C
120 °C
3 bar
0.5 bar
±0,3
Spade (AMP 6,3x0,8 mm)
Normally open
FKM
FKM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-5 °C
120 °C
3 bar
0.5 bar
±0,3
Spade (AMP 6,3x0,8 mm)
Normally Closed
NBR
Galvanized steel, NBR
400 bar
1/4 BSP
-40 °C
-40 °C
100 °C
3 bar
0.5 bar
±0,3
Spade (AMP 6,3x0,8 mm)
Normally Closed
EPDM
EPDM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-30 °C
120 °C
3 bar
0.5 bar
±0,3
Spade (AMP 6,3x0,8 mm)
Normally Closed
FKM
FKM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-5 °C
120 °C
3 bar
0.5 bar
±0,3
Spade (AMP 6,3x0,8 mm)
Normally Closed
NBR
Galvanized steel, NBR
400 bar
1/8 BSP
-40 °C
-40 °C
100 °C
3 bar
0.5 bar
±0,3
Spade (AMP 6,3x0,8 mm)
Normally Closed
EPDM
EPDM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-30 °C
120 °C
3 bar
0.5 bar
±0,3
Spade (AMP 6,3x0,8 mm)
Normally Closed
FKM
FKM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-5 °C
120 °C
3 bar
0.5 bar
±0,3
Screw (M3)
Normally open
NBR
Galvanized steel, NBR
400 bar
1/4 BSP
-40 °C
-40 °C
100 °C
10 bar
1 bar
±0,5
Screw (M3)
Normally open
NBR
Galvanized steel, NBR
400 bar
1/8 BSP
-20 °C
-40 °C
100 °C
10 bar
1 bar
±0,5
Screw (M3)
Normally open
EPDM
EPDM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-30 °C
120 °C
10 bar
1 bar
±0,5
Screw (M3)
Normally open
FKM
Galvanized steel, NBR
400 bar
1/4 BSP
-5 °C
-5 °C
120 °C
10 bar
1 bar
±0,5
Screw (M3)
Normally open
NBR
Galvanized steel, NBR
400 bar
1/8 BSP
-20 °C
-40 °C
100 °C
10 bar
1 bar
±0,5
Screw (M3)
Normally open
EPDM
EPDM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-30 °C
120 °C
10 bar
1 bar
±0,5
Screw (M3)
Normally open
FKM
FKM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-5 °C
120 °C
10 bar
1 bar
±0,5
Screw (M3)
Normally Closed
NBR
Galvanized steel, NBR
400 bar
1/4 BSP
-20 °C
-40 °C
100 °C
10 bar
1 bar
±0,5
Screw (M3)
Normally Closed
EPDM
EPDM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-30 °C
120 °C
10 bar
1 bar
±0,5
Screw (M3)
Normally Closed
FKM
FKM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-5 °C
120 °C
10 bar
1 bar
±0,5
Screw (M3)
Normally Closed
NBR
Galvanized steel, NBR
400 bar
1/8 BSP
-20 °C
-40 °C
100 °C
10 bar
1 bar
±0,5
Screw (M3)
Normally Closed
EPDM
EPDM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-30 °C
120 °C
10 bar
1 bar
±0,5
Screw (M3)
Normally Closed
FKM
FKM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-5 °C
120 °C
10 bar
1 bar
±0,5
Spade (AMP 6,3x0,8 mm)
Normally open
NBR
Galvanized steel, NBR
400 bar
1/4 BSP
-40 °C
-40 °C
100 °C
10 bar
1 bar
±0,5
Spade (AMP 6,3x0,8 mm)
Normally open
EPDM
Galvanized steel, NBR
400 bar
1/4 BSP
-30 °C
-30 °C
120 °C
10 bar
1 bar
±0,5
Spade (AMP 6,3x0,8 mm)
Normally open
FKM
FKM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-5 °C
120 °C
10 bar
1 bar
±0,5
Spade (AMP 6,3x0,8 mm)
Normally open
NBR
Galvanized steel, NBR
400 bar
1/8 BSP
-40 °C
-40 °C
100 °C
10 bar
1 bar
±0,5
Spade (AMP 6,3x0,8 mm)
Normally open
EPDM
EPDM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-30 °C
120 °C
10 bar
1 bar
±0,5
Spade (AMP 6,3x0,8 mm)
Normally open
FKM
FKM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-5 °C
120 °C
10 bar
1 bar
±0,5
Spade (AMP 6,3x0,8 mm)
Normally Closed
NBR
Galvanized steel, NBR
400 bar
1/4 BSP
-40 °C
-40 °C
100 °C
10 bar
1 bar
±0,5
Spade (AMP 6,3x0,8 mm)
Normally Closed
EPDM
EPDM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-30 °C
120 °C
10 bar
1 bar
±0,5
Spade (AMP 6,3x0,8 mm)
Normally Closed
FKM
FKM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-5 °C
120 °C
10 bar
1 bar
±0,5
Spade (AMP 6,3x0,8 mm)
Normally Closed
NBR
Galvanized steel, NBR
400 bar
1/8 BSP
-20 °C
-40 °C
100 °C
10 bar
1 bar
±0,5
Spade (AMP 6,3x0,8 mm)
Normally Closed
EPDM
EPDM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-30 °C
120 °C
10 bar
1 bar
±0,5
Spade (AMP 6,3x0,8 mm)
Normally Closed
FKM
FKM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-5 °C
120 °C
20 bar
10 bar
±1
Screw (M3)
Normally open
NBR
Galvanized steel, NBR
400 bar
1/4 BSP
-20 °C
-40 °C
100 °C
20 bar
10 bar
±1
Screw (M3)
Normally open
EPDM
EPDM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-30 °C
120 °C
20 bar
10 bar
±1
Screw (M3)
Normally open
FKM
FKM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-5 °C
120 °C
20 bar
10 bar
±1
Screw (M3)
Normally open
NBR
Galvanized steel, NBR
400 bar
1/8 BSP
-20 °C
-40 °C
100 °C
20 bar
10 bar
±1
Screw (M3)
Normally open
EPDM
EPDM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-30 °C
120 °C
20 bar
10 bar
±1
Screw (M3)
Normally open
FKM
FKM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-5 °C
120 °C
20 bar
10 bar
±1
Screw (M3)
Normally Closed
NBR
Galvanized steel, NBR
400 bar
1/4 BSP
-20 °C
-40 °C
100 °C
20 bar
10 bar
±1
Screw (M3)
Normally Closed
EPDM
EPDM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-30 °C
120 °C
20 bar
10 bar
±1
Screw (M3)
Normally Closed
FKM
FKM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-5 °C
120 °C
20 bar
10 bar
±1
Screw (M3)
Normally Closed
NBR
Galvanized steel, NBR
400 bar
1/8 BSP
-20 °C
-40 °C
100 °C
20 bar
10 bar
±1
Screw (M3)
Normally Closed
EPDM
EPDM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-30 °C
120 °C
20 bar
10 bar
±1
Screw (M3)
Normally Closed
FKM
FKM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-5 °C
120 °C
20 bar
10 bar
±1,0
Spade (AMP 6,3x0,8 mm)
Normally open
NBR
Galvanized steel, NBR
400 bar
1/4 BSP
-40 °C
-40 °C
100 °C
20 bar
10 bar
±1,0
Spade (AMP 6,3x0,8 mm)
Normally open
EPDM
Galvanized steel, NBR
400 bar
1/4 BSP
-30 °C
-30 °C
120 °C
20 bar
10 bar
±1,0
Spade (AMP 6,3x0,8 mm)
Normally open
FKM
FKM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-5 °C
120 °C
20 bar
10 bar
±1,0
Spade (AMP 6,3x0,8 mm)
Normally open
NBR
Galvanized steel, NBR
400 bar
1/8 BSP
-40 °C
-40 °C
100 °C
20 bar
10 bar
±1,0
Spade (AMP 6,3x0,8 mm)
Normally open
EPDM
EPDM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-30 °C
120 °C
20 bar
10 bar
±1,0
Spade (AMP 6,3x0,8 mm)
Normally open
FKM
FKM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-5 °C
120 °C
20 bar
10 bar
±1,0
Spade (AMP 6,3x0,8 mm)
Normally Closed
NBR
Galvanized steel, NBR
400 bar
1/4 BSP
-40 °C
-40 °C
100 °C
20 bar
10 bar
±1,0
Spade (AMP 6,3x0,8 mm)
Normally Closed
EPDM
EPDM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-30 °C
120 °C
20 bar
10 bar
±1,0
Spade (AMP 6,3x0,8 mm)
Normally Closed
FKM
FKM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-5 °C
120 °C
20 bar
10 bar
±1,0
Spade (AMP 6,3x0,8 mm)
Normally Closed
NBR
Galvanized steel, NBR
400 bar
1/8 BSP
-40 °C
-40 °C
100 °C
20 bar
10 bar
±1,0
Spade (AMP 6,3x0,8 mm)
Normally Closed
EPDM
EPDM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-30 °C
120 °C
20 bar
10 bar
±1,0
Spade (AMP 6,3x0,8 mm)
Normally Closed
FKM
FKM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-5 °C
120 °C
50 bar
20 bar
±2
Screw (M3)
Normally open
NBR
Galvanized steel, NBR
400 bar
1/4 BSP
-20 °C
-40 °C
100 °C
50 bar
20 bar
±2
Screw (M3)
Normally open
EPDM
EPDM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-30 °C
120 °C
50 bar
20 bar
±2
Screw (M3)
Normally open
FKM
FKM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-5 °C
120 °C
50 bar
20 bar
±2
Screw (M3)
Normally open
NBR
Galvanized steel, NBR
400 bar
1/8 BSP
-20 °C
-40 °C
100 °C
50 bar
20 bar
±2
Screw (M3)
Normally open
EPDM
EPDM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-30 °C
120 °C
50 bar
20 bar
±2
Screw (M3)
Normally open
FKM
FKM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-5 °C
120 °C
50 bar
20 bar
±2
Screw (M3)
Normally open
NBR
Galvanized steel, NBR
400 bar
1/4 BSP
-20 °C
-40 °C
100 °C
50 bar
20 bar
±2
Screw (M3)
Normally open
EPDM
EPDM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-30 °C
120 °C
50 bar
20 bar
±2
Screw (M3)
Normally open
FKM
FKM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-5 °C
120 °C
50 bar
20 bar
±2
Screw (M3)
Normally open
NBR
Galvanized steel, NBR
400 bar
1/8 BSP
-20 °C
-40 °C
100 °C
50 bar
20 bar
±2
Screw (M3)
Normally open
EPDM
EPDM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-30 °C
120 °C
50 bar
20 bar
±2
Screw (M3)
Normally open
FKM
FKM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-5 °C
120 °C
50 bar
20 bar
±2,0
Spade (AMP 6,3x0,8 mm)
Normally open
NBR
Galvanized steel, NBR
400 bar
1/4 BSP
-40 °C
-40 °C
100 °C
50 bar
20 bar
±2,0
Spade (AMP 6,3x0,8 mm)
Normally open
EPDM
EPDM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-30 °C
120 °C
50 bar
20 bar
±2,0
Spade (AMP 6,3x0,8 mm)
Normally open
FKM
FKM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-5 °C
120 °C
50 bar
20 bar
±2,0
Spade (AMP 6,3x0,8 mm)
Normally open
NBR
Galvanized steel, NBR
400 bar
1/8 BSP
-40 °C
-40 °C
100 °C
50 bar
20 bar
±2,0
Spade (AMP 6,3x0,8 mm)
Normally open
EPDM
EPDM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-30 °C
120 °C
50 bar
20 bar
±2,0
Spade (AMP 6,3x0,8 mm)
Normally open
FKM
FKM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-5 °C
120 °C
50 bar
20 bar
±2,0
Spade (AMP 6,3x0,8 mm)
Normally Closed
NBR
Galvanized steel, NBR
400 bar
1/4 BSP
-40 °C
-40 °C
100 °C
50 bar
20 bar
±2,0
Spade (AMP 6,3x0,8 mm)
Normally Closed
EPDM
EPDM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-30 °C
120 °C
50 bar
20 bar
±2,0
Spade (AMP 6,3x0,8 mm)
Normally Closed
FKM
FKM, Galvanized steel
400 bar
1/4 BSP
-20 °C
-5 °C
120 °C
50 bar
20 bar
±2,0
Spade (AMP 6,3x0,8 mm)
Normally Closed
NBR
Galvanized steel, NBR
400 bar
1/4 BSP
-20 °C
-40 °C
100 °C
50 bar
20 bar
±2,0
Spade (AMP 6,3x0,8 mm)
Normally Closed
EPDM
EPDM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-30 °C
120 °C
50 bar
20 bar
±2,0
Spade (AMP 6,3x0,8 mm)
Normally Closed
FKM
FKM, Galvanized steel
400 bar
1/8 BSP
-20 °C
-5 °C
120 °C
150 bar
50 bar
±5
Screw (M3)
Normally open
NBR
Galvanized steel, NBR
700 bar
1/4 BSP
-20 °C
-40 °C
100 °C
150 bar
50 bar
±5
Screw (M3)
Normally open
EPDM
EPDM, Galvanized steel
700 bar
1/4 BSP
-20 °C
-30 °C
120 °C
150 bar
50 bar
±5
Screw (M3)
Normally open
FKM
Galvanized steel
700 bar
1/4 BSP
-20 °C
-10 °C
120 °C
150 bar
50 bar
±5
Screw (M3)
Normally open
NBR
Galvanized steel, NBR
700 bar
1/8 BSP
-20 °C
-40 °C
100 °C
150 bar
50 bar
±5
Screw (M3)
Normally open
EPDM
EPDM, Galvanized steel
700 bar
1/8 BSP
-20 °C
-30 °C
120 °C
150 bar
50 bar
±5
Screw (M3)
Normally open
FKM
Galvanized steel
700 bar
1/8 BSP
-20 °C
-10 °C
120 °C
150 bar
50 bar
±5
Screw (M3)
Normally Closed
NBR
Galvanized steel, NBR
700 bar
1/4 BSP
-20 °C
-40 °C
100 °C
150 bar
50 bar
±5
Screw (M3)
Normally Closed
EPDM
EPDM, Galvanized steel
700 bar
1/4 BSP
-20 °C
-30 °C
120 °C
150 bar
50 bar
±5
Screw (M3)
Normally Closed
FKM
Galvanized steel
700 bar
1/4 BSP
-20 °C
-10 °C
120 °C
150 bar
50 bar
±5
Screw (M3)
Normally Closed
NBR
Galvanized steel, NBR
700 bar
1/8 BSP
-20 °C
-40 °C
100 °C
150 bar
50 bar
±5
Screw (M3)
Normally Closed
EPDM
EPDM, Galvanized steel
700 bar
1/8 BSP
-20 °C
-30 °C
120 °C
150 bar
50 bar
±5
Screw (M3)
Normally Closed
FKM
Galvanized steel
700 bar
1/8 BSP
-20 °C
-10 °C
120 °C
150 bar
50 bar
±5,0
Spade (AMP 6,3x0,8 mm)
Normally open
NBR
Galvanized steel, NBR
700 bar
1/4 BSP
-40 °C
-40 °C
100 °C
150 bar
50 bar
±5,0
Spade (AMP 6,3x0,8 mm)
Normally open
EPDM
EPDM, Galvanized steel
700 bar
1/4 BSP
-20 °C
-30 °C
120 °C
150 bar
50 bar
±5,0
Spade (AMP 6,3x0,8 mm)
Normally open
FKM
Galvanized steel
700 bar
1/4 BSP
-20 °C
-10 °C
120 °C
150 bar
50 bar
±5,0
Spade (AMP 6,3x0,8 mm)
Normally open
NBR
Galvanized steel, NBR
700 bar
1/4 BSP
-40 °C
-40 °C
100 °C
150 bar
50 bar
±5,0
Spade (AMP 6,3x0,8 mm)
Normally open
EPDM
EPDM, Galvanized steel
700 bar
1/8 BSP
-20 °C
-30 °C
120 °C
150 bar
50 bar
±5,0
Spade (AMP 6,3x0,8 mm)
Normally open
FKM
Galvanized steel
700 bar
1/8 BSP
-20 °C
-10 °C
120 °C
150 bar
50 bar
±5,0
Spade (AMP 6,3x0,8 mm)
Normally Closed
NBR
Galvanized steel, NBR
700 bar
1/4 BSP
-40 °C
-40 °C
100 °C
150 bar
50 bar
±5,0
Spade (AMP 6,3x0,8 mm)
Normally Closed
EPDM
EPDM, Galvanized steel
700 bar
1/4 BSP
-20 °C
-30 °C
120 °C
150 bar
50 bar
±5,0
Spade (AMP 6,3x0,8 mm)
Normally Closed
FKM
Galvanized steel
700 bar
1/4 BSP
-20 °C
-10 °C
120 °C
150 bar
50 bar
±5,0
Spade (AMP 6,3x0,8 mm)
Normally Closed
NBR
Galvanized steel, NBR
700 bar
1/4 BSP
-20 °C
-40 °C
100 °C
150 bar
50 bar
±5,0
Spade (AMP 6,3x0,8 mm)
Normally Closed
EPDM
EPDM, Galvanized steel
700 bar
1/8 BSP
-20 °C
-30 °C
120 °C
150 bar
50 bar
±5,0
Spade (AMP 6,3x0,8 mm)
Normally Closed
FKM
Galvanized steel
700 bar
1/8 BSP
-20 °C
-10 °C
120 °C

Selected variant

Select a variant in the list

Contact us
If you need any help, you can contact us in one of the following ways:
0116 284 9900
Send e-mail
Use live chat
Do you need help?
Logo

Cookie settings for OEM.CO.UK

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

You can accept all cookies or personalise your cookies preferences, you can also change your cookie preferences at any time by visiting our contact page.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
