SUCO

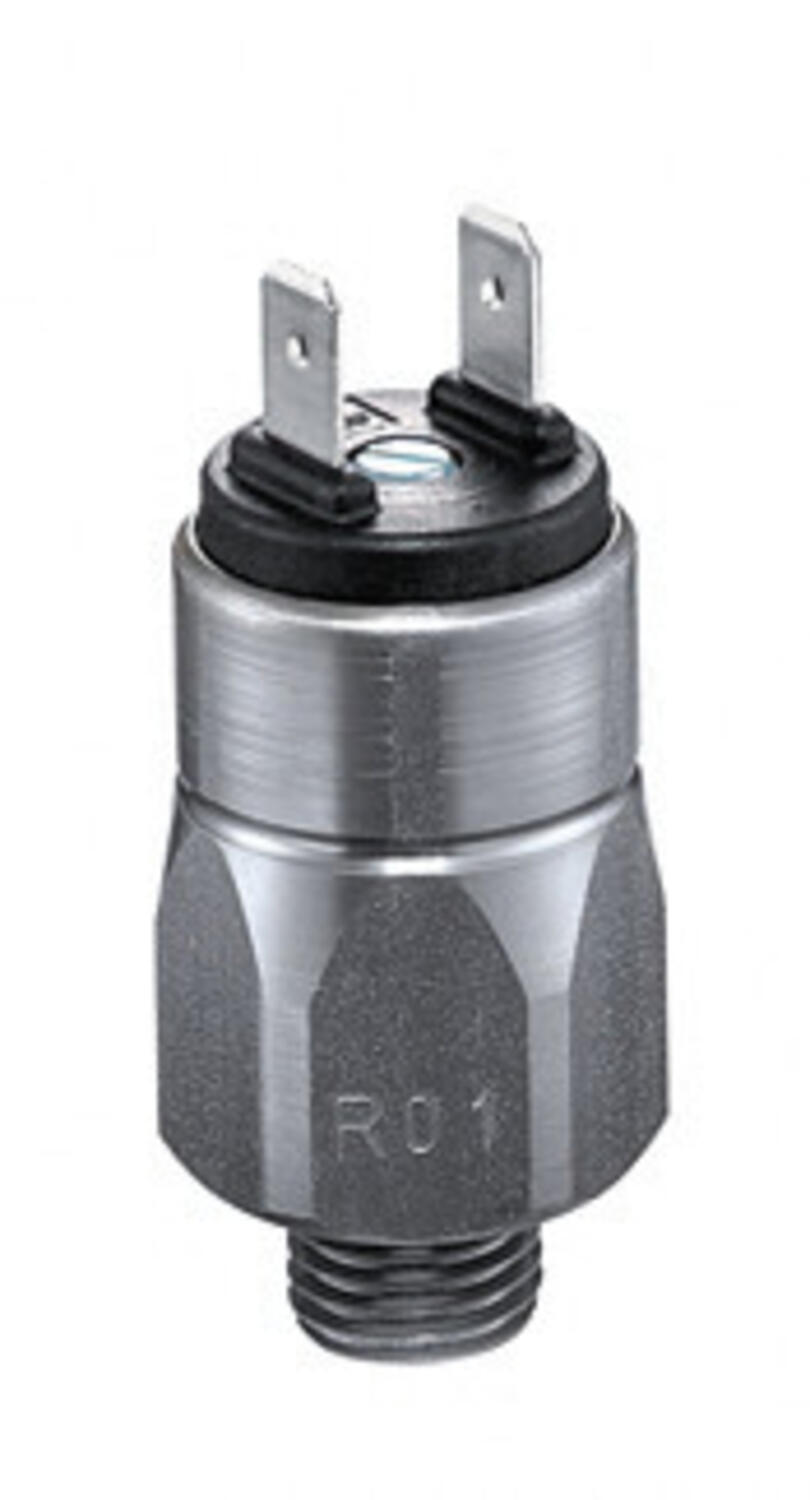

The SUCO 0164 series is built around a corrosion-resistant stainless-steel body (hex‑24), designed to withstand demanding environments. It operates on voltages up to 42 V (AC/DC) and features either spade or screw terminal connections for electrical interfacing. Available in five adjustable pressure ranges this switch offers field-adjustable setpoints and stable switching behaviour over time, with a maximum deviation of ±0.2 bar and a high overpressure safety rating of 600 bar. Suitable for both normally open and normally closed SPST configurations, it supports currents up to 4 A. The switch accommodates media temperatures from –40 °C to +100 °C (and up to +120 °C with EPDM or FKM seals) and ambient temperatures between –20 °C and +80 °C.
Thanks to its robust stainless steel construction and NBR/EPDM/FKM seal options, the 0164 series excels in hygienic or corrosive media environments such as water treatment, medical devices, and chemical processing lines. Its compact design and spade/screw connection options simplify installation in compact control panels or mobile fluid systems. Users benefit from on-site setpoint adjustments for fine-tuning during commissioning and from reliable overpressure protection for safeguarding downstream components. Typical use cases include fluid-level safeguarding, pump control, leak detection alarm circuits, and pressure-based safety cut-offs in medical, industrial, and environmental systems.
Adjustment range max | 1 bar |
---|---|
Adjustment range min | 0.1 bar |
Approvals | CSA US, RoHS II |
Contact rating max | 4 A |
Deviation max | ±0,2 |
Electrical connection | Spade (AMP 6,3x0,8 mm) |
Function | Normally open |
IP class | IP00 |
Material membrane | NBR |
Material of body | Stainless steel |
Material of wetted parts | NBR, Stainless steel |
Max switching frequency/min | 200 |
---|---|
Pressure max | 600 bar |
Process connection | G1/4-E |
Temperature ambient from | -20 °C |
Temperature ambient to | 80 °C |
Temperature of media from | -40 °C |
Temperature of media to | 100 °C |
Weight | 90 g |
Voltage ac/dc max | 42 V |
Voltage ac/dc min | 10 V |
The SUCO 0164 series is built around a corrosion-resistant stainless-steel body (hex‑24), designed to withstand demanding environments. It operates on voltages up to 42 V (AC/DC) and features either spade or screw terminal connections for electrical interfacing. Available in five adjustable pressure ranges this switch offers field-adjustable setpoints and stable switching behaviour over time, with a maximum deviation of ±0.2 bar and a high overpressure safety rating of 600 bar. Suitable for both normally open and normally closed SPST configurations, it supports currents up to 4 A. The switch accommodates media temperatures from –40 °C to +100 °C (and up to +120 °C with EPDM or FKM seals) and ambient temperatures between –20 °C and +80 °C.
Thanks to its robust stainless steel construction and NBR/EPDM/FKM seal options, the 0164 series excels in hygienic or corrosive media environments such as water treatment, medical devices, and chemical processing lines. Its compact design and spade/screw connection options simplify installation in compact control panels or mobile fluid systems. Users benefit from on-site setpoint adjustments for fine-tuning during commissioning and from reliable overpressure protection for safeguarding downstream components. Typical use cases include fluid-level safeguarding, pump control, leak detection alarm circuits, and pressure-based safety cut-offs in medical, industrial, and environmental systems.
OEM Automatics water and wastewater application specialists have gathered all our solutions in one place. Our products are used in everything from small municipal water works to larger regional plants.
When choosing between a pressure switch and a pressure sensor, the key lies in understanding your application. Our Pressure Monitoring experts breaks down the two devices for you.
When selecting a SUCO mechanical pressure switch, it's essential to consider several key factors...
Whether you’re pumping water, chocolate, oil or peanut butter knowing the product’s viscosity is essential to selecting the right pump. Find out more about viscosity and which pump may be suitable for your application!
Whether you're looking to upgrade your current solution or secure a more robust float switch for your next project, Taurus delivers performance you can count on.
Pumps are now officially part of our product offering! As we build our pump portfolio, we’re proud to announce that we are an official distributor of SAMOA Industrial, a well-established name in the fluid handling industry.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Adjustment range max | Adjustment range min | Deviation max | Function | Material membrane | Material of wetted parts | Temperature of media from | Temperature of media to | Price | ||
---|---|---|---|---|---|---|---|---|---|---|---|
![]()
0,1..1 bar, G1/4-E, No, NBR, Spade, Stainless steel
Art:
0164403411003
Copied
|
1 bar
|
0.1 bar
|
±0,2
|
Normally open
|
NBR
|
NBR, Stainless steel
|
-40 °C
|
100 °C
|
| ||
![]()
0,1..1 bar, G1/4-E, No, EPDM, Spade, Stainless steel
Art:
0164403412003
Copied
|
1 bar
|
0.1 bar
|
±0,2
|
Normally open
|
EPDM
|
EPDM, Stainless steel
|
-30 °C
|
120 °C
|
| ||
![]()
0,1..1 bar, G1/4-E, No, FKM, Spade, Stainless steel
Art:
0164403413003
Copied
|
1 bar
|
0.1 bar
|
±0,2
|
Normally open
|
FKM
|
FKM, Stainless steel
|
-5 °C
|
120 °C
|
| ||
![]()
0,1..1 bar, G1/4-E, Nc, NBR, Spade, Stainless steel
Art:
0164404411004
Copied
|
1 bar
|
0.1 bar
|
±0,2
|
Normally Closed
|
NBR
|
NBR, Stainless steel
|
-40 °C
|
100 °C
|
| ||
![]()
0,1..1 bar, G1/4-E, Nc, EPDM, Spade, Stainless steel
Art:
0164404412004
Copied
|
1 bar
|
0.1 bar
|
±0,2
|
Normally Closed
|
EPDM
|
EPDM, Stainless steel
|
-30 °C
|
120 °C
|
| ||
![]()
0,1..1 bar, G1/4-E, Nc, FKM, Spade, Stainless steel
Art:
0164404413004
Copied
|
1 bar
|
0.1 bar
|
±0,2
|
Normally Closed
|
FKM
|
FKM, Stainless steel
|
-5 °C
|
120 °C
|
| ||
![]()
0,5..3 bar, G1/4-E, No, NBR, Spade, Stainless steel
Art:
0164423411070
Copied
|
3 bar
|
0.5 bar
|
±0,3
|
Normally open
|
NBR
|
NBR, Stainless steel
|
-40 °C
|
100 °C
|
| ||
![]()
0,5..3 bar, G1/4-E, No, EPDM, Spade, Stainless steel
Art:
0164423412070
Copied
|
3 bar
|
0.5 bar
|
±0,3
|
Normally open
|
EPDM
|
EPDM, Stainless steel
|
-30 °C
|
120 °C
|
| ||
![]()
0,5..3 bar, G1/4-E, No, FKM, Spade, Stainless steel
Art:
0164423413070
Copied
|
3 bar
|
0.5 bar
|
±0,3
|
Normally open
|
FKM
|
FKM, Stainless steel
|
-5 °C
|
120 °C
|
| ||
![]()
0,5..3 bar, G1/4-E, Nc, NBR, Spade, Stainless steel
Art:
0164424411070
Copied
|
3 bar
|
0.5 bar
|
±0,3
|
Normally Closed
|
NBR
|
NBR, Stainless steel
|
-40 °C
|
100 °C
|
| ||
![]()
0,5..3 bar, G1/4-E, Nc, EPDM, Spade, Stainless steel
Art:
0164424412070
Copied
|
3 bar
|
0.5 bar
|
±0,3
|
Normally Closed
|
EPDM
|
EPDM, Stainless steel
|
-30 °C
|
120 °C
|
| ||
![]()
0,5..3 bar, G1/4-E, Nc, FKM, Spade, Stainless steel
Art:
0164424413070
Copied
|
3 bar
|
0.5 bar
|
±0,3
|
Normally Closed
|
FKM
|
FKM, Stainless steel
|
-5 °C
|
120 °C
|
| ||
![]()
1..10 bar, G1/4-E, No, NBR, Spade, Stainless steel
Art:
0164407411007
Copied
|
10 bar
|
1 bar
|
±0,5
|
Normally open
|
NBR
|
NBR, Stainless steel
|
-40 °C
|
100 °C
|
| ||
![]()
1..10 bar, G1/4-E, No, EPDM, Spade, Stainless steel
Art:
0164407412007
Copied
|
10 bar
|
1 bar
|
±0,5
|
Normally open
|
EPDM
|
EPDM, Stainless steel
|
-30 °C
|
120 °C
|
| ||
![]()
1..10 bar, G1/4-E, No, FKM, Spade, Stainless steel
Art:
0164407413007
Copied
|
10 bar
|
1 bar
|
±0,5
|
Normally open
|
FKM
|
FKM, Stainless steel
|
-5 °C
|
120 °C
|
| ||
![]()
1..10 bar, G1/4-E, Nc, NBR, Spade, Stainless steel
Art:
0164408411008
Copied
|
10 bar
|
1 bar
|
±0,5
|
Normally Closed
|
NBR
|
NBR, Stainless steel
|
-40 °C
|
100 °C
|
| ||
![]()
1..10 bar, G1/4-E, Nc, EPDM, Spade, Stainless steel
Art:
0164408412008
Copied
|
10 bar
|
1 bar
|
±0,5
|
Normally Closed
|
EPDM
|
EPDM, Stainless steel
|
-30 °C
|
120 °C
|
| ||
![]()
1..10 bar, G1/4-E, Nc, FKM, Spade, Stainless steel
Art:
0164408413008
Copied
|
10 bar
|
1 bar
|
±0,5
|
Normally Closed
|
FKM
|
FKM, Stainless steel
|
-5 °C
|
120 °C
|
| ||
![]()
10..20 bar, G1/4-E, No, NBR, Spade, Stainless steel
Art:
0164411411011
Copied
|
20 bar
|
10 bar
|
±1,0
|
Normally open
|
NBR
|
NBR, Stainless steel
|
-40 °C
|
100 °C
|
| ||
![]()
10..20 bar, G1/4-E, No, EPDM, Spade, Stainless steel
Art:
0164411412011
Copied
|
20 bar
|
10 bar
|
±1,0
|
Normally open
|
EPDM
|
EPDM, Stainless steel
|
-30 °C
|
120 °C
|
| ||
![]()
10..20 bar, G1/4-E, No, FKM, Spade, Stainless steel
Art:
0164411413011
Copied
|
20 bar
|
10 bar
|
±1,0
|
Normally open
|
FKM
|
FKM, Stainless steel
|
-5 °C
|
120 °C
|
| ||
![]()
10..20 bar, G1/4-E, Nc, NBR, Spade, Stainless steel
Art:
0164412411012
Copied
|
20 bar
|
10 bar
|
±1,0
|
Normally Closed
|
NBR
|
NBR, Stainless steel
|
-40 °C
|
100 °C
|
| ||
![]()
10..20 bar, G1/4-E, Nc, EPDM, Spade, Stainless steel
Art:
0164412412012
Copied
|
20 bar
|
10 bar
|
±1,0
|
Normally Closed
|
EPDM
|
EPDM, Stainless steel
|
-30 °C
|
120 °C
|
| ||
![]()
10..20 bar, G1/4-E, Nc, FKM, Spade, Stainless steel
Art:
0164412413012
Copied
|
20 bar
|
10 bar
|
±1,0
|
Normally Closed
|
FKM
|
FKM, Stainless steel
|
-5 °C
|
120 °C
|
| ||
![]()
20..50 bar, G1/4-E, No, NBR, Spade, Stainless steel
Art:
0164415411015
Copied
|
50 bar
|
20 bar
|
±2,0
|
Normally open
|
NBR
|
NBR, Stainless steel
|
-40 °C
|
100 °C
|
| ||
![]()
20..50 bar, G1/4-E, No, EPDM, Spade, Stainless steel
Art:
0164415412015
Copied
|
50 bar
|
20 bar
|
±2,0
|
Normally open
|
EPDM
|
EPDM, Stainless steel
|
-30 °C
|
120 °C
|
| ||
![]()
20..50 bar, G1/4-E, No, FKM, Spade, Stainless steel
Art:
0164415413015
Copied
|
50 bar
|
20 bar
|
±2,0
|
Normally open
|
FKM
|
FKM, Stainless steel
|
-5 °C
|
120 °C
|
| ||
![]()
20..50 bar, G1/4-E, Nc, NBR, Spade, Stainless steel
Art:
0164416411016
Copied
|
50 bar
|
20 bar
|
±2,0
|
Normally Closed
|
NBR
|
NBR, Stainless steel
|
-40 °C
|
100 °C
|
| ||
![]()
20..50 bar, G1/4-E, Nc, EPDM, Spade, Stainless steel
Art:
0164416412016
Copied
|
50 bar
|
20 bar
|
±2,0
|
Normally Closed
|
EPDM
|
EPDM, Stainless steel
|
-30 °C
|
120 °C
|
| ||
![]()
20..50 bar, G1/4-E, Nc, FKM, Spade, Stainless steel
Art:
0164416413016
Copied
|
50 bar
|
20 bar
|
±2,0
|
Normally Closed
|
FKM
|
FKM, Stainless steel
|
-5 °C
|
120 °C
|
|
