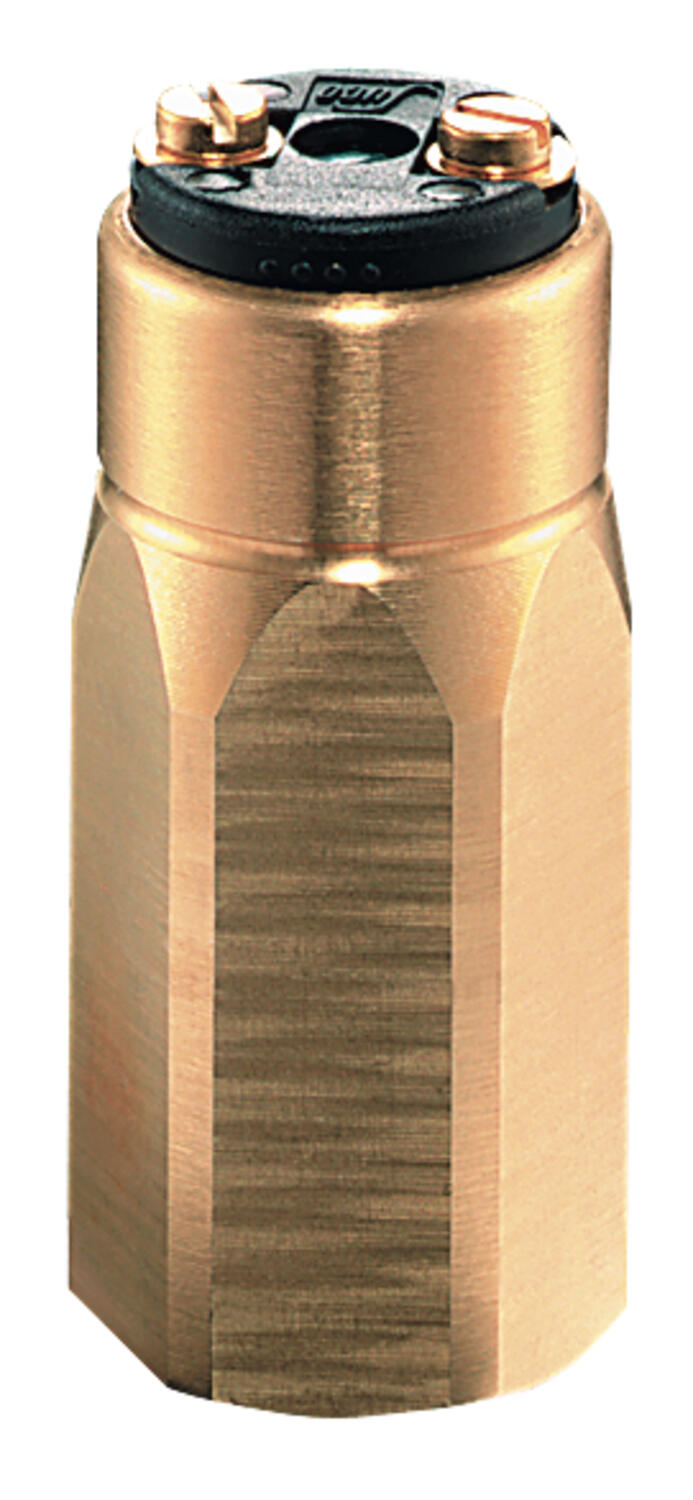

Suco - 0151 Vacuum Switch
Brass body
The SUCO 0151 Vacuum Switch is a compact, brass-bodied mechanical pressure switch designed for vacuum applications. It features a standard G 1/8″ female process connection and a HEX 24 mm housing, with FKM-sealed wetted parts and brass body ensuring chemical compatibility with air, oils, greases, fuels and water. It supports field-adjustable setpoints between 200 mbar and 950 mbar (relative vacuum), offering on-site calibration or factory pre-setting with lacquered locking, plus a maximum voltage of 42 V AC/DC and a contact rating of 4 A resistive. The switch comes in both normally‑open (NO) and normally‑closed (NC) SPST configurations, with connection options via M3 screw terminals or AMP 6.3 x 0.8 mm spade lugs. It delivers stable long-term switching performance, up to 200 operations per minute, and overpressure safety up to 35 bar, critical for handling pressure surges in a vacuum environment.
The SUCOÂ 0151 excels in industrial and medical vacuum systems where precise low-pressure monitoring is essential. It ensures reliable detection of vacuum thresholds for pump control, vacuum packaging, or sterilisation equipment. The FKM sealing and brass body make it resistant to various process fluids, suitable for water, chemical and medical-grade applications, protected to IPÂ 65 for rugged environments. With its ability to adjust hysteresis and switch points onsite, it offers flexibility in custom control systems, while its durable components and proven overpressure tolerance ensure long service life in harsh settings such as lab, OEM and automotive vacuum systems.
- Up to 42 V
- Spade or screw terminals
- Adjustment range of 200 mbar to 950 mbar (relative)
- Normally open or Normally closed
- Over pressure safety of 35 bar
Selected variant
Technical data
| Adjustment range max | 0.95 bar |
|---|---|
| Adjustment range min | 0.2 bar |
| Approvals | RoHS II |
| Contact rating max | 4 A |
| Deviation max | ±100mbar |
| Electrical connection | Spade (AMP 6,3x0,8 mm) |
| Function | Normally Closed |
| IP class | IP00 |
| Material membrane | FKM |
| Material of body | Brass |
| Material of wetted parts | FKM, Brass |
| Max switching frequency/min | 200 |
| Operating range max | 950 mbar |
|---|---|
| Operating range min | 200 mbar |
| Process connection | G1/8 female |
| Temperature ambient from | -20 °C |
| Temperature ambient to | 80 °C |
| Temperature of media from | -15 °C |
| Temperature of media to | 120 °C |
| Weight | 140 g |
| Voltage ac/dc max | 42 V |
| Voltage ac/dc min | 10 V |
Downloads
Product description
The SUCO 0151 Vacuum Switch is a compact, brass-bodied mechanical pressure switch designed for vacuum applications. It features a standard G 1/8″ female process connection and a HEX 24 mm housing, with FKM-sealed wetted parts and brass body ensuring chemical compatibility with air, oils, greases, fuels and water. It supports field-adjustable setpoints between 200 mbar and 950 mbar (relative vacuum), offering on-site calibration or factory pre-setting with lacquered locking, plus a maximum voltage of 42 V AC/DC and a contact rating of 4 A resistive. The switch comes in both normally‑open (NO) and normally‑closed (NC) SPST configurations, with connection options via M3 screw terminals or AMP 6.3 x 0.8 mm spade lugs. It delivers stable long-term switching performance, up to 200 operations per minute, and overpressure safety up to 35 bar, critical for handling pressure surges in a vacuum environment.
The SUCOÂ 0151 excels in industrial and medical vacuum systems where precise low-pressure monitoring is essential. It ensures reliable detection of vacuum thresholds for pump control, vacuum packaging, or sterilisation equipment. The FKM sealing and brass body make it resistant to various process fluids, suitable for water, chemical and medical-grade applications, protected to IPÂ 65 for rugged environments. With its ability to adjust hysteresis and switch points onsite, it offers flexibility in custom control systems, while its durable components and proven overpressure tolerance ensure long service life in harsh settings such as lab, OEM and automotive vacuum systems.
