SUCO
The SUCO 0530 is a high‑performance electronic pressure switch featuring a rugged hex 22 stainless steel housing and titanium-wetted parts, designed for demanding environments. It uses a precision Silicon‑on‑Sapphire (SOS) sensing element for exceptional accuracy, low temperature drift, and long-term stability. This model provides a single PNP output with a “normally open” function, factory-set switching point and hysteresis, and high over‑pressure protection to ensure safety under unexpected pressure spikes. It supports multiple pressure ranges up to 1,650 bar, thread options including G¼, NPT, UNF, M10/M14, and electrical connector choices like Deutsch DT04, AMP Superseal, M12, bayonet, or pre-fitted cable, all rated to IP67/IP6K9K for water and dust resistance.
Built for rugged industrial and mobile-hydraulic use, the 0530 excels in situations requiring reliable pressure monitoring under harsh conditions. Typical applications include hydraulic systems in construction machinery, mobile equipment, pneumatic systems, and even high-pressure applications in test benches or process lines. The SOS sensor ensures rapid detection and long-term measurement consistency, while the all-welded stainless steel/titanium design resists corrosion and eliminates elastomer seals, ideal for harsh media and high change-rate pressures. With robust connector choices and factory-set parameters, it offers plug-and-play integration, minimal setup, and reliable performance, making it a trusted choice for sectors like heavy machinery, off-road vehicles, marine hydraulics, and industrial automation.
General Data |
|
|---|---|
| Adjustment range max | 10 bar |
| Adjustment range min | 0 bar |

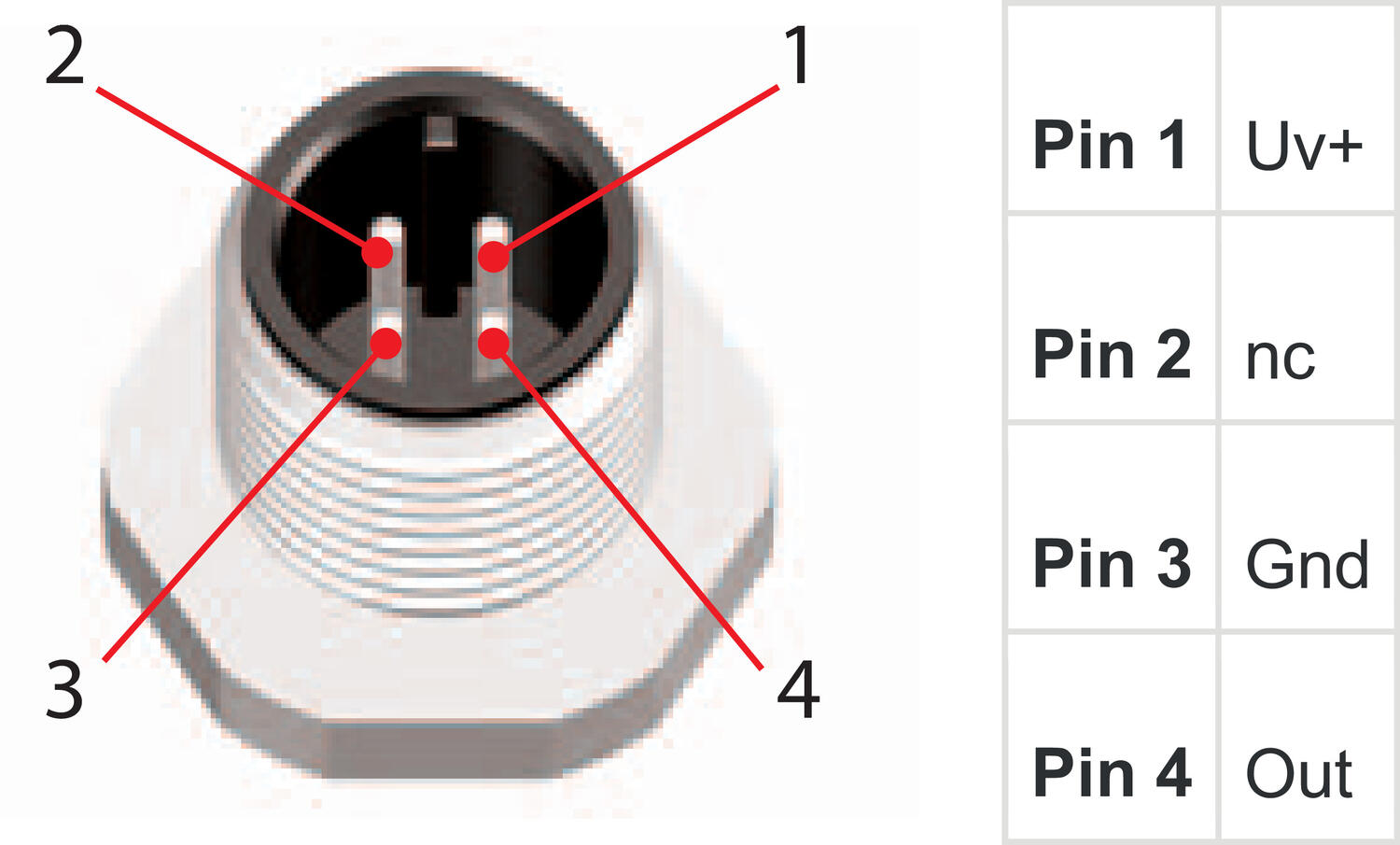

| Electrical connection | M12x1 |
| Process connection | 1/4 BSP |
| Function | Normally open |
| Output | PNP |
| Burst pressure | 80 bar |
| Pressure max | 40 bar |
Temperature & Materials Data |
|
| Temperature of media from | -40 °C |
| Temperature of media to | 125 °C |
| Temperature ambient from | -40 °C |
| Temperature ambient to | 100 °C |
| Material of body | Stainless steel 1.4305 |
| Material of wetted parts | Stainless steel 1.4305, Titanium |
Additional Data |
|
| Supply voltage dc max | 32 V DC |
*Invisible Heading* |
|
|---|---|
| Supply voltage dc min | 9.6 V DC |
| Pressure rise | ≤ 5,000 bar/s |
| Switching time | < 2 ms |
| Switching point adjustment range | 2 … 100 % of the nominal pressure range Full Scale (FS), programmable at factory |
| Weight | 80 g |
Safety & Approvals |
|
| IP class | IP67 |
| Hysteresis | 2..99.8% of nominal pressure range (full scale), programmable at factory |
| Shock resistance | 500m / s²; 11 ms half sine wave; DIN EN 60068-2-27 |
| Vibration resistance | 20g: 4..2000 Hz sine wave, DIN EN 60068-2-6 |
| EMC | EMC 2014/30/EU, EN 61000-6-2:2005, EN 61000-6-3:2007 |
| Accuracy | ±0.5 % of adjustment range (Full scale) at room temperature |
| Long term stability | ±0.1 % of adjustment range (full scale) per year |
| Mechanical life expectancy | 10,000,000 switching cycles at rise rates to 5,000 bar/s nominal pressure |
| Repeatability | ±0.1 % full scale |
The SUCO 0530 is a high‑performance electronic pressure switch featuring a rugged hex 22 stainless steel housing and titanium-wetted parts, designed for demanding environments. It uses a precision Silicon‑on‑Sapphire (SOS) sensing element for exceptional accuracy, low temperature drift, and long-term stability. This model provides a single PNP output with a “normally open” function, factory-set switching point and hysteresis, and high over‑pressure protection to ensure safety under unexpected pressure spikes. It supports multiple pressure ranges up to 1,650 bar, thread options including G¼, NPT, UNF, M10/M14, and electrical connector choices like Deutsch DT04, AMP Superseal, M12, bayonet, or pre-fitted cable, all rated to IP67/IP6K9K for water and dust resistance.
Built for rugged industrial and mobile-hydraulic use, the 0530 excels in situations requiring reliable pressure monitoring under harsh conditions. Typical applications include hydraulic systems in construction machinery, mobile equipment, pneumatic systems, and even high-pressure applications in test benches or process lines. The SOS sensor ensures rapid detection and long-term measurement consistency, while the all-welded stainless steel/titanium design resists corrosion and eliminates elastomer seals, ideal for harsh media and high change-rate pressures. With robust connector choices and factory-set parameters, it offers plug-and-play integration, minimal setup, and reliable performance, making it a trusted choice for sectors like heavy machinery, off-road vehicles, marine hydraulics, and industrial automation.
OEM Automatics water and wastewater application specialists have gathered all our solutions in one place. Our products are used in everything from small municipal water works to larger regional plants.
When choosing between a pressure switch and a pressure sensor, the key lies in understanding your application. Our Pressure Monitoring experts breaks down the two devices for you.
When selecting a SUCO mechanical pressure switch, it's essential to consider several key factors...
Whether you’re pumping water, chocolate, oil or peanut butter knowing the product’s viscosity is essential to selecting the right pump. Find out more about viscosity and which pump may be suitable for your application!
Whether you're looking to upgrade your current solution or secure a more robust float switch for your next project, Taurus delivers performance you can count on.
Pumps are now officially part of our product offering! As we build our pump portfolio, we’re proud to announce that we are an official distributor of SAMOA Industrial, a well-established name in the fluid handling industry.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Adjustment range max | Electrical connection | Process connection | Burst pressure | Pressure max | Weight | IP class | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
PNP output (High Side), NO, 0-10 Bar, G 1/4 – DIN EN ISO 1179-2, M12 - DIN EN 61076-2-101-A
Art:
053010141B002
Copied
|
10 bar
|
M12x1
|
1/4 BSP
|
80 bar
|
40 bar
|
80 g
|
IP67
|
|
||
PNP output (High Side), NO, 0-10 Bar, G 1/4 – DIN EN ISO 1179-2, DIN EN 175301-803-A
Art:
053010141B013
Copied
|
10 bar
|
DIN EN 175301-803-A
|
G1/4
|
80 bar
|
40 bar
|
110 g
|
IP65
|
|
||
PNP output (High Side), NO, 0-10 Bar, G 1/4 – DIN EN ISO 1179-2, Bayonet ISO 15170-A1-4.1
Art:
053010141B004
Copied
|
10 bar
|
|
G1/4
|
80 bar
|
40 bar
|
80 g
|
IP67, IP6K9K
|
|
||
PNP output (High Side), NO, 0-10 Bar, G 1/4 – DIN EN ISO 1179-2, AMP Superseal 1.5
Art:
053010141B007
Copied
|
10 bar
|
AMP Superseal
|
G1/4
|
80 bar
|
40 bar
|
80 g
|
IP67
|
|
||
PNP output (High Side), NO, 0-10 Bar, G 1/4 – DIN EN ISO 1179-2, Deutsch DT04-4P
Art:
053010141B008
Copied
|
10 bar
|
Deutsch DT04-4P
|
G1/4
|
80 bar
|
40 bar
|
80 g
|
IP67, IP6K9K
|
|
||
PNP output (High Side), NO, 0-10 Bar, G 1/4 – DIN EN ISO 1179-2, Deutsch DT04-3P
Art:
053010141B010
Copied
|
10 bar
|
Deutsch DT04-3P
|
G1/4
|
80 bar
|
40 bar
|
80 g
|
IP67, IP6K9K
|
|
||
PNP output (High Side), NO, 0-10 Bar, G 1/4 – DIN EN ISO 1179-2, Cable connection
Art:
053010141B011
Copied
|
10 bar
|
Embedded 2m cable
|
G1/4
|
80 bar
|
40 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, G 1/4 – DIN 3852-A, DIN EN 175301-803-A
Art:
053010103B013
Copied
|
10 bar
|
DIN EN 175301-803-A
|
G1/4
|
80 bar
|
40 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, G 1/4 – DIN 3852-A, M12 - DIN EN 61076-2-101-A
Art:
053010103B002
Copied
|
10 bar
|
M12x1
|
G1/4
|
80 bar
|
40 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, G 1/4 – DIN 3852-A, Bayonet ISO 15170-A1-4.1
Art:
053010103B004
Copied
|
10 bar
|
|
G1/4
|
80 bar
|
40 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, G 1/4 – DIN 3852-A, AMP Superseal 1.5
Art:
053010103B007
Copied
|
10 bar
|
AMP Superseal
|
G1/4
|
80 bar
|
40 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, G 1/4 – DIN 3852-A, Deutsch DT04-4P
Art:
053010103B008
Copied
|
10 bar
|
Deutsch DT04-4P
|
G1/4
|
80 bar
|
40 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, G 1/4 – DIN 3852-A, Deutsch DT04-3P
Art:
053010103B010
Copied
|
10 bar
|
Deutsch DT04-3P
|
G1/4
|
80 bar
|
40 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, G 1/4 – DIN 3852-A, Cable connection
Art:
053010103B011
Copied
|
10 bar
|
Embedded 2m cable
|
G1/4
|
80 bar
|
40 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, NPT 1/8, DIN EN 175301-803-A
Art:
053010104B013
Copied
|
10 bar
|
DIN EN 175301-803-A
|
1/8 NPT
|
80 bar
|
40 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, NPT 1/8, M12 - DIN EN 61076-2-101-A
Art:
053010104B002
Copied
|
10 bar
|
M12x1
|
1/8 NPT
|
80 bar
|
40 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, NPT 1/8, Bayonet ISO 15170-A1-4.1
Art:
053010104B004
Copied
|
10 bar
|
|
1/8 NPT
|
80 bar
|
40 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, NPT 1/8, AMP Superseal 1.5
Art:
053010104B007
Copied
|
10 bar
|
AMP Superseal
|
1/8 NPT
|
80 bar
|
40 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, NPT 1/8, Deutsch DT04-4P
Art:
053010104B008
Copied
|
10 bar
|
Deutsch DT04-4P
|
1/8 NPT
|
80 bar
|
40 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, NPT 1/8, Deutsch DT04-3P
Art:
053010104B010
Copied
|
10 bar
|
Deutsch DT04-3P
|
1/8 NPT
|
80 bar
|
40 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, NPT 1/8, Cable connection
Art:
053010104B011
Copied
|
10 bar
|
Embedded 2m cable
|
1/8 NPT
|
80 bar
|
40 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, NPT 1/4, DIN EN 175301-803-A
Art:
053010109B013
Copied
|
10 bar
|
DIN EN 175301-803-A
|
1/4 NPT
|
80 bar
|
40 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, NPT 1/4, M12 - DIN EN 61076-2-101-A
Art:
053010109B002
Copied
|
10 bar
|
M12x1
|
1/4 NPT
|
80 bar
|
40 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, NPT 1/4, Bayonet ISO 15170-A1-4.1
Art:
053010109B004
Copied
|
10 bar
|
|
1/4 NPT
|
80 bar
|
40 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, NPT 1/4, AMP Superseal 1.5
Art:
053010109B007
Copied
|
10 bar
|
AMP Superseal
|
1/4 NPT
|
80 bar
|
40 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, NPT 1/4, Deutsch DT04-4P
Art:
053010109B008
Copied
|
10 bar
|
Deutsch DT04-4P
|
1/4 NPT
|
80 bar
|
40 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, NPT 1/4, Deutsch DT04-3P
Art:
053010109B010
Copied
|
10 bar
|
Deutsch DT04-3P
|
1/4 NPT
|
80 bar
|
40 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, NPT 1/4, Cable connection
Art:
053010109B011
Copied
|
10 bar
|
Embedded 2m cable
|
1/4 NPT
|
80 bar
|
40 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, M10x1 zyl. DIN 3852-A, DIN EN 175301-803-A
Art:
053010130B013
Copied
|
10 bar
|
DIN EN 175301-803-A
|
M10x1
|
80 bar
|
40 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, M10x1 zyl. DIN 3852-A, M12 - DIN EN 61076-2-101-A
Art:
053010130B002
Copied
|
10 bar
|
M12x1
|
M10x1
|
80 bar
|
40 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, M10x1 zyl. DIN 3852-A, Bayonet ISO 15170-A1-4.1
Art:
053010130B004
Copied
|
10 bar
|
|
M10x1
|
80 bar
|
40 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, M10x1 zyl. DIN 3852-A, AMP Superseal 1.5
Art:
053010130B007
Copied
|
10 bar
|
AMP Superseal
|
M10x1
|
80 bar
|
40 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, M10x1 zyl. DIN 3852-A, Deutsch DT04-4P
Art:
053010130B008
Copied
|
10 bar
|
Deutsch DT04-4P
|
M10x1
|
80 bar
|
40 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, M10x1 zyl. DIN 3852-A, Deutsch DT04-3P
Art:
053010130B010
Copied
|
10 bar
|
Deutsch DT04-3P
|
M10x1
|
80 bar
|
40 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, M10x1 zyl. DIN 3852-A, Cable connection
Art:
053010130B011
Copied
|
10 bar
|
Embedded 2m cable
|
M10x1
|
80 bar
|
40 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, 7/16 – 20 UNF, DIN EN 175301-803-A
Art:
053010120B013
Copied
|
10 bar
|
DIN EN 175301-803-A
|
|
80 bar
|
40 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, 7/16 – 20 UNF, M12 - DIN EN 61076-2-101-A
Art:
053010120B002
Copied
|
10 bar
|
M12x1
|
|
80 bar
|
40 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, 7/16 – 20 UNF, Bayonet ISO 15170-A1-4.1
Art:
053010120B004
Copied
|
10 bar
|
|
|
80 bar
|
40 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, 7/16 – 20 UNF, AMP Superseal 1.5
Art:
053010120B007
Copied
|
10 bar
|
AMP Superseal
|
|
80 bar
|
40 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, 7/16 – 20 UNF, Deutsch DT04-4P
Art:
053010120B008
Copied
|
10 bar
|
Deutsch DT04-4P
|
|
80 bar
|
40 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, 7/16 – 20 UNF, Deutsch DT04-3P
Art:
053010120B010
Copied
|
10 bar
|
Deutsch DT04-3P
|
|
80 bar
|
40 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, 7/16 – 20 UNF, Cable connection
Art:
053010120B011
Copied
|
10 bar
|
Embedded 2m cable
|
|
80 bar
|
40 bar
|
135 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, 9/16 – 18 UNF, DIN EN 175301-803-A
Art:
053010121B013
Copied
|
10 bar
|
DIN EN 175301-803-A
|
9/16-18UNF
|
80 bar
|
40 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, 9/16 – 18 UNF, M12 - DIN EN 61076-2-101-A
Art:
053010121B002
Copied
|
10 bar
|
M12x1
|
9/16-18UNF
|
80 bar
|
40 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, 9/16 – 18 UNF, Bayonet ISO 15170-A1-4.1
Art:
053010121B004
Copied
|
10 bar
|
|
9/16-18UNF
|
80 bar
|
40 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, 9/16 – 18 UNF, AMP Superseal 1.5
Art:
053010121B007
Copied
|
10 bar
|
AMP Superseal
|
9/16-18UNF
|
80 bar
|
40 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, 9/16 – 18 UNF, Deutsch DT04-4P
Art:
053010121B008
Copied
|
10 bar
|
Deutsch DT04-4P
|
9/16-18UNF
|
80 bar
|
40 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, 9/16 – 18 UNF, Deutsch DT04-3P
Art:
053010121B010
Copied
|
10 bar
|
Deutsch DT04-3P
|
9/16-18UNF
|
80 bar
|
40 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, 9/16 – 18 UNF, Cable connection
Art:
053010121B011
Copied
|
10 bar
|
Embedded 2m cable
|
9/16-18UNF
|
80 bar
|
40 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, M14x1.5 – DIN EN ISO 9974-2, DIN EN 175301-803-A
Art:
053010142B013
Copied
|
10 bar
|
DIN EN 175301-803-A
|
M14x1.5
|
80 bar
|
40 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, M14x1.5 – DIN EN ISO 9974-2, M12 - DIN EN 61076-2-101-A
Art:
053010142B002
Copied
|
10 bar
|
M12x1
|
M14x1.5
|
80 bar
|
40 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, M14x1.5 – DIN EN ISO 9974-2, Bayonet ISO 15170-A1-4.1
Art:
053010142B004
Copied
|
10 bar
|
|
M14x1.5
|
80 bar
|
40 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, M14x1.5 – DIN EN ISO 9974-2, AMP Superseal 1.5
Art:
053010142B007
Copied
|
10 bar
|
AMP Superseal
|
M14x1.5
|
80 bar
|
40 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, M14x1.5 – DIN EN ISO 9974-2, Deutsch DT04-4P
Art:
053010142B008
Copied
|
10 bar
|
Deutsch DT04-4P
|
M14x1.5
|
80 bar
|
40 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, M14x1.5 – DIN EN ISO 9974-2, Deutsch DT04-3P
Art:
053010142B010
Copied
|
10 bar
|
Deutsch DT04-3P
|
M14x1.5
|
80 bar
|
40 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-10 Bar, M14x1.5 – DIN EN ISO 9974-2, Cable connection
Art:
053010142B011
Copied
|
10 bar
|
Embedded 2m cable
|
M14x1.5
|
80 bar
|
40 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, G 1/4 – DIN EN ISO 1179-2, M12 - DIN EN 61076-2-101-A
Art:
053025141B002
Copied
|
25 bar
|
M12x1
|
1/4 BSP
|
200 bar
|
100 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, G 1/4 – DIN EN ISO 1179-2, DIN EN 175301-803-A
Art:
053025141B013
Copied
|
25 bar
|
DIN EN 175301-803-A
|
G1/4
|
200 bar
|
100 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, G 1/4 – DIN EN ISO 1179-2, Bayonet ISO 15170-A1-4.1
Art:
053025141B004
Copied
|
25 bar
|
|
G1/4
|
200 bar
|
100 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, G 1/4 – DIN EN ISO 1179-2, AMP Superseal 1.5
Art:
053025141B007
Copied
|
25 bar
|
AMP Superseal
|
G1/4
|
200 bar
|
100 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, G 1/4 – DIN EN ISO 1179-2, Deutsch DT04-4P
Art:
053025141B008
Copied
|
25 bar
|
Deutsch DT04-4P
|
G1/4
|
200 bar
|
100 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, G 1/4 – DIN EN ISO 1179-2, Deutsch DT04-3P
Art:
053025141B010
Copied
|
25 bar
|
Deutsch DT04-3P
|
G1/4
|
200 bar
|
100 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, G 1/4 – DIN EN ISO 1179-2, Cable connection
Art:
053025141B011
Copied
|
25 bar
|
Embedded 2m cable
|
G1/4
|
200 bar
|
100 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, G 1/4 – DIN 3852-A, DIN EN 175301-803-A
Art:
053025103B013
Copied
|
25 bar
|
DIN EN 175301-803-A
|
G1/4
|
200 bar
|
100 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, G 1/4 – DIN 3852-A, M12 - DIN EN 61076-2-101-A
Art:
053025103B002
Copied
|
25 bar
|
M12x1
|
G1/4
|
200 bar
|
100 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, G 1/4 – DIN 3852-A, Bayonet ISO 15170-A1-4.1
Art:
053025103B004
Copied
|
25 bar
|
|
G1/4
|
200 bar
|
100 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, G 1/4 – DIN 3852-A, AMP Superseal 1.5
Art:
053025103B007
Copied
|
25 bar
|
AMP Superseal
|
G1/4
|
200 bar
|
100 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, G 1/4 – DIN 3852-A, Deutsch DT04-4P
Art:
053025103B008
Copied
|
25 bar
|
Deutsch DT04-4P
|
G1/4
|
200 bar
|
100 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, G 1/4 – DIN 3852-A, Deutsch DT04-3P
Art:
053025103B010
Copied
|
25 bar
|
Deutsch DT04-3P
|
G1/4
|
200 bar
|
100 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, G 1/4 – DIN 3852-A, Cable connection
Art:
053025103B011
Copied
|
25 bar
|
Embedded 2m cable
|
G1/4
|
200 bar
|
100 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, NPT 1/8, DIN EN 175301-803-A
Art:
053025104B013
Copied
|
25 bar
|
DIN EN 175301-803-A
|
1/8 NPT
|
200 bar
|
100 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, NPT 1/8, M12 - DIN EN 61076-2-101-A
Art:
053025104B002
Copied
|
25 bar
|
M12x1
|
1/8 NPT
|
200 bar
|
100 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, NPT 1/8, Bayonet ISO 15170-A1-4.1
Art:
053025104B004
Copied
|
25 bar
|
|
1/8 NPT
|
200 bar
|
100 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, NPT 1/8, AMP Superseal 1.5
Art:
053025104B007
Copied
|
25 bar
|
AMP Superseal
|
1/8 NPT
|
200 bar
|
100 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, NPT 1/8, Deutsch DT04-4P
Art:
053025104B008
Copied
|
25 bar
|
Deutsch DT04-4P
|
1/8 NPT
|
200 bar
|
100 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, NPT 1/8, Deutsch DT04-3P
Art:
053025104B010
Copied
|
25 bar
|
Deutsch DT04-3P
|
1/8 NPT
|
200 bar
|
100 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, NPT 1/8, Cable connection
Art:
053025104B011
Copied
|
25 bar
|
Embedded 2m cable
|
1/8 NPT
|
200 bar
|
100 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, NPT 1/4, DIN EN 175301-803-A
Art:
053025109B013
Copied
|
25 bar
|
DIN EN 175301-803-A
|
1/4 NPT
|
200 bar
|
100 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, NPT 1/4, M12 - DIN EN 61076-2-101-A
Art:
053025109B002
Copied
|
25 bar
|
M12x1
|
1/4 NPT
|
200 bar
|
100 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, NPT 1/4, Bayonet ISO 15170-A1-4.1
Art:
053025109B004
Copied
|
25 bar
|
|
1/4 NPT
|
200 bar
|
100 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, NPT 1/4, AMP Superseal 1.5
Art:
053025109B007
Copied
|
25 bar
|
AMP Superseal
|
1/4 NPT
|
200 bar
|
100 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, NPT 1/4, Deutsch DT04-4P
Art:
053025109B008
Copied
|
25 bar
|
Deutsch DT04-4P
|
1/4 NPT
|
200 bar
|
100 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, NPT 1/4, Deutsch DT04-3P
Art:
053025109B010
Copied
|
25 bar
|
Deutsch DT04-3P
|
1/4 NPT
|
200 bar
|
100 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, NPT 1/4, Cable connection
Art:
053025109B011
Copied
|
25 bar
|
Embedded 2m cable
|
1/4 NPT
|
200 bar
|
100 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, M10x1 zyl. DIN 3852-A, DIN EN 175301-803-A
Art:
053025130B013
Copied
|
25 bar
|
DIN EN 175301-803-A
|
M10x1
|
200 bar
|
100 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, M10x1 zyl. DIN 3852-A, M12 - DIN EN 61076-2-101-A
Art:
053025130B002
Copied
|
25 bar
|
M12x1
|
M10x1
|
200 bar
|
100 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, M10x1 zyl. DIN 3852-A, Bayonet ISO 15170-A1-4.1
Art:
053025130B004
Copied
|
25 bar
|
|
M10x1
|
200 bar
|
100 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, M10x1 zyl. DIN 3852-A, AMP Superseal 1.5
Art:
053025130B007
Copied
|
25 bar
|
AMP Superseal
|
M10x1
|
200 bar
|
100 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, M10x1 zyl. DIN 3852-A, Deutsch DT04-4P
Art:
053025130B008
Copied
|
25 bar
|
Deutsch DT04-4P
|
M10x1
|
200 bar
|
100 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, M10x1 zyl. DIN 3852-A, Deutsch DT04-3P
Art:
053025130B010
Copied
|
25 bar
|
Deutsch DT04-3P
|
M10x1
|
200 bar
|
100 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, M10x1 zyl. DIN 3852-A, Cable connection
Art:
053025130B011
Copied
|
25 bar
|
Embedded 2m cable
|
M10x1
|
200 bar
|
100 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, 7/16 – 20 UNF, DIN EN 175301-803-A
Art:
053025120B013
Copied
|
25 bar
|
DIN EN 175301-803-A
|
|
200 bar
|
100 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, 7/16 – 20 UNF, M12 - DIN EN 61076-2-101-A
Art:
053025120B002
Copied
|
25 bar
|
M12x1
|
|
200 bar
|
100 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, 7/16 – 20 UNF, Bayonet ISO 15170-A1-4.1
Art:
053025120B004
Copied
|
25 bar
|
|
|
200 bar
|
100 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, 7/16 – 20 UNF, AMP Superseal 1.5
Art:
053025120B007
Copied
|
25 bar
|
AMP Superseal
|
|
200 bar
|
100 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, 7/16 – 20 UNF, Deutsch DT04-4P
Art:
053025120B008
Copied
|
25 bar
|
Deutsch DT04-4P
|
|
200 bar
|
100 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, 7/16 – 20 UNF, Deutsch DT04-3P
Art:
053025120B010
Copied
|
25 bar
|
Deutsch DT04-3P
|
|
200 bar
|
100 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, 7/16 – 20 UNF, Cable connection
Art:
053025120B011
Copied
|
25 bar
|
Embedded 2m cable
|
|
200 bar
|
100 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, 9/16 – 18 UNF, DIN EN 175301-803-A
Art:
053025121B013
Copied
|
25 bar
|
DIN EN 175301-803-A
|
9/16-18UNF
|
200 bar
|
100 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, 9/16 – 18 UNF, M12 - DIN EN 61076-2-101-A
Art:
053025121B002
Copied
|
25 bar
|
M12x1
|
9/16-18UNF
|
200 bar
|
100 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, 9/16 – 18 UNF, Bayonet ISO 15170-A1-4.1
Art:
053025121B004
Copied
|
25 bar
|
|
9/16-18UNF
|
200 bar
|
100 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, 9/16 – 18 UNF, AMP Superseal 1.5
Art:
053025121B007
Copied
|
25 bar
|
AMP Superseal
|
9/16-18UNF
|
200 bar
|
100 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, 9/16 – 18 UNF, Deutsch DT04-4P
Art:
053025121B008
Copied
|
25 bar
|
Deutsch DT04-4P
|
9/16-18UNF
|
200 bar
|
100 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, 9/16 – 18 UNF, Deutsch DT04-3P
Art:
053025121B010
Copied
|
25 bar
|
Deutsch DT04-3P
|
9/16-18UNF
|
200 bar
|
100 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, 9/16 – 18 UNF, Cable connection
Art:
053025121B011
Copied
|
25 bar
|
Embedded 2m cable
|
9/16-18UNF
|
200 bar
|
100 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, M14x1.5 – DIN EN ISO 9974-2, DIN EN 175301-803-A
Art:
053025142B013
Copied
|
25 bar
|
DIN EN 175301-803-A
|
M14x1.5
|
200 bar
|
100 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, M14x1.5 – DIN EN ISO 9974-2, M12 - DIN EN 61076-2-101-A
Art:
053025142B002
Copied
|
25 bar
|
M12x1
|
M14x1.5
|
200 bar
|
100 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, M14x1.5 – DIN EN ISO 9974-2, Bayonet ISO 15170-A1-4.1
Art:
053025142B004
Copied
|
25 bar
|
|
M14x1.5
|
200 bar
|
100 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, M14x1.5 – DIN EN ISO 9974-2, AMP Superseal 1.5
Art:
053025142B007
Copied
|
25 bar
|
AMP Superseal
|
M14x1.5
|
200 bar
|
100 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, M14x1.5 – DIN EN ISO 9974-2, Deutsch DT04-4P
Art:
053025142B008
Copied
|
25 bar
|
Deutsch DT04-4P
|
M14x1.5
|
200 bar
|
100 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, M14x1.5 – DIN EN ISO 9974-2, Deutsch DT04-3P
Art:
053025142B010
Copied
|
25 bar
|
Deutsch DT04-3P
|
M14x1.5
|
200 bar
|
100 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-25 Bar, M14x1.5 – DIN EN ISO 9974-2, Cable connection
Art:
053025142B011
Copied
|
25 bar
|
Embedded 2m cable
|
M14x1.5
|
200 bar
|
100 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, G 1/4 – DIN EN ISO 1179-2, M12 - DIN EN 61076-2-101-A
Art:
053010241B002
Copied
|
100 bar
|
M12x1
|
1/4 BSP
|
800 bar
|
400 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, G 1/4 – DIN EN ISO 1179-2, DIN EN 175301-803-A
Art:
053010241B013
Copied
|
100 bar
|
DIN EN 175301-803-A
|
G1/4
|
800 bar
|
400 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, G 1/4 – DIN EN ISO 1179-2, Bayonet ISO 15170-A1-4.1
Art:
053010241B004
Copied
|
100 bar
|
|
G1/4
|
800 bar
|
400 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, G 1/4 – DIN EN ISO 1179-2, AMP Superseal 1.5
Art:
053010241B007
Copied
|
100 bar
|
AMP Superseal
|
G1/4
|
800 bar
|
400 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, G 1/4 – DIN EN ISO 1179-2, Deutsch DT04-4P
Art:
053010241B008
Copied
|
100 bar
|
Deutsch DT04-4P
|
G1/4
|
800 bar
|
400 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, G 1/4 – DIN EN ISO 1179-2, Deutsch DT04-3P
Art:
053010241B010
Copied
|
100 bar
|
Deutsch DT04-3P
|
G1/4
|
800 bar
|
400 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, G 1/4 – DIN EN ISO 1179-2, Cable connection
Art:
053010241B011
Copied
|
100 bar
|
Embedded 2m cable
|
G1/4
|
800 bar
|
400 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, G 1/4 – DIN 3852-A, DIN EN 175301-803-A
Art:
053010203B013
Copied
|
100 bar
|
DIN EN 175301-803-A
|
G1/4
|
800 bar
|
400 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, G 1/4 – DIN 3852-A, M12 - DIN EN 61076-2-101-A
Art:
053010203B002
Copied
|
100 bar
|
M12x1
|
G1/4
|
800 bar
|
400 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, G 1/4 – DIN 3852-A, Bayonet ISO 15170-A1-4.1
Art:
053010203B004
Copied
|
100 bar
|
|
G1/4
|
800 bar
|
400 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, G 1/4 – DIN 3852-A, AMP Superseal 1.5
Art:
053010203B007
Copied
|
100 bar
|
AMP Superseal
|
G1/4
|
800 bar
|
400 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, G 1/4 – DIN 3852-A, Deutsch DT04-4P
Art:
053010203B008
Copied
|
100 bar
|
Deutsch DT04-4P
|
G1/4
|
800 bar
|
400 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, G 1/4 – DIN 3852-A, Deutsch DT04-3P
Art:
053010203B010
Copied
|
100 bar
|
Deutsch DT04-3P
|
G1/4
|
800 bar
|
400 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, G 1/4 – DIN 3852-A, Cable connection
Art:
053010203B011
Copied
|
100 bar
|
Embedded 2m cable
|
G1/4
|
800 bar
|
400 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, NPT 1/8, DIN EN 175301-803-A
Art:
053010204B013
Copied
|
100 bar
|
DIN EN 175301-803-A
|
1/8 NPT
|
800 bar
|
400 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, NPT 1/8, M12 - DIN EN 61076-2-101-A
Art:
053010204B002
Copied
|
100 bar
|
M12x1
|
1/8 NPT
|
800 bar
|
400 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, NPT 1/8, Bayonet ISO 15170-A1-4.1
Art:
053010204B004
Copied
|
100 bar
|
|
1/8 NPT
|
800 bar
|
400 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, NPT 1/8, AMP Superseal 1.5
Art:
053010204B007
Copied
|
100 bar
|
AMP Superseal
|
1/8 NPT
|
800 bar
|
400 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, NPT 1/8, Deutsch DT04-4P
Art:
053010204B008
Copied
|
100 bar
|
Deutsch DT04-4P
|
1/8 NPT
|
800 bar
|
400 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, NPT 1/8, Deutsch DT04-3P
Art:
053010204B010
Copied
|
100 bar
|
Deutsch DT04-3P
|
1/8 NPT
|
800 bar
|
400 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, NPT 1/8, Cable connection
Art:
053010204B011
Copied
|
100 bar
|
Embedded 2m cable
|
1/8 NPT
|
800 bar
|
400 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, NPT 1/4, DIN EN 175301-803-A
Art:
053010209B013
Copied
|
100 bar
|
DIN EN 175301-803-A
|
1/4 NPT
|
800 bar
|
400 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, NPT 1/4, M12 - DIN EN 61076-2-101-A
Art:
053010209B002
Copied
|
100 bar
|
M12x1
|
1/4 NPT
|
800 bar
|
400 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, NPT 1/4, Bayonet ISO 15170-A1-4.1
Art:
053010209B004
Copied
|
100 bar
|
|
1/4 NPT
|
800 bar
|
400 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, NPT 1/4, AMP Superseal 1.5
Art:
053010209B007
Copied
|
100 bar
|
AMP Superseal
|
1/4 NPT
|
800 bar
|
400 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, NPT 1/4, Deutsch DT04-4P
Art:
053010209B008
Copied
|
100 bar
|
Deutsch DT04-4P
|
1/4 NPT
|
800 bar
|
400 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, NPT 1/4, Deutsch DT04-3P
Art:
053010209B010
Copied
|
100 bar
|
Deutsch DT04-3P
|
1/4 NPT
|
800 bar
|
400 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, NPT 1/4, Cable connection
Art:
053010209B011
Copied
|
100 bar
|
Embedded 2m cable
|
1/4 NPT
|
800 bar
|
400 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, M10x1 zyl. DIN 3852-A, DIN EN 175301-803-A
Art:
053010230B013
Copied
|
100 bar
|
DIN EN 175301-803-A
|
M10x1
|
800 bar
|
400 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, M10x1 zyl. DIN 3852-A, M12 - DIN EN 61076-2-101-A
Art:
053010230B002
Copied
|
100 bar
|
M12x1
|
M10x1
|
800 bar
|
400 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, M10x1 zyl. DIN 3852-A, Bayonet ISO 15170-A1-4.1
Art:
053010230B004
Copied
|
100 bar
|
|
M10x1
|
800 bar
|
400 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, M10x1 zyl. DIN 3852-A, AMP Superseal 1.5
Art:
053010230B007
Copied
|
100 bar
|
AMP Superseal
|
M10x1
|
800 bar
|
400 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, M10x1 zyl. DIN 3852-A, Deutsch DT04-4P
Art:
053010230B008
Copied
|
100 bar
|
Deutsch DT04-4P
|
M10x1
|
800 bar
|
400 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, M10x1 zyl. DIN 3852-A, Deutsch DT04-3P
Art:
053010230B010
Copied
|
100 bar
|
Deutsch DT04-3P
|
M10x1
|
800 bar
|
400 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, M10x1 zyl. DIN 3852-A, Cable connection
Art:
053010230B011
Copied
|
100 bar
|
Embedded 2m cable
|
M10x1
|
800 bar
|
400 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, 7/16 – 20 UNF, DIN EN 175301-803-A
Art:
053010220B013
Copied
|
100 bar
|
DIN EN 175301-803-A
|
|
800 bar
|
400 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, 7/16 – 20 UNF, M12 - DIN EN 61076-2-101-A
Art:
053010220B002
Copied
|
100 bar
|
M12x1
|
|
800 bar
|
400 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, 7/16 – 20 UNF, Bayonet ISO 15170-A1-4.1
Art:
053010220B004
Copied
|
100 bar
|
|
|
800 bar
|
400 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, 7/16 – 20 UNF, AMP Superseal 1.5
Art:
053010220B007
Copied
|
100 bar
|
AMP Superseal
|
|
800 bar
|
400 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, 7/16 – 20 UNF, Deutsch DT04-4P
Art:
053010220B008
Copied
|
100 bar
|
Deutsch DT04-4P
|
|
800 bar
|
400 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, 7/16 – 20 UNF, Deutsch DT04-3P
Art:
053010220B010
Copied
|
100 bar
|
Deutsch DT04-3P
|
|
800 bar
|
400 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, 7/16 – 20 UNF, Cable connection
Art:
053010220B011
Copied
|
100 bar
|
Embedded 2m cable
|
|
800 bar
|
400 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, 9/16 – 18 UNF, DIN EN 175301-803-A
Art:
053010221B013
Copied
|
100 bar
|
DIN EN 175301-803-A
|
9/16-18UNF
|
800 bar
|
400 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, 9/16 – 18 UNF, M12 - DIN EN 61076-2-101-A
Art:
053010221B002
Copied
|
100 bar
|
M12x1
|
9/16-18UNF
|
800 bar
|
400 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, 9/16 – 18 UNF, Bayonet ISO 15170-A1-4.1
Art:
053010221B004
Copied
|
100 bar
|
|
9/16-18UNF
|
800 bar
|
400 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, 9/16 – 18 UNF, AMP Superseal 1.5
Art:
053010221B007
Copied
|
100 bar
|
AMP Superseal
|
9/16-18UNF
|
800 bar
|
400 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, 9/16 – 18 UNF, Deutsch DT04-4P
Art:
053010221B008
Copied
|
100 bar
|
Deutsch DT04-4P
|
9/16-18UNF
|
800 bar
|
400 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, 9/16 – 18 UNF, Deutsch DT04-3P
Art:
053010221B010
Copied
|
100 bar
|
Deutsch DT04-3P
|
9/16-18UNF
|
800 bar
|
400 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, 9/16 – 18 UNF, Cable connection
Art:
053010221B011
Copied
|
100 bar
|
Embedded 2m cable
|
9/16-18UNF
|
800 bar
|
400 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, M14x1.5 – DIN EN ISO 9974-2, DIN EN 175301-803-A
Art:
053010242B013
Copied
|
100 bar
|
DIN EN 175301-803-A
|
M14x1.5
|
800 bar
|
400 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, M14x1.5 – DIN EN ISO 9974-2, M12 - DIN EN 61076-2-101-A
Art:
053010242B002
Copied
|
100 bar
|
M12x1
|
M14x1.5
|
800 bar
|
400 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, M14x1.5 – DIN EN ISO 9974-2, Bayonet ISO 15170-A1-4.1
Art:
053010242B004
Copied
|
100 bar
|
|
M14x1.5
|
800 bar
|
400 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, M14x1.5 – DIN EN ISO 9974-2, AMP Superseal 1.5
Art:
053010242B007
Copied
|
100 bar
|
AMP Superseal
|
M14x1.5
|
800 bar
|
400 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, M14x1.5 – DIN EN ISO 9974-2, Deutsch DT04-4P
Art:
053010242B008
Copied
|
100 bar
|
Deutsch DT04-4P
|
M14x1.5
|
800 bar
|
400 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, M14x1.5 – DIN EN ISO 9974-2, Deutsch DT04-3P
Art:
053010242B010
Copied
|
100 bar
|
Deutsch DT04-3P
|
M14x1.5
|
800 bar
|
400 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-100 Bar, M14x1.5 – DIN EN ISO 9974-2, Cable connection
Art:
053010242B011
Copied
|
100 bar
|
Embedded 2m cable
|
M14x1.5
|
800 bar
|
400 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, G 1/4 – DIN EN ISO 1179-2, M12 - DIN EN 61076-2-101-A
Art:
053025241B002
Copied
|
250 bar
|
M12x1
|
1/4 BSP
|
2000 bar
|
1000 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, G 1/4 – DIN EN ISO 1179-2, M12 - DIN EN 61076-2-101-A
Art:
053060241B002
Copied
|
600 bar
|
M12x1
|
1/4 BSP
|
2000 bar
|
1650 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, G 1/4 – DIN EN ISO 1179-2, DIN EN 175301-803-A
Art:
053025241B013
Copied
|
250 bar
|
DIN EN 175301-803-A
|
G1/4
|
2000 bar
|
1000 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, G 1/4 – DIN EN ISO 1179-2, Bayonet ISO 15170-A1-4.1
Art:
053025241B004
Copied
|
250 bar
|
|
G1/4
|
2000 bar
|
1000 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, G 1/4 – DIN EN ISO 1179-2, AMP Superseal 1.5
Art:
053025241B007
Copied
|
250 bar
|
AMP Superseal
|
G1/4
|
2000 bar
|
1000 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, G 1/4 – DIN EN ISO 1179-2, Deutsch DT04-4P
Art:
053025241B008
Copied
|
250 bar
|
Deutsch DT04-4P
|
G1/4
|
2000 bar
|
1000 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, G 1/4 – DIN EN ISO 1179-2, Deutsch DT04-3P
Art:
053025241B010
Copied
|
250 bar
|
Deutsch DT04-3P
|
G1/4
|
2000 bar
|
1000 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, G 1/4 – DIN EN ISO 1179-2, Cable connection
Art:
053025241B011
Copied
|
250 bar
|
Embedded 2m cable
|
G1/4
|
2000 bar
|
1000 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, G 1/4 – DIN 3852-A, DIN EN 175301-803-A
Art:
053025203B013
Copied
|
250 bar
|
DIN EN 175301-803-A
|
G1/4
|
2000 bar
|
1000 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, G 1/4 – DIN 3852-A, M12 - DIN EN 61076-2-101-A
Art:
053025203B002
Copied
|
250 bar
|
M12x1
|
G1/4
|
2000 bar
|
1000 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, G 1/4 – DIN 3852-A, Bayonet ISO 15170-A1-4.1
Art:
053025203B004
Copied
|
250 bar
|
|
G1/4
|
2000 bar
|
1000 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, G 1/4 – DIN 3852-A, AMP Superseal 1.5
Art:
053025203B007
Copied
|
250 bar
|
AMP Superseal
|
G1/4
|
2000 bar
|
1000 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, G 1/4 – DIN 3852-A, Deutsch DT04-4P
Art:
053025203B008
Copied
|
250 bar
|
Deutsch DT04-4P
|
G1/4
|
2000 bar
|
1000 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, G 1/4 – DIN 3852-A, Deutsch DT04-3P
Art:
053025203B010
Copied
|
250 bar
|
Deutsch DT04-3P
|
G1/4
|
2000 bar
|
1000 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, G 1/4 – DIN 3852-A, Cable connection
Art:
053025203B011
Copied
|
250 bar
|
Embedded 2m cable
|
G1/4
|
2000 bar
|
1000 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, NPT 1/8, DIN EN 175301-803-A
Art:
053025204B013
Copied
|
250 bar
|
DIN EN 175301-803-A
|
1/8 NPT
|
2000 bar
|
1000 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, NPT 1/8, M12 - DIN EN 61076-2-101-A
Art:
053025204B002
Copied
|
250 bar
|
M12x1
|
1/8 NPT
|
2000 bar
|
1000 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, NPT 1/8, Bayonet ISO 15170-A1-4.1
Art:
053025204B004
Copied
|
250 bar
|
|
1/8 NPT
|
2000 bar
|
1000 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, NPT 1/8, AMP Superseal 1.5
Art:
053025204B007
Copied
|
250 bar
|
AMP Superseal
|
1/8 NPT
|
2000 bar
|
1000 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, NPT 1/8, Deutsch DT04-4P
Art:
053025204B008
Copied
|
250 bar
|
Deutsch DT04-4P
|
1/8 NPT
|
2000 bar
|
1000 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, NPT 1/8, Deutsch DT04-3P
Art:
053025204B010
Copied
|
250 bar
|
Deutsch DT04-3P
|
1/8 NPT
|
2000 bar
|
1000 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, NPT 1/8, Cable connection
Art:
053025204B011
Copied
|
250 bar
|
Embedded 2m cable
|
1/8 NPT
|
2000 bar
|
1000 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, NPT 1/4, DIN EN 175301-803-A
Art:
053025209B013
Copied
|
250 bar
|
DIN EN 175301-803-A
|
1/4 NPT
|
2000 bar
|
1000 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, NPT 1/4, M12 - DIN EN 61076-2-101-A
Art:
053025209B002
Copied
|
250 bar
|
M12x1
|
1/4 NPT
|
2000 bar
|
1000 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, NPT 1/4, Bayonet ISO 15170-A1-4.1
Art:
053025209B004
Copied
|
250 bar
|
|
1/4 NPT
|
2000 bar
|
1000 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, NPT 1/4, AMP Superseal 1.5
Art:
053025209B007
Copied
|
250 bar
|
AMP Superseal
|
1/4 NPT
|
2000 bar
|
1000 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, NPT 1/4, Deutsch DT04-4P
Art:
053025209B008
Copied
|
250 bar
|
Deutsch DT04-4P
|
1/4 NPT
|
2000 bar
|
1000 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, NPT 1/4, Deutsch DT04-3P
Art:
053025209B010
Copied
|
250 bar
|
Deutsch DT04-3P
|
1/4 NPT
|
2000 bar
|
1000 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, NPT 1/4, Cable connection
Art:
053025209B011
Copied
|
250 bar
|
Embedded 2m cable
|
1/4 NPT
|
2000 bar
|
1000 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, M10x1 zyl. DIN 3852-A, DIN EN 175301-803-A
Art:
053025230B013
Copied
|
250 bar
|
DIN EN 175301-803-A
|
M10x1
|
2000 bar
|
1000 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, M10x1 zyl. DIN 3852-A, M12 - DIN EN 61076-2-101-A
Art:
053025230B002
Copied
|
250 bar
|
M12x1
|
M10x1
|
2000 bar
|
1000 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, M10x1 zyl. DIN 3852-A, Bayonet ISO 15170-A1-4.1
Art:
053025230B004
Copied
|
250 bar
|
|
M10x1
|
2000 bar
|
1000 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, M10x1 zyl. DIN 3852-A, AMP Superseal 1.5
Art:
053025230B007
Copied
|
250 bar
|
AMP Superseal
|
M10x1
|
2000 bar
|
1000 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, M10x1 zyl. DIN 3852-A, Deutsch DT04-4P
Art:
053025230B008
Copied
|
250 bar
|
Deutsch DT04-4P
|
M10x1
|
2000 bar
|
1000 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, M10x1 zyl. DIN 3852-A, Deutsch DT04-3P
Art:
053025230B010
Copied
|
250 bar
|
Deutsch DT04-3P
|
M10x1
|
2000 bar
|
1000 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, M10x1 zyl. DIN 3852-A, Cable connection
Art:
053025230B011
Copied
|
250 bar
|
Embedded 2m cable
|
M10x1
|
2000 bar
|
1000 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, 7/16 – 20 UNF, DIN EN 175301-803-A
Art:
053025220B013
Copied
|
250 bar
|
DIN EN 175301-803-A
|
|
2000 bar
|
1000 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, 7/16 – 20 UNF, M12 - DIN EN 61076-2-101-A
Art:
053025220B002
Copied
|
250 bar
|
M12x1
|
|
2000 bar
|
1000 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, 7/16 – 20 UNF, Bayonet ISO 15170-A1-4.1
Art:
053025220B004
Copied
|
250 bar
|
|
|
2000 bar
|
1000 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, 7/16 – 20 UNF, AMP Superseal 1.5
Art:
053025220B007
Copied
|
250 bar
|
AMP Superseal
|
|
2000 bar
|
1000 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, 7/16 – 20 UNF, Deutsch DT04-4P
Art:
053025220B008
Copied
|
250 bar
|
Deutsch DT04-4P
|
|
2000 bar
|
1000 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, 7/16 – 20 UNF, Deutsch DT04-3P
Art:
053025220B010
Copied
|
250 bar
|
Deutsch DT04-3P
|
|
2000 bar
|
1000 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, 7/16 – 20 UNF, Cable connection
Art:
053025220B011
Copied
|
250 bar
|
Embedded 2m cable
|
|
2000 bar
|
1000 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, 9/16 – 18 UNF, DIN EN 175301-803-A
Art:
053025221B013
Copied
|
250 bar
|
DIN EN 175301-803-A
|
9/16-18UNF
|
2000 bar
|
1000 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, 9/16 – 18 UNF, M12 - DIN EN 61076-2-101-A
Art:
053025221B002
Copied
|
250 bar
|
M12x1
|
9/16-18UNF
|
2000 bar
|
1000 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, 9/16 – 18 UNF, Bayonet ISO 15170-A1-4.1
Art:
053025221B004
Copied
|
250 bar
|
|
9/16-18UNF
|
2000 bar
|
1000 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, 9/16 – 18 UNF, AMP Superseal 1.5
Art:
053025221B007
Copied
|
250 bar
|
AMP Superseal
|
9/16-18UNF
|
2000 bar
|
1000 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, 9/16 – 18 UNF, Deutsch DT04-4P
Art:
053025221B008
Copied
|
250 bar
|
Deutsch DT04-4P
|
9/16-18UNF
|
2000 bar
|
1000 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, 9/16 – 18 UNF, Deutsch DT04-3P
Art:
053025221B010
Copied
|
250 bar
|
Deutsch DT04-3P
|
9/16-18UNF
|
2000 bar
|
1000 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, 9/16 – 18 UNF, Cable connection
Art:
053025221B011
Copied
|
250 bar
|
Embedded 2m cable
|
9/16-18UNF
|
2000 bar
|
1000 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, M14x1.5 – DIN EN ISO 9974-2, DIN EN 175301-803-A
Art:
053025242B013
Copied
|
250 bar
|
DIN EN 175301-803-A
|
M14x1.5
|
2000 bar
|
1000 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, M14x1.5 – DIN EN ISO 9974-2, M12 - DIN EN 61076-2-101-A
Art:
053025242B002
Copied
|
250 bar
|
M12x1
|
M14x1.5
|
2000 bar
|
1000 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, M14x1.5 – DIN EN ISO 9974-2, Bayonet ISO 15170-A1-4.1
Art:
053025242B004
Copied
|
250 bar
|
|
M14x1.5
|
2000 bar
|
1000 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, M14x1.5 – DIN EN ISO 9974-2, AMP Superseal 1.5
Art:
053025242B007
Copied
|
250 bar
|
AMP Superseal
|
M14x1.5
|
2000 bar
|
1000 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, M14x1.5 – DIN EN ISO 9974-2, Deutsch DT04-4P
Art:
053025242B008
Copied
|
250 bar
|
Deutsch DT04-4P
|
M14x1.5
|
2000 bar
|
1000 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, M14x1.5 – DIN EN ISO 9974-2, Deutsch DT04-3P
Art:
053025242B010
Copied
|
250 bar
|
Deutsch DT04-3P
|
M14x1.5
|
2000 bar
|
1000 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-250 Bar, M14x1.5 – DIN EN ISO 9974-2, Cable connection
Art:
053025242B011
Copied
|
250 bar
|
Embedded 2m cable
|
M14x1.5
|
2000 bar
|
1000 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, G 1/4 – DIN EN ISO 1179-2, DIN EN 175301-803-A
Art:
053060241B013
Copied
|
600 bar
|
DIN EN 175301-803-A
|
G1/4
|
2000 bar
|
1650 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, G 1/4 – DIN EN ISO 1179-2, Bayonet ISO 15170-A1-4.1
Art:
053060241B004
Copied
|
600 bar
|
|
G1/4
|
2000 bar
|
1650 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, G 1/4 – DIN EN ISO 1179-2, AMP Superseal 1.5
Art:
053060241B007
Copied
|
600 bar
|
AMP Superseal
|
G1/4
|
2000 bar
|
1650 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, G 1/4 – DIN EN ISO 1179-2, Deutsch DT04-4P
Art:
053060241B008
Copied
|
600 bar
|
Deutsch DT04-4P
|
G1/4
|
2000 bar
|
1650 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, G 1/4 – DIN EN ISO 1179-2, Deutsch DT04-3P
Art:
053060241B010
Copied
|
600 bar
|
Deutsch DT04-3P
|
G1/4
|
2000 bar
|
1650 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, G 1/4 – DIN EN ISO 1179-2, Cable connection
Art:
053060241B011
Copied
|
600 bar
|
Embedded 2m cable
|
G1/4
|
2000 bar
|
1650 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, G 1/4 – DIN 3852-A, DIN EN 175301-803-A
Art:
053060203B013
Copied
|
600 bar
|
DIN EN 175301-803-A
|
G1/4
|
2000 bar
|
1650 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, G 1/4 – DIN 3852-A, M12 - DIN EN 61076-2-101-A
Art:
053060203B002
Copied
|
600 bar
|
M12x1
|
G1/4
|
2000 bar
|
1650 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, G 1/4 – DIN 3852-A, Bayonet ISO 15170-A1-4.1
Art:
053060203B004
Copied
|
600 bar
|
|
G1/4
|
2000 bar
|
1650 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, G 1/4 – DIN 3852-A, AMP Superseal 1.5
Art:
053060203B007
Copied
|
600 bar
|
AMP Superseal
|
G1/4
|
2000 bar
|
1650 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, G 1/4 – DIN 3852-A, Deutsch DT04-4P
Art:
053060203B008
Copied
|
600 bar
|
Deutsch DT04-4P
|
G1/4
|
2000 bar
|
1650 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, G 1/4 – DIN 3852-A, Deutsch DT04-3P
Art:
053060203B010
Copied
|
600 bar
|
Deutsch DT04-3P
|
G1/4
|
2000 bar
|
1650 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, G 1/4 – DIN 3852-A, Cable connection
Art:
053060203B011
Copied
|
600 bar
|
Embedded 2m cable
|
G1/4
|
2000 bar
|
1650 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, NPT 1/4, DIN EN 175301-803-A
Art:
053060209B013
Copied
|
600 bar
|
DIN EN 175301-803-A
|
1/4 NPT
|
2000 bar
|
1650 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, NPT 1/4, M12 - DIN EN 61076-2-101-A
Art:
053060209B002
Copied
|
600 bar
|
M12x1
|
1/4 NPT
|
2000 bar
|
1650 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, NPT 1/4, Bayonet ISO 15170-A1-4.1
Art:
053060209B004
Copied
|
600 bar
|
|
1/4 NPT
|
2000 bar
|
1650 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, NPT 1/4, AMP Superseal 1.5
Art:
053060209B007
Copied
|
600 bar
|
AMP Superseal
|
1/4 NPT
|
2000 bar
|
1650 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, NPT 1/4, Deutsch DT04-4P
Art:
053060209B008
Copied
|
600 bar
|
Deutsch DT04-4P
|
1/4 NPT
|
2000 bar
|
1650 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, NPT 1/4, Deutsch DT04-3P
Art:
053060209B010
Copied
|
600 bar
|
Deutsch DT04-3P
|
1/4 NPT
|
2000 bar
|
1650 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, NPT 1/4, Cable connection
Art:
053060209B011
Copied
|
600 bar
|
Embedded 2m cable
|
1/4 NPT
|
2000 bar
|
1650 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, 9/16 – 18 UNF, DIN EN 175301-803-A
Art:
053060221B013
Copied
|
600 bar
|
DIN EN 175301-803-A
|
9/16-18UNF
|
2000 bar
|
1650 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, 9/16 – 18 UNF, M12 - DIN EN 61076-2-101-A
Art:
053060221B002
Copied
|
600 bar
|
M12x1
|
9/16-18UNF
|
2000 bar
|
1650 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, 9/16 – 18 UNF, Bayonet ISO 15170-A1-4.1
Art:
053060221B004
Copied
|
600 bar
|
|
9/16-18UNF
|
2000 bar
|
1650 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, 9/16 – 18 UNF, AMP Superseal 1.5
Art:
053060221B007
Copied
|
600 bar
|
AMP Superseal
|
9/16-18UNF
|
2000 bar
|
1650 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, 9/16 – 18 UNF, Deutsch DT04-4P
Art:
053060221B008
Copied
|
600 bar
|
Deutsch DT04-4P
|
9/16-18UNF
|
2000 bar
|
1650 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, 9/16 – 18 UNF, Deutsch DT04-3P
Art:
053060221B010
Copied
|
600 bar
|
Deutsch DT04-3P
|
9/16-18UNF
|
2000 bar
|
1650 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, 9/16 – 18 UNF, Cable connection
Art:
053060221B011
Copied
|
600 bar
|
Embedded 2m cable
|
9/16-18UNF
|
2000 bar
|
1650 bar
|
135 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, M14x1.5 – DIN EN ISO 9974-2, DIN EN 175301-803-A
Art:
053060242B013
Copied
|
600 bar
|
DIN EN 175301-803-A
|
M14x1.5
|
2000 bar
|
1650 bar
|
110 g
|
IP65
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, M14x1.5 – DIN EN ISO 9974-2, M12 - DIN EN 61076-2-101-A
Art:
053060242B002
Copied
|
600 bar
|
M12x1
|
M14x1.5
|
2000 bar
|
1650 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, M14x1.5 – DIN EN ISO 9974-2, Bayonet ISO 15170-A1-4.1
Art:
053060242B004
Copied
|
600 bar
|
|
M14x1.5
|
2000 bar
|
1650 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, M14x1.5 – DIN EN ISO 9974-2, AMP Superseal 1.5
Art:
053060242B007
Copied
|
600 bar
|
AMP Superseal
|
M14x1.5
|
2000 bar
|
1650 bar
|
80 g
|
IP67
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, M14x1.5 – DIN EN ISO 9974-2, Deutsch DT04-4P
Art:
053060242B008
Copied
|
600 bar
|
Deutsch DT04-4P
|
M14x1.5
|
2000 bar
|
1650 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, M14x1.5 – DIN EN ISO 9974-2, Deutsch DT04-3P
Art:
053060242B010
Copied
|
600 bar
|
Deutsch DT04-3P
|
M14x1.5
|
2000 bar
|
1650 bar
|
80 g
|
IP67, IP6K9K
|
|
||
|
PNP output (High Side), NO, 0-600 Bar, M14x1.5 – DIN EN ISO 9974-2, Cable connection
Art:
053060242B011
Copied
|
600 bar
|
Embedded 2m cable
|
M14x1.5
|
2000 bar
|
1650 bar
|
135 g
|
IP67
|
|
Select a variant in the list
