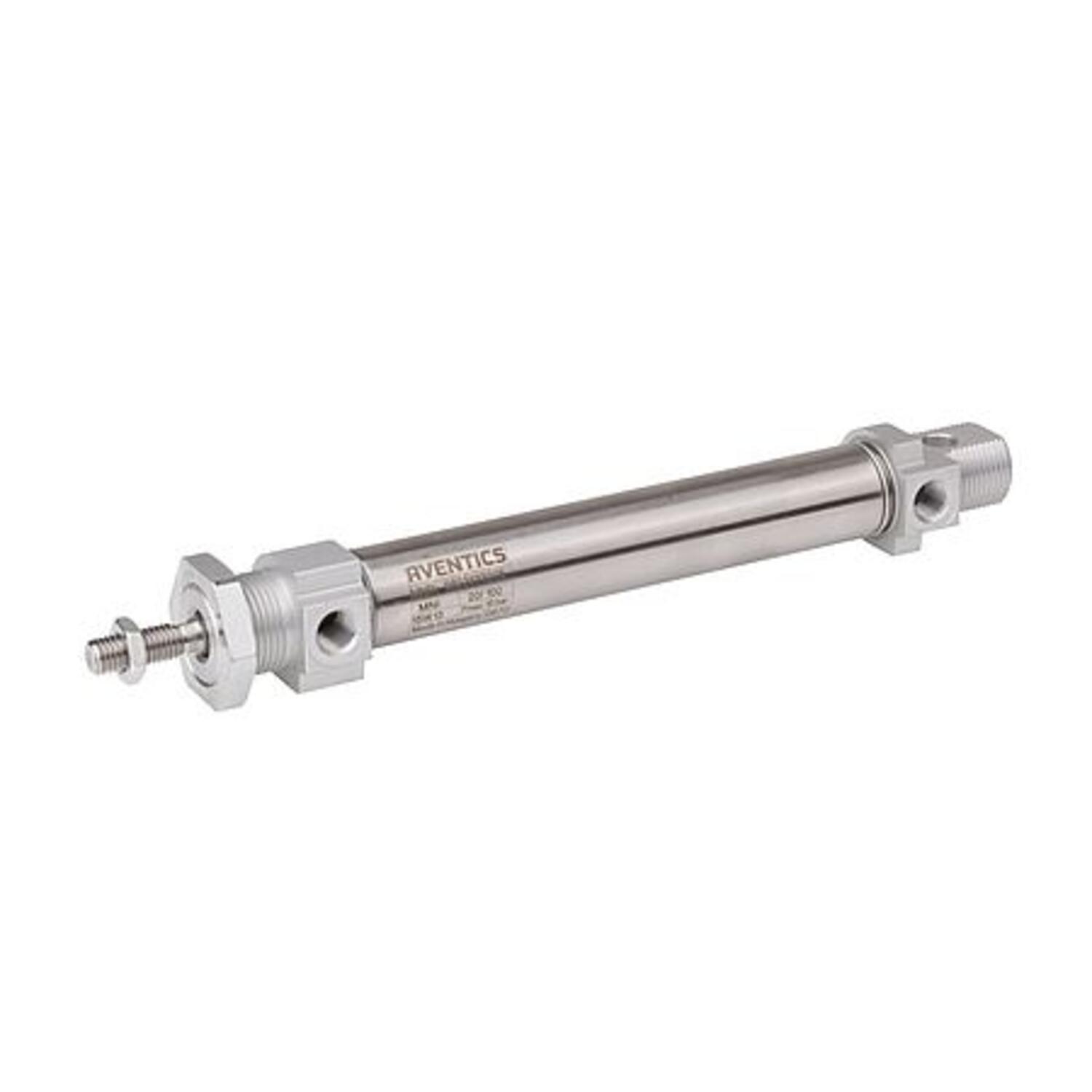

Aventics MNI series Mini Cylinder MNI-0822330201

Connection air	M5
Cushioning energy	0.04 J
Extracting piston force	49 N

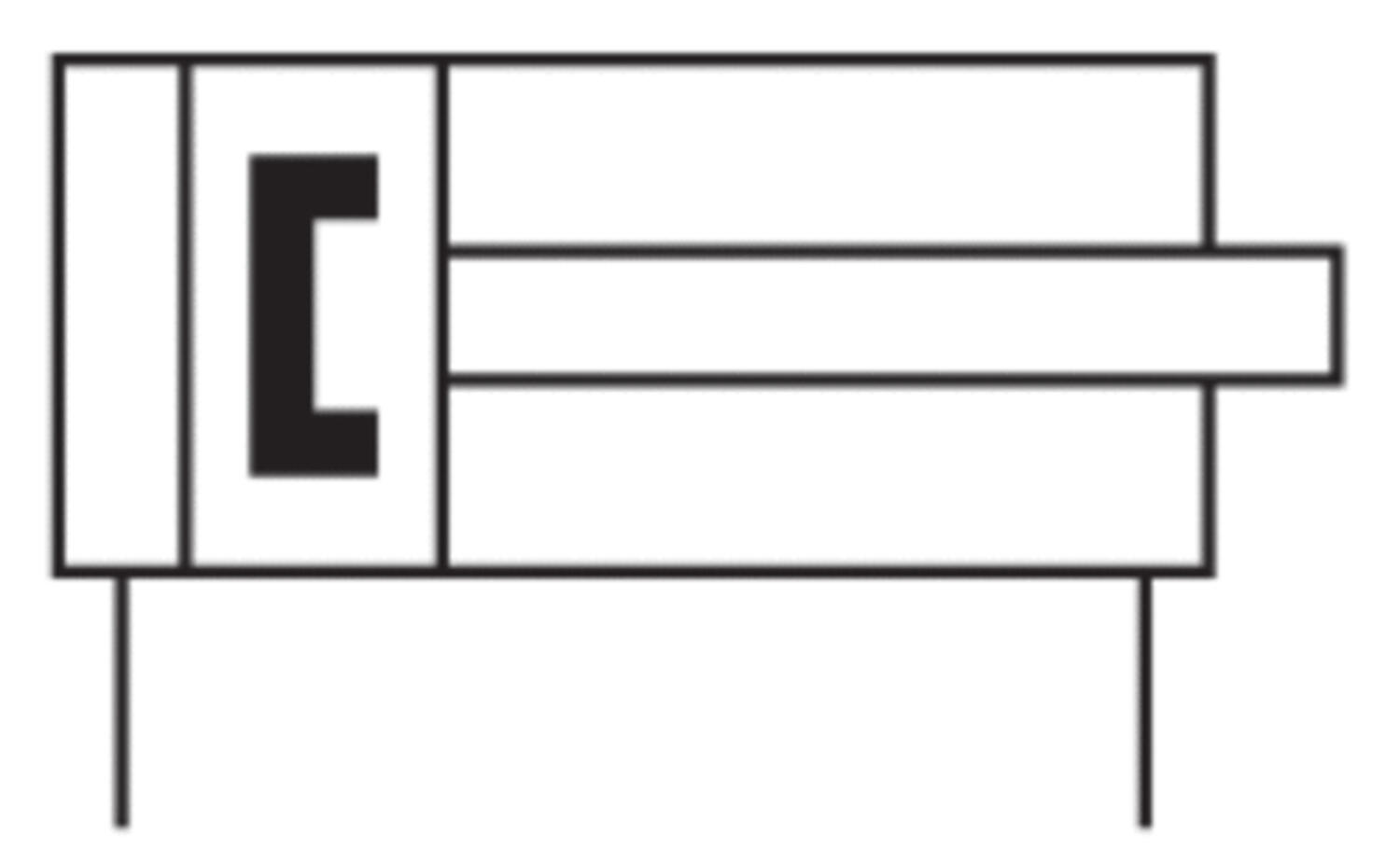

Function	double acting, Magnetic piston
Material cylinder	Stainless steel
Material of seals	Polyurethane-based
Material piston rod	Stainless steel
Material piston rod nut	Galvanized steel
Media	Air pressure
Oil content max	5 mg/m³
Operating pressure max	10 bar

Connection air

Cushioning energy

0.04 J

Extracting piston force

49 N

Function

double acting, Magnetic piston

Material cylinder

Stainless steel

Material of seals

Polyurethane-based

Material piston rod

Stainless steel

Material piston rod nut

Galvanized steel

Media

Air pressure

Oil content max

5 mg/m³

Operating pressure max

10 bar

Operating pressure min	1 bar
Particle size max	50 µm
Piston diameter	10 mm
Piston rod thread	M4
Retracting piston force	42 N
Standards	ISO 6432
Stroke	10 mm
Temperature operational max	80 °C
Temperature operational min	-25 °C
Weight	0.042 kg

Operating pressure min

1 bar

Particle size max

50 µm

Piston diameter

10 mm

Piston rod thread

Retracting piston force

42 N

Standards

ISO 6432

Stroke

10 mm

Temperature operational max

80 °C

Temperature operational min

-25 °C

Weight

0.042 kg

Parts	Connection air	Cushioning energy	Extracting piston force	Piston diameter	Piston rod thread	Retracting piston force	Stroke	Weight
0822330201, 10mm, M4, M5, Stroke 10 Art: MNI-0822330201 Copied	M5	0.04 J	49 N	10 mm	M4	42 N	10 mm	0.042 kg
0822330202, 10mm, M4, M5, Stroke 25 Art: MNI-0822330202 Copied	M5	0.04 J	49 N	10 mm	M4	42 N	25 mm	0.042 kg
0822330203, 10mm, M4, M5, Stroke 50 Art: MNI-0822330203 Copied	M5	0.04 J	49 N	10 mm	M4	42 N	50 mm	0.042 kg
0822330204, 10mm, M4, M5, Stroke 80 Art: MNI-0822330204 Copied	M5	0.04 J	49 N	10 mm	M4	42 N	80 mm	0.042 kg
0822330205, 10mm, M4, M5, Stroke 100 Art: MNI-0822330205 Copied	M5	0.04 J	49 N	10 mm	M4	42 N	100 mm	0.042 kg
0822330215, 10mm, M4, M5, Stroke 125 Art: MNI-0822330215 Copied	M5	0.04 J	49 N	10 mm	M4	42 N	125 mm	0.042 kg
0822330209, 10mm, M4, M5, Stroke 160 Art: MNI-0822330209 Copied	M5	0.04 J	49 N	10 mm	M4	42 N	160 mm	0.042 kg
0822330219, 10mm, M4, M5, Stroke 250 Art: MNI-0822330219 Copied	M5	0.04 J	49 N	10 mm	M4	42 N	250 mm	0.042 kg
0822330235, 10mm, M4, M5, Stroke 200 Art: MNI-0822330235 Copied	M5	0.04 J	49 N	10 mm	M4	42 N	200 mm	0.042 kg
0822331201, 12mm, M6, M5, Stroke 10 Art: MNI-0822331201 Copied	M5	0.07 J	71 N	12 mm	M6	53 N	10 mm	0.073 kg
0822331202, 12mm, M6, M5, Stroke 25 Art: MNI-0822331202 Copied	M5	0.07 J	71 N	12 mm	M6	53 N	25 mm	0.073 kg
0822331203, 12mm, M6, M5, Stroke 50 Art: MNI-0822331203 Copied	M5	0.07 J	71 N	12 mm	M6	53 N	50 mm	0.073 kg
0822331204, 12mm, M6, M5, Stroke 80 Art: MNI-0822331204 Copied	M5	0.07 J	71 N	12 mm	M6	53 N	80 mm	0.073 kg
0822331205, 12mm, M6, M5, Stroke 100 Art: MNI-0822331205 Copied	M5	0.07 J	71 N	12 mm	M6	53 N	100 mm	0.073 kg
0822331206, 12mm, M6, M5, Stroke 125 Art: MNI-0822331206 Copied	M5	0.07 J	71 N	12 mm	M6	53 N	125 mm	0.073 kg
0822331207, 12mm, M6, M5, Stroke 160 Art: MNI-0822331207 Copied	M5	0.07 J	71 N	12 mm	M6	53 N	160 mm	0.073 kg
0822331218, 12mm, M6, M5, Stroke 200 Art: MNI-0822331218 Copied	M5	0.07 J	71 N	12 mm	M6	53 N	200 mm	0.073 kg
0822331219, 12mm, M6, M5, Stroke 250 Art: MNI-0822331219 Copied	M5	0.07 J	71 N	12 mm	M6	53 N	250 mm	0.073 kg
0822331223, 12mm, M6, M5, Stroke 320 Art: MNI-0822331223 Copied	M5	0.07 J	71 N	12 mm	M6	53 N	320 mm	0.073 kg
0822331217, 12mm, M6, M5, Stroke 400 Art: MNI-0822331217 Copied	M5	0.07 J	71 N	12 mm	M6	53 N	400 mm	0.073 kg
0822331233, 12mm, M6, M5, Stroke 500 Art: MNI-0822331233 Copied	M5	0.07 J	71 N	12 mm	M6	53 N	500 mm	0.073 kg
0822332201, 16mm, M6, M5, Stroke 10 Art: MNI-0822332201 Copied	M5	0.14 J	127 N	16 mm	M6	109 N	10 mm	0.091 kg
0822332202, 16mm, M6, M5, Stroke 25 Art: MNI-0822332202 Copied	M5	0.14 J	127 N	16 mm	M6	109 N	25 mm	0.091 kg
0822332203, 16mm, M6, M5, Stroke 50 Art: MNI-0822332203 Copied	M5	0.14 J	127 N	16 mm	M6	109 N	50 mm	0.091 kg
0822332204, 16mm, M6, M5, Stroke 80 Art: MNI-0822332204 Copied	M5	0.14 J	127 N	16 mm	M6	109 N	80 mm	0.091 kg
0822332205, 16mm, M6, M5, Stroke 100 Art: MNI-0822332205 Copied	M5	0.14 J	127 N	16 mm	M6	109 N	100 mm	0.091 kg
0822332206, 16mm, M6, M5, Stroke 125 Art: MNI-0822332206 Copied	M5	0.14 J	127 N	16 mm	M6	109 N	125 mm	0.091 kg
0822332207, 16mm, M6, M5, Stroke 160 Art: MNI-0822332207 Copied	M5	0.14 J	127 N	16 mm	M6	109 N	160 mm	0.091 kg
0822332208, 16mm, M6, M5, Stroke 200 Art: MNI-0822332208 Copied	M5	0.14 J	127 N	16 mm	M6	109 N	200 mm	0.091 kg
0822332209, 16mm, M6, M5, Stroke 250 Art: MNI-0822332209 Copied	M5	0.14 J	127 N	16 mm	M6	109 N	250 mm	0.091 kg
0822332210, 16mm, M6, M5, Stroke 320 Art: MNI-0822332210 Copied	M5	0.14 J	127 N	16 mm	M6	109 N	320 mm	0.091 kg
0822332219, 16mm, M6, M5, Stroke 400 Art: MNI-0822332219 Copied	M5	0.14 J	127 N	16 mm	M6	109 N	400 mm	0.091 kg
0822332220, 16mm, M6, M5, Stroke 500 Art: MNI-0822332220 Copied	M5	0.14 J	127 N	16 mm	M6	109 N	500 mm	0.091 kg
0822333201, 20mm, M8, G1/8, Stroke 10 Art: MNI-0822333201 Copied	1/8 BSP	0.23 J	198 N	20 mm	M8	166 N	10 mm	0.149 kg
0822333202, 20mm, M8, G1/8, Stroke 25 Art: MNI-0822333202 Copied	1/8 BSP	0.23 J	198 N	20 mm	M8	166 N	25 mm	0.149 kg
0822333203, 20mm, M8, G1/8, Stroke 50 Art: MNI-0822333203 Copied	1/8 BSP	0.23 J	198 N	20 mm	M8	166 N	50 mm	0.149 kg
0822333204, 20mm, M8, G1/8, Stroke 80 Art: MNI-0822333204 Copied	1/8 BSP	0.23 J	198 N	20 mm	M8	166 N	80 mm	0.149 kg
0822333205, 20mm, M8, G1/8, Stroke 100 Art: MNI-0822333205 Copied	1/8 BSP	0.23 J	198 N	20 mm	M8	166 N	100 mm	0.149 kg
0822333206, 20mm, M8, G1/8, Stroke 125 Art: MNI-0822333206 Copied	1/8 BSP	0.23 J	198 N	20 mm	M8	166 N	125 mm	0.149 kg
0822333207, 20mm, M8, G1/8, Stroke 160 Art: MNI-0822333207 Copied	1/8 BSP	0.23 J	198 N	20 mm	M8	166 N	160 mm	0.149 kg
0822333208, 20mm, M8, G1/8, Stroke 200 Art: MNI-0822333208 Copied	1/8 BSP	0.23 J	198 N	20 mm	M8	166 N	200 mm	0.149 kg
0822333209, 20mm, M8, G1/8, Stroke 250 Art: MNI-0822333209 Copied	1/8 BSP	0.23 J	198 N	20 mm	M8	166 N	250 mm	0.149 kg
0822333210, 20mm, M8, G1/8, Stroke 320 Art: MNI-0822333210 Copied	1/8 BSP	0.23 J	198 N	20 mm	M8	166 N	320 mm	0.149 kg
0822333214, 20mm, M8, G1/8, Stroke 400 Art: MNI-0822333214 Copied	1/8 BSP	0.23 J	198 N	20 mm	M8	166 N	400 mm	0.149 kg
0822333220, 20mm, M8, G1/8, Stroke 500 Art: MNI-0822333220 Copied	1/8 BSP	0.23 J	198 N	20 mm	M8	166 N	500 mm	0.149 kg
0822334201, 25mm, M10x1.25, G1/8, Stroke 10 Art: MNI-0822334201 Copied	1/8 BSP	0.35 J	309 N	25 mm	M10x1,25	260 N	10 mm	0.249 kg
0822334202, 25mm, M10x1.25, G1/8, Stroke 25 Art: MNI-0822334202 Copied	1/8 BSP	0.35 J	309 N	25 mm	M10x1,25	260 N	25 mm	0.249 kg
0822334203, 25mm, M10x1.25, G1/8, Stroke 50 Art: MNI-0822334203 Copied	1/8 BSP	0.35 J	309 N	25 mm	M10x1,25	260 N	50 mm	0.249 kg
0822334204, 25mm, M10x1.25, G1/8, Stroke 80 Art: MNI-0822334204 Copied	1/8 BSP	0.35 J	309 N	25 mm	M10x1,25	260 N	80 mm	0.249 kg
0822334205, 25mm, M10x1.25, G1/8, Stroke 100 Art: MNI-0822334205 Copied	1/8 BSP	0.35 J	309 N	25 mm	M10x1,25	260 N	100 mm	0.249 kg
0822334206, 25mm, M10x1.25, G1/8, Stroke 125 Art: MNI-0822334206 Copied	1/8 BSP	0.35 J	309 N	25 mm	M10x1,25	260 N	125 mm	0.249 kg
0822334207, 25mm, M10x1.25, G1/8, Stroke 160 Art: MNI-0822334207 Copied	1/8 BSP	0.35 J	309 N	25 mm	M10x1,25	260 N	160 mm	0.249 kg
0822334208, 25mm, M10x1.25, G1/8, Stroke 200 Art: MNI-0822334208 Copied	1/8 BSP	0.35 J	309 N	25 mm	M10x1,25	260 N	200 mm	0.249 kg
0822334209, 25mm, M10x1.25, G1/8, Stroke 250 Art: MNI-0822334209 Copied	1/8 BSP	0.35 J	309 N	25 mm	M10x1,25	260 N	250 mm	0.249 kg
0822334210, 25mm, M10x1.25, G1/8, Stroke 320 Art: MNI-0822334210 Copied	1/8 BSP	0.35 J	309 N	25 mm	M10x1,25	260 N	320 mm	0.249 kg
0822334211, 25mm, M10x1.25, G1/8, Stroke 400 Art: MNI-0822334211 Copied	1/8 BSP	0.35 J	309 N	25 mm	M10x1,25	260 N	400 mm	0.249 kg
0822334212, 25mm, M10x1.25, G1/8, Stroke 500 Art: MNI-0822334212 Copied	1/8 BSP	0.35 J	309 N	25 mm	M10x1,25	260 N	500 mm	0.249 kg
