SENSECA
A wide range of standard units that, for variety of materials and dimensions, offers to the user a simple and economical solution for the control of liquid levels. The units are available with connection cable in lengths of 1.5 m and 3.0 m, other lengths are available on request. The cable is sealed together with the contact inside the rod with epoxy resin and polymerization is performed in a controlled temperature oven. The principle of operation of these instruments is based by actuation of a reed contact, located inside of the measuring rod, by a magnetic float. The only moving element is the float, that moves as a result of hydrostatic thrust, this gives extreme ruggedness and limited need of maintenance to the system.
Current | 0.5AC/0.7DC |
---|---|
Electrical connection | Pre-cabled 1.5m |
Function | N/O & N/C |
IP class | IP65 |
Manufacturer part no. | S1.B20.3.0040.B.06.G.B.C1.L.D.I2.20 |
Material of connection | Nickel plated brass |
Material of float | SPANSIL |
Mounting | Vertical |
---|---|
Pressure max | 20 bar |
Process connection | 1/8 BSP |
Specific gravity | 0.4 |
Temperature operational max | 105 °C |
Voltage | 300AC/350DC |
A wide range of standard units that, for variety of materials and dimensions, offers to the user a simple and economical solution for the control of liquid levels. The units are available with connection cable in lengths of 1.5 m and 3.0 m, other lengths are available on request. The cable is sealed together with the contact inside the rod with epoxy resin and polymerization is performed in a controlled temperature oven. The principle of operation of these instruments is based by actuation of a reed contact, located inside of the measuring rod, by a magnetic float. The only moving element is the float, that moves as a result of hydrostatic thrust, this gives extreme ruggedness and limited need of maintenance to the system.
OEM Automatics water and wastewater application specialists have gathered all our solutions in one place. Our products are used in everything from small municipal water works to larger regional plants.
Whether you’re pumping water, chocolate, oil or peanut butter knowing the product’s viscosity is essential to selecting the right pump. Find out more about viscosity and which pump may be suitable for your application!
Whether you're looking to upgrade your current solution or secure a more robust float switch for your next project, Taurus delivers performance you can count on.
When choosing between a pressure switch and a pressure sensor, the key lies in understanding your application. Our Pressure Monitoring experts breaks down the two devices for you.
Pumps are now officially part of our product offering! As we build our pump portfolio, we’re proud to announce that we are an official distributor of SAMOA Industrial, a well-established name in the fluid handling industry.
OEM Automatic's barcode scanner experts have broken down barcode technology to help you choose the right scanner for your application!
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Current | Electrical connection | Manufacturer part no. | Material of connection | Material of float | Pressure max | Process connection | Specific gravity | Temperature operational max | Voltage | Price | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()

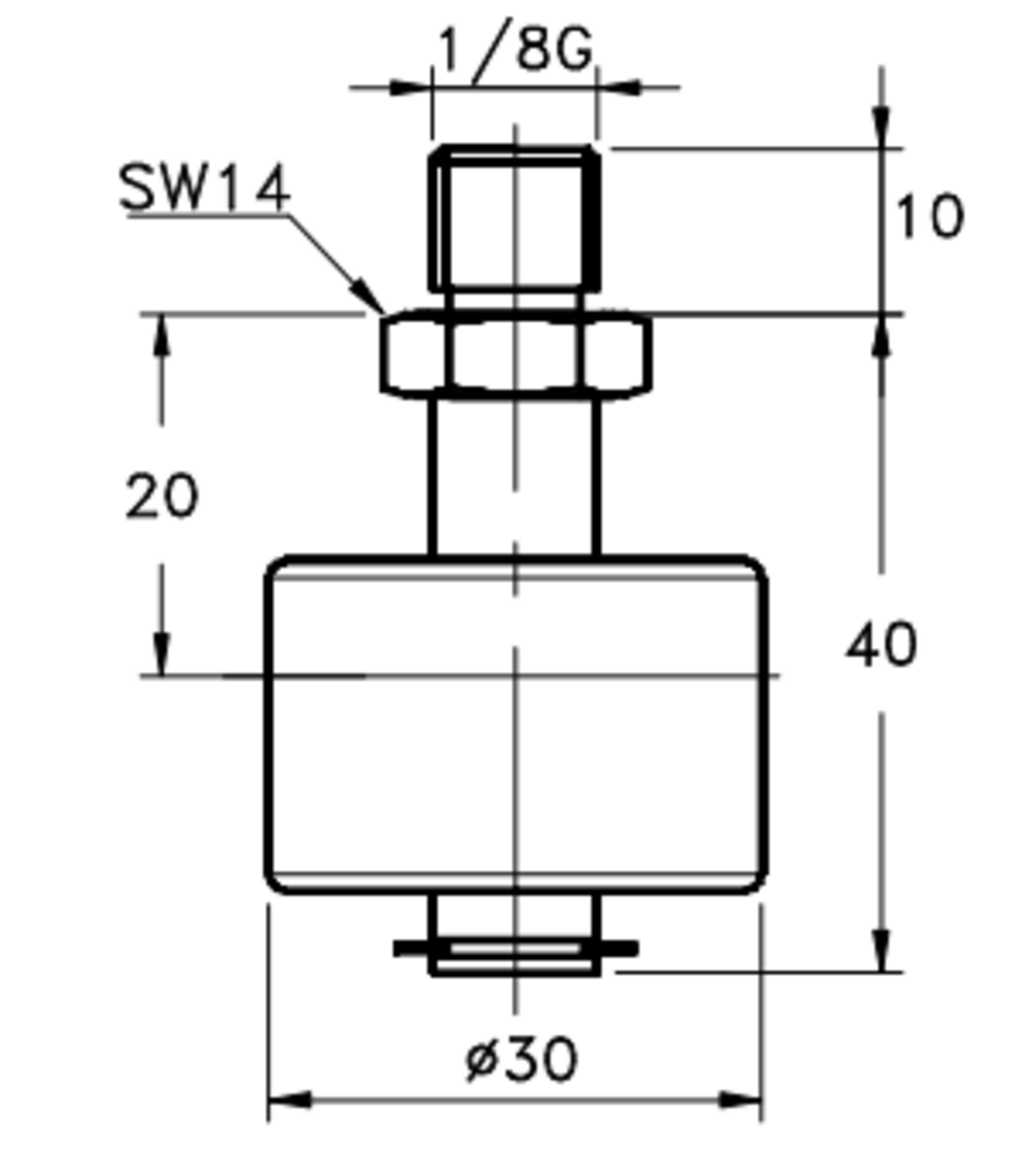

40mm length, Brass/ABS, G1/8, NC, 1.5M cable, Max 20 bar
Art:
00.0002.0270
Copied
|
0.5AC/0.7DC
|
Pre-cabled 1.5m
|
S1.B20.3.0040.B.06.G.B.C1.L.D.I2.20
|
Nickel plated brass
|
SPANSIL
|
20 bar
|
1/8 BSP
|
0.4
|
105 °C
|
300AC/350DC
|
| ||
![]()
40mm length, Brass/ABS, G1/8, NC, 3M cable, Max 20 bar
Art:
00.0002.7557
Copied
|
0.5AC/0.7DC
|
Pre-cabled 3m
|
S1.B20.3.0040.B.06.G.B.C2.L.D.I2.20
|
Nickel plated brass
|
SPANSIL
|
20 bar
|
1/8 BSP
|
0.4
|
105 °C
|
300AC/350DC
|
| ||
![]()
40mm length, Brass/ABS, G1/8, CO, 1.5M cable, Max 20 bar
Art:
00.0002.9095
Copied
|
0.5AC/0.5DC
|
Pre-cabled 1.5m
|
S1.B20.7D.0040.B.06.G.B.C1.L.D.I3.20
|
Nickel plated brass
|
SPANSIL
|
20 bar
|
1/8 BSP
|
0.4
|
105 °C
|
150AC/150DC
|
| ||
![]()
40mm length, Brass/ABS, G1/8, CO, 3M cable, Max 20 bar
Art:
00.0002.5499
Copied
|
0.5AC/0.5DC
|
Pre-cabled 3m
|
S1.B20.7D.0040.B.06.G.B.C2.L.D.I3.20
|
Nickel plated brass
|
SPANSIL
|
20 bar
|
1/8 BSP
|
0.4
|
105 °C
|
150AC/150DC
|
| ||
![]()
77mm length, Brass/ABS, G1/8, NC, 1.5M cable, Max 20 bar
Art:
00.0002.0025
Copied
|
1.3AC/1.3DC
|
Pre-cabled 1.5m
|
S1.B45.4.0077.B.06.G.B.C1.L.D.I2.40
|
Nickel plated brass
|
SPANSIL
|
20 bar
|
1/8 BSP
|
0.35
|
105 °C
|
250AC/250DC
|
| ||
![]()
77mm length, Brass/ABS, G1/8, NC, 3M cable, Max 20 bar
Art:
00.0002.1402
Copied
|
1.3AC/1.3DC
|
Pre-cabled 3m
|
S1.B45.4.0077.B.06.G.B.C2.L.D.I2.40
|
Nickel plated brass
|
SPANSIL
|
20 bar
|
1/8 BSP
|
0.35
|
105 °C
|
250AC/250DC
|
| ||
![]()
77mm length, Brass/ABS, G1/8, CO, 1.5M cable, Max 20 bar
Art:
00.0002.0185.1
Copied
|
1AC/1DC
|
Pre-cabled 1.5m
|
S1.B45.7.0077.B.06.G.B.C1.L.D.I3.40
|
Nickel plated brass
|
SPANSIL
|
20 bar
|
1/8 BSP
|
0.35
|
105 °C
|
230AC/230DC
|
| ||
![]()
77mm length, Brass/ABS, G1/8, CO, 3M cable, Max 20 bar
Art:
00.0002.9096
Copied
|
1AC/1DC
|
Pre-cabled 3m
|
S1.B45.7.0077.B.06.G.B.C2.L.D.I3.40
|
Nickel plated brass
|
SPANSIL
|
20 bar
|
1/8 BSP
|
0.35
|
105 °C
|
230AC/230DC
|
| ||
![]()
89mm length, PVC, G3/8, NC, 1.5M cable, Max 6 bar
Art:
00.0002.5684
Copied
|
1.3AC/1.3DC
|
Pre-cabled 1.5m
|
S1.V49.4.0089.V.10.G.V.C1.B.D.I2.42
|
PVC
|
PVC
|
6 bar
|
G3/8
|
0.7
|
60 °C
|
250AC/250DC
|
| ||
![]()
89mm length, PVC, G3/8, NC, 3M cable, Max 6 bar
Art:
00.0002.9097
Copied
|
1.3AC/1.3DC
|
Pre-cabled 3m
|
S1.V49.4.0089.V.10.G.V.C2.B.D.I2.42
|
PVC
|
PVC
|
6 bar
|
G3/8
|
0.7
|
60 °C
|
250AC/250DC
|
| ||
![]()
89mm length, PVC, G3/8, CO, 1.5M cable, Max 6 bar
Art:
00.0002.5657
Copied
|
1AC/1DC
|
Pre-cabled 1.5m
|
S1.V49.7.0089.V.10.G.V.C1.B.D.I3.42
|
PVC
|
PVC
|
6 bar
|
G3/8
|
0.7
|
60 °C
|
230AC/230DC
|
| ||
![]()
89mm length, PVC, G3/8, CO, 3M cable, Max 6 bar
Art:
00.0002.9098
Copied
|
1AC/1DC
|
Pre-cabled 3m
|
S1.V49.7.0089.V.10.G.V.C2.B.D.I3.42
|
PVC
|
PVC
|
6 bar
|
G3/8
|
0.7
|
60 °C
|
230AC/230DC
|
| ||
![]()
49mm length, PVDF, G1/8, NC, 1.5M cable, Max 6 bar
Art:
00.0002.5461
Copied
|
0.5AC/0.7DC
|
Pre-cabled 1.5m
|
S1.F25.3.0049.F.06.G.F.C1.N.D.I2.25
|
PVDF
|
PVDF
|
6 bar
|
1/8 BSP
|
0.65
|
130 °C
|
300AC/350DC
|
| ||
![]()
49mm length, PVDF, G1/8, NC, 3M cable, Max 6 bar
Art:
00.0002.6610
Copied
|
0.5AC/0.7DC
|
Pre-cabled 3m
|
S1.F25.3.0049.F.06.G.F.C2.N.D.I2.25
|
PVDF
|
PVDF
|
6 bar
|
1/8 BSP
|
0.65
|
130 °C
|
300AC/350DC
|
| ||
![]()
52mm length, SS, G1/8, NC, 1.5M cable, Max 30 bar
Art:
00.0002.2282.3
Copied
|
0.5AC/0.7DC
|
Pre-cabled 1.5m
|
S1.S29.3.0050.S.06.G.S.C1.L.D.I2.25
|
Stainless steel 316
|
Stainless steel 316
|
30 bar
|
1/8 BSP
|
0.75
|
105 °C
|
300AC/350DC
|
| ||
![]()
52mm length, SS, G1/8, NC, 3M cable, Max 30 bar
Art:
00.0002.3390.2
Copied
|
0.5AC/0.7DC
|
Pre-cabled 3m
|
S1.S29.3.0050.S.06.G.S.C2.L.D.I2.25
|
Stainless steel 316
|
Stainless steel 316
|
30 bar
|
1/8 BSP
|
0.75
|
105 °C
|
300AC/350DC
|
| ||
![]()
52mm length, SS, G1/8, CO, 1.5M cable, Max 30 bar
Art:
00.0002.7891
Copied
|
0.5AC/0.5DC
|
Pre-cabled 1.5m
|
S1.S29.7D.0050.S.06.G.S.C1.L.D.I3.25
|
Stainless steel 316
|
Stainless steel 316
|
30 bar
|
1/8 BSP
|
0.75
|
105 °C
|
150AC/150DC
|
| ||
![]()
52mm length, SS, G1/8, CO, 3M cable, Max 30 bar
Art:
00.0002.9099
Copied
|
0.5AC/0.5DC
|
Pre-cabled 3m
|
S1.S29.7D.0050.S.06.G.S.C2.L.D.I3.25
|
Stainless steel 316
|
Stainless steel 316
|
30 bar
|
1/8 BSP
|
0.75
|
105 °C
|
150AC/150DC
|
| ||
![]()
80mm length, SS, G1/4, NC, 1.5M cable, Max 50 bar
Art:
00.0002.0933.2
Copied
|
1.3AC/1.3DC
|
Pre-cabled 1.5m
|
S1.S52.4.0080.S.08.G.S.C1.L.D.I2.40
|
Stainless steel 316
|
Stainless steel 316
|
50 bar
|
1/4 BSP
|
0.7
|
105 °C
|
250AC/250DC
|
| ||
![]()
80mm length, SS, G1/4, NC, 3M cable, Max 50 bar
Art:
00.0002.2329.1
Copied
|
1.3AC/1.3DC
|
Pre-cabled 3m
|
S1.S52.4.0080.S.08.G.S.C2.L.D.I2.40
|
Stainless steel 316
|
Stainless steel 316
|
50 bar
|
1/4 BSP
|
0.7
|
105 °C
|
250AC/250DC
|
| ||
![]()
80mm length, SS, G1/4, CO, 1.5M cable, Max 50 bar
Art:
00.0002.5914
Copied
|
1AC/1DC
|
Pre-cabled 1.5m
|
S1.S52.7.0080.S.08.G.S.C1.L.D.I3.40
|
Stainless steel 316
|
Stainless steel 316
|
50 bar
|
1/4 BSP
|
0.7
|
105 °C
|
230AC/230DC
|
| ||
![]()
80mm length, SS, G1/4, CO, 3M cable, Max 50 bar
Art:
00.0002.5040
Copied
|
1AC/1DC
|
Pre-cabled 3m
|
S1.S52.7.0080.S.08.G.S.C2.L.D.I3.40
|
Stainless steel 316
|
Stainless steel 316
|
50 bar
|
1/4 BSP
|
0.7
|
105 °C
|
230AC/230DC
|
|
Select a variant in the list
