SENSECA

Valco - Side Mount Level Switch - S50 Series

These level switches, with their reduced dimensions and simplicity of installation, constitute a reliable solution for the control of liquids in all applications where it is necessary to mount a lateral type. Suitable for use with process temperature up to 180 ° C.

Read more
  • PP housing with PG9 electrical connection
  • Micro-switch SPDT
  • Max working pressure 40 bar
  • Max working temperature 180°C
  • Brass or St. Steel materials

Selected variant

Available in several variants

Selected variant

Technical data

Current 3A
Electrical connection PG9 cable gland
Function Changeover (SPDT)
Hysteresis max 20 mm
IP class IP65
Manufacturer part no. L1.S50.7.C.25.G.O.W.I33
Material of body Glass fiber reinforced plastic (PBT)
Material of float Stainless steel 316
Material of seals PTFE
Material of wetted parts Stainless steel
Mounting Horizontal
Number of microswitches 1
Pressure max 25 bar
Process connection G1
Rod type Angled
Specific gravity 0.7
Temperature operational max 180 °C
Voltage 250Vac/48Vdc

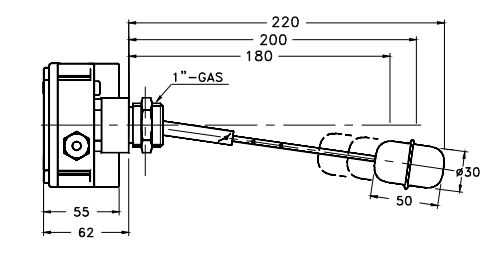

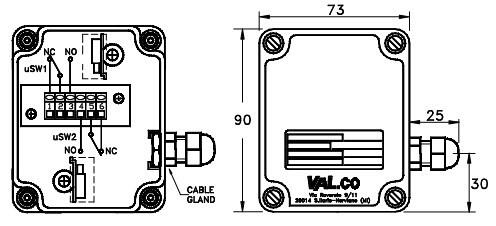

Measurements and connections

Product description

These level switches, with their reduced dimensions and simplicity of installation, constitute a reliable solution for the control of liquids in all applications where it is necessary to mount a lateral type. Suitable for use with process temperature up to 180 ° C.

Accessories

Related

water treatment plant tank- water and wastewater - OEM Automatic Solutions
Learning hub

Water & Wastewater Solutions

OEM Automatics water and wastewater application specialists have gathered all our solutions in one place. Our products are used in everything from small municipal water works to larger regional plants.

Selection of pumps - understanding velocity and why it matters when choosing a pump
Learning hub

understanding viscosity - And Why It Matters When Choosing A Pump

Whether you’re pumping water, chocolate, oil or peanut butter knowing the product’s viscosity is essential to selecting the right pump. Find out more about viscosity and which pump may be suitable for your application!

Tecnoplastic float switch
Product news

Float switches built to perform and ready to ship

Whether you're looking to upgrade your current solution or secure a more robust float switch for your next project, Taurus delivers performance you can count on.

groups of pressure switches and sensors with reservoir background - pressure sensors or switches
Learning hub

How do I know if I need a pressure switch or a pressure sensor?

When choosing between a pressure switch and a pressure sensor, the key lies in understanding your application. Our Pressure Monitoring experts breaks down the two devices for you.

SAMOA pumps
Product news

We offer air diaphragm pumps by SAMOA

Pumps are now officially part of our product offering! As we build our pump portfolio, we’re proud to announce that we are an official distributor of SAMOA Industrial, a well-established name in the fluid handling industry.

Barcode scanner technology: choosing the right technology for your application
Learning hub

Barcode Scanner Technology: Choosing The Right Technology For Your Application

OEM Automatic's barcode scanner experts have broken down barcode technology to help you choose the right scanner for your application!

Parts Manufacturer part no. Number of microswitches Rod type Price
L1.S50.7.C.25.G.O.W.I33
1
Angled
L1.S50.7.D.25.G.O.W.I33
1
Straight
L2.S50.7.C.25.G.O.W.I33
2
Angled
L2.S50.7.D.25.G.O.W.I33
2
Straight
L1.S50.7.C.25.G.S.W.I33
1
Angled
L1.S50.7.D.25.G.S.W.I33
1
Straight
L2.S50.7.C.25.G.S.W.I33
2
Angled
L2.S50.7.D.25.G.S.W.I33
2
Straight

Selected variant

Select a variant in the list
