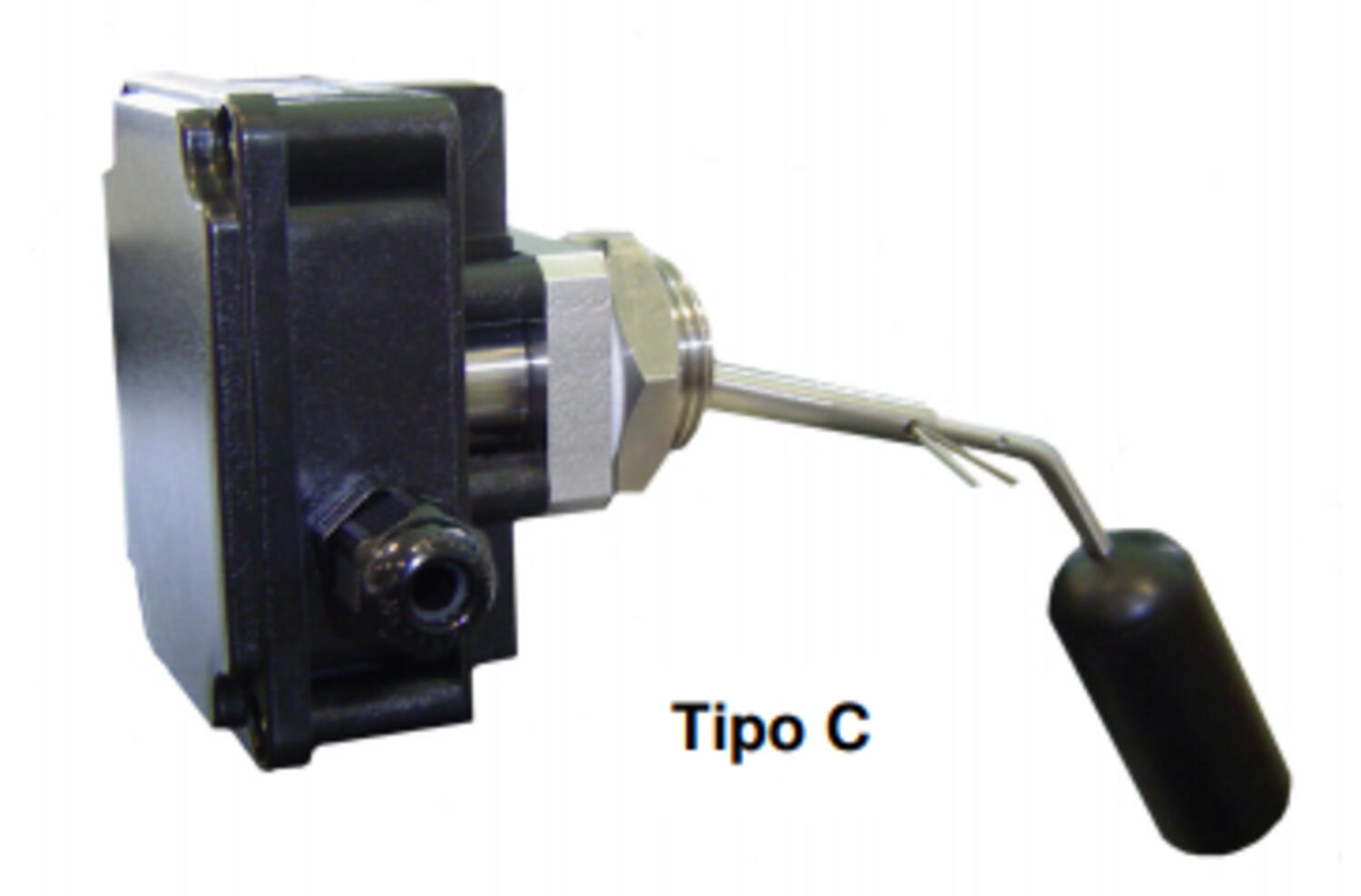

Valco - Level Switch, Side Mount - B77 Series
These level switches, with their reduced dimensions and simplicity of installation, constitute a reliable solution for the control of liquids in all applications where it is necessary to mount a lateral type. Suitable for use with process temperatures up to 120 ° C
- PP housing with PG9 electrical connection
- Micro-switch SPDT
- Max working pressure 20 bar
- Max working temperature 120°C
- Process connection Brass or St. Steel materials
Selected variant
Technical data
| Current | 3A |
|---|---|

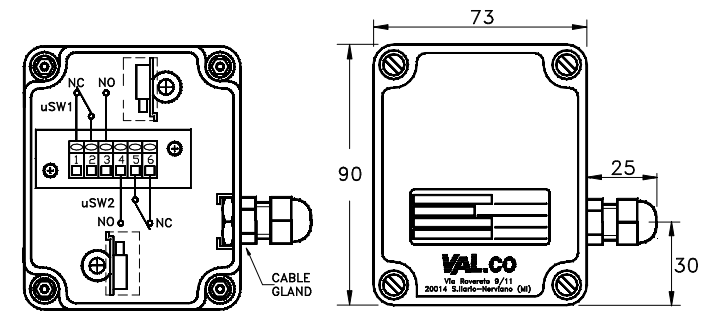

| Electrical connection | PG9 cable gland |
| Function | Changeover (SPDT) |
| Hysteresis max | 24 mm |
| IP class | IP65 |
| Manufacturer part no. | L1.B77.7.C.25.G.O.W.I33 |
| Material of body | Glass fiber reinforced plastic (PBT) |
| Material of float | SPANSIL |
| Material of seals | PTFE |
| Material of wetted parts | Stainless steel |
| Mounting | Horizontal |
|---|---|
| Number of microswitches | 1 Â |
| Pressure max | 10 bar |
| Process connection | G1 |

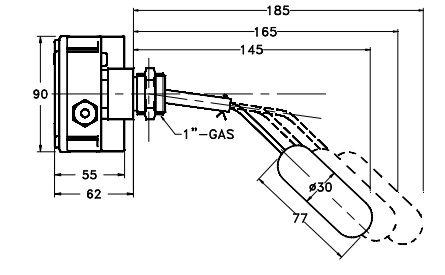

| Rod type | Angled |
| Specific gravity | 0.4 |
| Temperature operational max | 120 °C |
| Voltage | 250Vac/48Vdc |
Product description
These level switches, with their reduced dimensions and simplicity of installation, constitute a reliable solution for the control of liquids in all applications where it is necessary to mount a lateral type. Suitable for use with process temperatures up to 120 ° C
