SENSECA

Conductive level-probe - SLP Series

The SL conductive probe series provides a solution for controlling the level of liquid with a minimum value of conductivity of 1µs.

The probes are available in a wide variety of materials and process connections and are of construction appropriate to operation in extreme conditions such as those found on industrial plants.



Read more
  • 1 to 4 St. Steel electrodes
  • Electrodes length from 100 mm. to 1500 mm.
  • Brass, St. Steel, PPL body materials
  • Working pressure up to 6 bar
  • Working temperature up to 100°C

Selected variant

Available in several variants

Selected variant

Technical data

Electrical connection DIN A 43650
Electrode Length 500mm
IP class IP65
Manufacturer part no. SLP.25G.3X500.K.S1
Material of coatings on electrodes PVDF
Material of connection Polypropylene
Mounting Vertical
Number of electrodes 3
Pressure max 6 bar
Process connection G1
Temperature operational max 100 °C

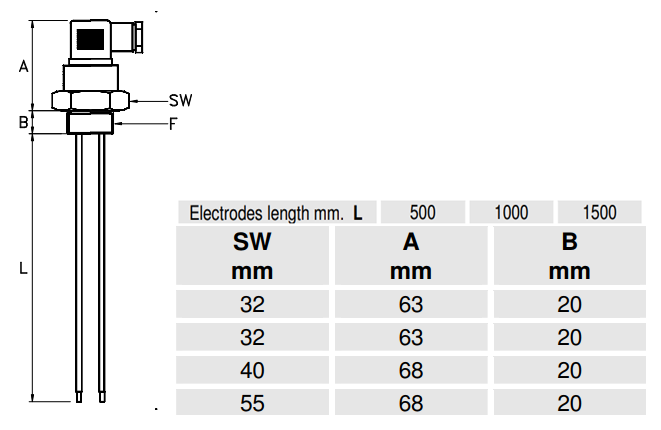

Measurements and connections

Product description

The SL conductive probe series provides a solution for controlling the level of liquid with a minimum value of conductivity of 1µs.

The probes are available in a wide variety of materials and process connections and are of construction appropriate to operation in extreme conditions such as those found on industrial plants.



Accessories

Related

water treatment plant tank- water and wastewater - OEM Automatic Solutions
Learning hub

Water & Wastewater Solutions

OEM Automatics water and wastewater application specialists have gathered all our solutions in one place. Our products are used in everything from small municipal water works to larger regional plants.

Selection of pumps - understanding velocity and why it matters when choosing a pump
Learning hub

understanding viscosity - And Why It Matters When Choosing A Pump

Whether you’re pumping water, chocolate, oil or peanut butter knowing the product’s viscosity is essential to selecting the right pump. Find out more about viscosity and which pump may be suitable for your application!

Tecnoplastic float switch
Product news

Float switches built to perform and ready to ship

Whether you're looking to upgrade your current solution or secure a more robust float switch for your next project, Taurus delivers performance you can count on.

groups of pressure switches and sensors with reservoir background - pressure sensors or switches
Learning hub

How do I know if I need a pressure switch or a pressure sensor?

When choosing between a pressure switch and a pressure sensor, the key lies in understanding your application. Our Pressure Monitoring experts breaks down the two devices for you.

SAMOA pumps
Product news

We offer air diaphragm pumps by SAMOA

Pumps are now officially part of our product offering! As we build our pump portfolio, we’re proud to announce that we are an official distributor of SAMOA Industrial, a well-established name in the fluid handling industry.

Barcode scanner technology: choosing the right technology for your application
Learning hub

Barcode Scanner Technology: Choosing The Right Technology For Your Application

OEM Automatic's barcode scanner experts have broken down barcode technology to help you choose the right scanner for your application!

Parts Electrode Length Manufacturer part no. Number of electrodes Process connection Price
500mm
SLP.25G.3X500.K.S1
3
G1
500mm
SLP.15G.2X500.K.S1
2
G1/2
500mm
SLP.40G.4X500.K.S1
4
G1 1/2
1000mm
SLP.40G.4X1000.K.S1
4
G1 1/2
1000mm
SLP.25G.3X1000.K.S1
3
G1
1000mm
SLP.15G.2X1000.K.S1
2
G1/2
500mm
SLP.10G.1X500.K.S1
1
G3/8
1000mm
SLP.10G.1X1000.K.S1
1
G3/8
2000mm
SLP.10G.1X2000.K.S1
1
G3/8
500mm
SLP.15G.1X500.K.S1
1
G1/2
1000mm
SLP.15G.1X1000.K.S1
1
G1/2
1500mm
SLP.15G.1X1500.K.S1
1
G1/2
2000mm
SLP.15G.1X2000.K.S1
1
G1/2
1500mm
SLP.10G.1X1500.K.S1
1
G3/8
1500mm
SLP.15G.2X1500.K.S1
2
G1/2
2000mm
SLP.15G.2X2000.K.S1
2
G1/2
1500mm
SLP.25G.3X1500.K.S1
3
G1
2000mm
SLP.25G.3X2000.K.S1
3
G1
1500mm
SLP.40G.4X1500.K.S1
4
G1 1/2
2000mm
SLP.40G.4X2000.K.S1
4
G1 1/2
