TECNOPLASTIC

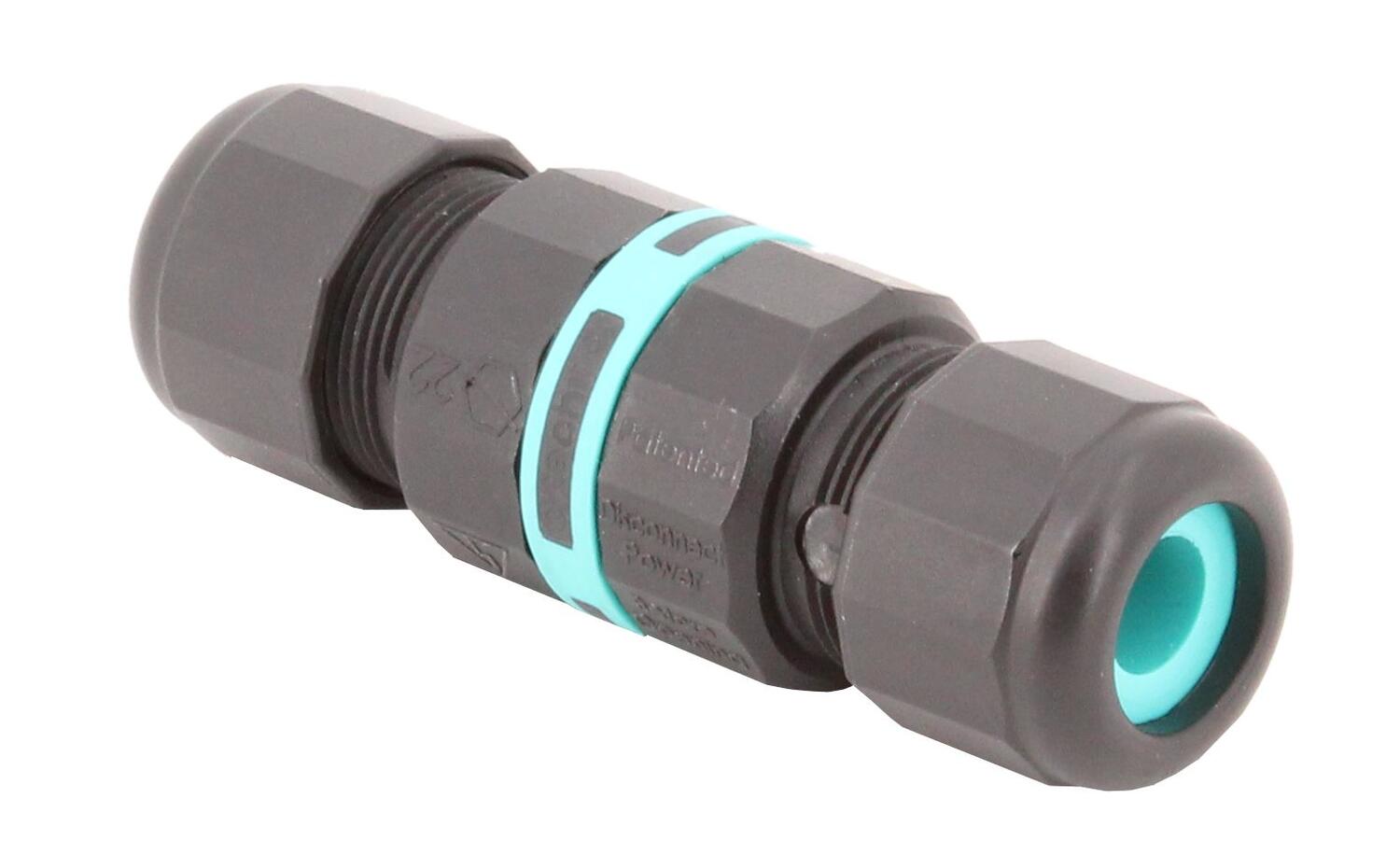

Tecnoplastic - TECHNO CONNECTOR
This innovative product from Tecnoplastic is a great way to make a safe connection between two cables, taking over from heat shrink tube or insulating tape. They offer two types, a 3 and 4 pole.

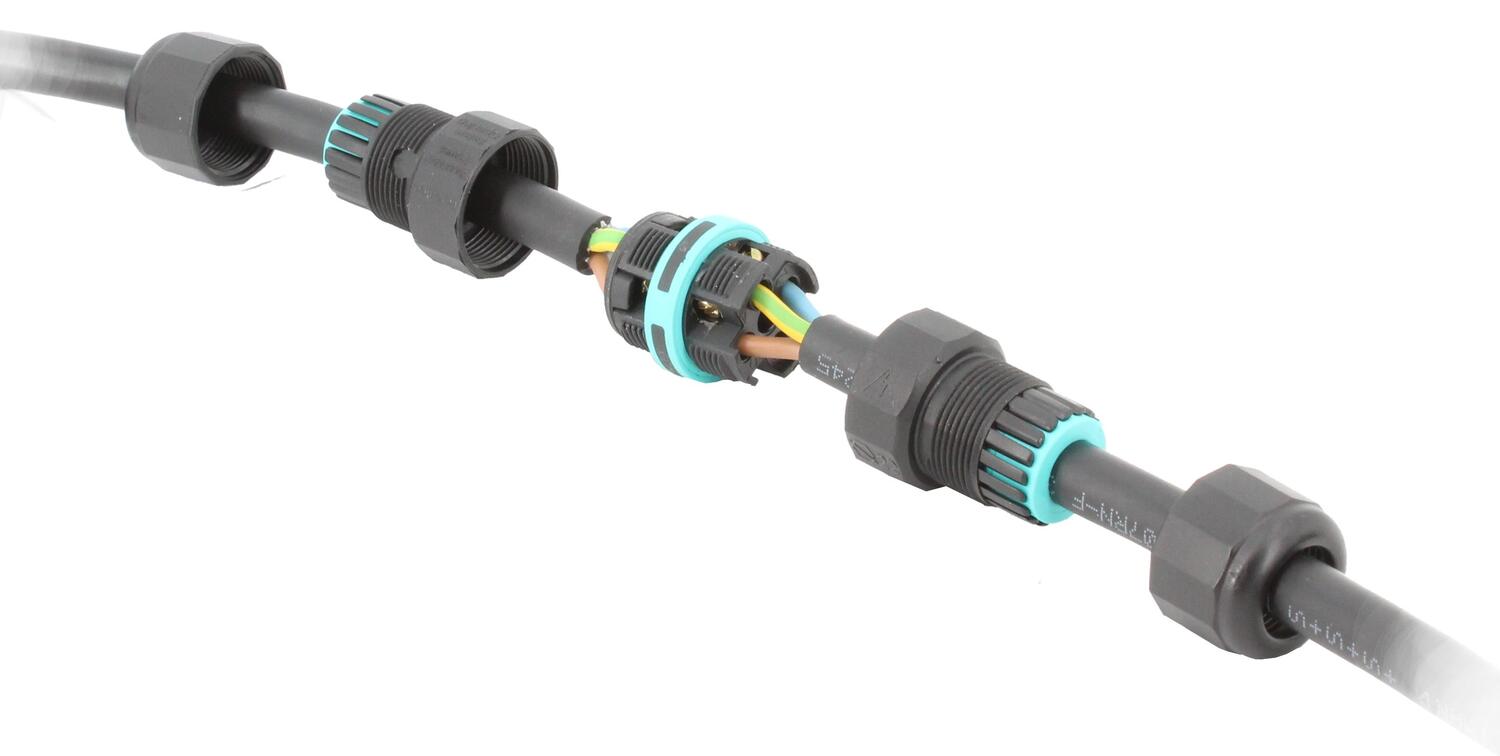

For the 3 pole version the screw can pierce the cable sheath with no need of stripping it down.
- Replacement for heat shrink or insulating tape
- IP68 Protection grade
- Suitable for 7mm to 12mm cable
- Up to 125°C
Selected variant
Technical data
| Approvals | EN60998-2:2004, EN60529:1991+A1:2000, EN60998-1:2004 |
|---|---|
| Cable diameter | 7mm ... 12mm |
| Depth max | 10 m |
| IP class | IP68 |
| Max. torque | 2.5 |
| Number of poles | 3 |
| Operating temperature to | 125 °C |
| Power | max. 16A, 250V-400V |
| Strain relief | PBT UL94 V0 |
Product description
This innovative product from Tecnoplastic is a great way to make a safe connection between two cables, taking over from heat shrink tube or insulating tape. They offer two types, a 3 and 4 pole.
For the 3 pole version the screw can pierce the cable sheath with no need of stripping it down.
