TECNOPLASTIC

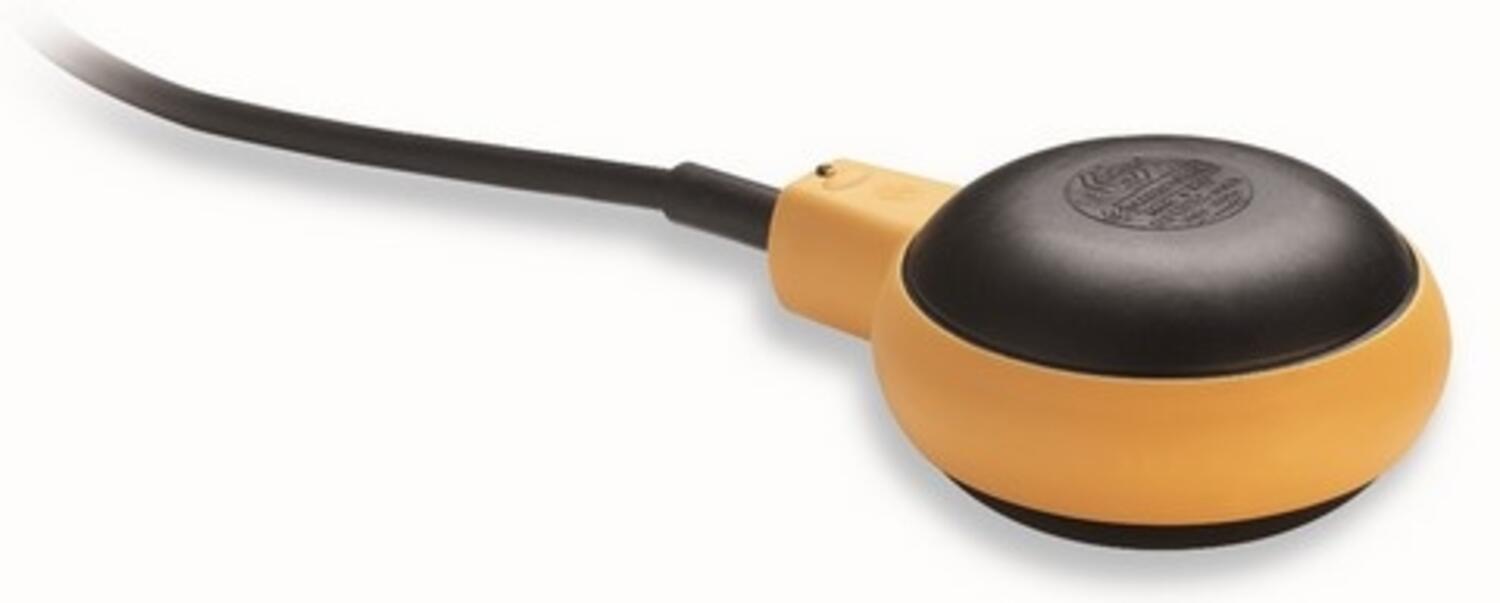

Tecnoplastic - Float switch - Supertec

The Supertec level switch is resistant to high pressure due to its special double chamber construction. This level regulator is for more specialist requirements such deep tanks or where extra protection and integrity are a must.



  • Drainage plants
  • Pumping stations
  • Dirty water systems
Read more
  • Maximum depth 40 meters
  • Single or double function
  • Up to 60°C
  • Double chamber design

Selected variant

Available in several variants

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

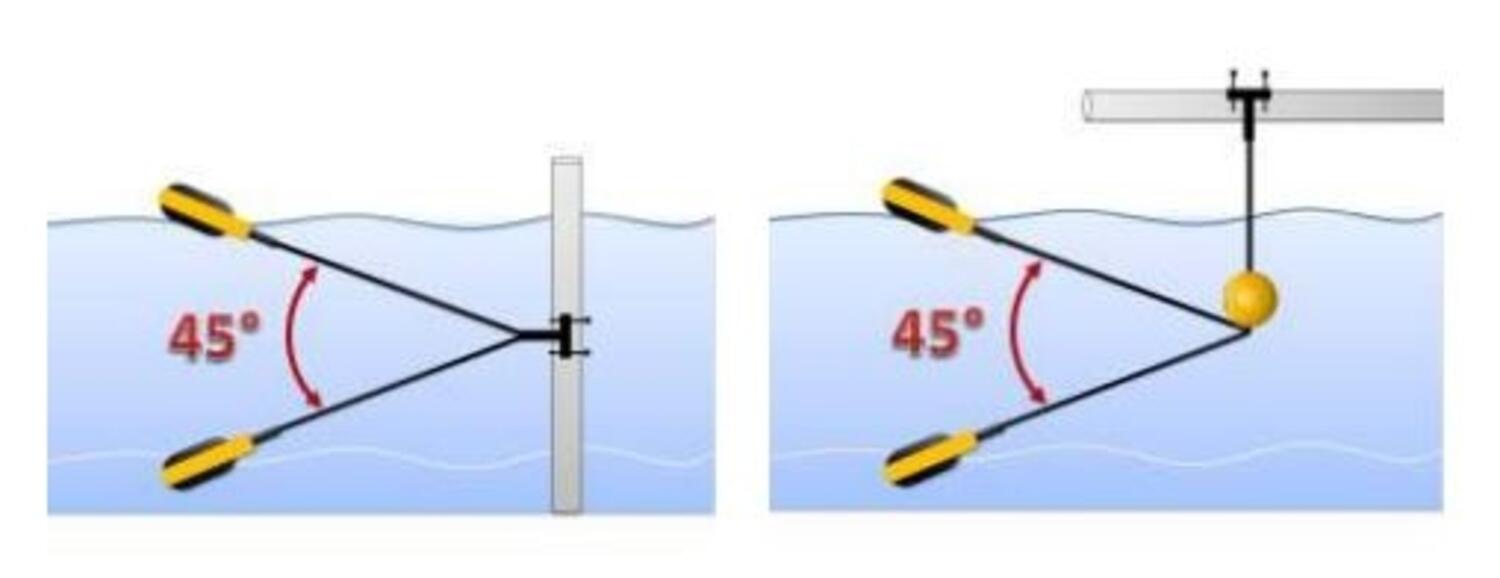

Activation angle 45 °
Approvals CE, TÜV
Cable length 10 m
Cable type H05RN-F
Counterweight included No
Depth max 40 m
Function Changeover (SPDT)
Insulation class I-II
IP class IP68
Material of float Polypropylene
Operating temperature to 60 °C
Rated current 8 A
Specific gravity 0.7 kg/dm³
Supply voltage 250 V

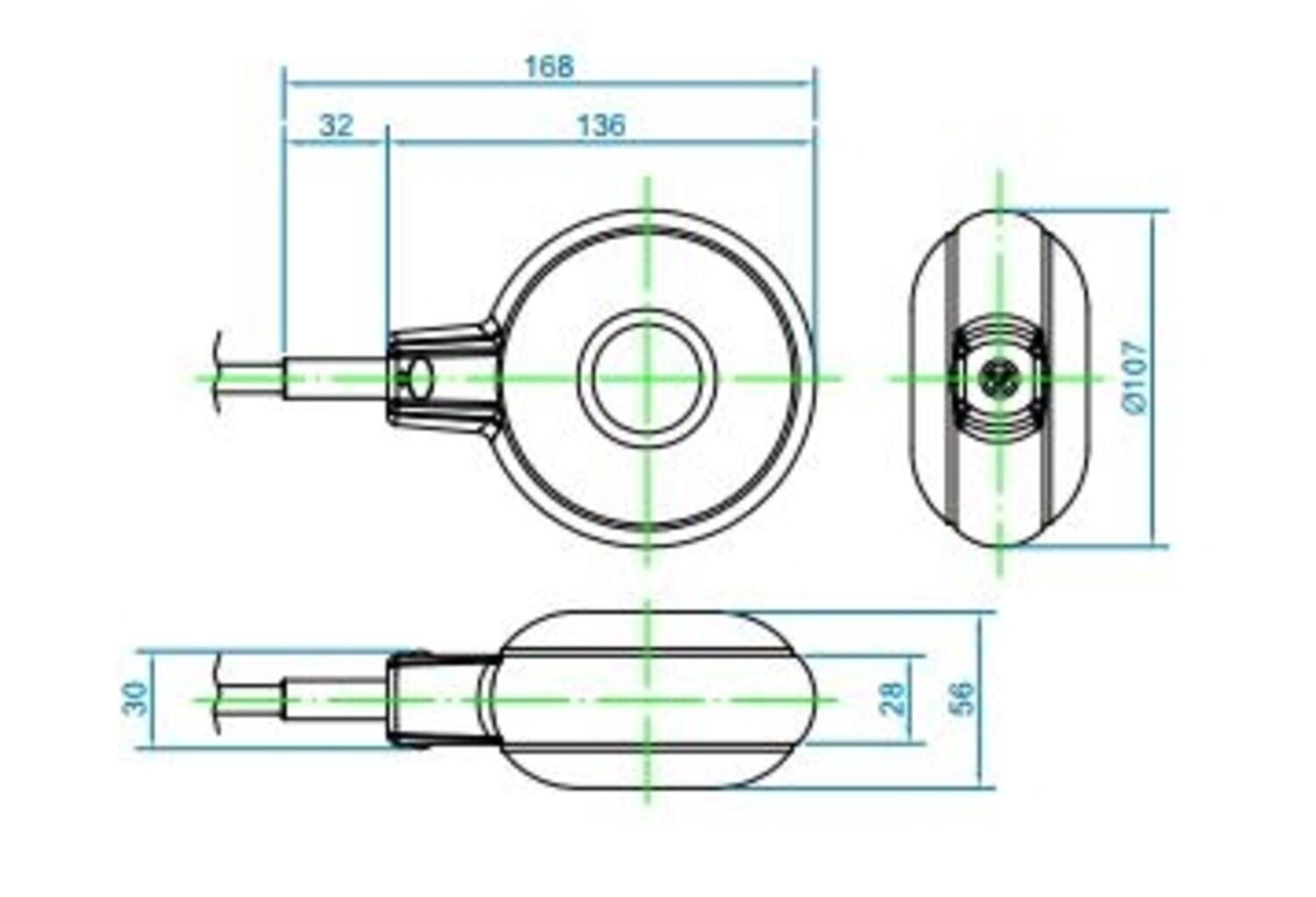

Measurements and connections

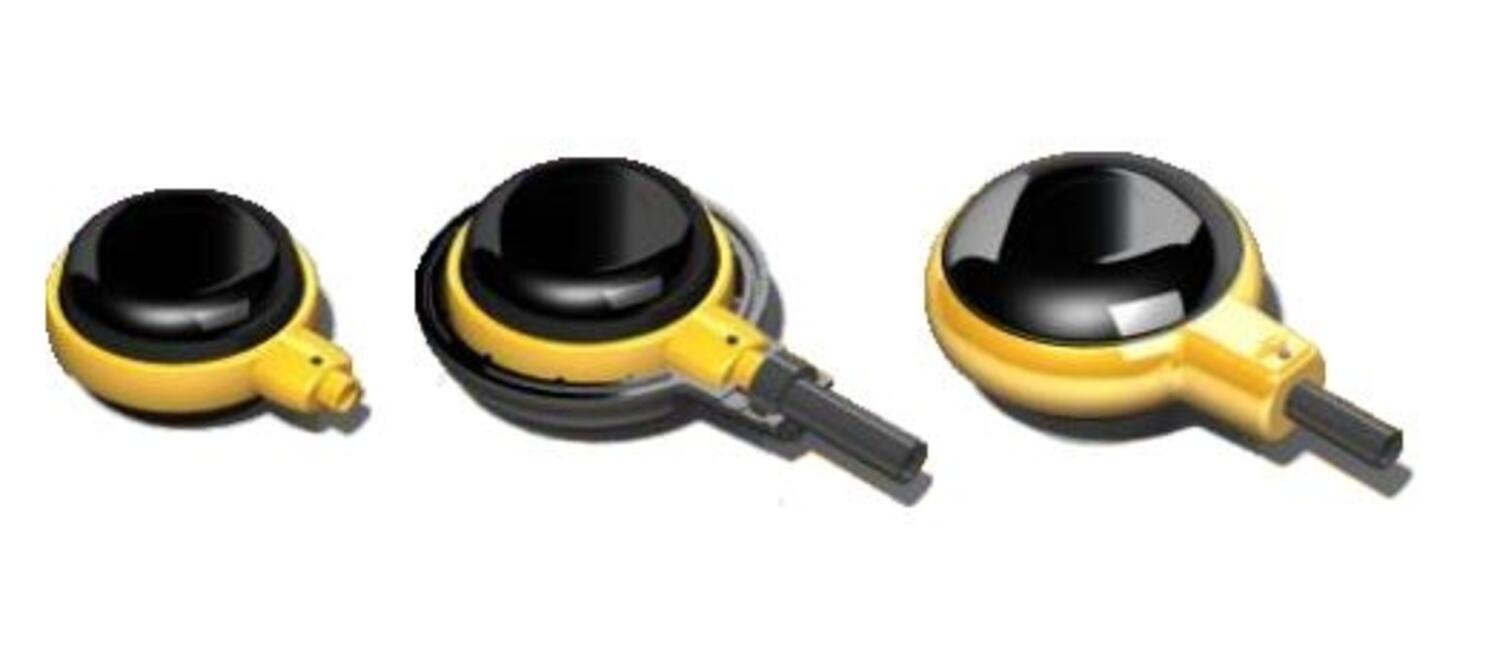

Technical illustrations

Product description

The Supertec level switch is resistant to high pressure due to its special double chamber construction. This level regulator is for more specialist requirements such deep tanks or where extra protection and integrity are a must.



  • Drainage plants
  • Pumping stations
  • Dirty water systems

Accessories

Related products

Parts Cable length Cable type Counterweight included Function Price
Double function, H05 RNF, 10M cable
Art:
GSU53X110NG01 Copied
10 m
H05RN-F
No
Changeover (SPDT)
Single function, H07 RNF, 5M cable
Art:
GSUH3G105NG01 Copied
5 m
H07RN-F
No
N/O & N/C
Single function, H07 RNF, 10M cable
Art:
GSUH3G110NG01 Copied
10 m
H07RN-F
No
N/O & N/C
Single function, H07 RNF, 15M cable
Art:
GSUH3G115NG01 Copied
15 m
H07RN-F
No
N/O & N/C
Single function, H07 RNF, 20M cable
Art:
GSUH3G120NG01 Copied
20 m
H07RN-F
No
N/O & N/C
Double function, H07 RNF, 5M cable
Art:
GSUH3X105NG01 Copied
5 m
H07RN-F
No
Changeover (SPDT)
Double function, H07 RNF, 10M cable
Art:
GSUH3X110NG01 Copied
10 m
H07RN-F
No
Changeover (SPDT)
Double function, H07 RNF, 15M cable
Art:
GSUH3X115NG01 Copied
15 m
H07RN-F
No
Changeover (SPDT)
Double function, H07 RNF, 20M cable
Art:
GSUH3X120NG01 Copied
20 m
H07RN-F
No
Changeover (SPDT)
Double function, H05 RNF, 5M cable
Art:
GSU53X105NG01 Copied
5 m
H05RN-F
No
Changeover (SPDT)
Double function, H05 RNF, 15M cable
Art:
GSU53X115NG01 Copied
15 m
H05RN-F
No
Changeover (SPDT)
Double function, H05 RNF, 20M cable
Art:
GSU53X120NG01 Copied
20 m
H05RN-F
No
Changeover (SPDT)

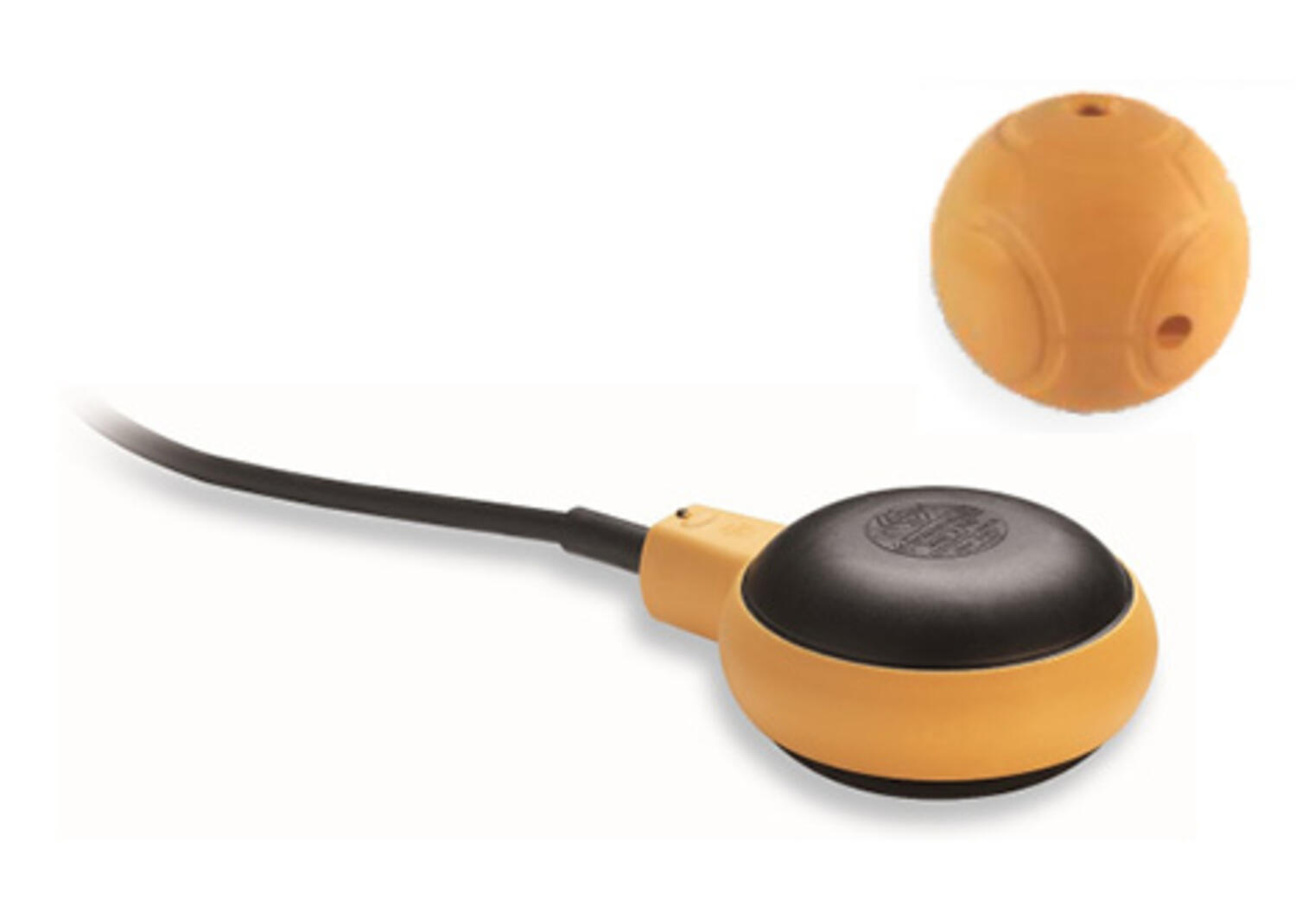

Single function, H07 RNF, 5M cable, counterweight
Art:
GSUH3G105NGC1 Copied
5 m
H07RN-F
Yes
N/O & N/C
Single function, H07 RNF, 10M cable, counterweight
Art:
GSUH3G110NGC1 Copied
10 m
H07RN-F
Yes
N/O & N/C
Single function, H07 RNF, 15M cable, counterweight
Art:
GSUH3G115NGC1 Copied
15 m
H07RN-F
Yes
N/O & N/C
Single function, H07 RNF, 20M cable, counterweight
Art:
GSUH3G120NGC1 Copied
20 m
H07RN-F
Yes
N/O & N/C
Double function, H07 RNF, 5M cable, counterweight
Art:
GSUH3X105NGC1 Copied
5 m
H07RN-F
Yes
Changeover (SPDT)
Double function, H07 RNF, 10M cable, counterweight
Art:
GSUH3X110NGC1 Copied
10 m
H07RN-F
Yes
Changeover (SPDT)
Double function, H07 RNF, 15M cable, counterweight
Art:
GSUH3X115NGC1 Copied
15 m
H07RN-F
Yes
Changeover (SPDT)
Double function, H07 RNF, 20M cable, counterweight
Art:
GSUH3X120NGC1 Copied
20 m
H07RN-F
Yes
Changeover (SPDT)
Double function, H05 RNF, 5M cable, counterweight
Art:
GSU53X105NGC1 Copied
5 m
H05RN-F
Yes
Changeover (SPDT)
Double function, H05 RNF, 10M cable, counterweight
Art:
GSU53X110NGC1 Copied
10 m
H05RN-F
Yes
Changeover (SPDT)
Double function, H05 RNF, 15M cable, counterweight
Art:
GSU53X115NGC1 Copied
15 m
H05RN-F
Yes
Changeover (SPDT)
Double function, H05 RNF, 20M cable, counterweight
Art:
GSU53X120NGC1 Copied
20 m
H05RN-F
Yes
Changeover (SPDT)
