TECNOPLASTIC

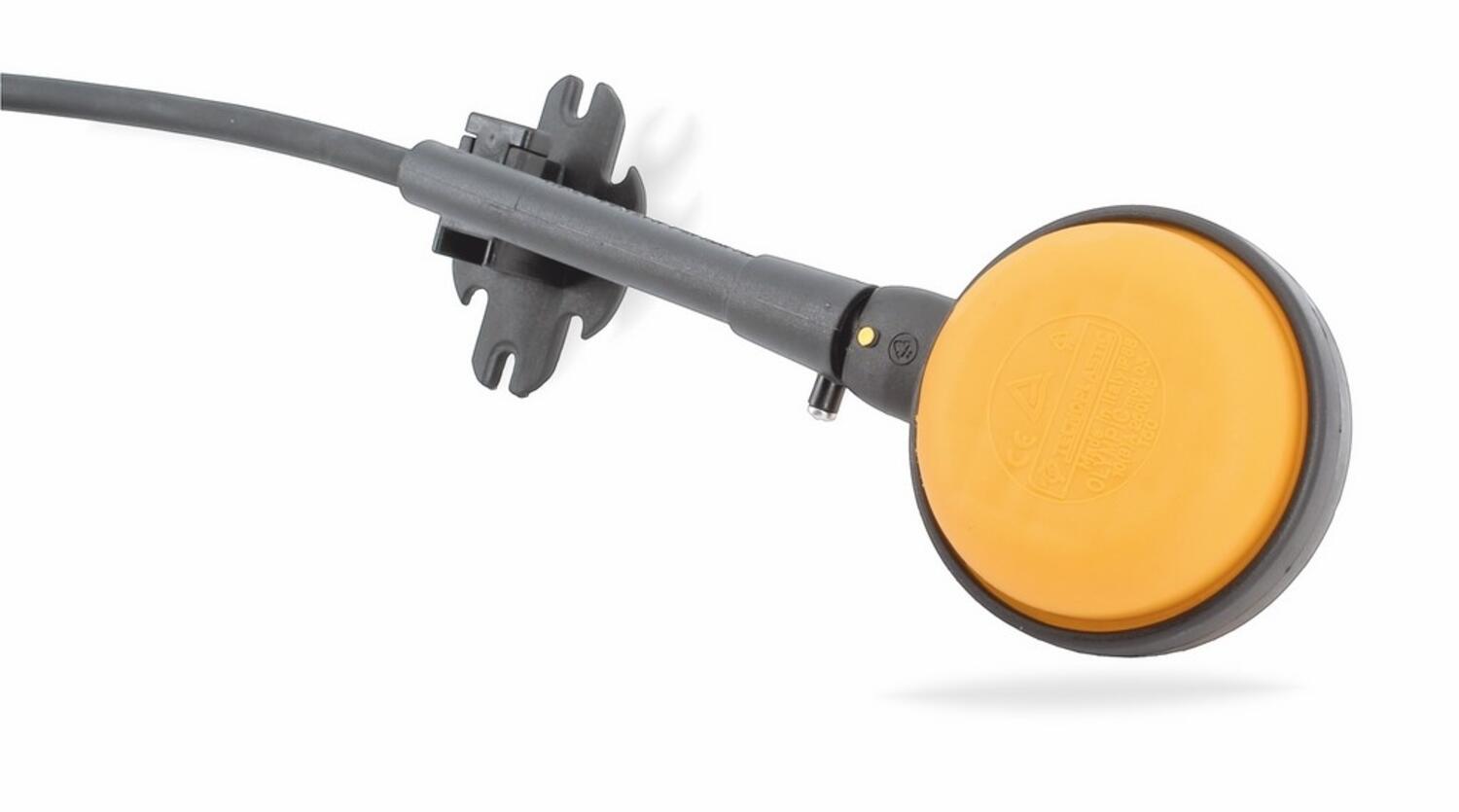

TECNOPLASTIC - FLOAT SWITCH - OLYMPIC 03

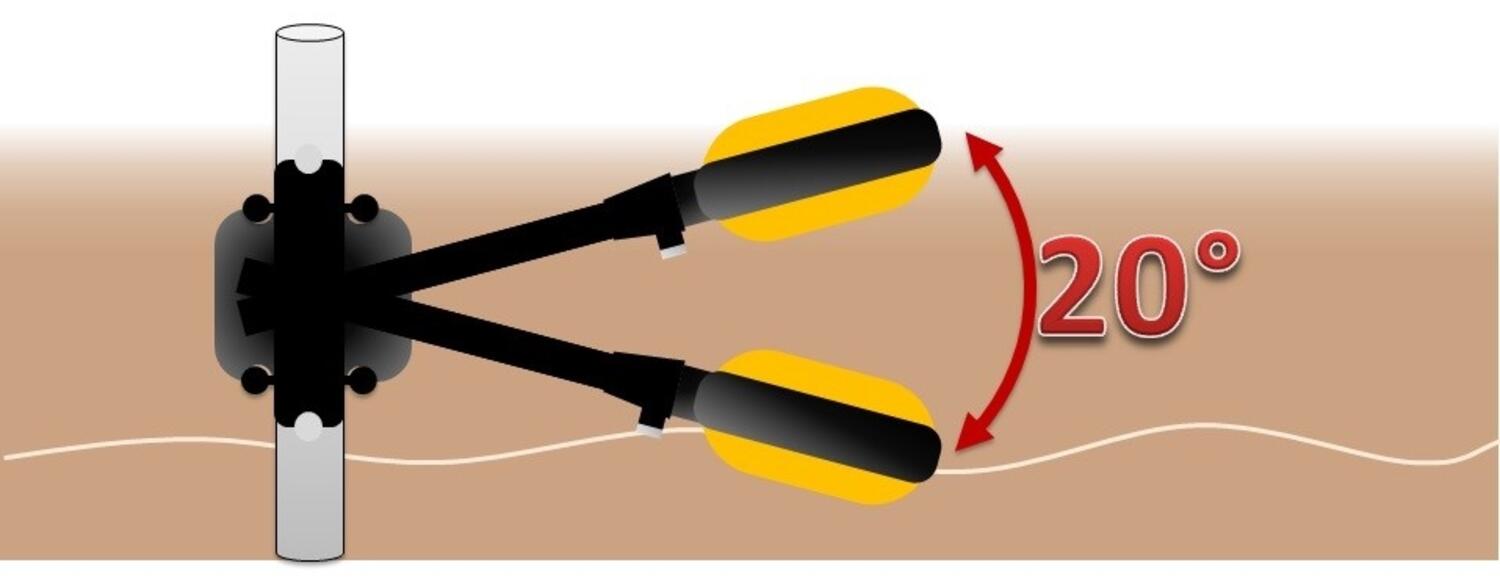

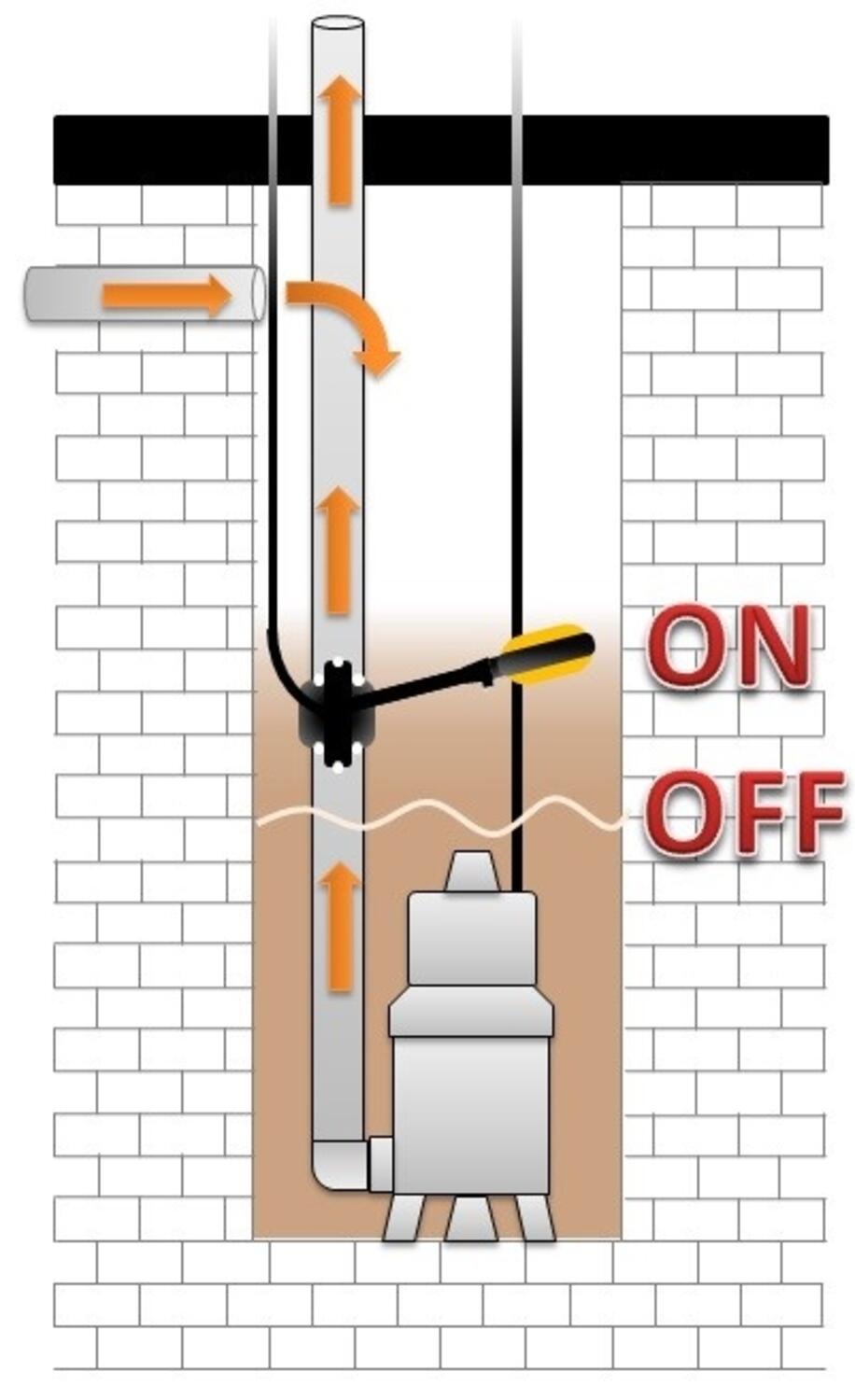

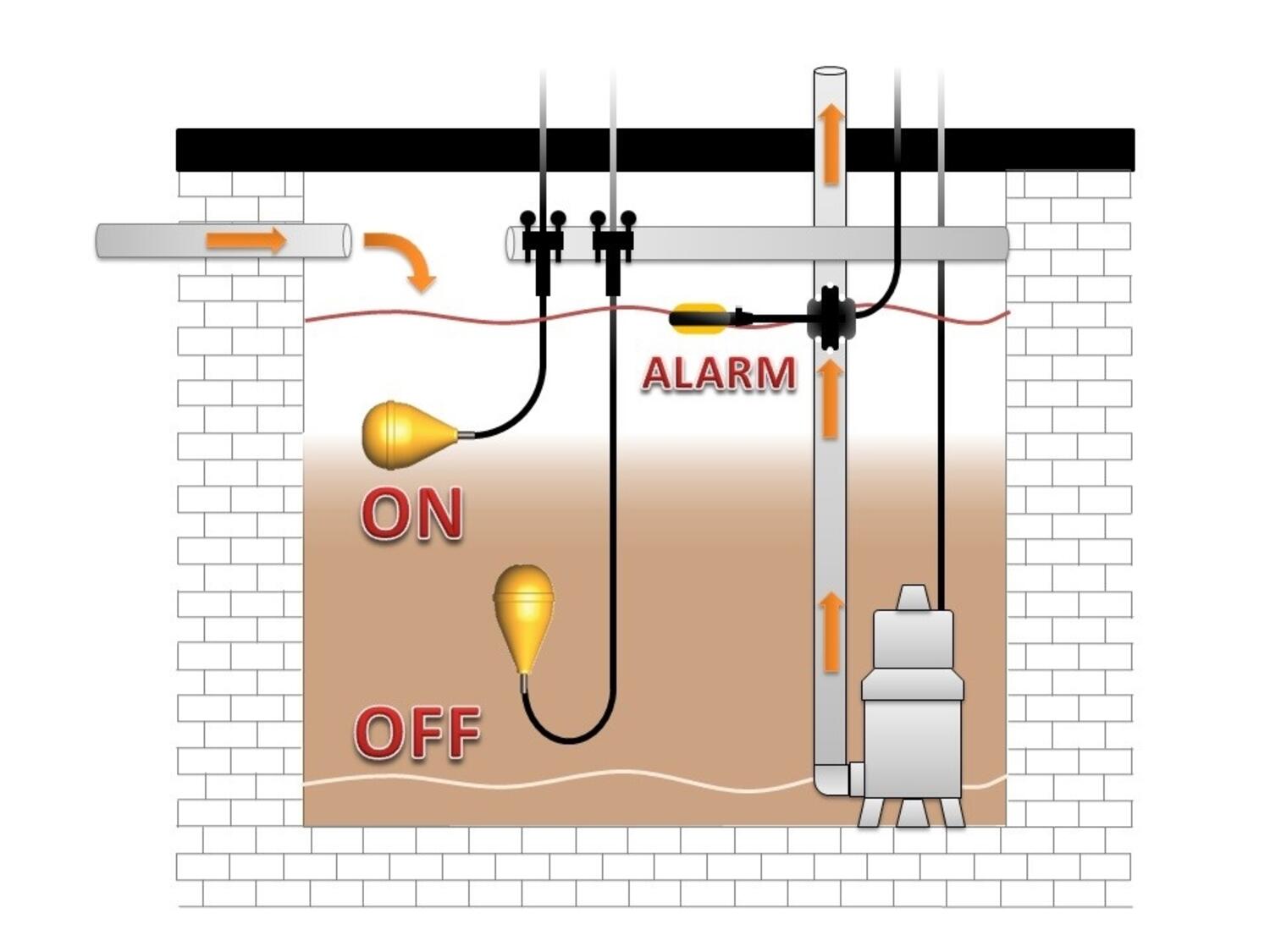

This float switch has an activation angle of 20° for overflow alarm. Constructed with materials very resistant to mechanical stress, it’s ideal for applications in turbulent waters as it can help prevent the cable from tangling up so the float can work properly. This can be fitted to wells and tanks with screws (not supplied) or to pipping on pumps of any diameter using the cable ties which are supplied. Assembled with right (recommended) or left orientation, the float switch can be installed in 3 different positions horizontal, vertical, and vertical 180° to allow the regulation of small changes in minimum and maximum level.
This can be used in narrow spaces, sewage, and industrial waters.
- Maximum depth of 20 metres
- 20° Activation Angle
- Bamboo Arm Included
- Up to 50°C
Selected variant
Technical data
| Activation angle | 20 ° |
|---|---|
| Approvals | CE, EAC, TÜV |
| Cable type | H07RN-F |
| Depth max | 10 m |
| Insulation class | I |
| IP class | IP68 |
| Material of float | Polypropylene |
|---|---|
| Operating temperature to | 50 °C |
| Rated current | 10 A |
| Supply voltage | 250 V |
Downloads
Product description
This float switch has an activation angle of 20° for overflow alarm. Constructed with materials very resistant to mechanical stress, it’s ideal for applications in turbulent waters as it can help prevent the cable from tangling up so the float can work properly. This can be fitted to wells and tanks with screws (not supplied) or to pipping on pumps of any diameter using the cable ties which are supplied. Assembled with right (recommended) or left orientation, the float switch can be installed in 3 different positions horizontal, vertical, and vertical 180° to allow the regulation of small changes in minimum and maximum level.
This can be used in narrow spaces, sewage, and industrial waters.
