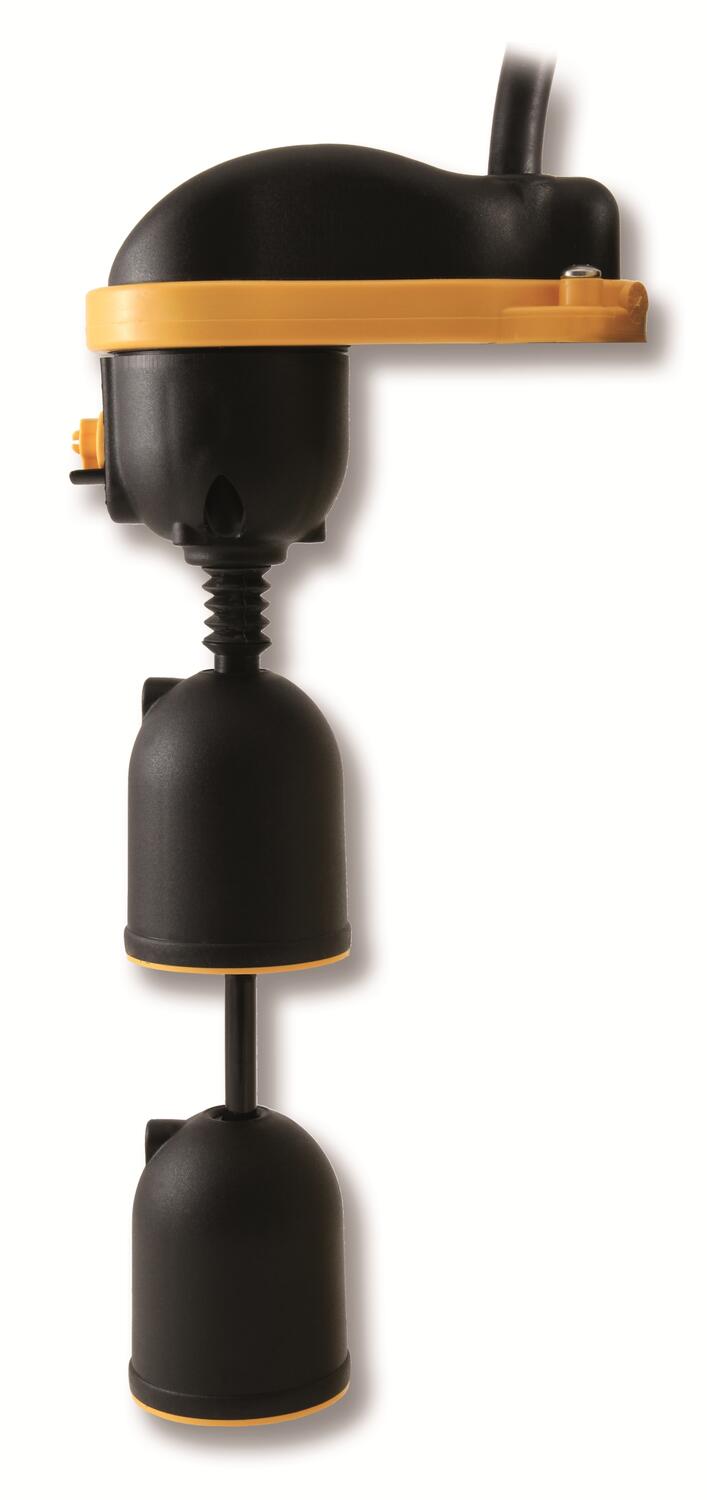

Tecnoplastic - Float Switch - MOUSE B

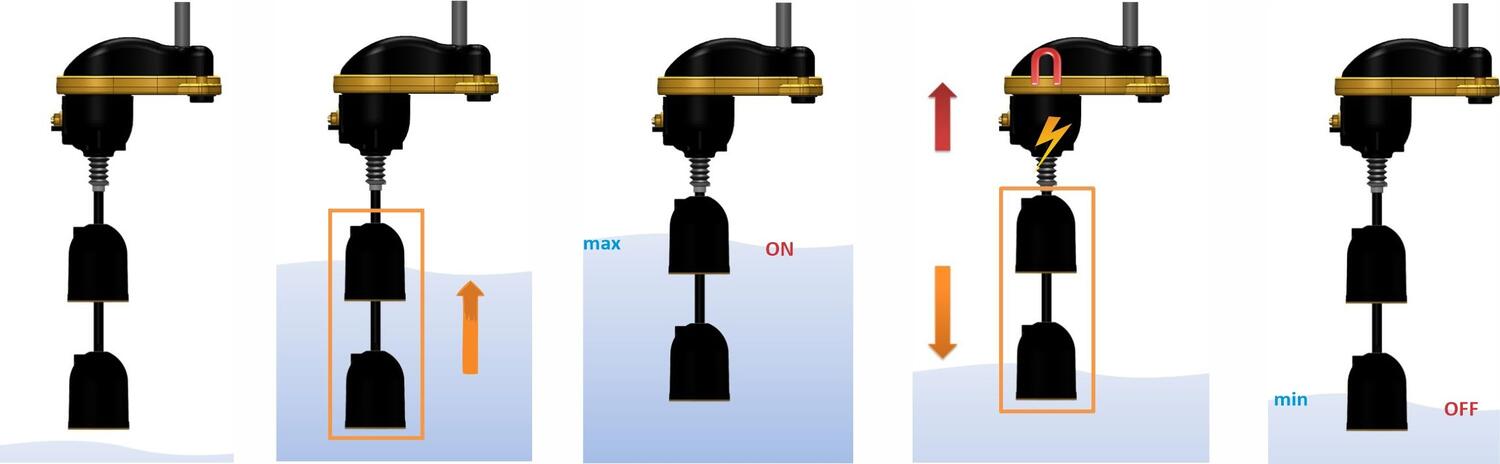

The Mouse B from Tecnoplastic is a popular style of level switch for narrow spaces, where regular floats don’t have enough moving area. The user can adjust the floats up and down the stem to their preferred minimum or maximum.
Suitable for control in clean water, sewage water, industrial water systems and in systems with water in chemical substances.
- Maximum depth of 200mm
- Single or double function
- Up to 50°C
- Ideal for narrow spaces
Selected variant
Technical data
| Approvals | CE, TÜV |
|---|---|
| Cable length | 0.52 m |
| Cable type | H07 RNF |
| Depth max | 0.2 m |
| Function | N/O & N/C |
| Insulation class | I-II |
| IP class | IP68 |
| Material of float | Polypropylene |
|---|---|
| Material of seals | EPDM |
| Material of stem | PET |
| Operating temperature to | 50 °C |
| Rated current | 8 A |
| Supply voltage | 250 V |
Product description
The Mouse B from Tecnoplastic is a popular style of level switch for narrow spaces, where regular floats don’t have enough moving area. The user can adjust the floats up and down the stem to their preferred minimum or maximum.
Suitable for control in clean water, sewage water, industrial water systems and in systems with water in chemical substances.
