TECNOPLASTIC

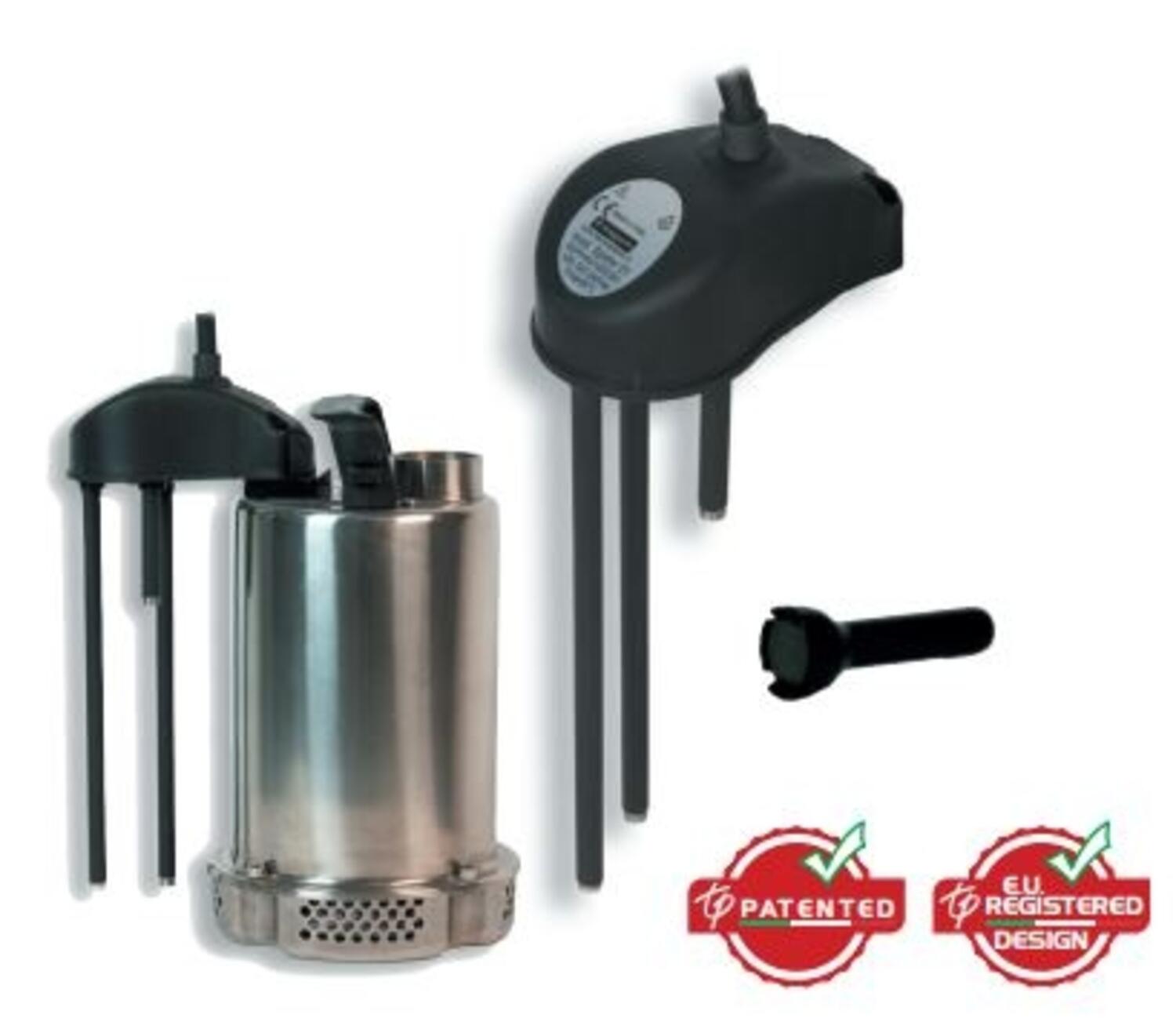

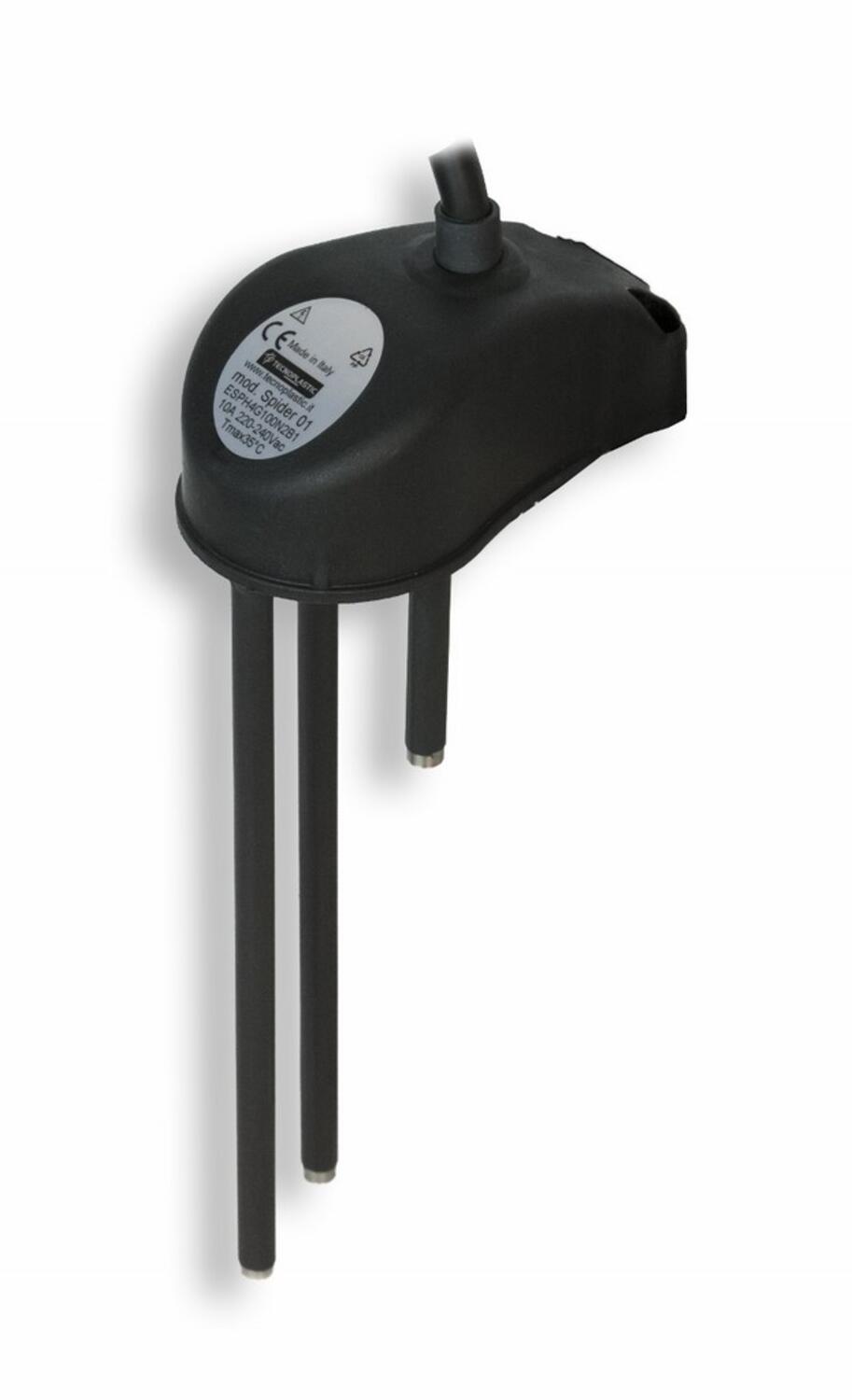

Tecnoplastic - Electronic Level Switch - Spider
The spider has 3 batons common, minimum level and maximum level, common and minimum level should always be the same length. These batons are attached to the level switch to allow it to work in narrow spaces and turbulent waters. With the use of a magnetic key which is supplied with the product you can adjust the start/stop delay time to your needs.
Suitable for level monitoring of clear, storm water, industrial and chemical waters.
- Adjustable start/stop delay time
- Rod lengths 250mm/500mm/750mm
- Up to 50°C
- IP68 Protection grade
Selected variant
Technical data
| Approvals | CE, EAC, TÃœV |
|---|---|
| Cable length | 10 m |
| Cable type | H07RN-F |
| Depth max | 10 m |
| Insulation class | I |
| IP class | IP68 |
| Material of float | Polypropylene |
|---|---|
| Material of stem | AISI 316 |
| Operating temperature to | 40 °C |
| Rated current | 10 A |
| Supply voltage | 24 V |
Downloads
Product description
The spider has 3 batons common, minimum level and maximum level, common and minimum level should always be the same length. These batons are attached to the level switch to allow it to work in narrow spaces and turbulent waters. With the use of a magnetic key which is supplied with the product you can adjust the start/stop delay time to your needs.
Suitable for level monitoring of clear, storm water, industrial and chemical waters.
