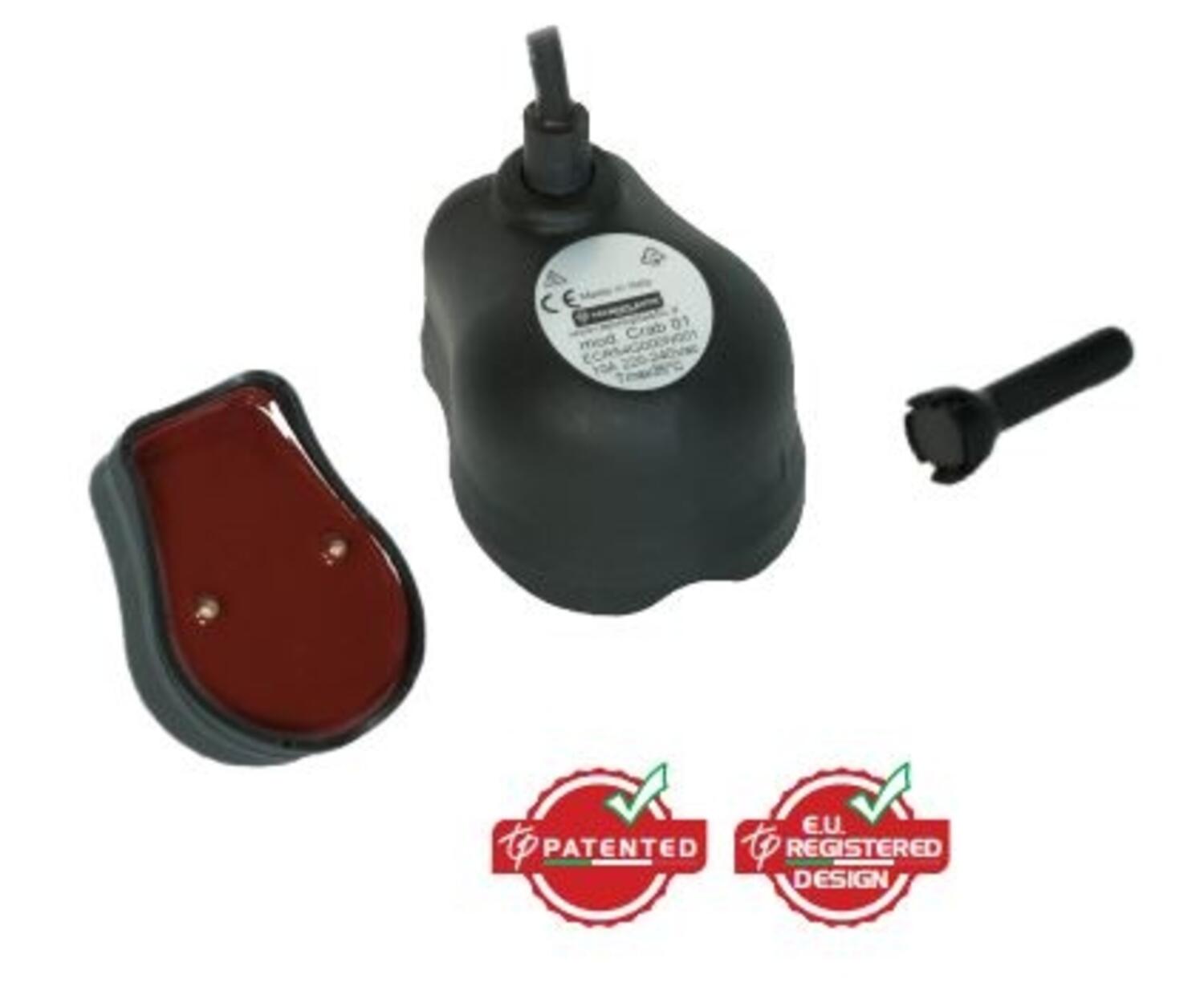

Tecnoplastic - Electronic Level Switch - Crab
This level switch is designed to rest on a flat surface where it remains settled at the bottom, allowing it to trace water level coming from the floor. With the use of a magnetic key which is supplied with the product you can adjust the start/stop delay time to your needs. They come pre-set to Start after 5 seconds and stop after 30 seconds, they adjustment rage between 1 – 120 seconds.
Suitable for level monitoring of clear, storm water, industrial and chemical waters.
- Adjustable start/stop delay time
- 10 meters maximum depth
- Up to 50°C
- IP68 Protection grade
Selected variant
Technical data
| Approvals | CE, EAC, TÜV |
|---|---|
| Cable length | 5 m |
| Cable type | H05RN-F |
| Depth max | 10 m |
| Insulation class | I |
| IP class | IP68 |
| Material of float | Polypropylene |
|---|---|
| Operating temperature to | 50 °C |
| Rated current | 5 A |
| Supply voltage | 230 V |
Downloads
Product description
This level switch is designed to rest on a flat surface where it remains settled at the bottom, allowing it to trace water level coming from the floor. With the use of a magnetic key which is supplied with the product you can adjust the start/stop delay time to your needs. They come pre-set to Start after 5 seconds and stop after 30 seconds, they adjustment rage between 1 – 120 seconds.
Suitable for level monitoring of clear, storm water, industrial and chemical waters.
