Definox - DCX 3 & DCX 4 Mini

Manual & Pneumatic

Definox Mini Seat Valves.

This seat valve design offers a wide range of options and variants.

Technical advantages:

· From 1/2" to 1"

· Fitted with PEEK plug as standard - inert to chemical products

· Welded or Clamp ends possible

· Ergonomic handle with visual opening indicator

· Elastomer seal avaliable for charged products

· High packing pressure

· Self-contained and compact body with a wide range of configuration options:

· Possible use on a wide range of applications

· Easy and fast maintenance thanks to the clamp assembly

Read more
  • High packing pressure
  • Independent and compact body
  • Many configuration options
  • Possible use on a wide range of applications

Selected variant

Available in several variants
Definox_logo_text.tif

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Certificate 3.1 EN10204
Connection type Weld ends
Description PEEK PLUG
Housing L Body
Housing EPDM
Inner diameter 9.4 mm
Material quality 1.4404
Operating pressure max 18 bar
Outer diameter 12.7 mm
Surface finish Indv.: RA 0,8µm Udv.: 1,2µm
Temperature operational max 140 °C
Temperature operational min -5 °C
Weight 0.6 kg

Downloads

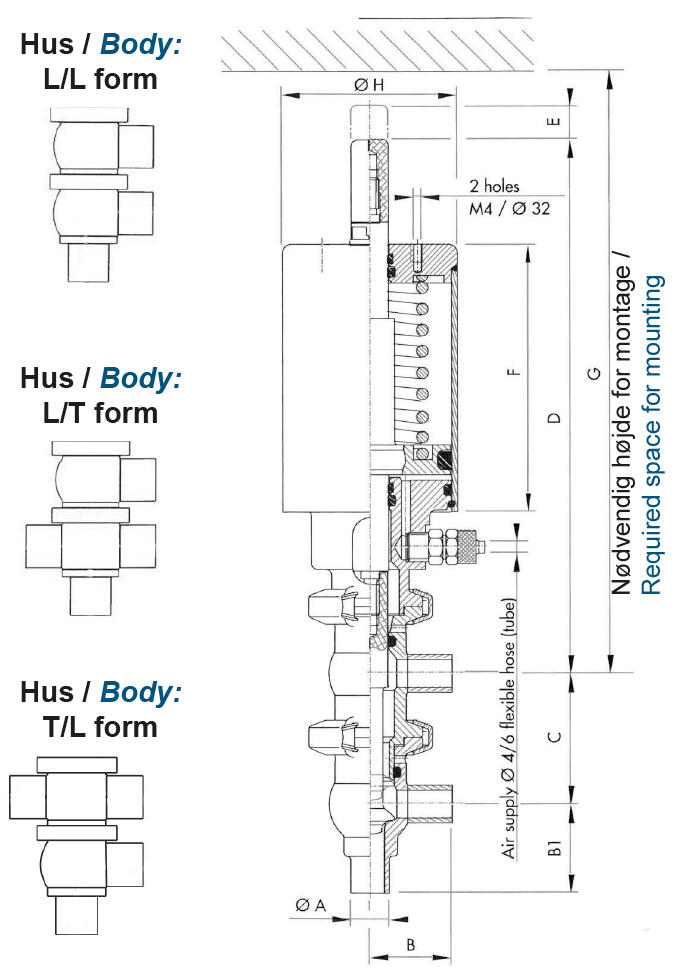

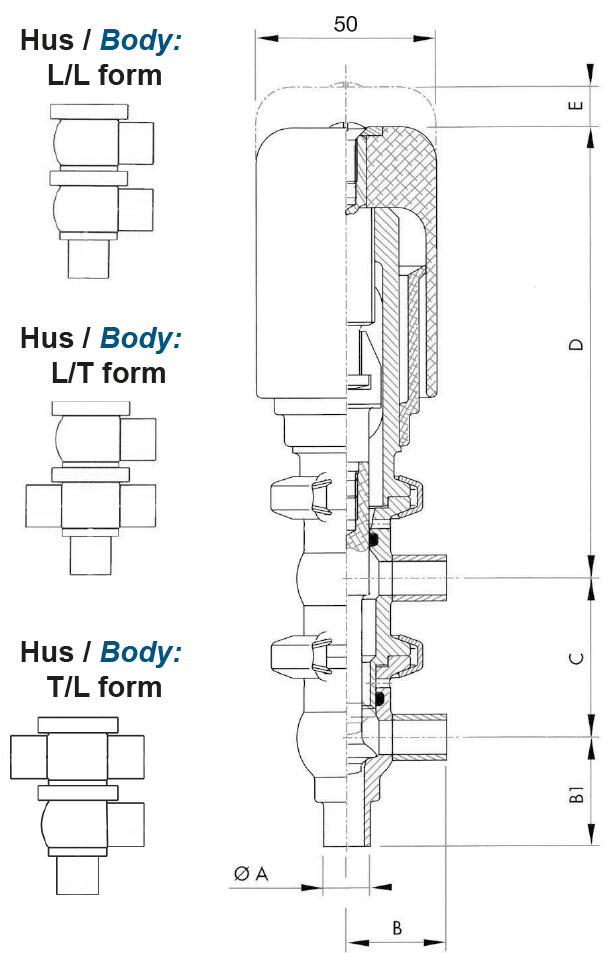

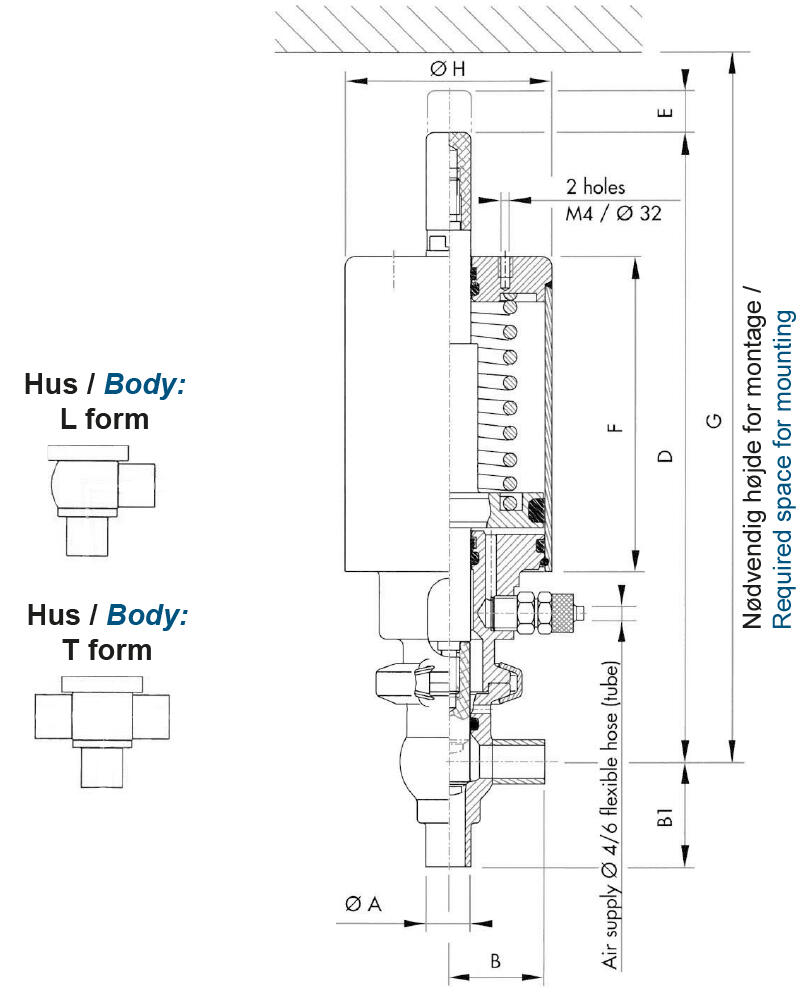

Technical illustrations

Product description

Definox Mini Seat Valves.

This seat valve design offers a wide range of options and variants.

Technical advantages:

· From 1/2" to 1"

· Fitted with PEEK plug as standard - inert to chemical products

· Welded or Clamp ends possible

· Ergonomic handle with visual opening indicator

· Elastomer seal avaliable for charged products

· High packing pressure

· Self-contained and compact body with a wide range of configuration options:

· Possible use on a wide range of applications

· Easy and fast maintenance thanks to the clamp assembly

Accessories

Related

water treatment plant tank- water and wastewater - OEM Automatic Solutions
Learning hub

Water & Wastewater Solutions

OEM Automatics water and wastewater application specialists have gathered all our solutions in one place. Our products are used in everything from small municipal water works to larger regional plants.

Selection of pumps - understanding velocity and why it matters when choosing a pump
Learning hub

understanding viscosity - And Why It Matters When Choosing A Pump

Whether you’re pumping water, chocolate, oil or peanut butter knowing the product’s viscosity is essential to selecting the right pump. Find out more about viscosity and which pump may be suitable for your application!

Tecnoplastic float switch
Product news

Float switches built to perform and ready to ship

Whether you're looking to upgrade your current solution or secure a more robust float switch for your next project, Taurus delivers performance you can count on.

groups of pressure switches and sensors with reservoir background - pressure sensors or switches
Learning hub

How do I know if I need a pressure switch or a pressure sensor?

When choosing between a pressure switch and a pressure sensor, the key lies in understanding your application. Our Pressure Monitoring experts breaks down the two devices for you.

SAMOA pumps
Product news

We offer air diaphragm pumps by SAMOA

Pumps are now officially part of our product offering! As we build our pump portfolio, we’re proud to announce that we are an official distributor of SAMOA Industrial, a well-established name in the fluid handling industry.

Barcode scanner technology: choosing the right technology for your application
Learning hub

Barcode Scanner Technology: Choosing The Right Technology For Your Application

OEM Automatic's barcode scanner experts have broken down barcode technology to help you choose the right scanner for your application!

Parts Description Housing Housing Inner diameter Outer diameter Weight Price

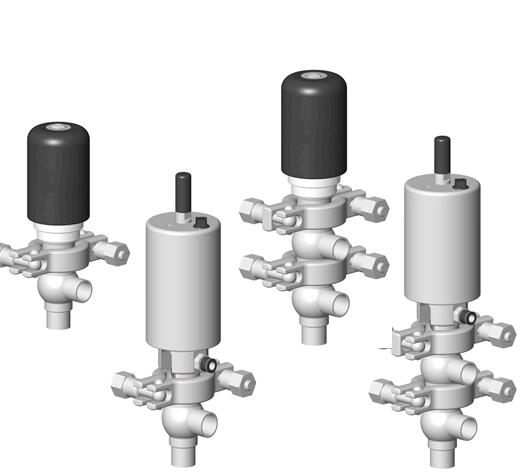

DCX 3 Mini group 2018.PNG
DCX3 mini, ½" L-body, Manual, PEEK/EPDM
Art:
DE-NU012F11100 Copied
PEEK PLUG
L Body
EPDM
9.4 mm
12.7 mm
0.6 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" L-body, NC pneumatic, PEEK/EPDM
Art:
DE-NU012A11100 Copied
PEEK PLUG
L Body
EPDM
9.4 mm
12.7 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" T-body, Manual, PEEK/EPDM
Art:
DE-NU012F21100 Copied
PEEK PLUG
T Body
EPDM
9.4 mm
12.7 mm
0.6 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" T-body, NC pneumatic, PEEK/EPDM
Art:
DE-NU012A21100 Copied
PEEK PLUG
T Body
EPDM
9.4 mm
12.7 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" L-body, Manual, PEEK/FKM
Art:
DE-NU012F12100 Copied
PEEK PLUG
L Body
FKM
9.4 mm
12.7 mm
0.6 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" L-body, NC pneumatic, PEEK/FKM
Art:
DE-NU012A12100 Copied
PEEK PLUG
T Body
FKM
9.4 mm
12.7 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" L-body, Manual, SS/EPDM
Art:
DE-NU012F14100 Copied
STEEL PLUG
L Body
EPDM
9.4 mm
12.7 mm
0.6 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" L-body, NC pneumatic, SS/EPDM
Art:
DE-NU012A14100 Copied
PEEK PLUG
T Body
FKM
9.4 mm
12.7 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" L-body, Manual, SS/FKM
Art:
DE-NU012F15100 Copied
STEEL PLUG
L Body
FKM
9.4 mm
12.7 mm
0.6 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" L-body, NC pneumatic, SS/FKM
Art:
DE-NU012A15100 Copied
STEEL PLUG
L Body
FKM
9.4 mm
12.7 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" L-body, Manual, SS/PFA/FKM
Art:
DE-NU012F17100 Copied
STEEL PLUG
L Body
PFA/FKM
9.4 mm
12.7 mm
0.6 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" L-body, NC pneumatic, SS/PFA/FKM
Art:
DE-NU012A17100 Copied
STEEL PLUG
L Body
PFA/FKM
9.4 mm
12.7 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" T-body, Manual, PEEK/FKM
Art:
DE-NU012F22100 Copied
PEEK PLUG
T Body
FKM
9.4 mm
12.7 mm
0.6 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" T-body, NC pneumatic, PEEK/FKM
Art:
DE-NU012A22100 Copied
PEEK PLUG
T Body
FKM
9.4 mm
12.7 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" T-body, Manual, SS/EPDM
Art:
DE-NU012F24100 Copied
STEEL PLUG
T Body
EPDM
9.4 mm
12.7 mm
0.6 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" T-body, NC pneumatic, SS/EPDM
Art:
DE-NU012A24100 Copied
STEEL PLUG
T Body
EPDM
9.4 mm
12.7 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" T-body, Manual, SS/FKM
Art:
DE-NU012F25100 Copied
STEEL PLUG
T Body
FKM
9.4 mm
12.7 mm
0.6 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" T-body, NC pneumatic, SS/FKM
Art:
DE-NU012A25100 Copied
STEEL PLUG
T Body
FKM
9.4 mm
12.7 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" T-body, Manual, SS/PFA/FKM
Art:
DE-NU012F27100 Copied
STEEL PLUG
T Body
PFA/FKM
9.4 mm
12.7 mm
0.6 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" T-body, NC pneumatic, SS/PFA/FKM
Art:
DE-NU012A27100 Copied
STEEL PLUG
T Body
PFA/FKM
9.4 mm
12.7 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" X-body, Manual, PEEK/EPDM
Art:
DE-NU012F31100 Copied
PEEK PLUG
X Body
EPDM
9.4 mm
12.7 mm
0.6 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" X-body, NC pneumatic, PEEK/EPDM
Art:
DE-NU012A31100 Copied
PEEK PLUG
X Body
EPDM
9.4 mm
12.7 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" X-body, Manual, PEEK/FKM
Art:
DE-NU012F32100 Copied
PEEK PLUG
X Body
FKM
9.4 mm
12.7 mm
0.6 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" X-body, NC pneumatic, PEEK/FKM
Art:
DE-NU012A32100 Copied
PEEK PLUG
X Body
FKM
9.4 mm
12.7 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" X-body, Manual, SS/EPDM
Art:
DE-NU012F34100 Copied
STEEL PLUG
X Body
EPDM
9.4 mm
12.7 mm
0.6 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" X-body, NC pneumatic, SS/EPDM
Art:
DE-NU012A34100 Copied
STEEL PLUG
X Body
EPDM
9.4 mm
12.7 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" X-body, Manual, SS/FKM
Art:
DE-NU012F35100 Copied
STEEL PLUG
X Body
FKM
9.4 mm
12.7 mm
0.6 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" X-body, NC pneumatic, SS/FKM
Art:
DE-NU012A35100 Copied
STEEL PLUG
X Body
FKM
9.4 mm
12.7 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" X-body, Manual, SS/PFA/FKM
Art:
DE-NU012F37100 Copied
STEEL PLUG
X Body
PFA/FKM
9.4 mm
12.7 mm
0.6 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" X-body, NC pneumatic, SS/PFA/FKM
Art:
DE-NU012A37100 Copied
STEEL PLUG
X Body
PFA/FKM
9.4 mm
12.7 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" L-body, Manual, PEEK/EPDM
Art:
DE-NU019F11100 Copied
PEEK PLUG
L Body
EPDM
15.75 mm
19.05 mm
0.7 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" L-body, NC pneumatic, PEEK/EPDM
Art:
DE-NU019A11100 Copied
PEEK PLUG
L Body
EPDM
15.75 mm
19.05 mm
0.7 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" L-body, Manual, PEEK/FKM
Art:
DE-NU019F12100 Copied
PEEK PLUG
L Body
FKM
15.75 mm
19.05 mm
0.7 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" L-body, NC pneumatic, PEEK/FKM
Art:
DE-NU019A12100 Copied
PEEK PLUG
L Body
FKM
15.75 mm
19.05 mm
0.7 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" L-body, Manual, SS/EPDM
Art:
DE-NU019F14100 Copied
STEEL PLUG
L Body
EPDM
15.75 mm
19.05 mm
0.7 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" L-body, NC pneumatic, SS/EPDM
Art:
DE-NU019A14100 Copied
STEEL PLUG
L Body
EPDM
15.75 mm
19.05 mm
0.7 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" L-body, Manual, SS/FKM
Art:
DE-NU019F15100 Copied
STEEL PLUG
L Body
FKM
15.75 mm
19.05 mm
0.7 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" L-body, NC pneumatic, SS/FKM
Art:
DE-NU019A15100 Copied
STEEL PLUG
L Body
FKM
15.75 mm
19.05 mm
0.7 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" L-body, Manual, SS/PFA/FKM
Art:
DE-NU019F17100 Copied
STEEL PLUG
L Body
PFA/FKM
15.75 mm
19.05 mm
0.7 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" L-body, NC pneumatic, SS/PFA/FKM
Art:
DE-NU019A17100 Copied
STEEL PLUG
L Body
PFA/FKM
15.75 mm
19.05 mm
0.7 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" T-body, Manual, PEEK/EPDM
Art:
DE-NU019F21100 Copied
PEEK PLUG
T Body
EPDM
15.75 mm
19.05 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" T-body, NC pneumatic, PEEK/EPDM
Art:
DE-NU019A21100 Copied
PEEK PLUG
T Body
EPDM
15.75 mm
19.05 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" T-body, Manual, PEEK/FKM
Art:
DE-NU019F22100 Copied
PEEK PLUG
T Body
FKM
15.75 mm
19.05 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" T-body, NC pneumatic, PEEK/FKM
Art:
DE-NU019A22100 Copied
PEEK PLUG
T Body
FKM
15.75 mm
19.05 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" T-body, Manual, SS/EPDM
Art:
DE-NU019F24100 Copied
STEEL PLUG
T Body
EPDM
15.75 mm
19.05 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" T-body, NC pneumatic, SS/EPDM
Art:
DE-NU019A24100 Copied
STEEL PLUG
T Body
EPDM
15.75 mm
19.05 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" T-body, Manual, SS/FKM
Art:
DE-NU019F25100 Copied
STEEL PLUG
T Body
FKM
15.75 mm
19.05 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" T-body, NC pneumatic, SS/FKM
Art:
DE-NU019A25100 Copied
STEEL PLUG
T Body
FKM
15.75 mm
19.05 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" T-body, Manual, SS/PFA/FKM
Art:
DE-NU019F27100 Copied
STEEL PLUG
T Body
PFA/FKM
15.75 mm
19.05 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" T-body, NC pneumatic, SS/PFA/FKM
Art:
DE-NU019A27100 Copied
STEEL PLUG
T Body
PFA/FKM
15.75 mm
19.05 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" X-body, Manual, PEEK/EPDM
Art:
DE-NU019F31100 Copied
PEEK PLUG
X Body
EPDM
15.75 mm
19.05 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" X-body, NC pneumatic, PEEK/EPDM
Art:
DE-NU019A31100 Copied
PEEK PLUG
X Body
EPDM
15.75 mm
19.05 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" X-body, Manual, PEEK/FKM
Art:
DE-NU019F32100 Copied
PEEK PLUG
X Body
FKM
15.75 mm
19.05 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" X-body, NC pneumatic, PEEK/FKM
Art:
DE-NU019A32100 Copied
PEEK PLUG
X Body
FKM
15.75 mm
19.05 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" X-body, Manual, SS/EPDM
Art:
DE-NU019F34100 Copied
STEEL PLUG
X Body
EPDM
15.75 mm
19.05 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" X-body, NC pneumatic, SS/EPDM
Art:
DE-NU019A34100 Copied
STEEL PLUG
X Body
EPDM
15.75 mm
19.05 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" X-body, Manual, SS/FKM
Art:
DE-NU019F35100 Copied
STEEL PLUG
X Body
FKM
15.75 mm
19.05 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" X-body, NC pneumatic, SS/FKM
Art:
DE-NU019A35100 Copied
STEEL PLUG
X Body
FKM
15.75 mm
19.05 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" X-body, Manual. SS/PFA/FKM
Art:
DE-NU019F37100 Copied
STEEL PLUG
X Body
PFA/FKM
15.75 mm
19.05 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" X-body, NC pneumatic, SS/PFA/FKN
Art:
DE-NU019A37100 Copied
STEEL PLUG
X Body
PFA/FKM
15.75 mm
19.05 mm
1.5 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" L-body, Manual, PEEK/EPDM
Art:
DE-NU025F11100 Copied
PEEK PLUG
L Body
EPDM
22.1 mm
25.4 mm
1.9 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" L-body, NC pneumatic, PEEK/EPDM
Art:
DE-NU025A11100 Copied
PEEK PLUG
L Body
EPDM
22.1 mm
25.4 mm
1.9 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" L-body, Manual, PEEK/FKM
Art:
DE-NU025F12100 Copied
PEEK PLUG
L Body
FKM
22.1 mm
25.4 mm
1.9 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" L-body, NC pneumatic, PEEK/FKM
Art:
DE-NU025A12100 Copied
PEEK PLUG
L Body
FKM
22.1 mm
25.4 mm
1.9 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" L-body, Manual, SS/EPDM
Art:
DE-NU025F14100 Copied
STEEL PLUG
L Body
EPDM
22.1 mm
25.4 mm
1.9 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" L-body, NC pneumatic, SS/EPDM
Art:
DE-NU025A14100 Copied
STEEL PLUG
L Body
EPDM
22.1 mm
25.4 mm
1.9 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" L-body, Manual, SS/FKM
Art:
DE-NU025F15100 Copied
STEEL PLUG
L Body
FKM
22.1 mm
25.4 mm
1.9 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" L-body, NC pneumatic, SS/FKM
Art:
DE-NU025A15100 Copied
STEEL PLUG
L Body
FKM
22.1 mm
25.4 mm
1.9 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" L-body, Manual, SS/PFA/FKM
Art:
DE-NU025F17100 Copied
STEEL PLUG
L Body
PFA/FKM
22.1 mm
25.4 mm
1.9 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" L-body, NC pneumatic, SS/PFA/FKM
Art:
DE-NU025A17100 Copied
STEEL PLUG
L Body
PFA/FKM
22.1 mm
25.4 mm
1.9 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" T-body, Manual, PEEK/EPDM
Art:
DE-NU025F21100 Copied
PEEK PLUG
T Body
EPDM
22.1 mm
25.4 mm
1.9 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" T-body, NC pneumatic, PEEK/EPDM
Art:
DE-NU025A21100 Copied
PEEK PLUG
T Body
EPDM
22.1 mm
25.4 mm
1.9 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" T-body, Manual, PEEK/FKM
Art:
DE-NU025F22100 Copied
PEEK PLUG
T Body
FKM
22.1 mm
25.4 mm
1.9 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" T-body, NC pneumatic, PEEK/FKM
Art:
DE-NU025A22100 Copied
PEEK PLUG
T Body
FKM
22.1 mm
25.4 mm
1.9 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" T-body, Manual, SS/EPDM
Art:
DE-NU025F24100 Copied
STEEL PLUG
T Body
EPDM
22.1 mm
25.4 mm
1.9 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" T-body, NC pneumatic, SS/EPDM
Art:
DE-NU025A24100 Copied
STEEL PLUG
T Body
EPDM
22.1 mm
25.4 mm
1.9 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" T-body, Manual, SS/FKM
Art:
DE-NU025F25100 Copied
STEEL PLUG
T Body
FKM
22.1 mm
25.4 mm
1.9 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" T-body, NC pneumatic, SS/FKM
Art:
DE-NU025A25100 Copied
STEEL PLUG
T Body
FKM
22.1 mm
25.4 mm
1.9 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" T-body, Manual, SS/PFA/FKM
Art:
DE-NU025F27100 Copied
STEEL PLUG
T Body
PFA/FKM
22.1 mm
25.4 mm
1.9 kg
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" T-body, NC pneumatic, SS/PFA/FKM
Art:
DE-NU025A27100 Copied
STEEL PLUG
T Body
PFA/FKM
22.1 mm
25.4 mm
1.9 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-L-body, Manual, PEEK/EPDM
Art:
DE-MU012F11100 Copied
PEEK PLUG
L+L Body
EPDM
9.4 mm
12.7 mm
0.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-L-body, NC pneumatic, PEEK/EPDM
Art:
DE-MU012A11100 Copied
PEEK PLUG
L+L Body
EPDM
9.4 mm
12.7 mm
1.6 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-L-body, Manual, PEEK/FKM
Art:
DE-MU012F12100 Copied
PEEK PLUG
L+L Body
FKM
9.4 mm
12.7 mm
0.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-L-body, NC pneumatic, PEEK/FKM
Art:
DE-MU012A12100 Copied
PEEK PLUG
L+L Body
FKM
9.4 mm
12.7 mm
1.6 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-L-body, Manual, SS/EPDM
Art:
DE-MU012F14100 Copied
STEEL PLUG
L+L Body
EPDM
9.4 mm
12.7 mm
0.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-L-body, NC pneumatic, SS/EPDM
Art:
DE-MU012A14100 Copied
STEEL PLUG
L+L Body
EPDM
9.4 mm
12.7 mm
1.6 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-L-body, Manual, SS/FKM
Art:
DE-MU012F15100 Copied
STEEL PLUG
L+L Body
FKM
9.4 mm
12.7 mm
0.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-L-body, NC pneumatin, SS/FKM
Art:
DE-MU012A15100 Copied
STEEL PLUG
L+L Body
FKM
9.4 mm
12.7 mm
1.6 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-L-body, Manual, SS/PFA/FKM
Art:
DE-MU012F17100 Copied
STEEL PLUG
L+L Body
PFA/FKM
9.4 mm
12.7 mm
0.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-L-body, NC pneumatic, SS/PFA/FKM
Art:
DE-MU012A17100 Copied
STEEL PLUG
L+L Body
PFA/FKM
9.4 mm
12.7 mm
1.6 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" T-L-body, Manual, PEEK/EPDM
Art:
DE-MU012F21100 Copied
PEEK PLUG
T+L Body
EPDM
9.4 mm
12.7 mm
0.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" T-L-body, NC pneumatic, PEEK/EPDM
Art:
DE-MU012A21100 Copied
PEEK PLUG
T+L Body
EPDM
9.4 mm
12.7 mm
1.6 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" T-L-body, Manual, PEEK/FKM
Art:
DE-MU012F22100 Copied
PEEK PLUG
T+L Body
FKM
9.4 mm
12.7 mm
0.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" T-L-body, NC pneumatic, PEEK/FKM
Art:
DE-MU012A22100 Copied
PEEK PLUG
T+L Body
FKM
9.4 mm
12.7 mm
1.6 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" T-L-body, Manual, SS/EPDM
Art:
DE-MU012F24100 Copied
STEEL PLUG
T+L Body
EPDM
9.4 mm
12.7 mm
0.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" T-L-body, NC pneumatic, SS/EPDM
Art:
DE-MU012A24100 Copied
STEEL PLUG
T+L Body
EPDM
9.4 mm
12.7 mm
1.6 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" T-L-body, Manual, SS/FKM
Art:
DE-MU012F25100 Copied
STEEL PLUG
T+L Body
FKM
9.4 mm
12.7 mm
0.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" T-L-body, NC pneumatic, SS/FKM
Art:
DE-MU012A25100 Copied
STEEL PLUG
T+L Body
FKM
9.4 mm
12.7 mm
1.6 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" T-L-body, Manual, SS/PFA/FKM
Art:
DE-MU012F27100 Copied
STEEL PLUG
T+L Body
PFA/FKM
9.4 mm
12.7 mm
0.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" T-L-body, NC pneumatic, SS/PFA/FKM
Art:
DE-MU012A27100 Copied
STEEL PLUG
T+L Body
PFA/FKM
9.4 mm
12.7 mm
1.6 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-T-body, Manual, PEEK/EPDM
Art:
DE-MU012F31100 Copied
PEEK PLUG
L+T Body
EPDM
9.4 mm
12.7 mm
0.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-T-body, NC pneumatic, PEEK/EPDM
Art:
DE-MU012A31100 Copied
PEEK PLUG
L+T Body
EPDM
9.4 mm
12.7 mm
1.6 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-T-body, Manual, PEEK/FKM
Art:
DE-MU012F32100 Copied
PEEK PLUG
L+T Body
FKM
9.4 mm
12.7 mm
0.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-T-body, NC pneumatic, PEEK/FKM
Art:
DE-MU012A32100 Copied
PEEK PLUG
L+T Body
FKM
9.4 mm
12.7 mm
1.6 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-T-body, Manual, SS/EPDM
Art:
DE-MU012F34100 Copied
STEEL PLUG
L+T Body
EPDM
9.4 mm
12.7 mm
0.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-T-body, NC pneumatic, SS/EPDM
Art:
DE-MU012A34100 Copied
STEEL PLUG
L+T Body
EPDM
9.4 mm
12.7 mm
1.6 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-T-body, Manual, SS/FKM
Art:
DE-MU012F35100 Copied
STEEL PLUG
L+T Body
FKM
9.4 mm
12.7 mm
0.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-T-body, NC pneumatic, SS/FKM
Art:
DE-MU012A35100 Copied
STEEL PLUG
L+T Body
FKM
9.4 mm
12.7 mm
1.6 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-T-body, Manual, SS/PFA/FKM
Art:
DE-MU012F37100 Copied
STEEL PLUG
L+T Body
PFA/FKM
9.4 mm
12.7 mm
0.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-T-body, NC pneumatic, SS/PFA/FKM
Art:
DE-MU012A37100 Copied
STEEL PLUG
L+T Body
PFA/FKM
9.4 mm
12.7 mm
1.6 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-L-body, Manual, PEEK/EPDM
Art:
DE-MU019F11100 Copied
PEEK PLUG
L+L Body
EPDM
15.75 mm
19.05 mm
1.1 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-L-body, NC pneumatic, PEEK/EPDM
Art:
DE-MU019A11100 Copied
PEEK PLUG
L+L Body
EPDM
15.75 mm
19.05 mm
1.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-L-body, Manual, PEEK/FKM
Art:
DE-MU019F12100 Copied
PEEK PLUG
L+L Body
FKM
15.75 mm
19.05 mm
1.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-L-body, NC pneumatic, PEEK/FKM
Art:
DE-MU019A12100 Copied
PEEK PLUG
L+L Body
FKM
15.75 mm
19.05 mm
1.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-L-body, Manual, SS/EPDM
Art:
DE-MU019F14100 Copied
STEEL PLUG
L+L Body
EPDM
15.75 mm
19.05 mm
1.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-L body, NC pneumatic, SS/EPDM
Art:
DE-MU019A14100 Copied
STEEL PLUG
L+L Body
EPDM
15.75 mm
19.05 mm
1.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-L-body, Manual, SS/FKM
Art:
DE-MU019F15100 Copied
STEEL PLUG
L+L Body
FKM
15.75 mm
19.05 mm
1.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-L-body, NC pneumatic, SS/FKM
Art:
DE-MU019A15100 Copied
STEEL PLUG
L+L Body
FKM
15.75 mm
19.05 mm
1.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-L-body, Manual, SS/PFA/FKM
Art:
DE-MU019F17100 Copied
STEEL PLUG
L+L Body
PFA/FKM
15.75 mm
19.05 mm
1.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-L-body, NC pneumatic, SS/PFA/FKM
Art:
DE-MU019A17100 Copied
STEEL PLUG
L+L Body
PFA/FKM
15.75 mm
19.05 mm
1.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" T-L-body, Manual, PEEK/EPDM
Art:
DE-MU019F21100 Copied
PEEK PLUG
T+L Body
EPDM
15.75 mm
19.05 mm
1.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" T-L-body, NC pneumatic, PEEK/EPDM
Art:
DE-MU019A21100 Copied
PEEK PLUG
T+L Body
EPDM
15.75 mm
19.05 mm
1.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" T-L-body, Manual, PEEK/FKM
Art:
DE-MU019F22100 Copied
PEEK PLUG
T+L Body
FKM
15.75 mm
19.05 mm
1.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" T-L-body, NC pneumatic, PEEK/FKM
Art:
DE-MU019A22100 Copied
PEEK PLUG
T+L Body
FKM
15.75 mm
19.05 mm
1.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" T-L-body, Manual, SS/EPDM
Art:
DE-MU019F24100 Copied
STEEL PLUG
T+L Body
EPDM
15.75 mm
19.05 mm
1.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" T-L-body, NC pneumatic, SS/EPDM
Art:
DE-MU019A24100 Copied
STEEL PLUG
T+L Body
EPDM
15.75 mm
19.05 mm
1.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" T-L-body, Manual, SS/FKM
Art:
DE-MU019F25100 Copied
STEEL PLUG
T+L Body
FKM
15.75 mm
19.05 mm
1.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" T-L-body, NC pneumatic, SS/FKM
Art:
DE-MU019A25100 Copied
STEEL PLUG
T+L Body
FKM
15.75 mm
19.05 mm
1.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" T-L-body, Manual, SS/PFA/FKM
Art:
DE-MU019F27100 Copied
STEEL PLUG
T+L Body
PFA/FKM
15.75 mm
19.05 mm
1.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" T-L-body, NC pneumatic, SS/PFA/FKM
Art:
DE-MU019A27100 Copied
STEEL PLUG
T+L Body
PFA/FKM
15.75 mm
19.05 mm
1.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-T-body, Manual, PEEK/EPDM
Art:
DE-MU019F31100 Copied
PEEK PLUG
L+T Body
EPDM
15.75 mm
19.05 mm
1.1 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-T-body, NC pneumatic, PEEK/EPDM
Art:
DE-MU019A31100 Copied
PEEK PLUG
L+T Body
EPDM
15.75 mm
19.05 mm
1.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-T-body, Manual, PEEK/FKM
Art:
DE-MU019F32100 Copied
PEEK PLUG
L+T Body
FKM
15.75 mm
19.05 mm
1.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-T-body, NC pneumatic, PEEK/FKM
Art:
DE-MU019A32100 Copied
PEEK PLUG
L+T Body
FKM
15.75 mm
19.05 mm
1.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-T-body, Manual, SS/EPDM
Art:
DE-MU019F34100 Copied
STEEL PLUG
L+T Body
EPDM
15.75 mm
19.05 mm
1.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-T-body, NC pneumatic, SS/EPDM
Art:
DE-MU019A34100 Copied
STEEL PLUG
L+T Body
EPDM
15.75 mm
19.05 mm
1.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-T-body, Manual, SS/FKM
Art:
DE-MU019F35100 Copied
STEEL PLUG
L+T Body
FKM
15.75 mm
19.05 mm
1.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-T-body, NC pneumatic, SS/FKM
Art:
DE-MU019A35100 Copied
STEEL PLUG
L+T Body
FKM
15.75 mm
19.05 mm
1.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-T-body, Manual, SS/PFA/FKM
Art:
DE-MU019F37100 Copied
STEEL PLUG
L+T Body
PFA/FKM
15.75 mm
19.05 mm
1.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-T-body, NC pneumatic, SS/PFA/FKM
Art:
DE-MU019A37100 Copied
STEEL PLUG
L+T Body
PFA/FKM
15.75 mm
19.05 mm
1.7 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-L-body, Manual, PEEK/EPDM
Art:
DE-MU025F11100 Copied
PEEK PLUG
L+L Body
EPDM
22.1 mm
25.4 mm
1.9 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-L-body, NC pneumatic, PEEK/EPDM
Art:
DE-MU025A11100 Copied
PEEK PLUG
L+L Body
EPDM
22.1 mm
25.4 mm
2 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-L-body, Manual, PEEK/FKM
Art:
DE-MU025F12100 Copied
PEEK PLUG
L+L Body
FKM
22.1 mm
25.4 mm
2 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-L-body, NC pneumatic, PEEK/FKM
Art:
DE-MU025A12100 Copied
PEEK PLUG
L+L Body
FKM
22.1 mm
25.4 mm
2 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-L-body, Manual, SS/EPDM
Art:
DE-MU025F14100 Copied
STEEL PLUG
L+L Body
EPDM
22.1 mm
25.4 mm
2 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-L-body, NC pneumatic, SS/EPDM
Art:
DE-MU025A14100 Copied
STEEL PLUG
L+L Body
EPDM
22.1 mm
25.4 mm
2 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-L-body, Manual, SS/FKM
Art:
DE-MU025F15100 Copied
STEEL PLUG
L+L Body
FKM
22.1 mm
25.4 mm
2 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-L-body, NC pneumatic, SS/FKM
Art:
DE-MU025A15100 Copied
STEEL PLUG
L+L Body
FKM
22.1 mm
25.4 mm
2 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-L-body, NC pneumatic, SS/PFA/FKM
Art:
DE-MU025A17100 Copied
STEEL PLUG
L+L Body
PFA/FKM
22.1 mm
25.4 mm
2 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-L-body, Manual, SS/PFA/FKM
Art:
DE-MU025F17100 Copied
STEEL PLUG
L+L Body
PFA/FKM
22.1 mm
25.4 mm
2 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" T-L-body, Manual, PEEK/EPDM
Art:
DE-MU025F21100 Copied
PEEK PLUG
T+L Body
EPDM
22.1 mm
25.4 mm
1.1 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" T-L-body, NC pneumatic, PEEK/EPDM
Art:
DE-MU025A21100 Copied
PEEK PLUG
T+L Body
EPDM
22.1 mm
25.4 mm
2 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" T-L-body, Manual, PEEK/FKM
Art:
DE-MU025F22100 Copied
PEEK PLUG
T+L Body
FKM
22.1 mm
25.4 mm
2 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" T-L-body, NC pneumatic, PEEK/FKM
Art:
DE-MU025A22100 Copied
PEEK PLUG
T+L Body
FKM
22.1 mm
25.4 mm
2 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" T-L-body, Manual, SS/EPDM
Art:
DE-MU025F24100 Copied
STEEL PLUG
T+L Body
EPDM
22.1 mm
25.4 mm
2 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" T-L-body, NC pneumatic, SS/EPDM
Art:
DE-MU025A24100 Copied
STEEL PLUG
T+L Body
EPDM
22.1 mm
25.4 mm
2 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" T-L-body, Manual, SS/FKM
Art:
DE-MU025F25100 Copied
STEEL PLUG
T+L Body
FKM
22.1 mm
25.4 mm
2 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" T-L-body, NC pneumatic, SS/FKM
Art:
DE-MU025A25100 Copied
STEEL PLUG
T+L Body
FKM
22.1 mm
25.4 mm
2 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" T-L-body, Manual, SS/PFA/FKM
Art:
DE-MU025F27100 Copied
STEEL PLUG
T+L Body
PFA/FKM
22.1 mm
25.4 mm
2 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" T-L-body, NC pneumatic, SS/PFA/FKM
Art:
DE-MU025A27100 Copied
STEEL PLUG
T+L Body
PFA/FKM
22.1 mm
25.4 mm
2 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-T-body, Manual, PEEK/EPDM
Art:
DE-MU025F31100 Copied
PEEK PLUG
L+T Body
EPDM
22.1 mm
25.4 mm
1.1 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-T-body, NC pneumatic, PEEK/EPDM
Art:
DE-MU025A31100 Copied
PEEK PLUG
L+T Body
EPDM
22.1 mm
25.4 mm
2 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-T-body, Manual, PEEK/FKM
Art:
DE-MU025F32100 Copied
PEEK PLUG
L+T Body
FKM
22.1 mm
25.4 mm
2 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-T-body, NC pneumatic, PEEK/FKM
Art:
DE-MU025A32100 Copied
PEEK PLUG
L+T Body
FKM
22.1 mm
25.4 mm
2 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-T-body, Manual, SS/EPDM
Art:
DE-MU025F34100 Copied
STEEL PLUG
L+T Body
EPDM
22.1 mm
25.4 mm
2 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-T-body, NC pneumatic, SS/EPDM
Art:
DE-MU025A34100 Copied
STEEL PLUG
L+T Body
EPDM
22.1 mm
25.4 mm
2 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-T-body, Manual, SS/FKM
Art:
DE-MU025F35100 Copied
STEEL PLUG
L+T Body
FKM
22.1 mm
25.4 mm
2 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-T-body, NC pneumatic, SS/FKM
Art:
DE-MU025A35100 Copied
STEEL PLUG
L+T Body
FKM
22.1 mm
25.4 mm
2 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-T-body, Manual, SS/PFA/FKM
Art:
DE-MU025F37100 Copied
STEEL PLUG
L+T Body
PFA/FKM
22.1 mm
25.4 mm
2 kg
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-T-body, NC pneumatic, SS/PFA/FKM
Art:
DE-MU025A37100 Copied
STEEL PLUG
L+T Body
PFA/FKM
22.1 mm
25.4 mm
2 kg

Selected variant

Select a variant in the list

Contact us
If you need any help, you can contact us in one of the following ways:
0116 284 9900
Send e-mail
Use live chat
Do you need help?
Logo

Cookie settings for OEM.CO.UK

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

You can accept all cookies or personalise your cookies preferences, you can also change your cookie preferences at any time by visiting our contact page.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
