DEFINOX
Definox - DCX3 Control valve

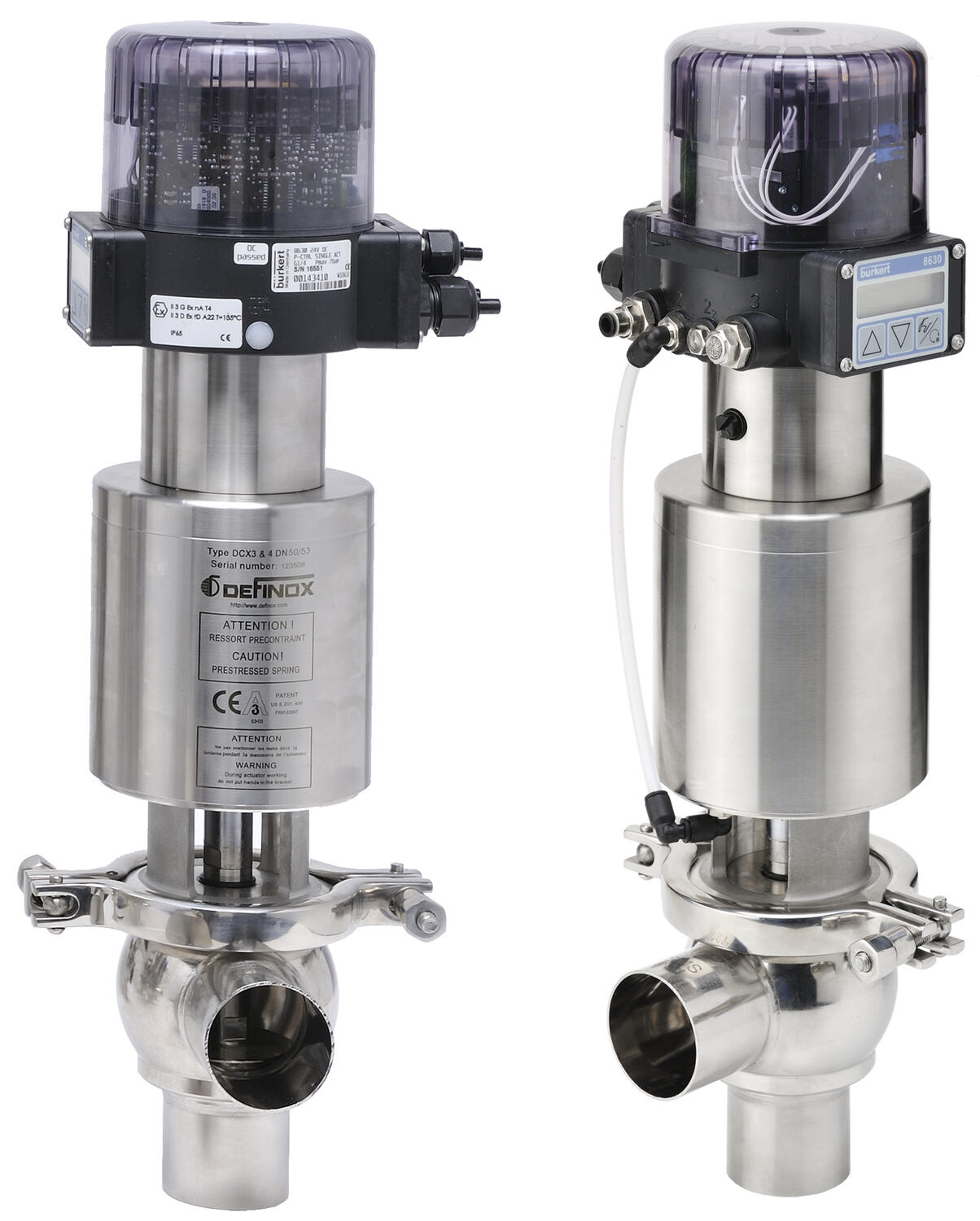

Definox DCX3 Control Valve.
Based on the DCX3 valve technology, the L-configuration, Definox has developed a control valve fitted with a shaped plug and a regulating and positioning unit that makes it possible to detect pressure and flow rate.
· Control and positioning device for control from a 4/20 mA or 0/10 V signal.
· Electronically controlled control top mounted in a sealed box
· Instant plug position measurement
· Metal / metal seal on the seat which is not guaranteed close in closed position or elastomeric seal in EPDM or FKM which ensures absolute leakage density
- Control and positioning unit for regulation
- Electronically controlled control top mounted in a sealed box
- Instant plug position measurement
- Metal / metal seal on the seat
- Elastomer seal in EPDM / FKM for leakage density
Selected variant
Technical data
Downloads
Product description
Definox DCX3 Control Valve.
Based on the DCX3 valve technology, the L-configuration, Definox has developed a control valve fitted with a shaped plug and a regulating and positioning unit that makes it possible to detect pressure and flow rate.
· Control and positioning device for control from a 4/20 mA or 0/10 V signal.
· Electronically controlled control top mounted in a sealed box
· Instant plug position measurement
· Metal / metal seal on the seat which is not guaranteed close in closed position or elastomeric seal in EPDM or FKM which ensures absolute leakage density
