OMAL
Magnum series split wafer ball valve
stainless steel

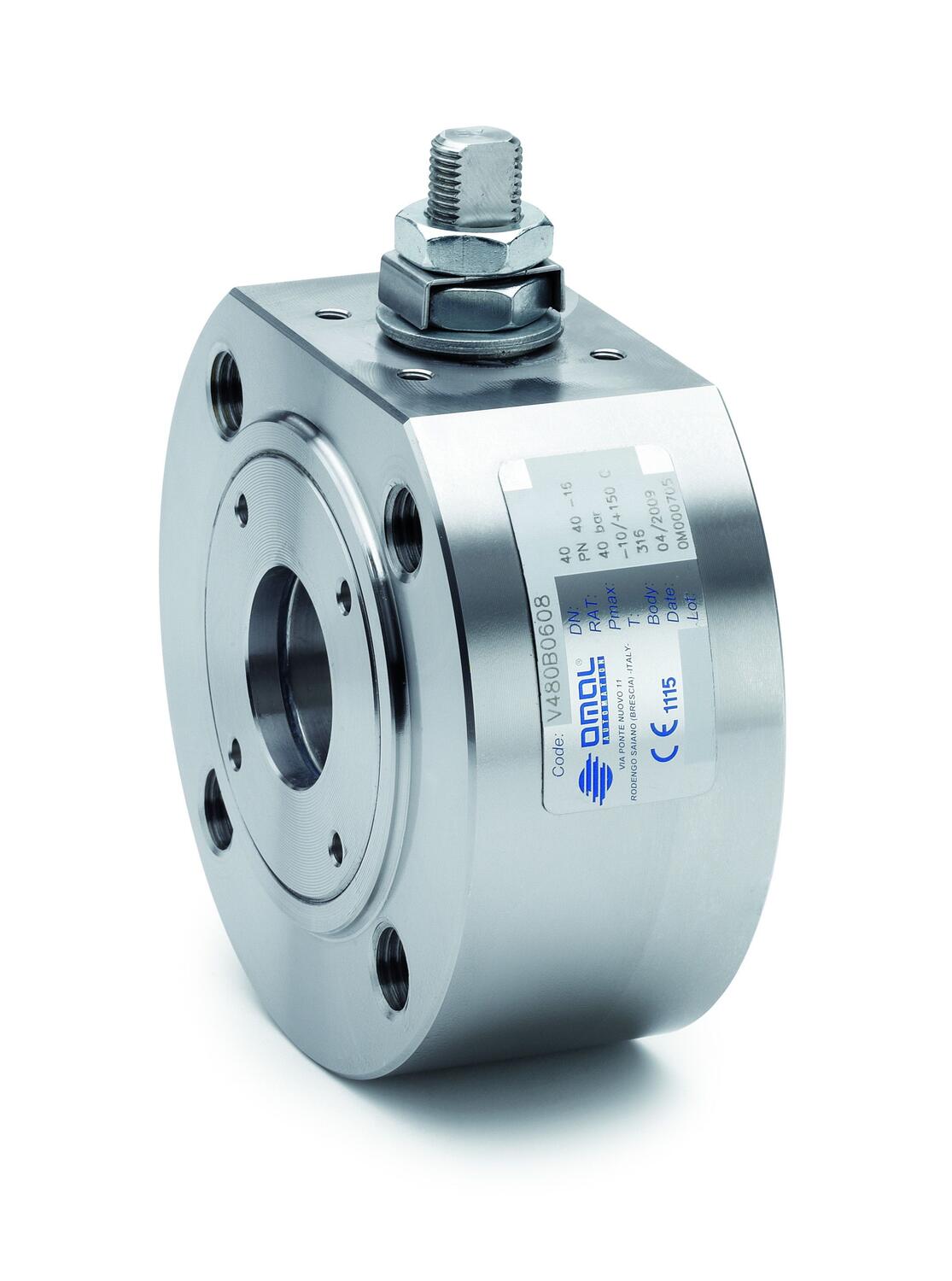

The Magnum is a 2-way stainless steel split wafer ball valve with PN16-40 / ANSI150-300 and PN 63-100 / ANSI 600 flanges, anti blow out stem and anti static device. ATEX available.
A high quality stainless steel ball valve (PN 16-40 / ANSI 150-300 and PN 63-100 / ANSI 600 flanges) manufactured on site at Omal in Italy. The Magnum is a non protruding full bore floating ball valve suitable for many applications including petrochemical / oil and gas. Certifications include European DIrective 97/23 EC PED, Fugitive Emission UNI EN ISO 15848:2006, TA-LUFT VDI 2440.2000, Fire Safe: API 607:2005 / ISO 10497:2010 - API6FA:1999. ATEX available on request
- Sizes PN 16-40, PN 63-100
- Pressure range PN16 to 40 bar
- Temperature up to +200°C depending on material
- ATEX certified
Selected variant
Magnum series stainless steel ball valve - Part numbers coming soon, contact us for more information
Art:
Selected variant
Technical data
Product description
The Magnum is a 2-way stainless steel split wafer ball valve with PN16-40 / ANSI150-300 and PN 63-100 / ANSI 600 flanges, anti blow out stem and anti static device. ATEX available.
A high quality stainless steel ball valve (PN 16-40 / ANSI 150-300 and PN 63-100 / ANSI 600 flanges) manufactured on site at Omal in Italy. The Magnum is a non protruding full bore floating ball valve suitable for many applications including petrochemical / oil and gas. Certifications include European DIrective 97/23 EC PED, Fugitive Emission UNI EN ISO 15848:2006, TA-LUFT VDI 2440.2000, Fire Safe: API 607:2005 / ISO 10497:2010 - API6FA:1999. ATEX available on request
Ordering information
Please refer to the datasheet under 'downloads' for part numbers and/or technical data, we are working on getting all part numbers and technical data on the website as soon as possible.
