ANDERSON NEGELE

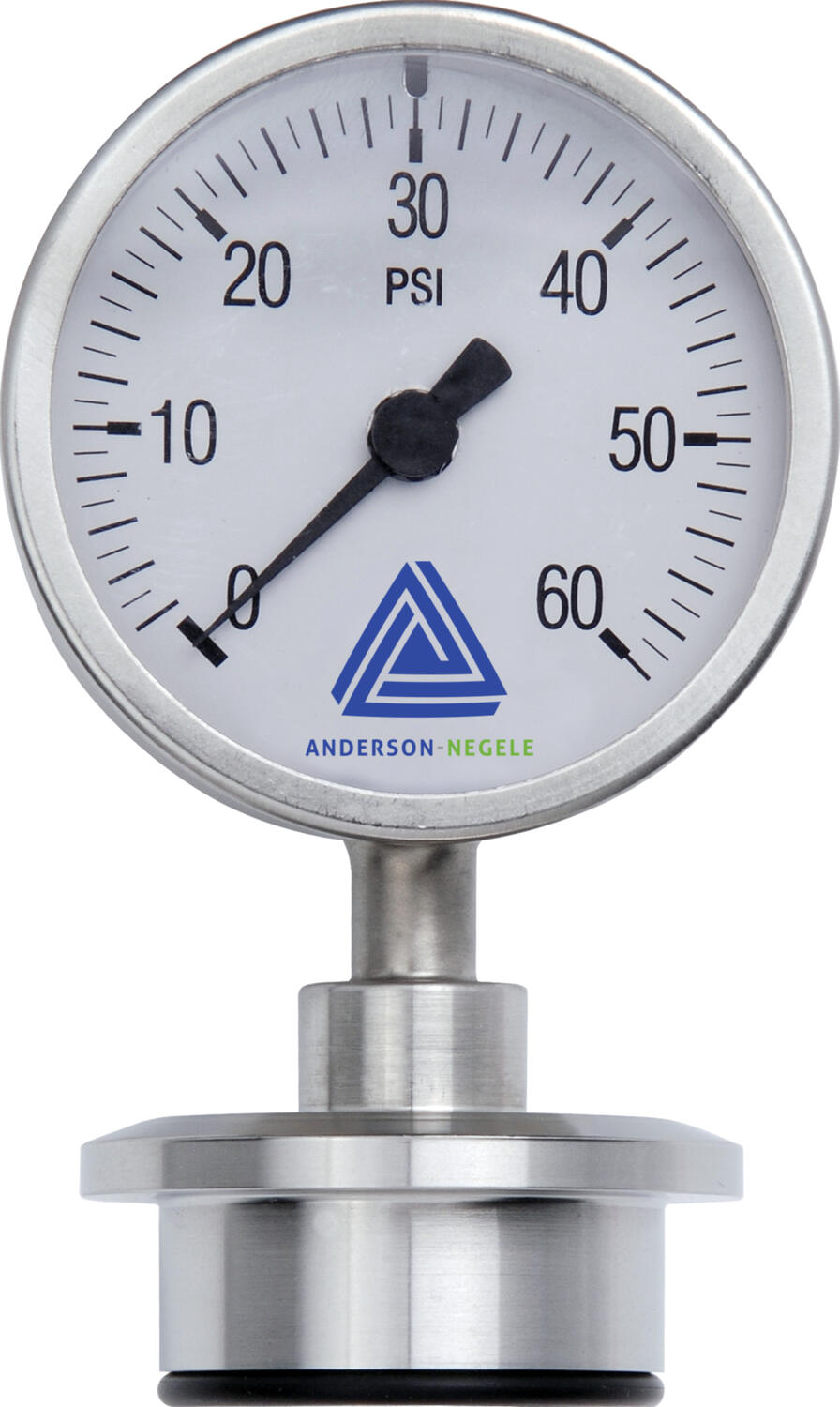

Anderson Negele - Compact pressure gauge, 3A
We market high quality manometers and design from our supplier Anderson-Negele, which meets the highest standards of process engineering, and is the perfect solution for applications for food, pharmaceuticals, breweries, cosmetics and pharmaceutical processes.
The products of Anderson-Negele are manufactured according to the concept of "Hygienic City Design", which is reflected in the special process adapters: CLEANadapt and PHARMadapt as well as the unique design of instruments.
- Hygienic pressure gauge for the pharmaceutical industry - even for small pipe diameters
- Process Connection Tri-Clamp ¾ ", 1", 1.5 "

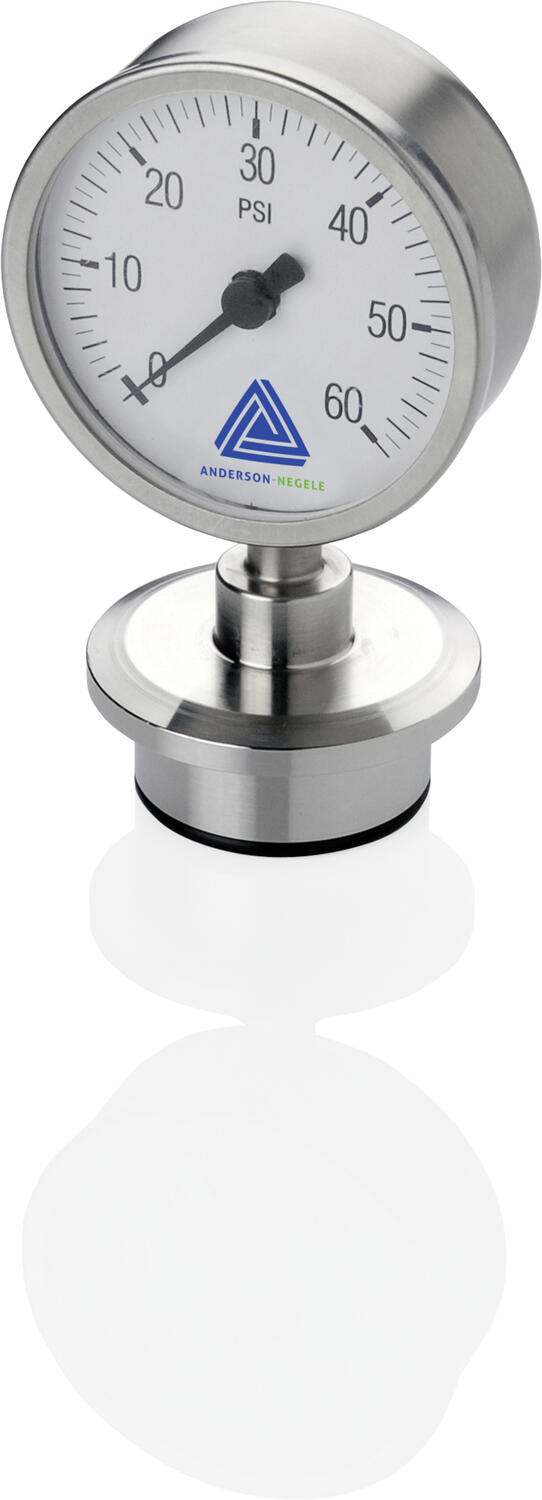

- Autoclavable Version with CPM or Tri-Clamp 1.5 "Process Connection
- Process temperatures up to 149 ° C
- Product contact surfaces electropolished, Ra <= 0.2 μm
Selected variant
Technical data
| Approvals | 3-A, FDA |
|---|---|
| Area of apllication | Pharma |
| IP class | IP66, NEMA Type 4X |
| Material display | Polycarbonate |
| Material of sensor housing | Stainless steel AISI 304 |
| Material of wetted parts | Stainless steel 316L |
| Surface finish | 0.2 µm Ra |
|---|---|
| Temperature ambient from | 4 °C |
| Temperature ambient to | 49 °C |
| Temperature of media from | -3 °C |
| Temperature of media to | 140 °C |
Downloads
Product description
We market high quality manometers and design from our supplier Anderson-Negele, which meets the highest standards of process engineering, and is the perfect solution for applications for food, pharmaceuticals, breweries, cosmetics and pharmaceutical processes.
The products of Anderson-Negele are manufactured according to the concept of "Hygienic City Design", which is reflected in the special process adapters: CLEANadapt and PHARMadapt as well as the unique design of instruments.

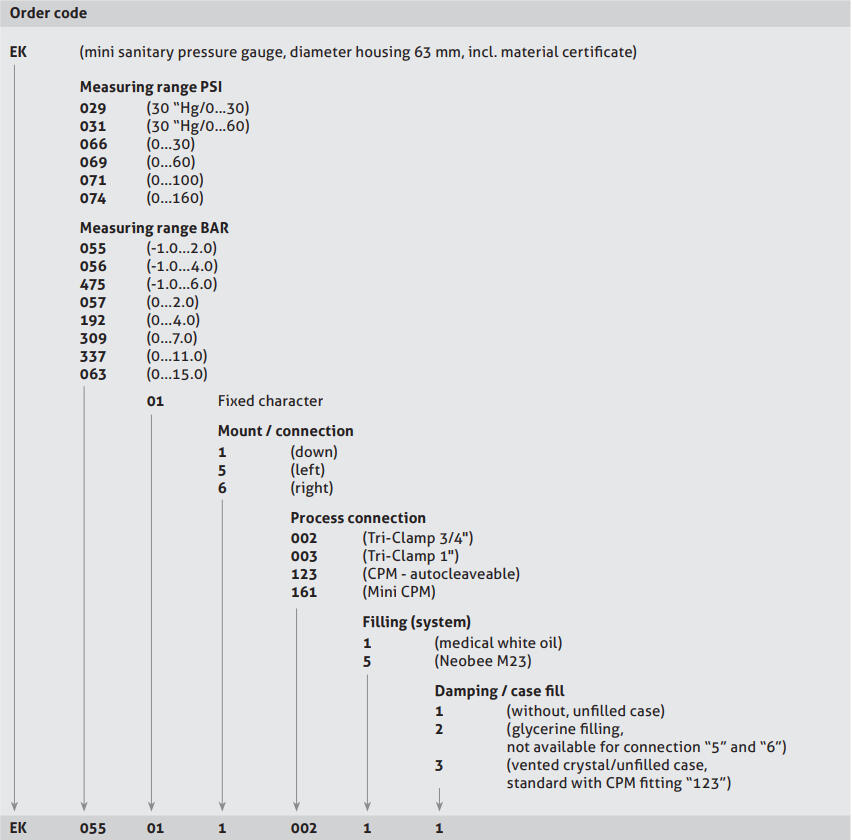

Ordering information
Please refer to the image below for ordering information.
