ANDERSON NEGELE

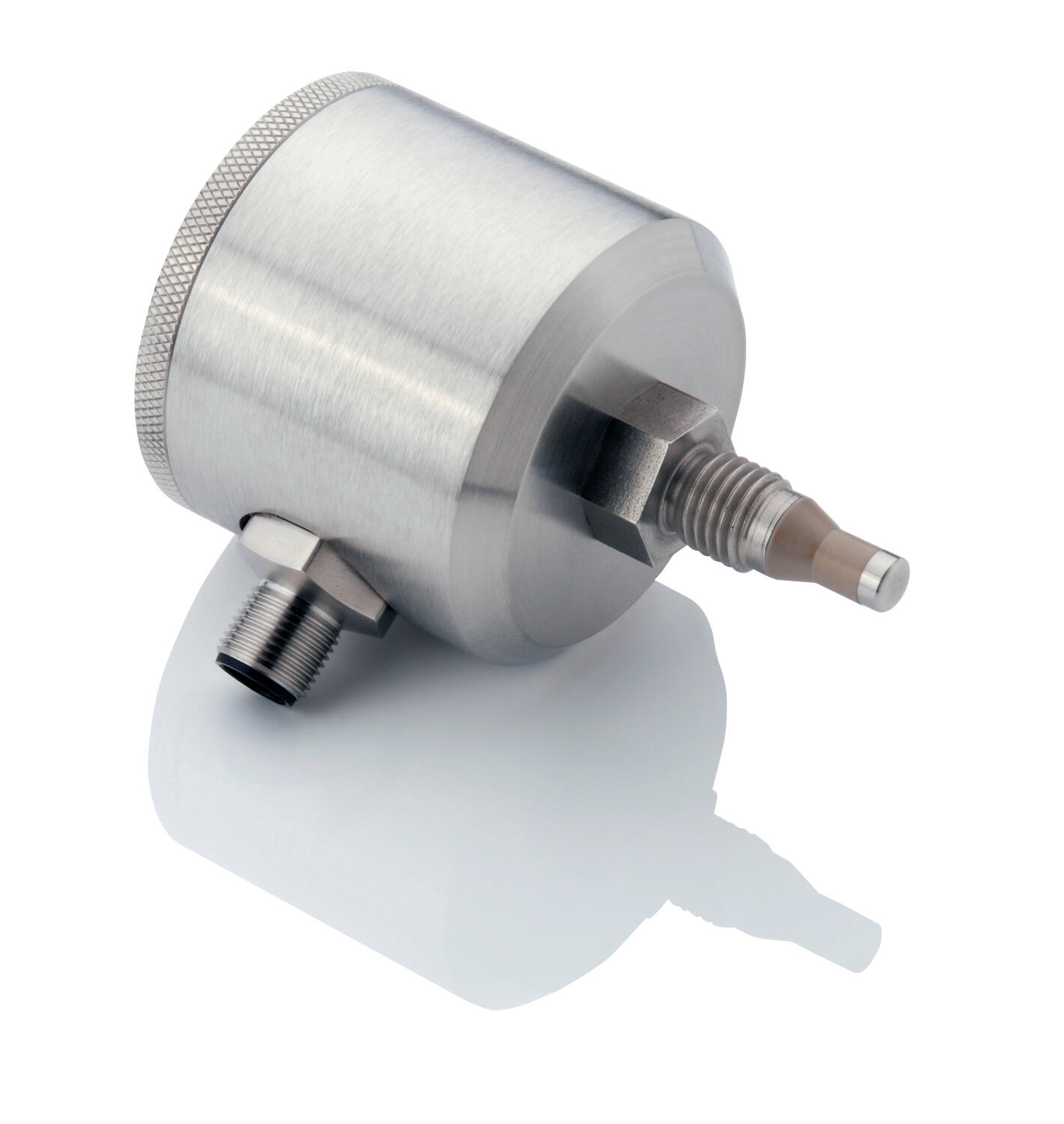

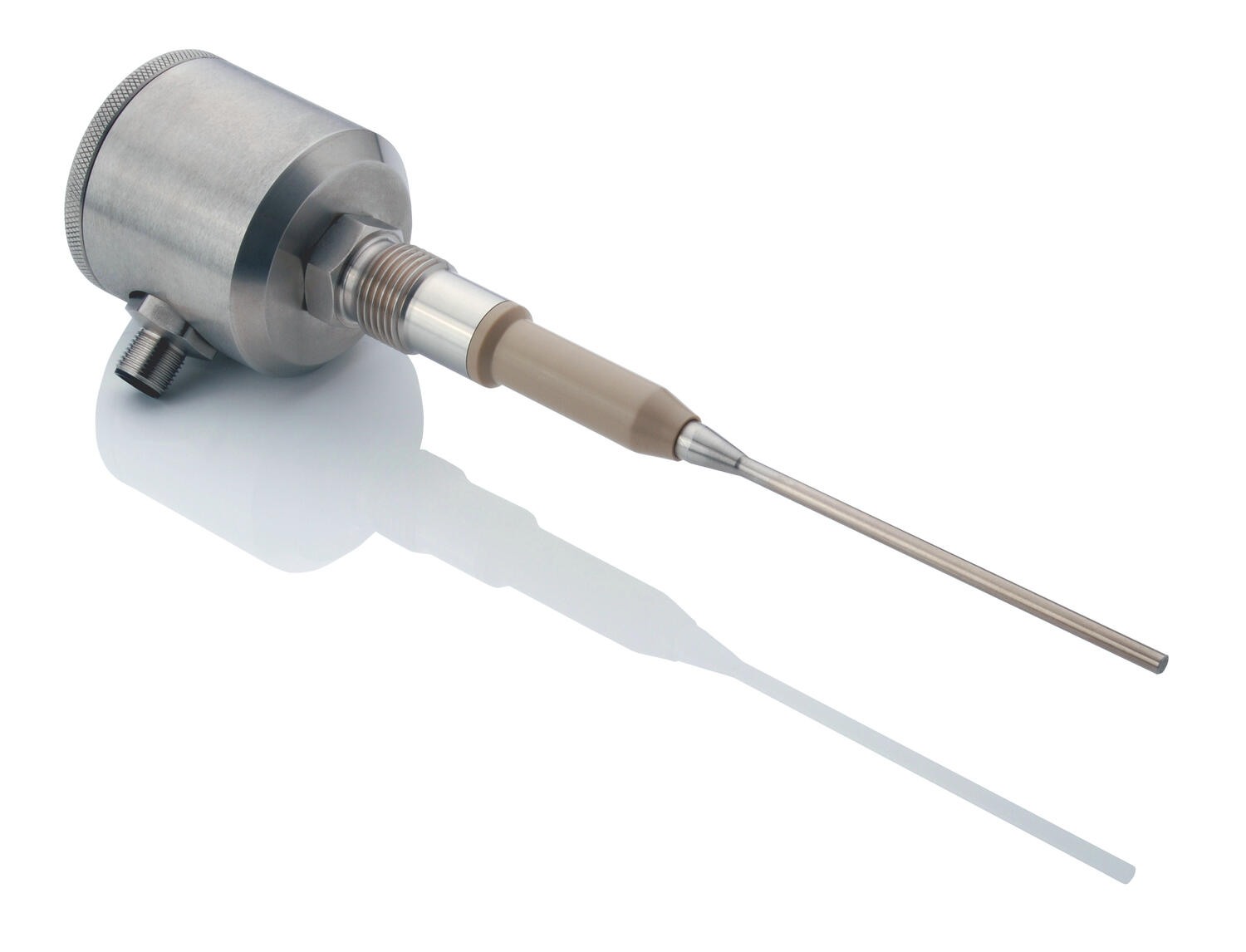

Anderson Negele - Capacitive level switch - Food NCS
NCS-01, NCS-02, NCS-11, NCS-12, NCS-L
Application/specified usage
Limit detection of media with low or no water content like syrup, fruit concentrates, alcohols and oils with a dielectric constant εr (Dk) ≥ 2
- Capacitive limit switch
- Measuring range Dk ≥ 20
- Operating pressure max 10 bar
- Approvals: FDA; EHEDG; 3-A
Selected variant
Technical data
| Approvals | 3-A, FDA |
|---|---|
| Area | Food |
| Area of apllication | Food |
| IP class | IP67, IP69K |
| Length | 9 |
| Material | Stainless steel |
| Material of connection | Stainless steel 1.4305 |
| Material of sensor housing | Stainless steel 1.4305 |
| Material of wetted parts | PEEK, Stainless steel 316L |
| Mounting | Direct Mount |
|---|---|
| Pressure resistance max | 10 bar |
| Supply voltage dc max | 32 V DC |
| Supply voltage dc min | 16 V DC |
| Surface finish | 0.8 µm Ra |
| Temperature of media from | 0 °C |
| Temperature of media to | 125 °C |
| Weight | 500 g |
Downloads
Product description
Application/specified usage
Limit detection of media with low or no water content like syrup, fruit concentrates, alcohols and oils with a dielectric constant εr (Dk) ≥ 2

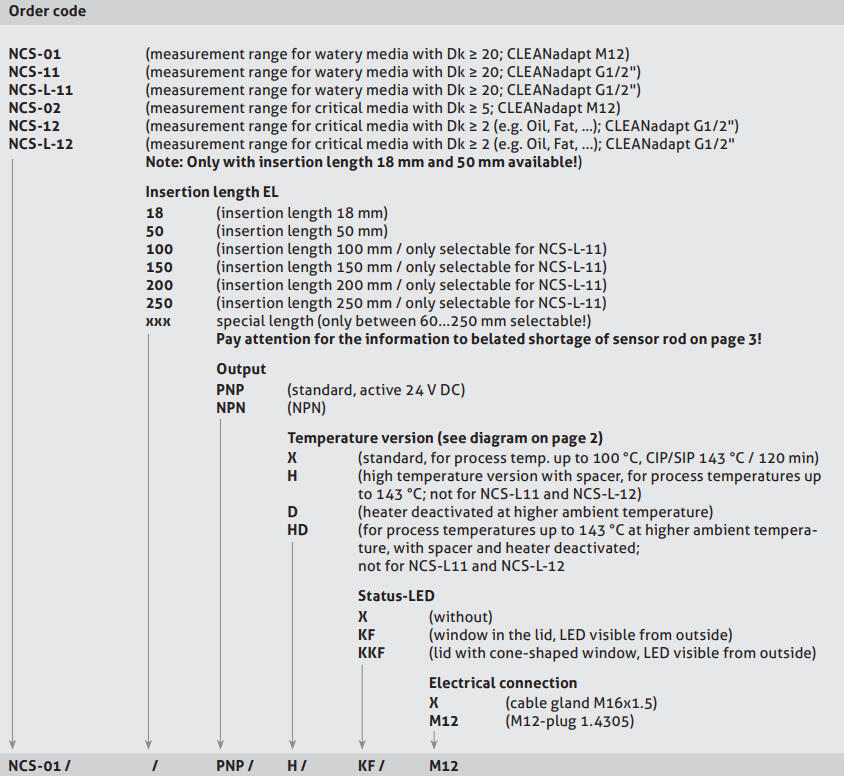

Ordering information
Please refer to the image below for ordering information.
