WIKA
Wika Hydraulic Load Cell F1102
Force Transducer for welding tongs

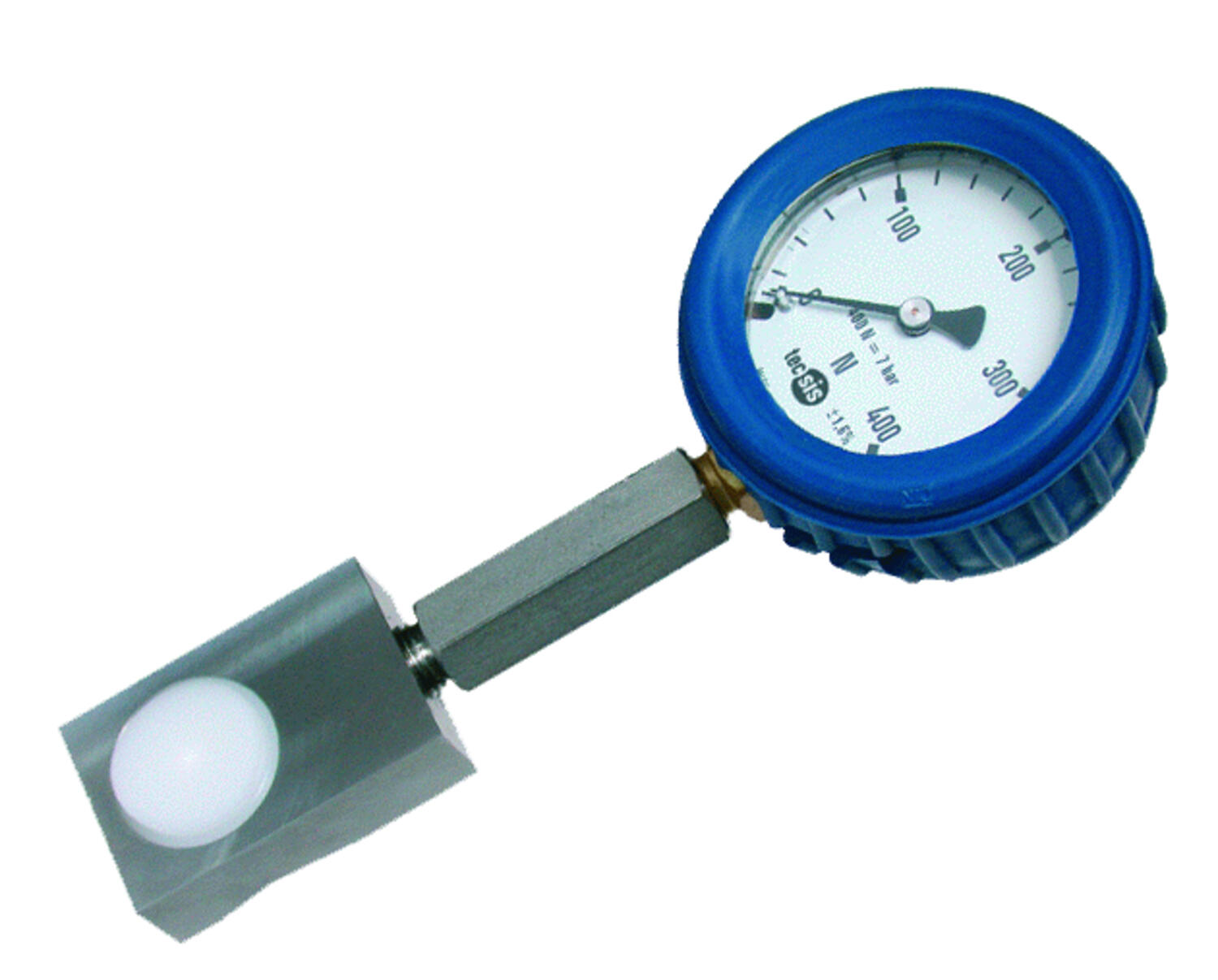

Compact mechanical load cell with directly mounted meter that is uniquely adapted for measuring the pressing force in welding rods, as the contact surface is made of plastic. The low construction height of 20 mm also enables measurement in tight spaces.
- Operates without power supply

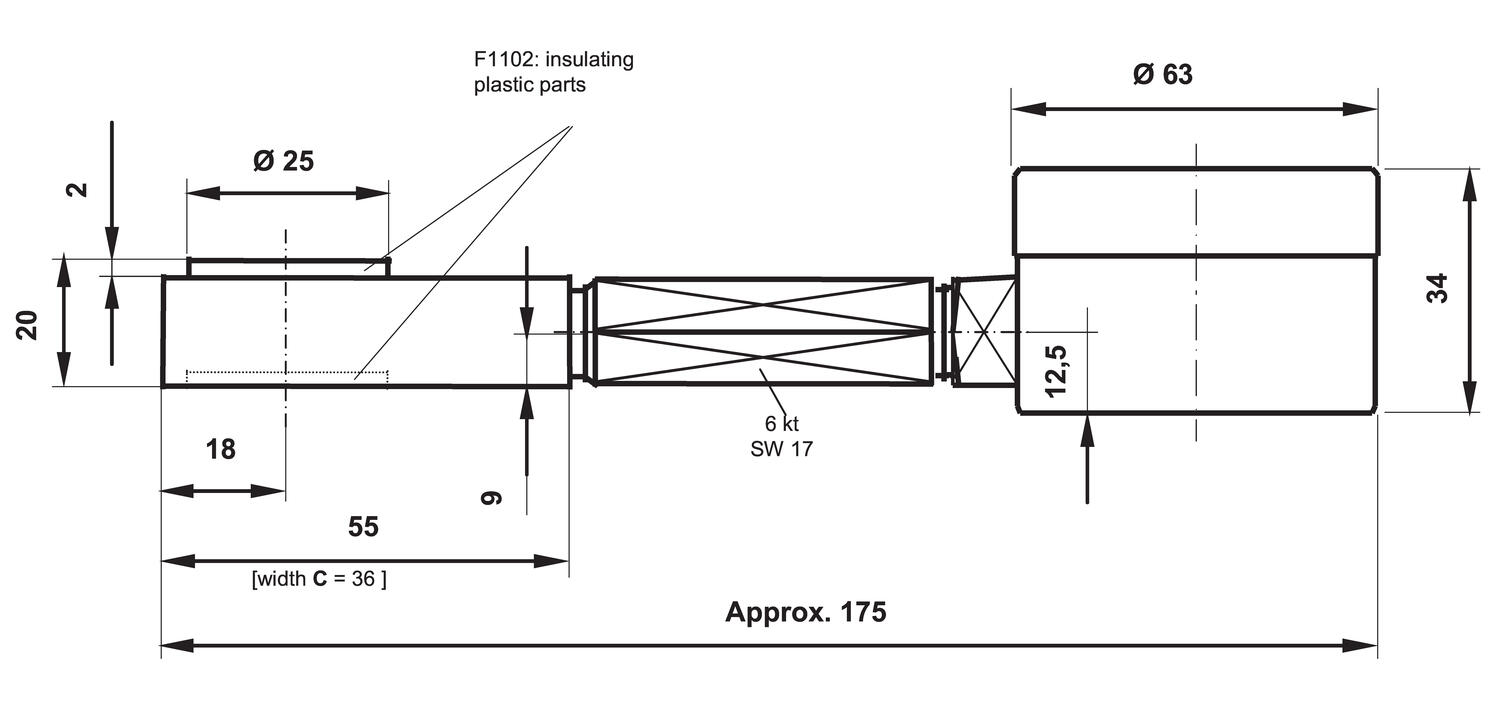

- Pressure plate 20x55x36mm
- Accuracy ≤±1.6%
- Sensor body - Plastic
- Piston movement ≤0.5mm
Selected variant
Technical data
| Force range | 0-0,25 kN |
|---|---|
| Function | Pressure |
| IP class | IP65 |
| Material | Stainless steel |
| Nominal operating | 0.5 mm |
| Temperature operational max | 50 °C |
| Temperature operational min | -10 °C |
Downloads
Product description
Compact mechanical load cell with directly mounted meter that is uniquely adapted for measuring the pressing force in welding rods, as the contact surface is made of plastic. The low construction height of 20 mm also enables measurement in tight spaces.
