Honsberg - UR3K Series Flow Switch

Paddle

Model UR is a mechanical flow switch with very low pressure drop. This type of switch is used in applications such as industrial cooling systems. Available in nickel-plated brass and stainless steel.

Special versions

• Stainless
• Version with welding sleeve
• Version with solder connection
• Electrical connector M12x1, 4 pole

Read more
  • Swittching Range 3,5..69 l/min Hâ‚‚O
  • Water (oils, gases and aggressive media available on request)
  • Gâ…œ" up to G2"
  • Brass or Stainless Steel Wetted Parts
  • Max Pressure 25 bar

Selected variant

Available in several variants

Selected variant

Technical data

Adjustable switching point l/min water 3.5-5 l / min
Connection type G 3/8 "
Contact rating max 50 VA
Deviation max ±15 %
Electrical connection DIN43650-A
Flow max 10 l/min
Flow range max 5 l/min
Flow range min 3.5 l/min
Function Paddle, Reed Contact, Ending
Hysteresis Depending on the breaking value, however, at least 0.7 l / min
IP class IP65
Material breaker body POM
Material of body Nickel-plated brass
Material of connection Nickel-plated brass
Material of seals NBR
Material paddle Stainless steel AISI 304, Stainless steel 301
Media Water (oil or gas on request)
Pressure drop Approx. 0.01 bar at max. flow
Pressure range max 25 bar
Setting range flow 3,5...5
Temperature of media to 110 °C
Type of flow component Flow Switches
Weight 0.45 kg
Voltage ac max 230 V

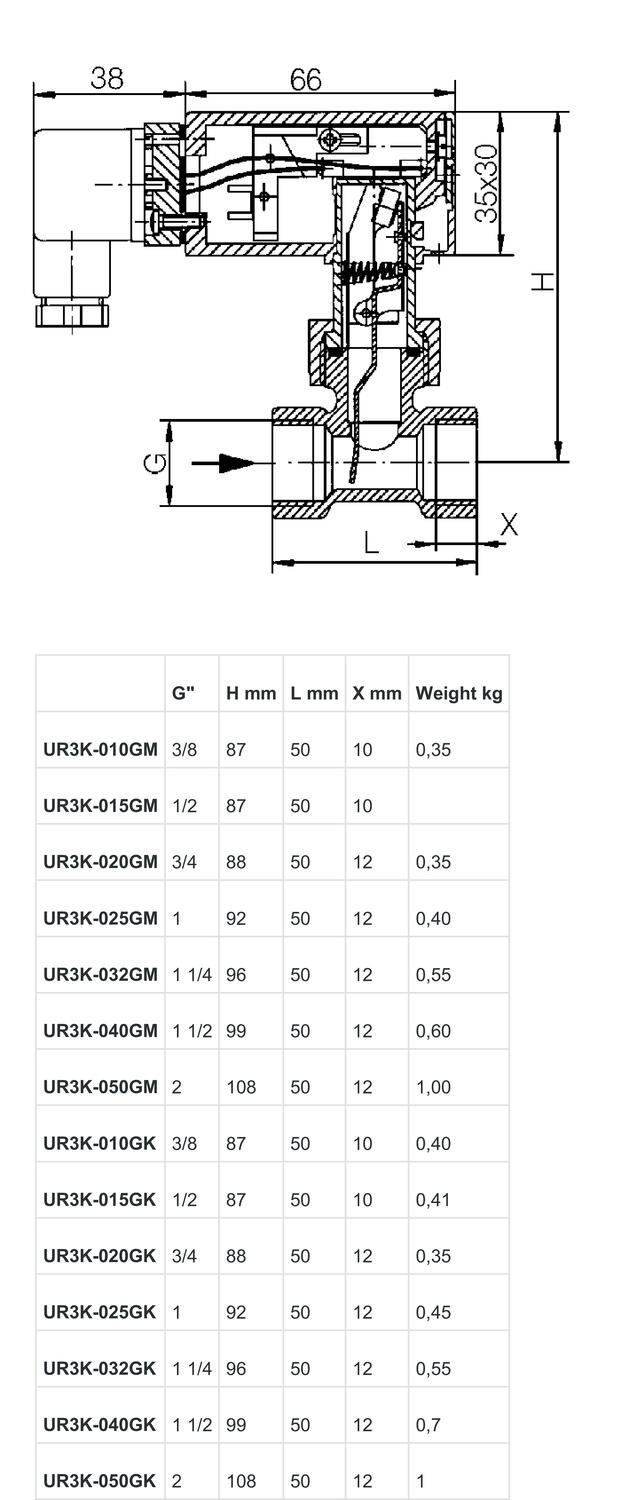

Measurements and connections

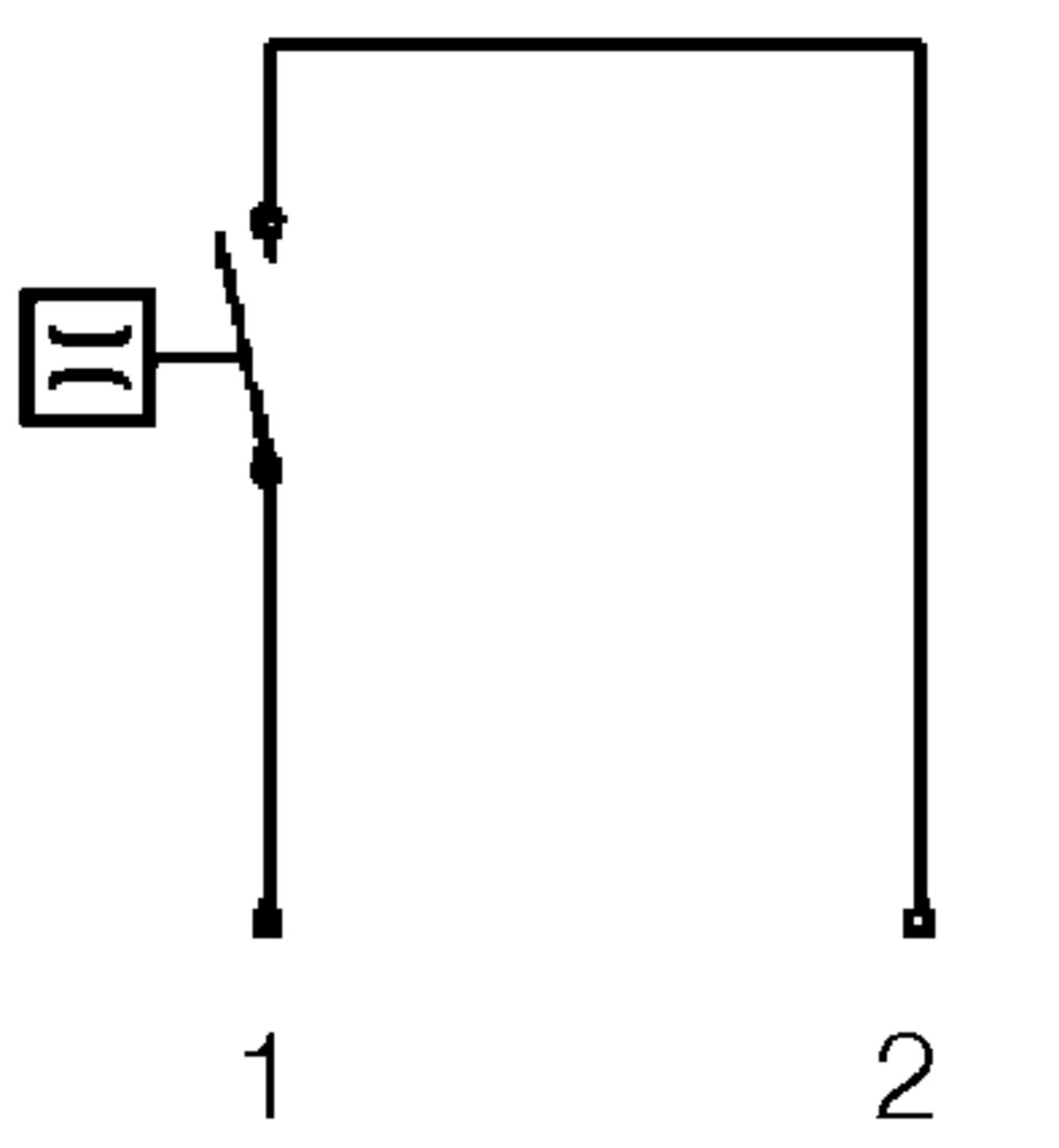

Technical illustrations

Product description

Model UR is a mechanical flow switch with very low pressure drop. This type of switch is used in applications such as industrial cooling systems. Available in nickel-plated brass and stainless steel.

Special versions

• Stainless
• Version with welding sleeve
• Version with solder connection
• Electrical connector M12x1, 4 pole

Accessories

Related products

Related

water treatment plant tank- water and wastewater - OEM Automatic Solutions
Learning hub

Water & Wastewater Solutions

OEM Automatics water and wastewater application specialists have gathered all our solutions in one place. Our products are used in everything from small municipal water works to larger regional plants.

Selection of pumps - understanding velocity and why it matters when choosing a pump
Learning hub

understanding viscosity - And Why It Matters When Choosing A Pump

Whether you’re pumping water, chocolate, oil or peanut butter knowing the product’s viscosity is essential to selecting the right pump. Find out more about viscosity and which pump may be suitable for your application!

Tecnoplastic float switch
Product news

Float switches built to perform and ready to ship

Whether you're looking to upgrade your current solution or secure a more robust float switch for your next project, Taurus delivers performance you can count on.

groups of pressure switches and sensors with reservoir background - pressure sensors or switches
Learning hub

How do I know if I need a pressure switch or a pressure sensor?

When choosing between a pressure switch and a pressure sensor, the key lies in understanding your application. Our Pressure Monitoring experts breaks down the two devices for you.

SAMOA pumps
Product news

We offer air diaphragm pumps by SAMOA

Pumps are now officially part of our product offering! As we build our pump portfolio, we’re proud to announce that we are an official distributor of SAMOA Industrial, a well-established name in the fluid handling industry.

Barcode scanner technology: choosing the right technology for your application
Learning hub

Barcode Scanner Technology: Choosing The Right Technology For Your Application

OEM Automatic's barcode scanner experts have broken down barcode technology to help you choose the right scanner for your application!

Parts Adjustable switching point l/min water Connection type Flow max Flow range max Flow range min Setting range flow Weight Price
3.5-5 l / min
G 3/8 "
10 l/min
5 l/min
3.5 l/min
3,5...5
0.45 kg
5-6.5 l / min
G 1/2 "
20 l/min
6.5 l/min
5 l/min
0.4 kg
6-8.5 l / min
G 3/4 "
40 l/min
8.5 l/min
6 l/min
0.45 kg
12-15 l / min
G 1 "
60 l/min
8.5 l/min
6 l/min
0.45 kg
20-27 l / min
G 11/4 "
80 l/min
27 l/min
20 l/min
0.5 kg
34-44 l / min
G 11/2 "
100 l/min
44 l/min
34 l/min
0.6 kg
54-69 l / min
G 2 "
150 l/min
69 l/min
54 l/min
0.85 kg
