Honsberg - OMNI-F Series Flow Meter
Calorimetric
Model Omni-F is a calorimetric flow sensor with analogue output signal (4-20mA) and two switching points (PNP-0.3A). It is equipped with an LCD display for indication of both relevant flow (0-100 %), switching points and hysteresis. It is easy to read the sensor by either removing or turning the rim 180°, this eliminates the risk of changes.
- For liquids up to 200 bar
- No moving parts
- Wetted parts in stainless steel
Selected variant
Technical data
| Accuracy | ± 10% of full setpoint |
|---|---|
| Connection type | External thread, G ¼ " |

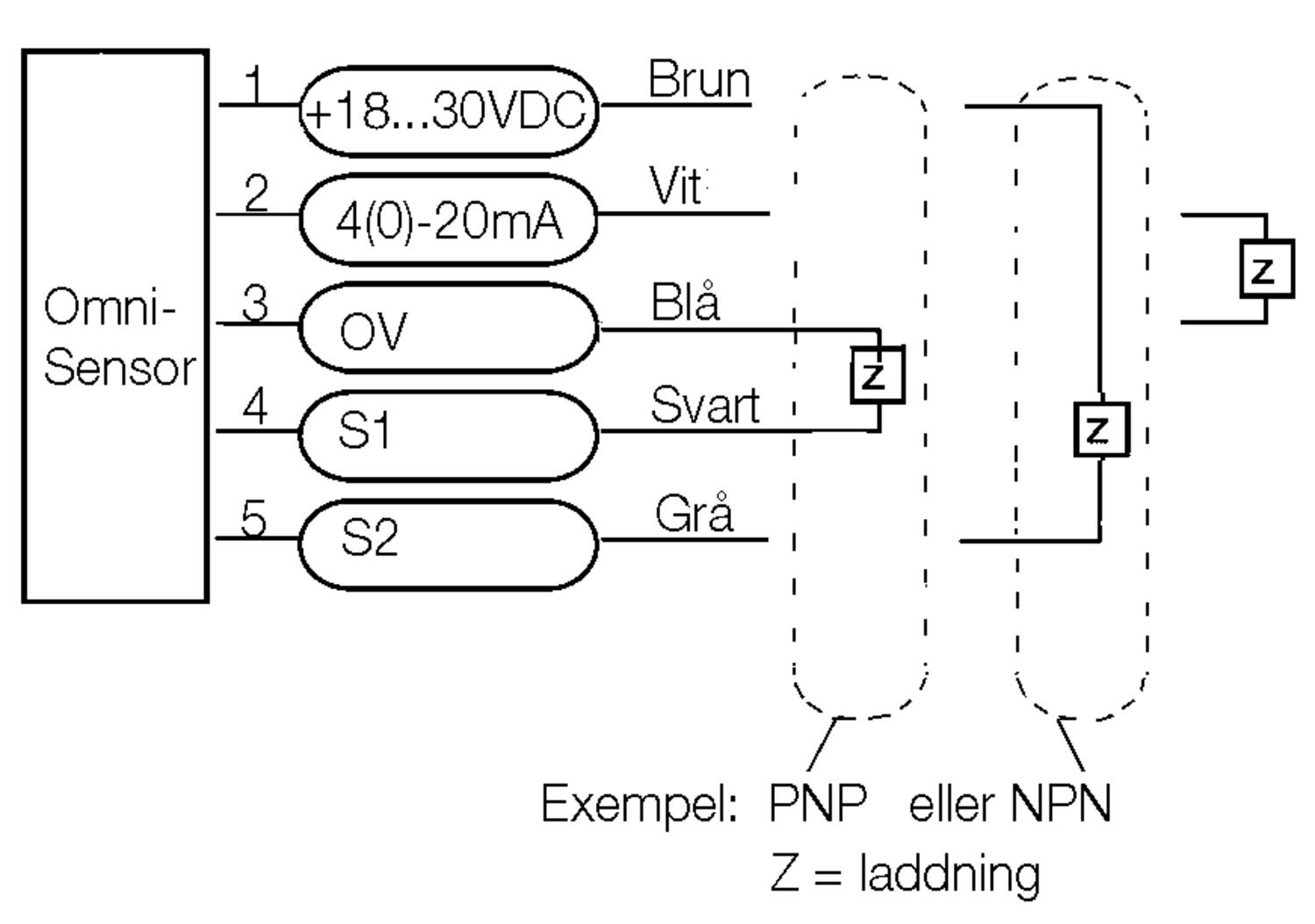

| Electrical connection | M12x1, 5-pole |
| Flow range max | 150 cm/s |
| Flow range min | 1 cm/s |
| Function | calorimetric |
| Hysteresis | 1-99%, programmable |
| IP class | IP67 |
| Load max | 300 mA |
| Material chain | POM |
| Material display | Tempered mineral glass |
| Material of body | Stainless steel 303 |
| Material of wetted parts | Stainless steel 316Ti |
|---|---|
| Power consumption | 80 mA |
| Pressure range max | 200 bar |
| Repeatability | 1 % |
| Signal outputs | 4 (0) ... 20 mA or 0 (2) ... 10 V, programmable |
| Temperature of media from | 0 °C |
| Temperature of media to | 70 °C |
| Type of flow component | Flow Measuring |
| Viscosity max | 1 cSt |
| Voltage dc max | 24 V |
| Weight | 0.25 kg |
Product description
Model Omni-F is a calorimetric flow sensor with analogue output signal (4-20mA) and two switching points (PNP-0.3A). It is equipped with an LCD display for indication of both relevant flow (0-100 %), switching points and hysteresis. It is easy to read the sensor by either removing or turning the rim 180°, this eliminates the risk of changes.
