MOLEX

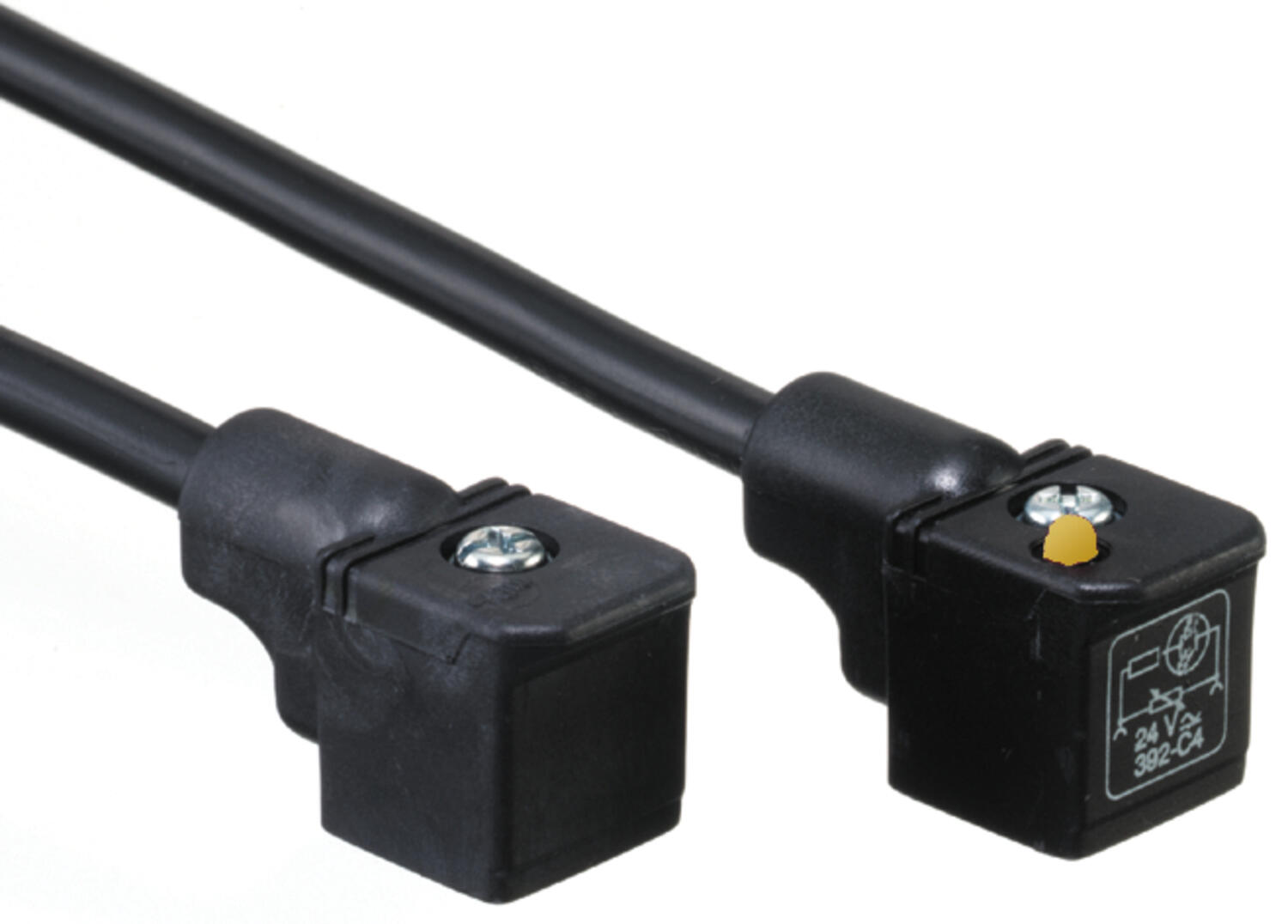

Molex - mPm DIN C Industrial / DIN C overmoulded cable
DIN Valve Connectors with moulded cable, IP65 rated. IP67 version available on request. Conforms to EN 175301-803.
- Fully overmoulded providing a high level of protection
- Quick and simple installation
- With or without LED and transient protection

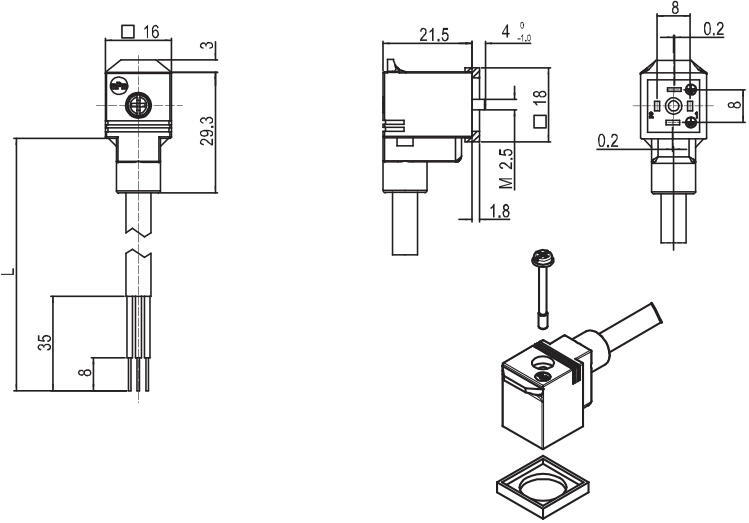

- 9.4 mm or 8 mm contact distance EN175301-803 (DIN43650-C Industrial/-C)
Selected variant
Technical data
| Cable length | 1 m |
|---|---|
| Circuit | No circuit |
| Colour LED | No |
| Connector | DIN C 8mm |
| Current max | 3 A |
| IP class | IP65 |
| LED indicator | No |
| Material cable | PVC |
| Material packing | NBR |
|---|---|
| Number of poles | 2 + earth |
| Rated wire cross section | 0.5 mm² |
| Rated voltage | 250 V |
| Screw size | M2,5x22,5 |
| Temperature operational max | 90 °C |
| Temperature operational min | -40 °C |
Downloads
Product description
DIN Valve Connectors with moulded cable, IP65 rated. IP67 version available on request. Conforms to EN 175301-803.
