CROUZET CONTROL
Panel Mount Timer Digital GDF1R10MV2
Syr-Line Series

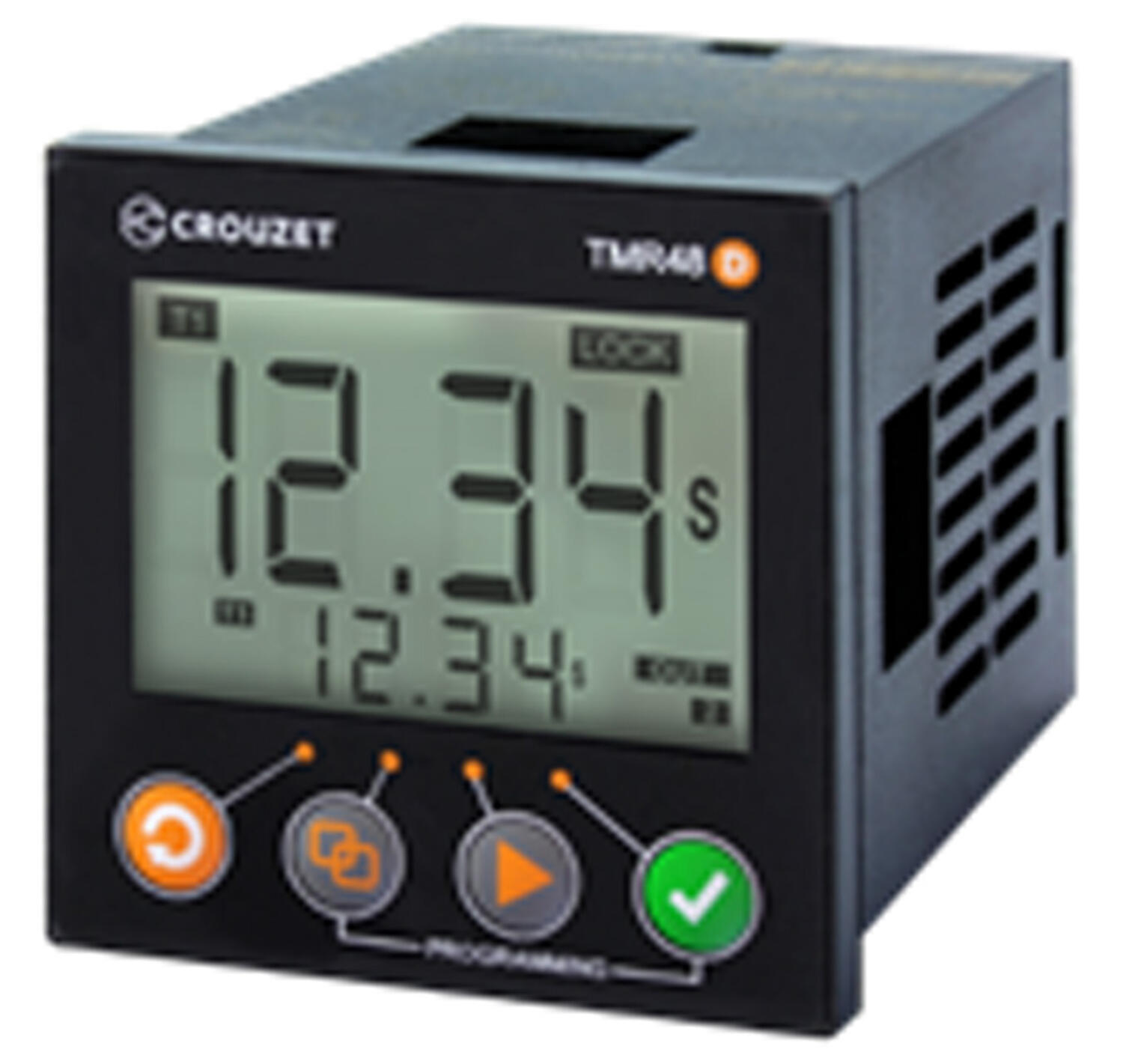

Now we are launching a new series of digital time relays in the Syr-Line series from Crouzet with clear LCD display that has IP66 enclosure in the front.
Â
The current set time and relay status are shown in the display. Time relays have many different functions as well as up and down counting to choose from.
Â
The programming is very simple and can be locked to prevent accidental change. The time interval is adjustable from 0.001 second and up to 9999 hours and has memory function for time counting in case of potential voltage drop.

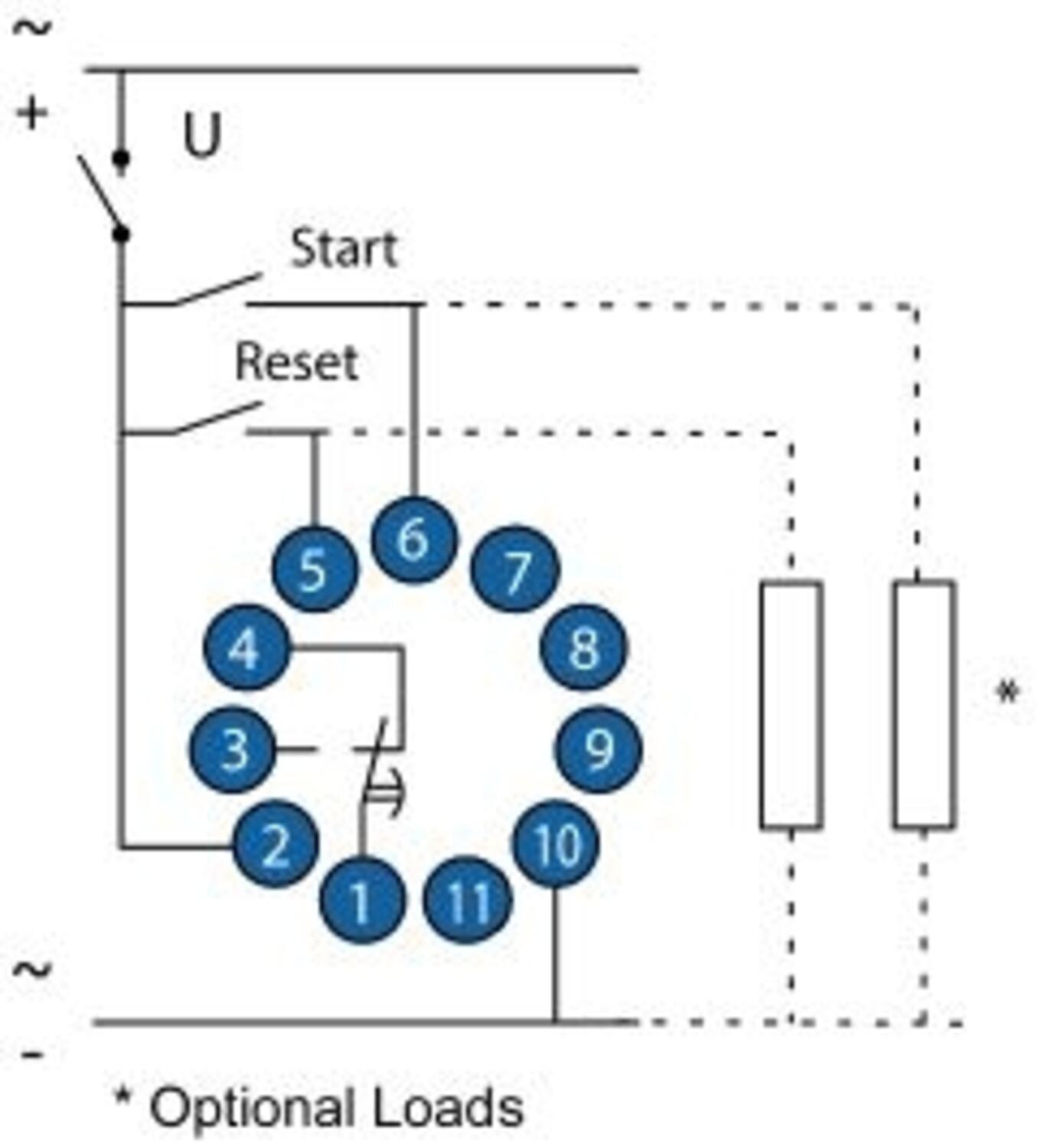

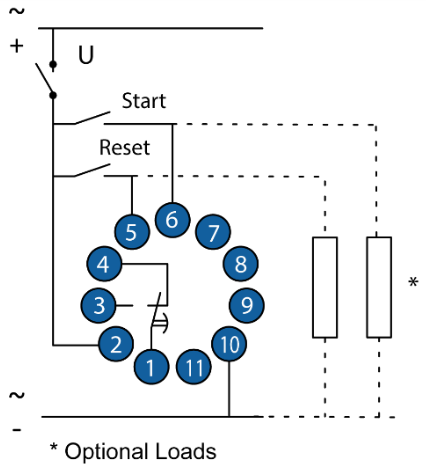

The time relays are available with one or two alternating relay outputs that can handle the entire 10A and connect into a 11-pin socket, which allows for both panel and bottom mounting.
- Multifunction
- Display of set and current time
- Time range 0.001 - 9999h
- Backlit LCD display
Selected variant
Technical data
Function |
|
|---|---|
| Function | A, Ac, Ad, B, C, D, Di, H, L, Li |
| Time range | 0,001 s - 9999 h |
| Multi-function | Yes |
| Output | Relay 1 pole C/O |
Electrical data |
|
| Breaking capacity | 2500 VA / 300 W |
| Switching current max | 10 A |
| Supply voltage | 24-240V AC/DC |
Other technical data |
|
|---|---|

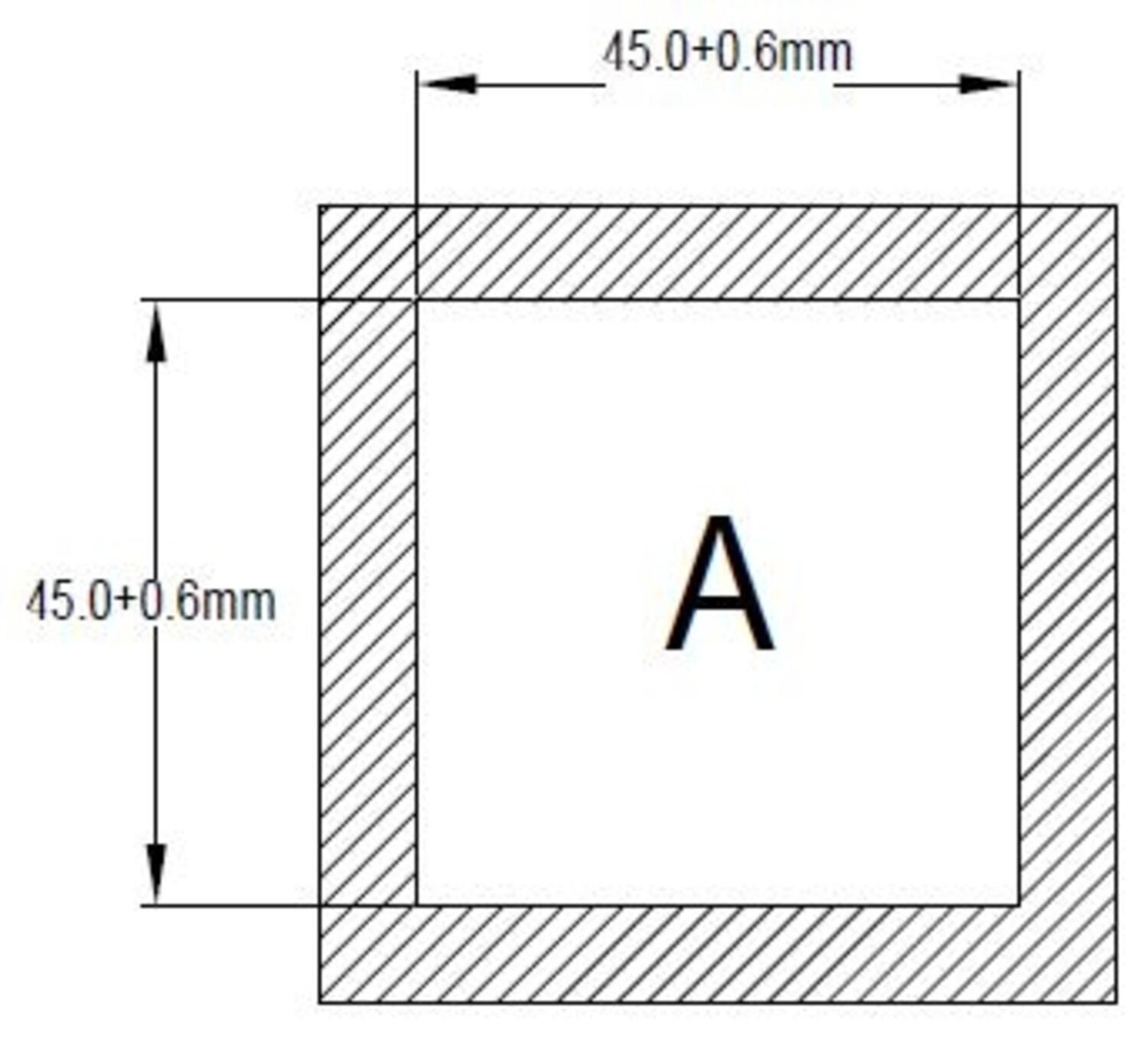

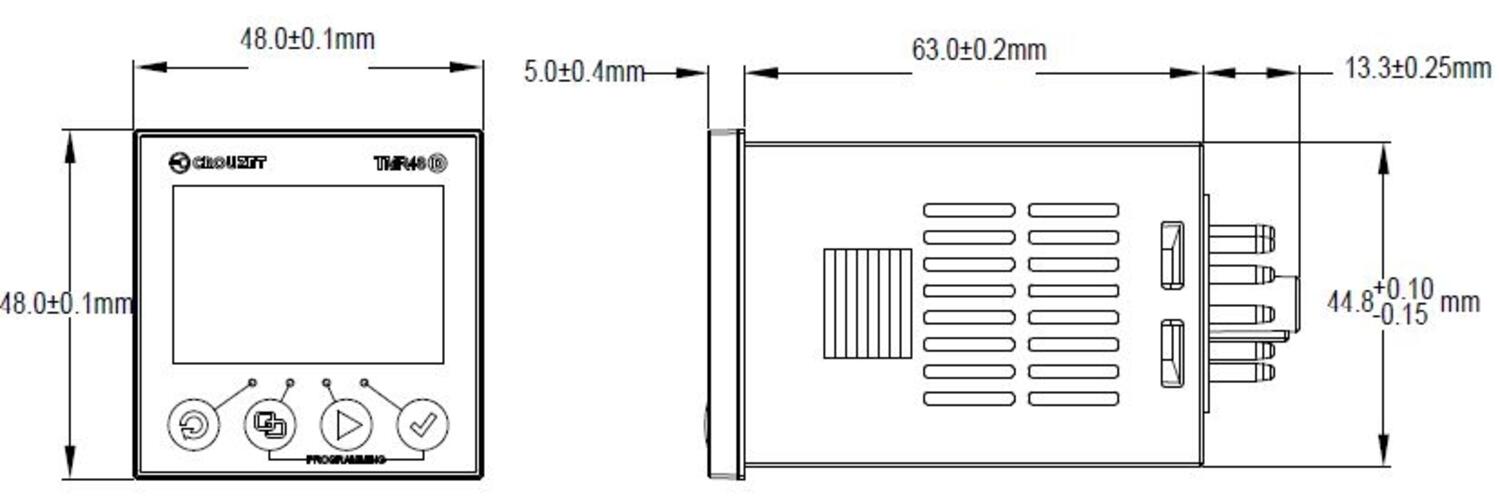

| Mounting | 11-pin socket, Panel mount |
| IP class front | IP66 |
| IP class housing | IP20 |
| Temperature operational min | -10 °C |
| Temperature operational max | 60 °C |
| Storage temperature min | -30 °C |
| Storage temperature max | 70 °C |
| Approvals | CE, RoHS, UL |
| Power consumption | 2.5 VA / 1 W |
Product description
Now we are launching a new series of digital time relays in the Syr-Line series from Crouzet with clear LCD display that has IP66 enclosure in the front.
Â
The current set time and relay status are shown in the display. Time relays have many different functions as well as up and down counting to choose from.
Â
The programming is very simple and can be locked to prevent accidental change. The time interval is adjustable from 0.001 second and up to 9999 hours and has memory function for time counting in case of potential voltage drop.
The time relays are available with one or two alternating relay outputs that can handle the entire 10A and connect into a 11-pin socket, which allows for both panel and bottom mounting.
