CROUZET CONTROL
DIN Timer Single Relay Output 88827155
Chronos 2 Series
Chronos 2 series timer relays for DIN rail mounting with screw terminal connections and these versions have 1 x relay outputs with 8A rated changeover contacts in a 17.5mm wide housing.
Time range is adjustable (in sub ranges) from 0.1 sec to 100 hours using a selector switch and potentiometer on the front face of the device.
The most common supply voltage requirements are covered by the standard units but there are also special versions that offer additional supply voltage options if required.
Some units are single function and some are multi function with the required timing function set by a selector switch on the front face of the device. The available timing functions are defined by a set of letter codes that is common across the whole Crouzet range.
- 17.5mm wide
- Time range 0.1 sec – 100 hrs
- Wide range supply voltage
- 1 x changeover relay output
Selected variant
Technical data
Function |
|
|---|---|

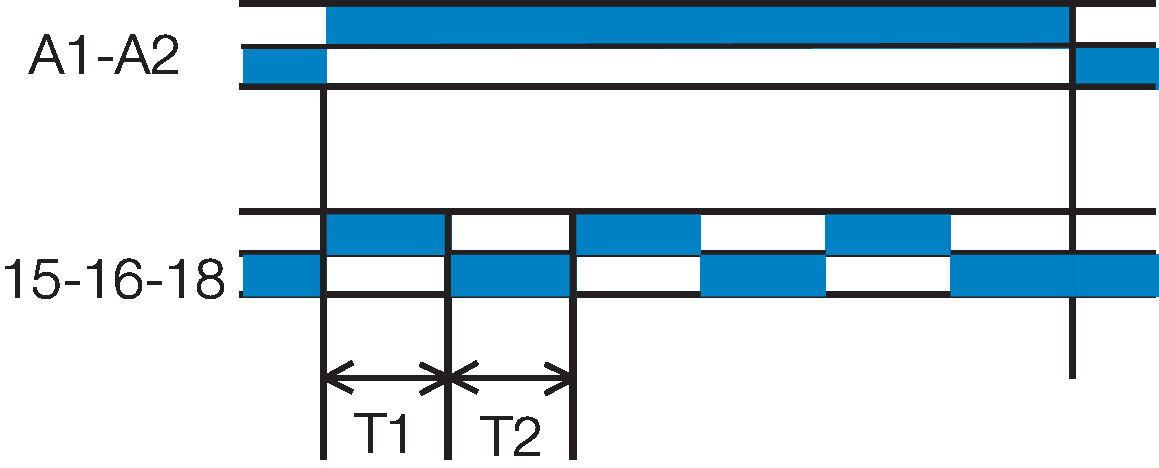

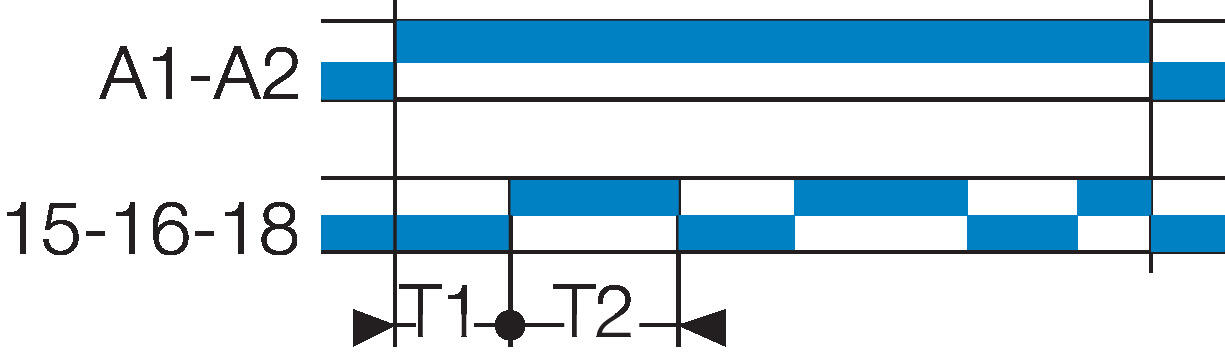

| Function | L, Li |
| Time range | 0,1-1s, 1-10s, 6-60s, 1-10min, 6-60min, 1-10h, 10-100h |
| Close delay | 30 ms |
| Response time off | 120 ms |
| Repeatability | 0.5 % |
| Multi-function | No |
| Output | Relay 1 pole C/O |
Electrical data |
|
| Power consumption | 0.6 W |
| Relay output | 1 pole C/O |
| Breaking capacity | 2000 VA / 80W |
| Switching current max | 8 A |
| Electrical lifetime | 105 operations 8A 250V (resistive load) |
| Mechanical life expectancy | 10 x 10⁶ operations |
*Invisible Heading* |
|
|---|---|
| Cable area with sleeve | 2 x 1,5 mm² |
| Cable area without sleeve | 2 x 2,5 mm² |
| Supply voltage | 24V DC / 24-240V AC |
Other technical data |
|
| Mounting | DIN rail |
| IP class connection | IP20 |
| IP class front | IP50 |
| Temperature operational min | -20 °C |
| Temperature operational max | 60 °C |
| Storage temperature min | -30 °C |
| Storage temperature max | 60 °C |
| Approvals | CE, Lloyd´s, RoHS, UL |
Product description
Chronos 2 series timer relays for DIN rail mounting with screw terminal connections and these versions have 1 x relay outputs with 8A rated changeover contacts in a 17.5mm wide housing.
Time range is adjustable (in sub ranges) from 0.1 sec to 100 hours using a selector switch and potentiometer on the front face of the device.
The most common supply voltage requirements are covered by the standard units but there are also special versions that offer additional supply voltage options if required.
Some units are single function and some are multi function with the required timing function set by a selector switch on the front face of the device. The available timing functions are defined by a set of letter codes that is common across the whole Crouzet range.
