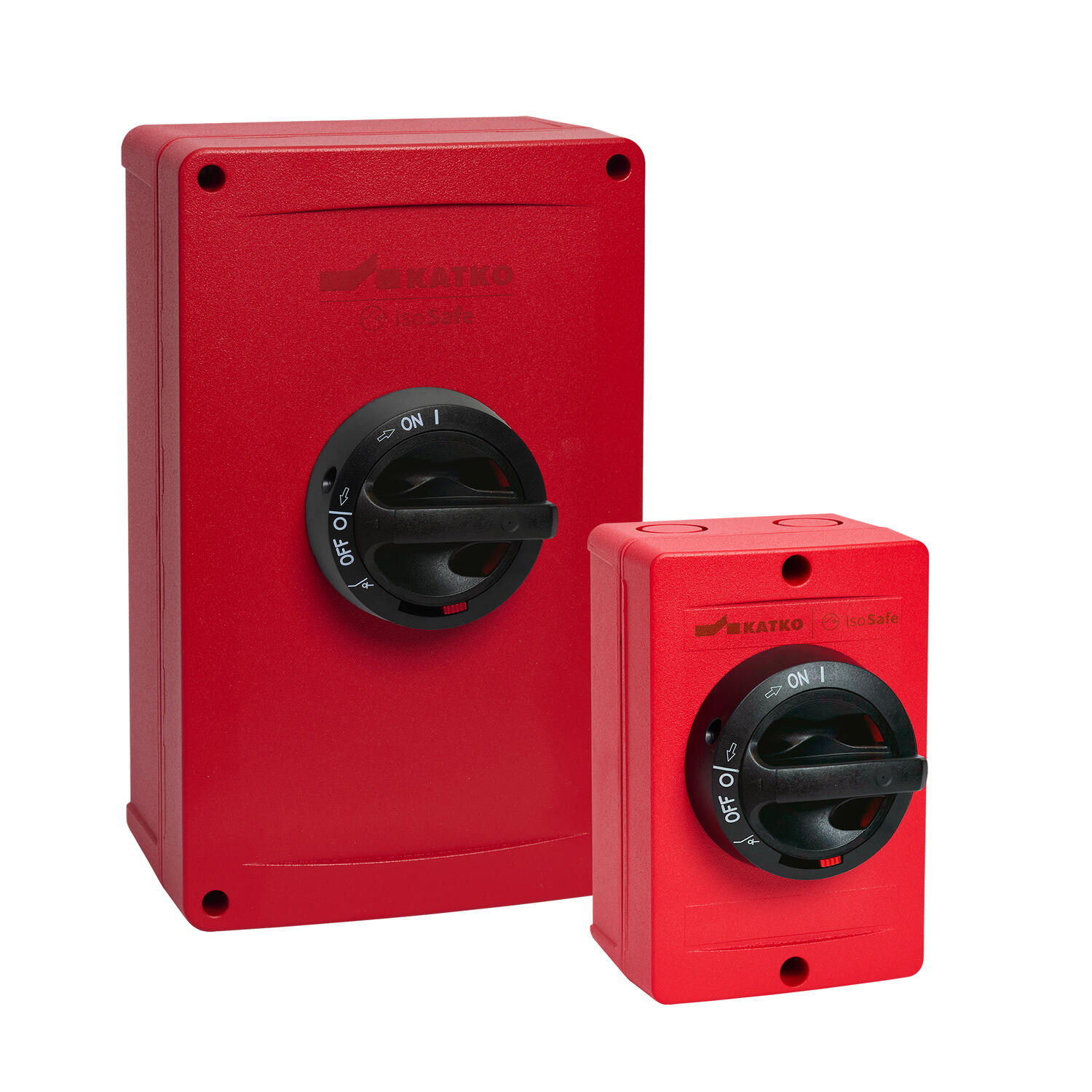

Fire Rated Isolators from Katko are designed to conform to F200 (FR) or F300 (FR3) class of EN 12101-3 smoke and heat standard at 200°C for 3 hours. The enclosures are available in aluminium or stainless steel and are IP65/66 rated for protection against water and dust. Handles are padlockable with a defeat mechanism.
General Data |
|
|---|---|
| Rated insulation voltage Ui | 800 V |
| Rated thermal current, Ith | 63 A |
| Terminals / Bolt size Cu | 1.5-16 |
Rated operational current, Ie |
|
| Operational current - AC-21A - 400/415V | 63 A |
| Operational current - AC-21A - 500V | 63 A |
| Operational current - AC-21A - 690V | 63 A |
| Operational current - AC-22A - 400/415V | 40 A |
| Operational current - AC-22A - 500V | 40 A |
| Operational current - AC-22A - 690V | 40 A |
| Operational current - AC-23A - 400/415V | 40 A |
| Operational current - AC-23A - 500V | 32 A |
| Operational current - AC-23A - 690V | 32 A |
Rated fused short circuit current |
|
|---|---|
| 6339_R.M.S value, IK (kA) | 50 |
| Rated impulse withstand voltage Uimp | 8 kV |
| 5530_Rated short circuit making capacity at 690V, lcm (kA) | 2.5 |
| 5809_Rated short time withstand current at 690V (1 s), lcw (kA) | 1.7 |
Rated breaking capacity, Icn |
|
| Breaking capacity - AC-23A - 400/415V | 320 A |
| Breaking capacity - AC-23A - 500V | 256 A |
| Breaking capacity - AC-23A - 690V | 256 A |
Additional Details |
|
| Electrical endurance | 3000 |
| Mechanical endurance | 50000 |
| 4950_Max terminal torque (Nm) | 1.8 |
Fire Rated Isolators from Katko are designed to conform to F200 (FR) or F300 (FR3) class of EN 12101-3 smoke and heat standard at 200°C for 3 hours. The enclosures are available in aluminium or stainless steel and are IP65/66 rated for protection against water and dust. Handles are padlockable with a defeat mechanism.
Have you ever wondered if there's any difference between cable coils and cable reels?
Our cable experts take you through the advantages of using cable coils.
What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Rated thermal current, Ith | Terminals / Bolt size Cu | Operational current - AC-21A - 400/415V | Operational current - AC-21A - 500V | Operational current - AC-21A - 690V | Operational current - AC-22A - 400/415V | Operational current - AC-22A - 500V | Operational current - AC-22A - 690V | Operational current - AC-23A - 400/415V | Operational current - AC-23A - 500V | Operational current - AC-23A - 690V | 6339_R.M.S value, IK (kA) | 5530_Rated short circuit making capacity at 690V, lcm (kA) | 5809_Rated short time withstand current at 690V (1 s), lcw (kA) | Breaking capacity - AC-23A - 400/415V | Breaking capacity - AC-23A - 500V | Breaking capacity - AC-23A - 690V | Electrical endurance | Mechanical endurance | 4950_Max terminal torque (Nm) | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
