DEHN
The DEHNventil lightening & surge protection device now comes with its proven performance parameters in a new slim design. The combined arrester, Type 1+2+3, as per EN 61643-11, with a compact single module and remote signalling unit, now shows off its strengths in a compact size equivalent to 4x standard DIN modules.
Technical Data |
|
---|---|
Protection type | Type 1, 2 & 3 |
Protection class | I, II, III |
Earthing arrangement | TN-S |
Phases | 3-phase |
Nominal voltage | 230 / 400 V |
Max operating voltage (L-N) | 255 V |
Voltage protection level | ≤ 1.5 |
Nominal discharge current | 50 kA |
Short circuit strength | 50 kArms |
Frequency | 50 / 60 Hz |
Dimensions |
|
Length | 90 mm |
Width | 72 mm |
*Invisible Heading* |
|
---|---|
Height | 65 mm |
Number of modules | 4 |
Connection Data |
|
Cross section single wire from | 1.5 mm² |
Cross section single wire to | 35 mm² |
Remote signalling contact | Yes |
Connection type | Screw |
Additional Data |
|
Approvals | ATEX, IECEx, Kema, UL, VDE |
Tariff code | 85363090 |
Country of origin | DE |
Weight | 0.525 kg |
The DEHNventil lightening & surge protection device now comes with its proven performance parameters in a new slim design. The combined arrester, Type 1+2+3, as per EN 61643-11, with a compact single module and remote signalling unit, now shows off its strengths in a compact size equivalent to 4x standard DIN modules.
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Protection type | Protection class | Earthing arrangement | Phases | Nominal voltage | Max operating voltage (L-N) | Voltage protection level | Nominal discharge current | Short circuit strength | Frequency | Length | Width | Height | Number of modules | Cross section single wire from | Cross section single wire to | Remote signalling contact | Connection type | Approvals | Tariff code | Country of origin | Weight | Price | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()

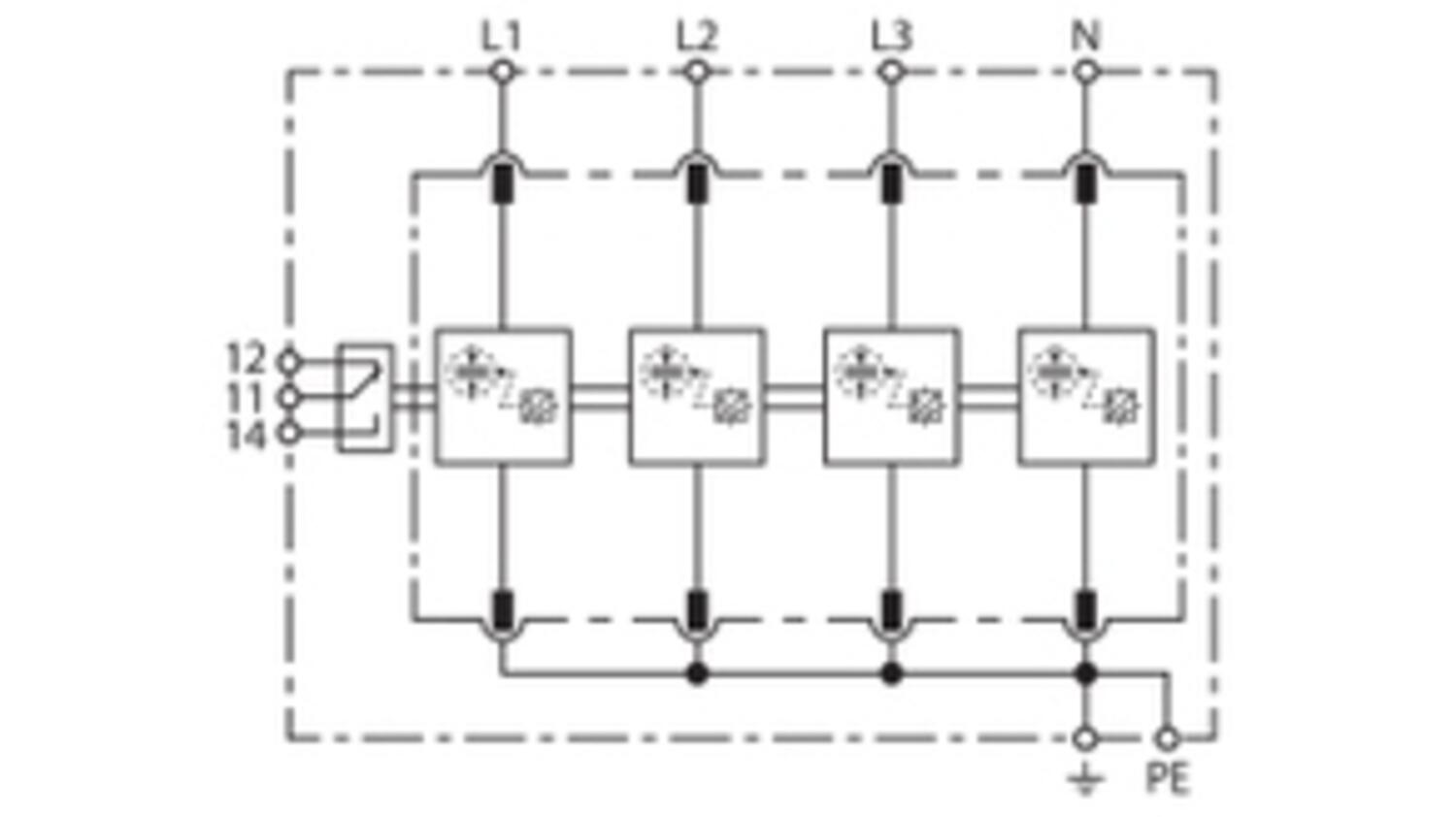

DEHNventil M2 TNS 255 FM Four-pole, modular, pluggable combined arrester for 230/400 V- TN(C)-S systems with remote signalling contact
Art:
956405
Copied
|
Type 1, 2 & 3
|
I, II, III
|
TN-S
|
3-phase
|
230 / 400 V
|
255 V
|
≤ 1.5
|
50 kA
|
50 kArms
|
50 / 60 Hz
|
90 mm
|
72 mm
|
65 mm
|
4
|
1.5 mm²
|
35 mm²
|
Yes
|
Screw
|
ATEX, IECEx, Kema, UL, VDE
|
85363090
|
DE
|
0.525 kg
|
| ||
![]()
DEHNshield TNS 255 FM combined arrester
Four-pole combined arrester for 230/400 V TN(C)-S systems
Art:
941400
Copied
|
Type 1, 2 & 3
|
I, II
|
TN-S
|
3-phase
|
230 / 400 V
|
255 V
|
≤ 1.5
|
50 kA
|
50 kArms
|
50 / 60 Hz
|
90 mm
|
72 mm
|
65 mm
|
4
|
1.5 mm²
|
35 mm²
|
No
|
Screw
|
ATEX, IECEx, Kema, UL, VDE
|
85363090
|
DE
|
0.525 kg
|
| ||
![]()
DEHNshield TNS 255 FM combined arrester
Four-pole combined arrester for 230/400 V TN(C)-S systems
with remote signalling contact
Art:
941405
Copied
|
Type 1, 2 & 3
|
I, II
|
TN-S
|
3-phase
|
230 / 400 V
|
255 V
|
≤ 1.5
|
50 kA
|
50 kArms
|
50 / 60 Hz
|
90 mm
|
72 mm
|
65 mm
|
4
|
1.5 mm²
|
35 mm²
|
Yes
|
Screw
|
ATEX, IECEx, Kema, UL, VDE
|
85363090
|
DE
|
0.525 kg
|
| ||
![]()
DEHNshield TT 255 combined arrester
Four-pole combined arrester for 230/400 V TT und TN (C)-S systems
Art:
941310
Copied
|
Type 1, 2 & 3
|
I, II
|
TT, TN-S
|
3-phase
|
230 / 400 V
|
255 V
|
≤ 1.5
|
50 kA
|
50 kArms
|
50 / 60 Hz
|
90 mm
|
72 mm
|
65 mm
|
4
|
1.5 mm²
|
35 mm²
|
No
|
Screw
|
Kema, UL, VDE
|
85363090
|
DE
|
0.48 kg
|
| ||
![]()
DEHNshield TT 255 FM combined arrester
Four-pole combined arrester for 230/400 V TT und TN (C)-S systems
with remote signalling contact
Art:
941315
Copied
|
Type 1, 2 & 3
|
I, II
|
TT, TN-S
|
3-phase
|
230 / 400 V
|
255 V
|
≤ 1.5
|
50 kA
|
50 kArms
|
50 / 60 Hz
|
90 mm
|
72 mm
|
65 mm
|
4
|
1.5 mm²
|
35 mm²
|
Yes
|
Screw
|
Kema, UL, VDE
|
85363090
|
DE
|
0.48 kg
|
| ||
![]()
DEHNventil M2 TN 255 FM Two-pole, modular, pluggable combined arrester for single-phase TN systems with remote signalling contact
Art:
956205
Copied
|
Type 1, 2 & 3
|
I, II
|
TN
|
1-phase
|
230 V
|
255 V
|
≤ 1.5
|
50 kA
|
50 kArms
|
50 / 60 Hz
|
90 mm
|
36 mm
|
65 mm
|
2
|
1.5 mm²
|
35 mm²
|
Yes
|
Screw
|
Kema, VDE
|
85363090
|
DE
|
0.271 kg
|
| ||
![]()
DEHNventil M TN 255 combined arrester Pluggable and modular two-pole combined arrester for use in single-phase TN systems
Art:
951200
Copied
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Select a variant in the list
