CONTA-CLIP
Conta-Clip offers a versatile range of GSM/GPS antennas designed for industrial communication modules, particularly those used in SMS and email reporting systems like the GSM-PRO2 and GSM-PRO2E. These antennas support tri-band 3G and quad-band 4G/LTE frequencies, typically ranging from 689 MHz to 2690 MHz, making them suitable for global use. The external puck-style antennas feature a 2.5 dBi gain, ABS housing, and screw-mount installation, with a standard 3-meter RG-174 cable terminating in a 50 Ω SMA male connector. Operating reliably from –40 °C to +85 °C, these antennas are built for harsh environments. Other variants include compact stubby antennas, angled types, and versions with extended cables (up to 20 meters), as well as dual GSM/GPS models for applications requiring integrated location tracking.
These antennas provide robust wireless connectivity for systems that monitor, control, and report on remote equipment. Typical uses include asset tracking, fault reporting, industrial automation, and energy infrastructure monitoring. Their design allows for external mounting to optimise signal reception, even though metal enclosures, while the wide temperature tolerance and durable construction make them ideal for long-term field installations. The standard SMA interface ensures simple integration with Conta-Clip’s GSM modules and other compatible systems, offering a plug-and-play solution for industrial IoT and remote management tasks.
Dimensions |
|
---|---|
Weight | 81 g |
Tariff code | 85291069 |
Pack size | 1 Â |
Cable length | 3 m |
Colour | Black |
Connector type | SMA Male |
Country of origin | NL |
Conta-Clip offers a versatile range of GSM/GPS antennas designed for industrial communication modules, particularly those used in SMS and email reporting systems like the GSM-PRO2 and GSM-PRO2E. These antennas support tri-band 3G and quad-band 4G/LTE frequencies, typically ranging from 689 MHz to 2690 MHz, making them suitable for global use. The external puck-style antennas feature a 2.5 dBi gain, ABS housing, and screw-mount installation, with a standard 3-meter RG-174 cable terminating in a 50 Ω SMA male connector. Operating reliably from –40 °C to +85 °C, these antennas are built for harsh environments. Other variants include compact stubby antennas, angled types, and versions with extended cables (up to 20 meters), as well as dual GSM/GPS models for applications requiring integrated location tracking.
These antennas provide robust wireless connectivity for systems that monitor, control, and report on remote equipment. Typical uses include asset tracking, fault reporting, industrial automation, and energy infrastructure monitoring. Their design allows for external mounting to optimise signal reception, even though metal enclosures, while the wide temperature tolerance and durable construction make them ideal for long-term field installations. The standard SMA interface ensures simple integration with Conta-Clip’s GSM modules and other compatible systems, offering a plug-and-play solution for industrial IoT and remote management tasks.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Weight | Tariff code | Pack size | Cable length | Colour | Connector type | Country of origin | Price | ||
---|---|---|---|---|---|---|---|---|---|---|
![]()
GSM-SMA-3M, External 3G GSM antenna with 3m cable and connector
Art:
16061.2
Copied
|
81 g
|
85291069
|
1
|
3 m
|
Black
|
SMA Male
|
NL
|
| ||
![]()

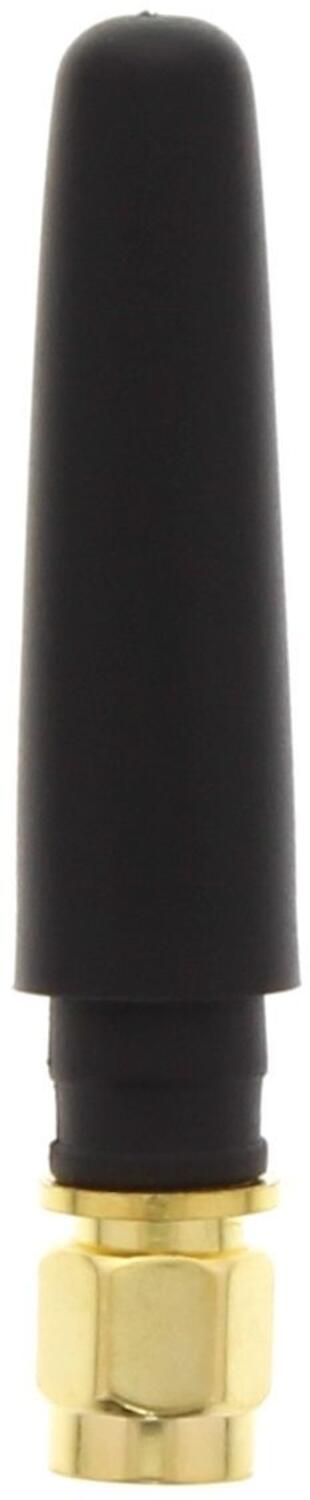

GSM-ANT, GSM 3G Stubby antenna
Art:
16101.2
Copied
|
8 g
|
85291069
|
1
|
|
|
SMA
|
EU
|
| ||
![]()

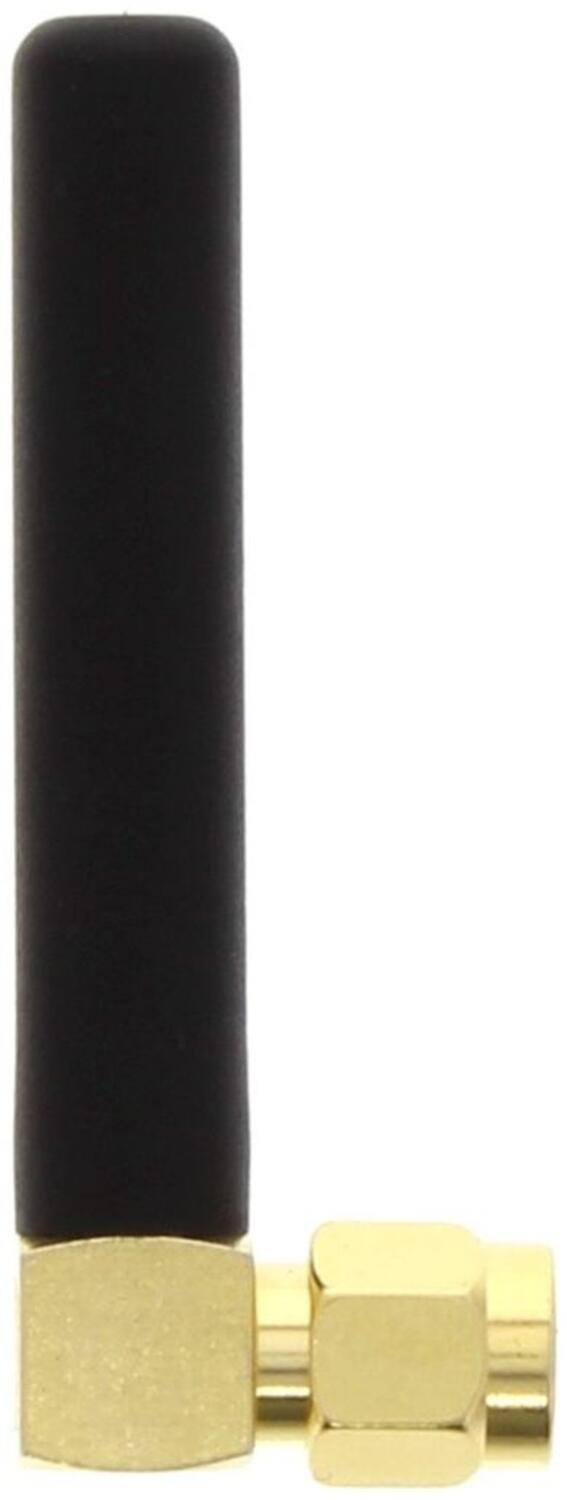

GSM-ANT, GSM 3G 90°angled stubby antenna
Art:
16379.2
Copied
|
10 g
|
85291069
|
1
|
|
|
SMA
|
EU
|
| ||
![]()

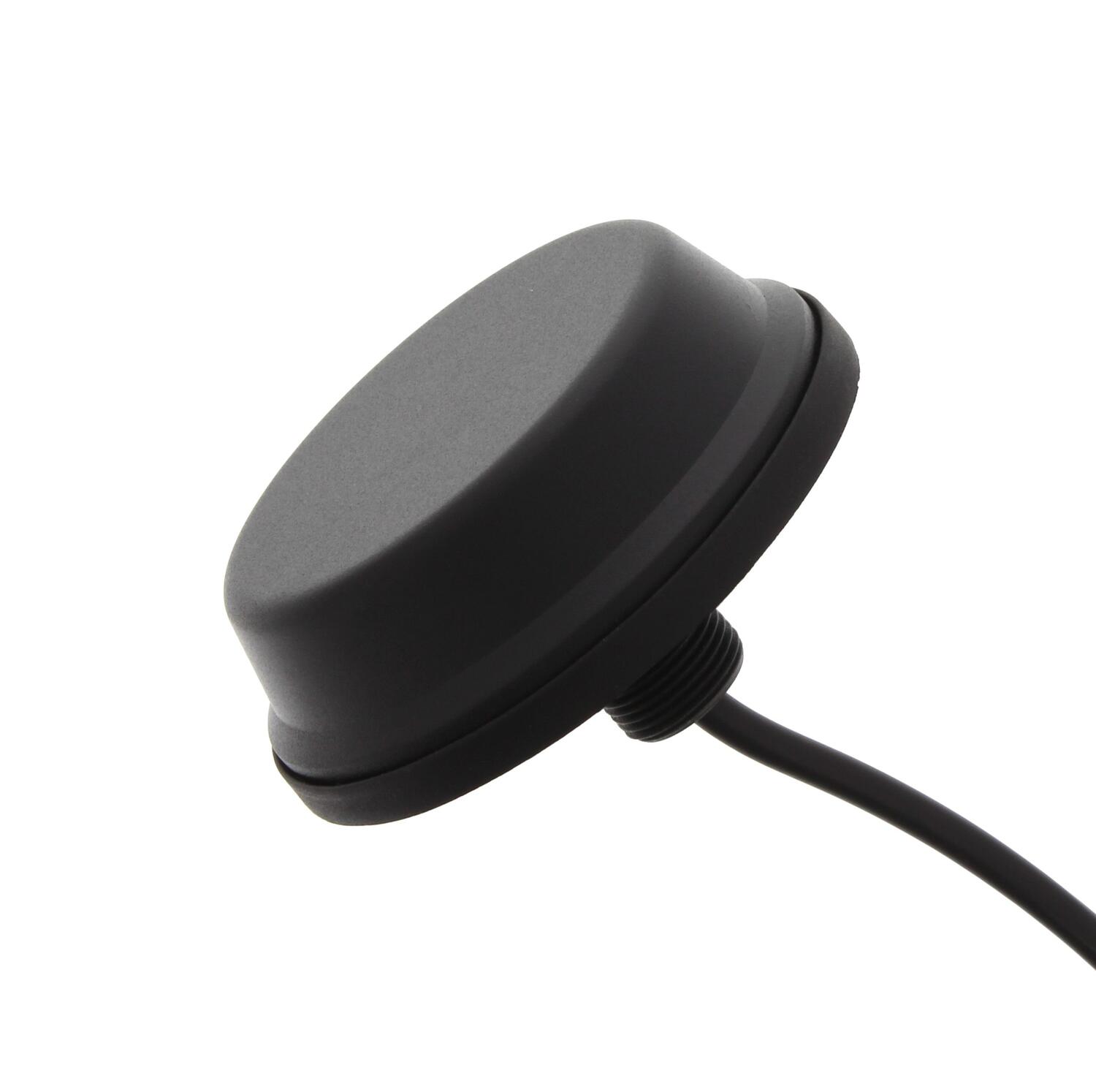

GSM-SMA-5, External 3G GSM antenna with 5m cable and connector
Art:
16172.2
Copied
|
280 g
|
85291069
|
1
|
5 m
|
|
SMA
|
NL
|
| ||
![]()

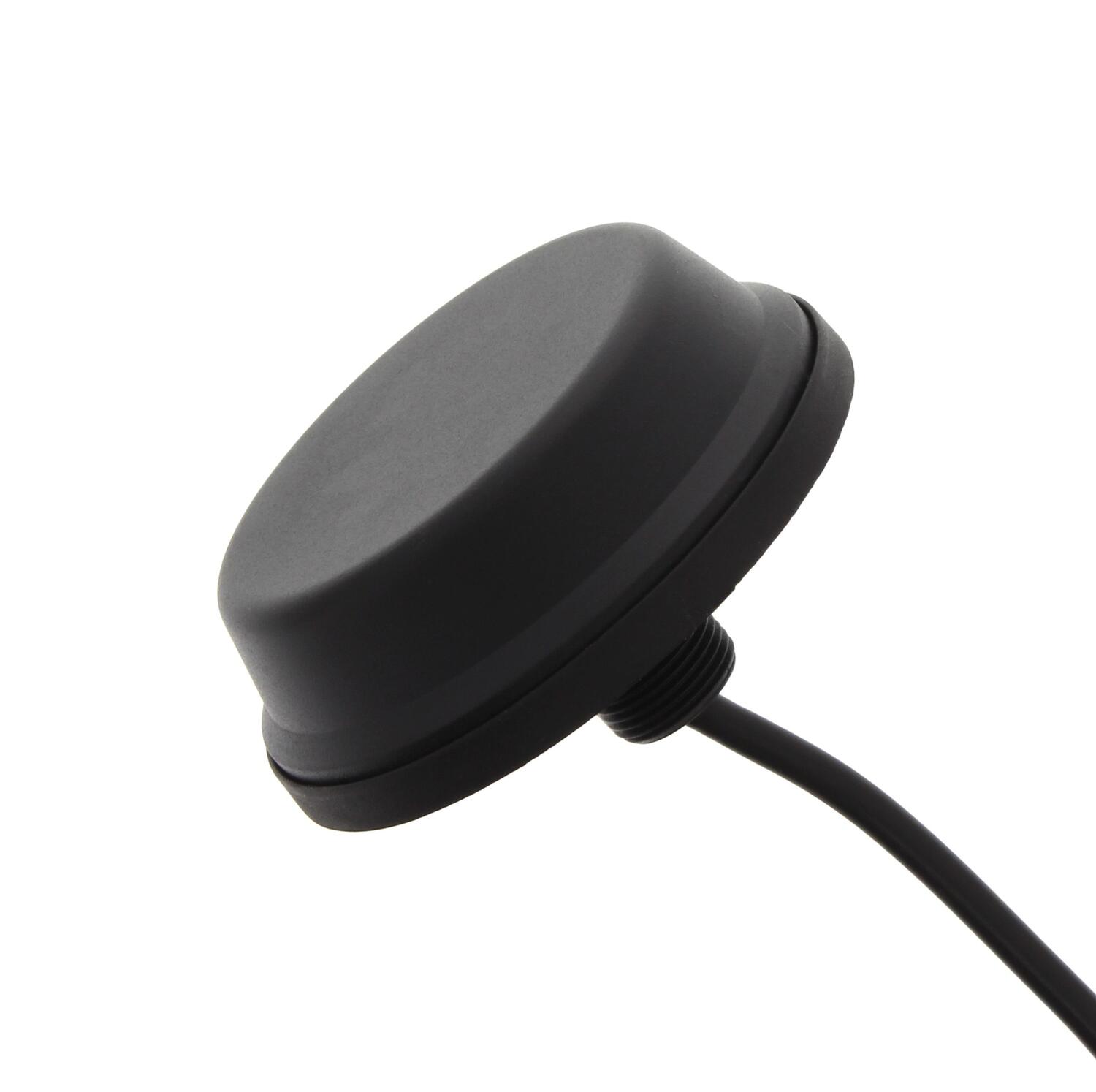

GSM-SMA-10M, External 3G GSM antenna with 10m ** OBSOLETE **
Art:
16173.2
Copied
|
480 g
|
85291069
|
1
|
10 m
|
|
SMA
|
NL
|
| ||
![]()
GSM-ANT-4G, GSM 4G 90° angled stubby antenna
Art:
16450.2
Copied
|
10 g
|
85291069
|
|
|
|
|
SK
|
| ||
![]()
GSM External 4G antenna with 3m of cable
Art:
16451.2
Copied
|
107 g
|
85291069
|
|
|
|
|
CN
|
| ||
![]()

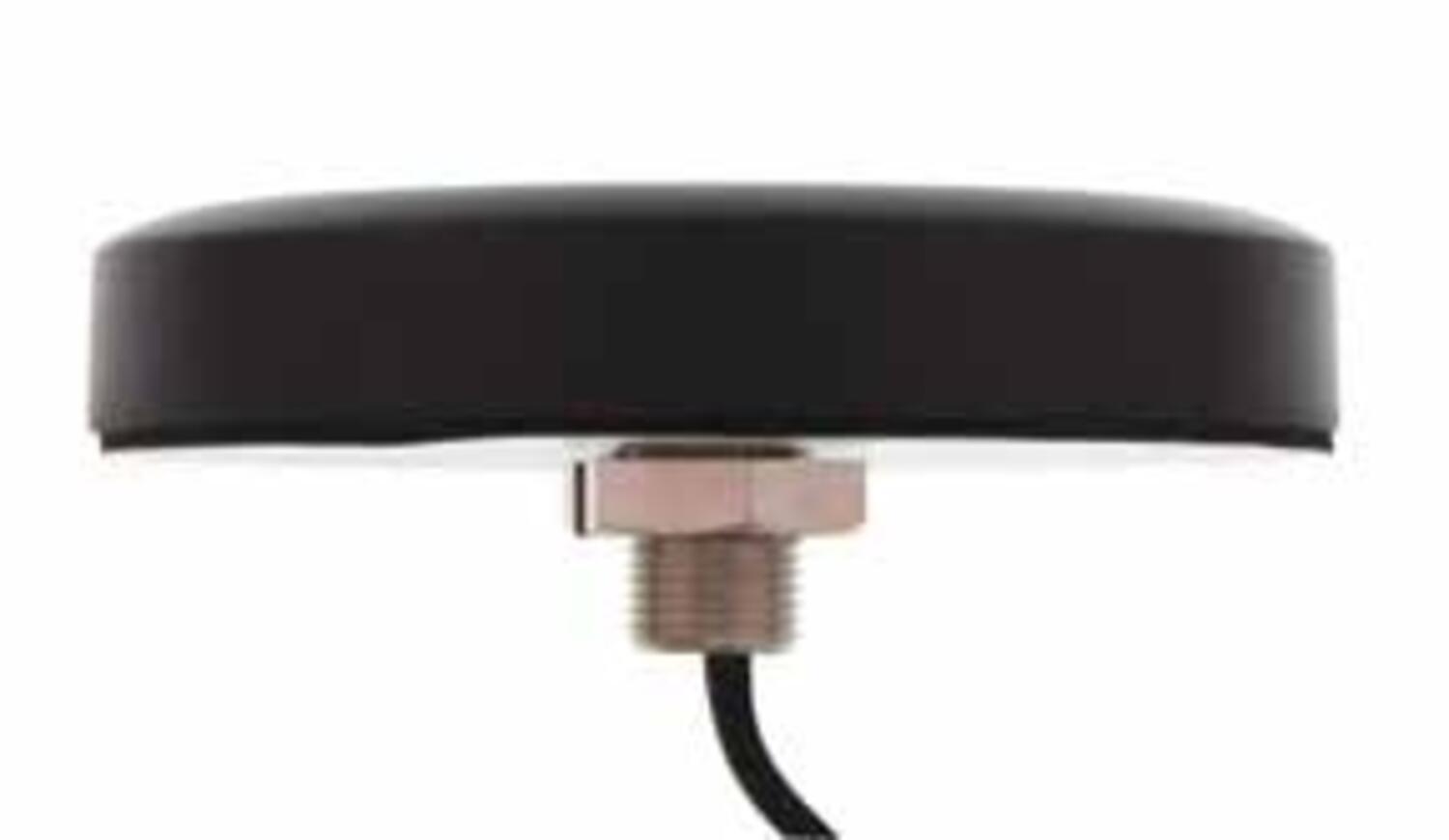

GSM External 4G antenna with 5m of cable
Art:
16452.2
Copied
|
140 g
|
85291069
|
|
|
|
|
CN
|
| ||
![]()

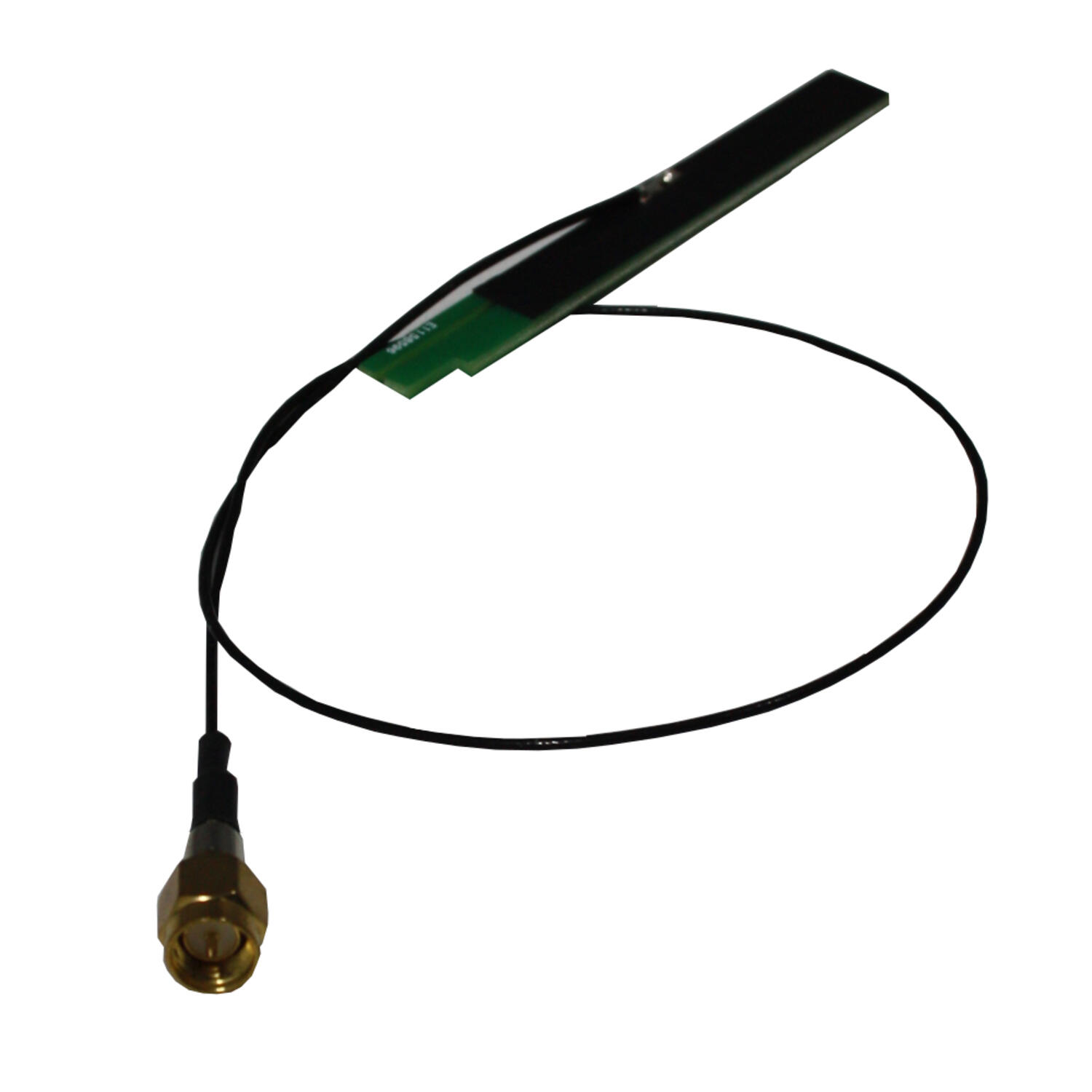

GSM-ANTENNA-4G-STRIP-30CM, Strip Antenna with 30cm of cable and plug
Art:
16512.2
Copied
|
|
|
|
|
|
|
|
| ||
![]()

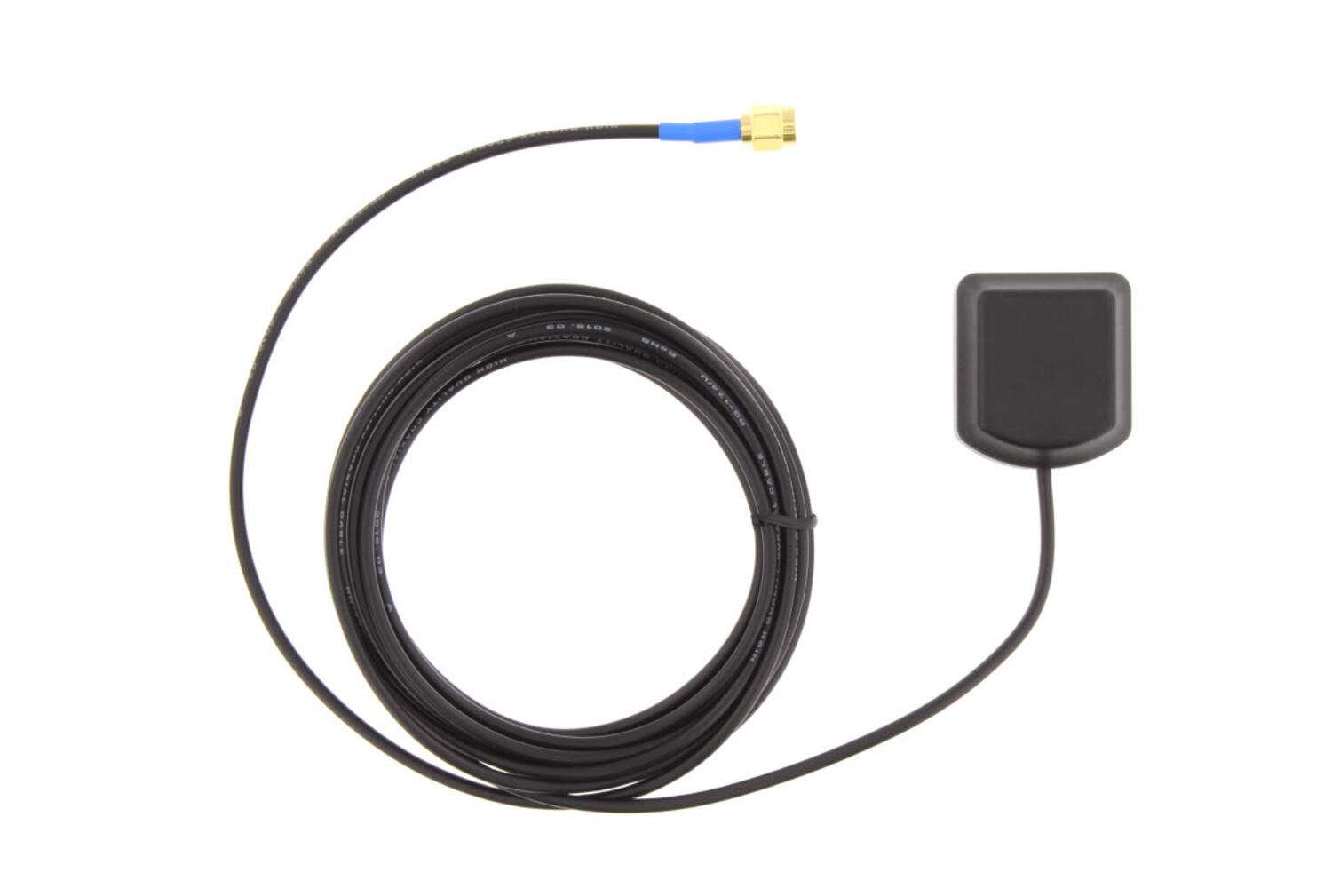

GSM-ANT-GPS-3M-K, GSM-PRO2 External GPS antenna with 3m cable and connector
Art:
16380.2
Copied
|
53 g
|
85291069
|
1
|
3 m
|
|
SMA
|
EU
|
| ||
![]()

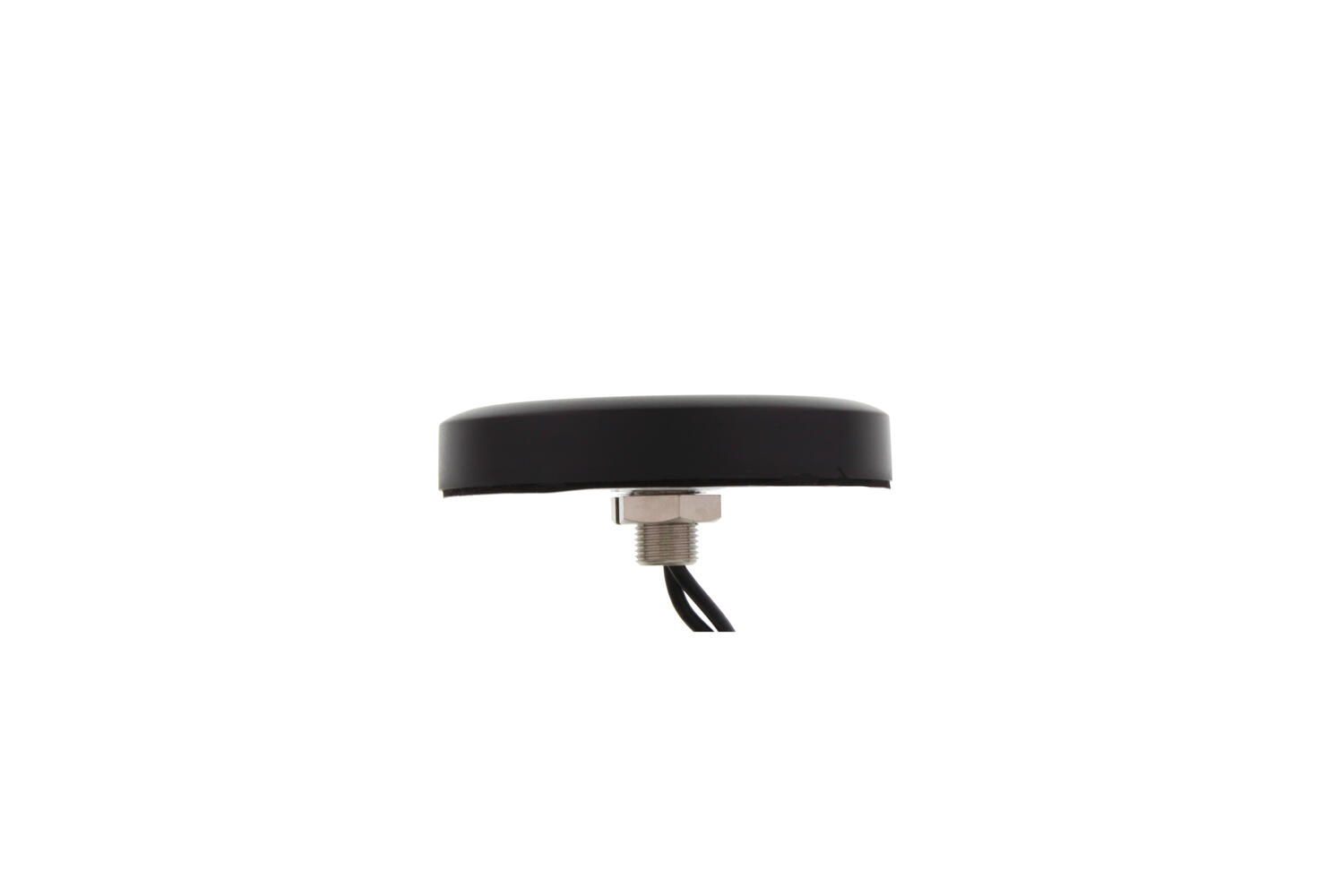

GPS-GSM-SMA-3M, Dual GSM/GPS External 3G antenna for GSM-PRO2
Art:
16381.2
Copied
|
158 g
|
85291069
|
1
|
3 m
|
|
SMA
|
EU
|
| ||
![]()

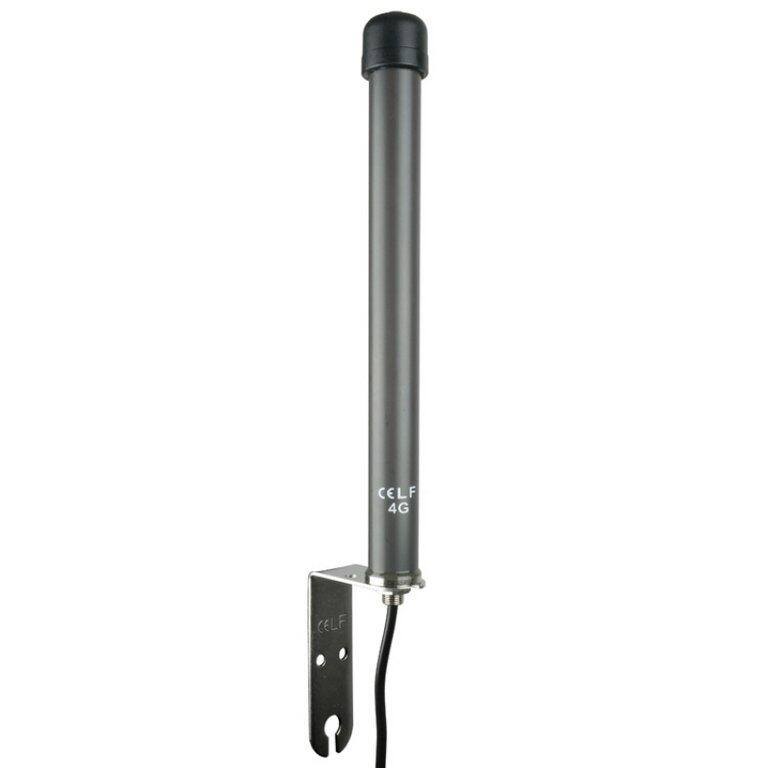

GSM-ANTENNA -EXTERNAL, GSM-PRO2 External Wall/Screw mount 4G antenna with 20m cable and connector
Art:
16499.2
Copied
|
970 g
|
85291069
|
1
|
20 m
|
Black
|
SMA
|
CN
|
| ||
![]()

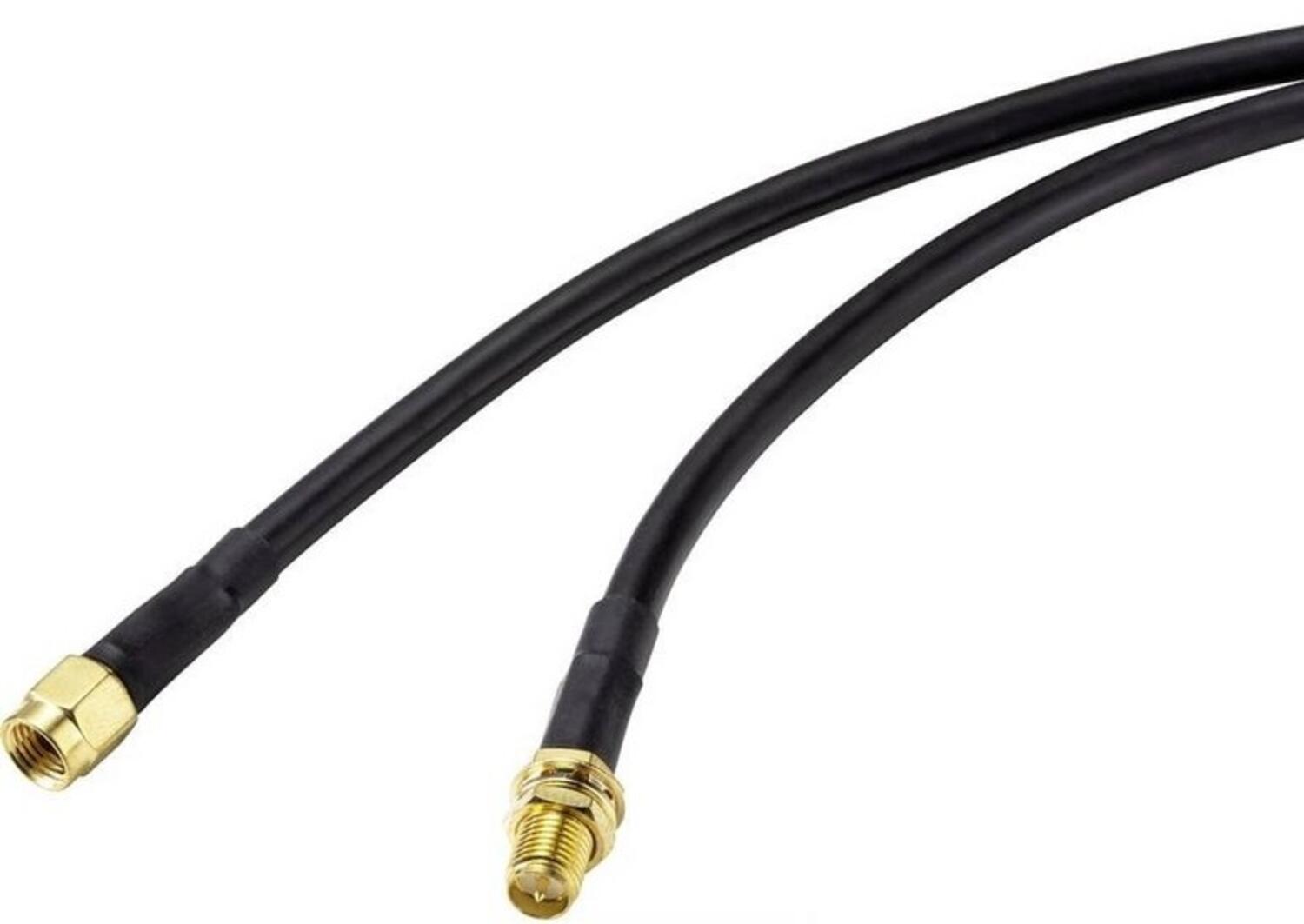

Antenna cable to extend the connection cable of 4G antennas, Connections: SMA plug > SMA socket, Length: 10 m
Art:
16494.2
Copied
|
429.6 g
|
85291069
|
|
10 m
|
|
SMA Male to SMA Female
|
NL
|
| ||
![]()

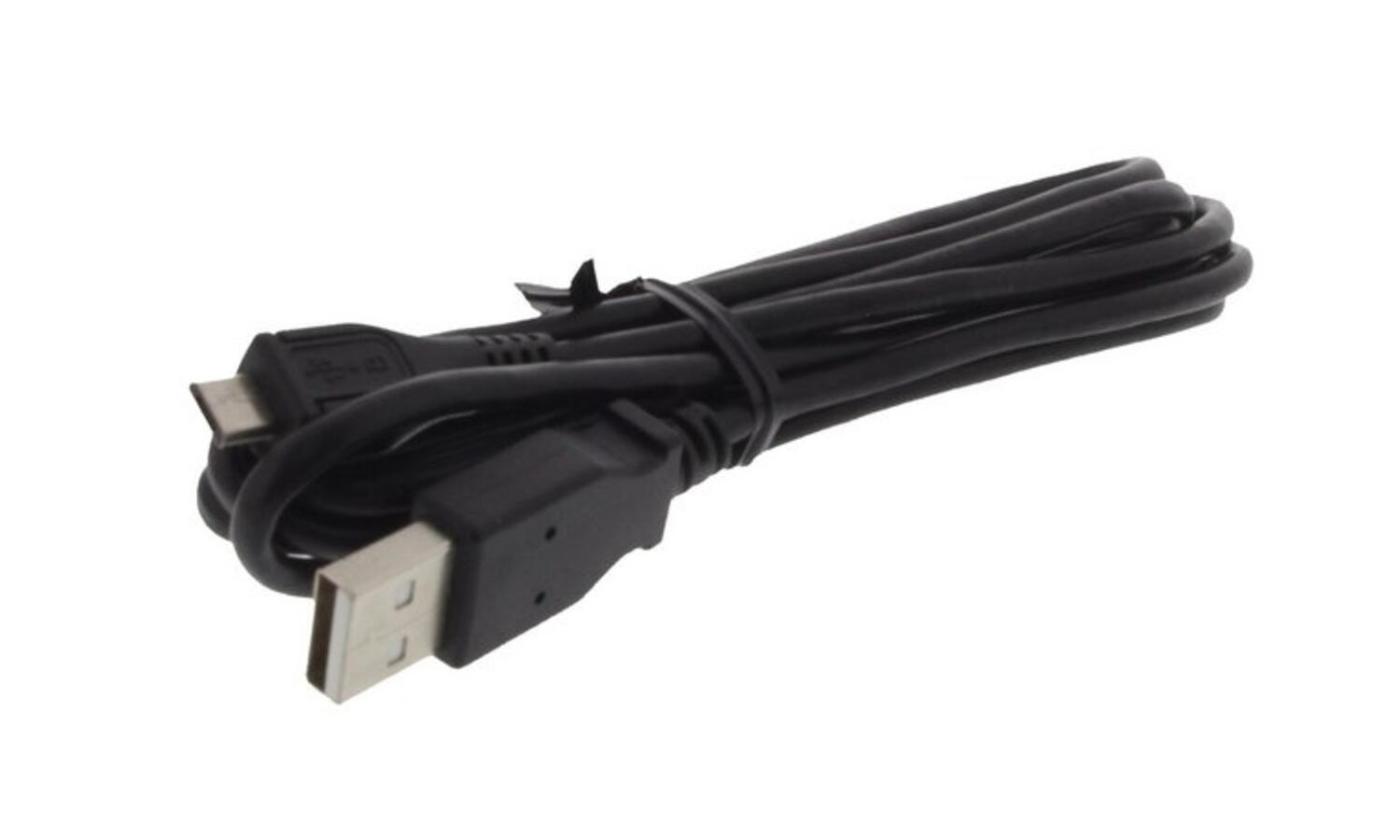

GSM-USB-MICRO, Micro USB programming cable for GSM-PRO2 range
Art:
16382.2
Copied
|
24 g
|
85444290
|
1
|
1.5 m
|
Black
|
Micro USB
|
EEC
|
|
