Output Data |
|
|---|---|
| Breaking Voltage | 250 V |
| Breaking capacity current | 6 A |
General Data |
|
|---|---|
| Isolation connection/connection | 2500 V |
| Isolation connection/rail | 2500 V |
| Material | Lexan |
| Torque connection | 0.7 |
| Mounting | DIN-rail |
| Screw size | M3, Pozi |
| Connection area single wire | 4 mm² / 2x2,25 mm² |
| Connection area multiple conductors | 0,35-2,5 mm² |
| Temperature operational min | -40 °C |
| Storage temperature min | -40 °C |
| Storage temperature max | 80 °C |
| Temperature operational max | 60 °C |
| Weight | 54 g |
Have you ever wondered if there's any difference between cable coils and cable reels?
Our cable experts take you through the advantages of using cable coils.
What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Isolation connection/connection | Isolation connection/rail | Material | Torque connection | Mounting | Screw size | Connection area single wire | Connection area multiple conductors | Weight | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

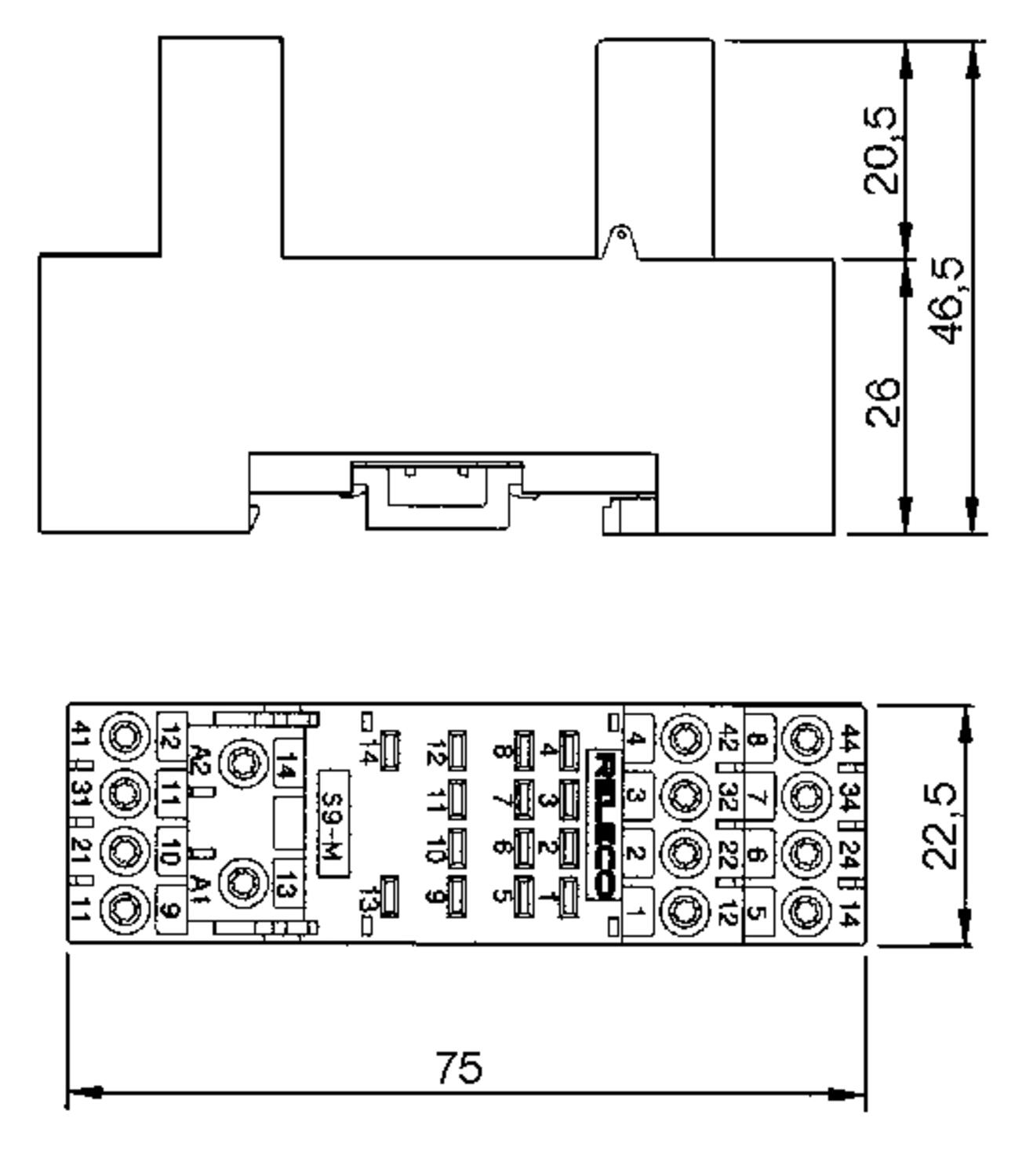

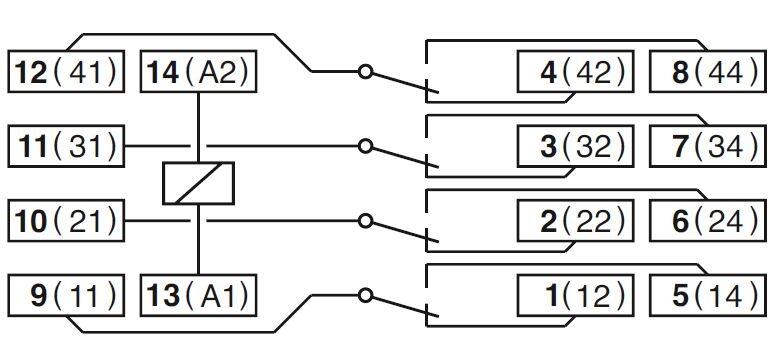

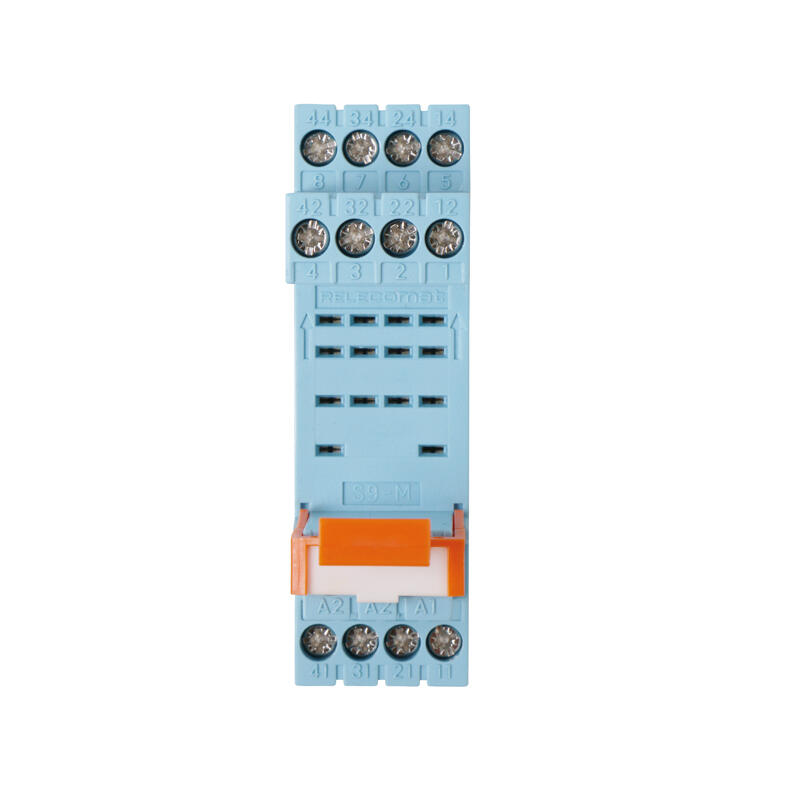

Socket For C9 Relay 14 Pin Screw
Art:
S9M
Copied
|
2500 V
|
2500 V
|
Lexan
|
0.7
|
DIN-rail
|
M3, Pozi
|
4 mm² / 2x2,25 mm²
|
0,35-2,5 mm²
|
54 g
|
|
||
Socket For C9 Relay 14 Pin PCB
Art:
S9P
Copied
|
|
|
|
|
PCB
|
|
|
|
12 g
|
|
Select a variant in the list
