BACO

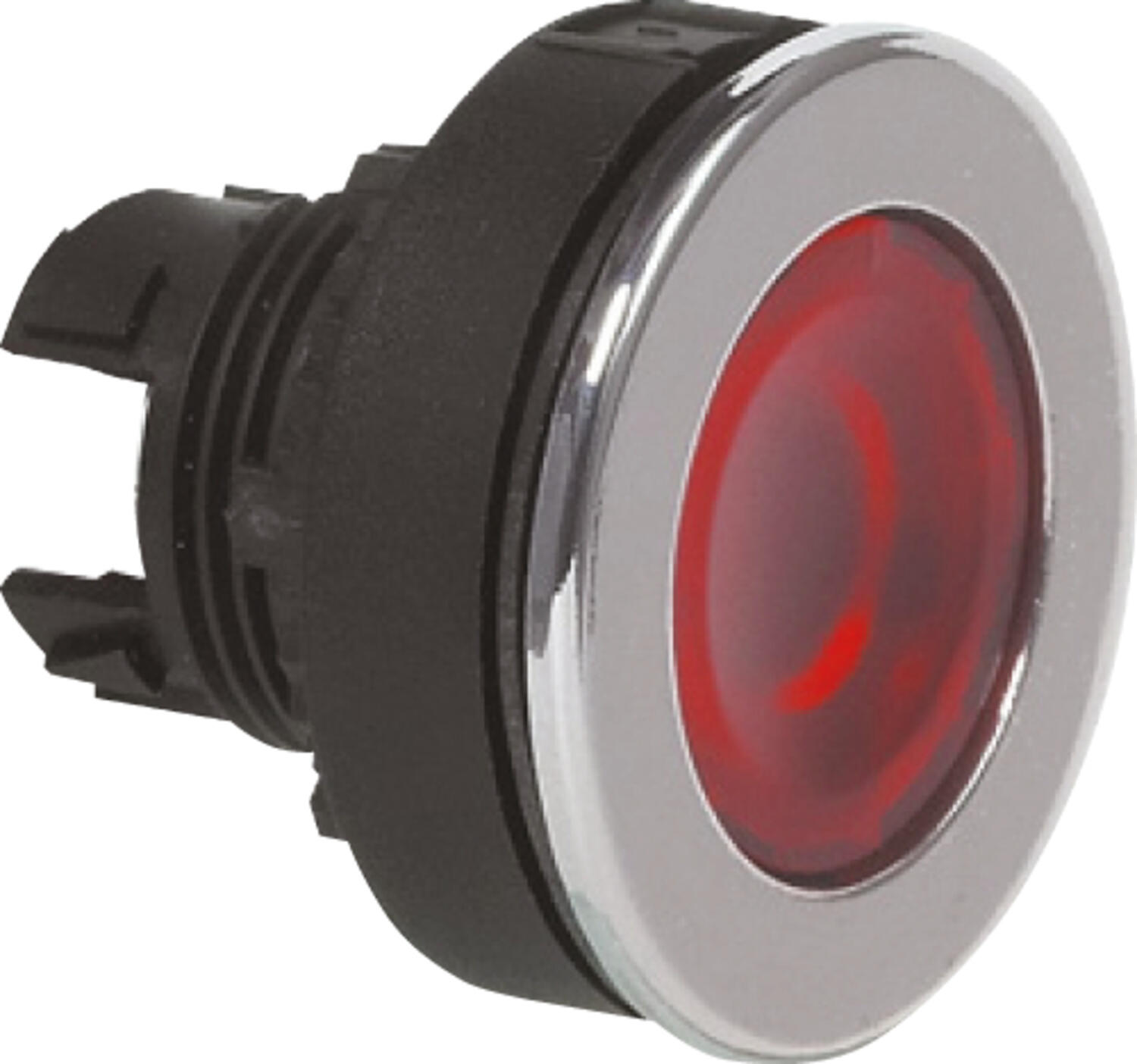

Super Flush Illuminated Pushbutton L23AH10
Super Flush Head
Illuminated super flush pushbutton heads that mount in a 30.5mm hole with protection rating IP66 / IP69K
Ideal for applications where a tamper proof, low profile button is required as only protrudes from front of panel by 2.8mm.
Combine with clip, contact blocks and LED module (must be in centre position) to make complete illuminated pushbutton assembly.

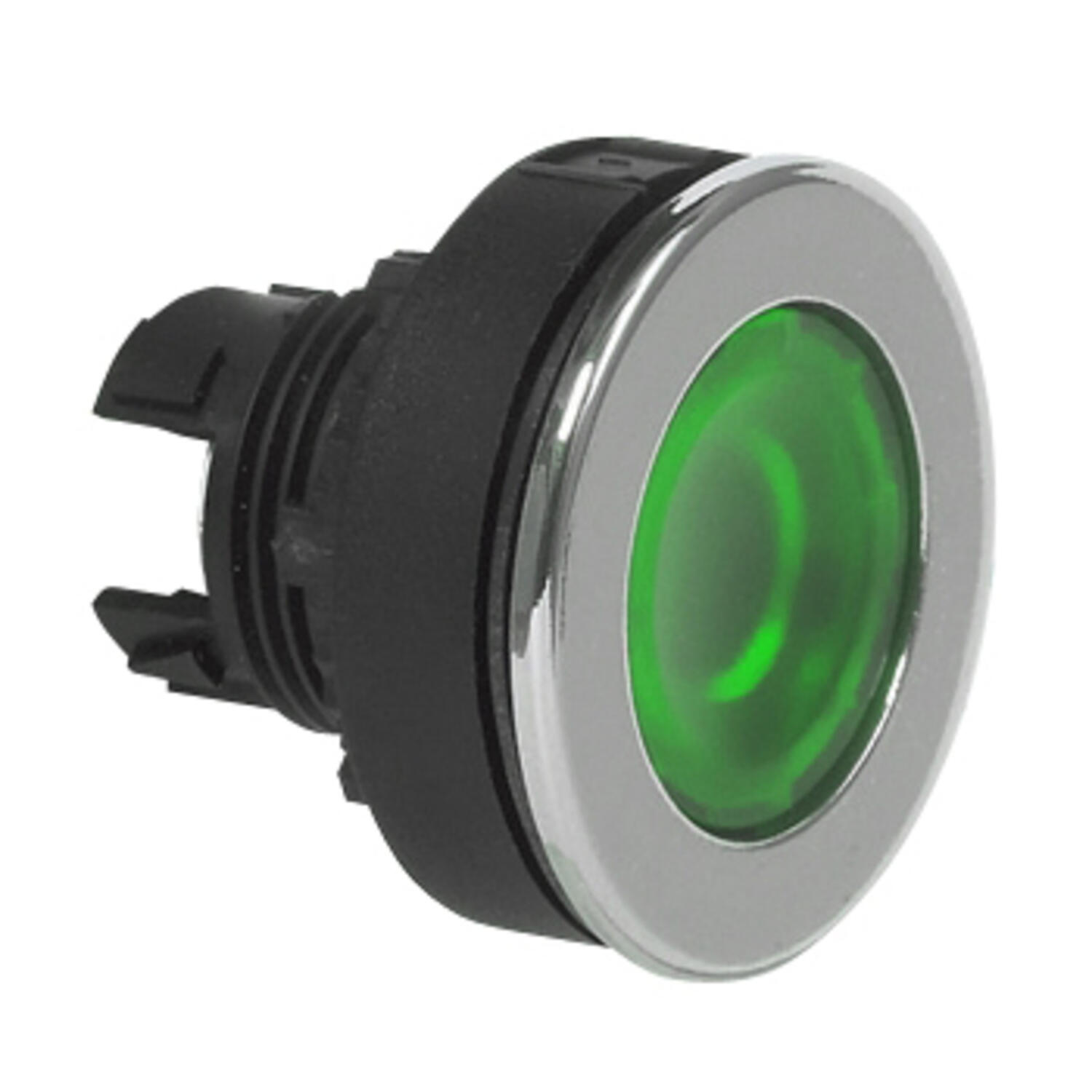

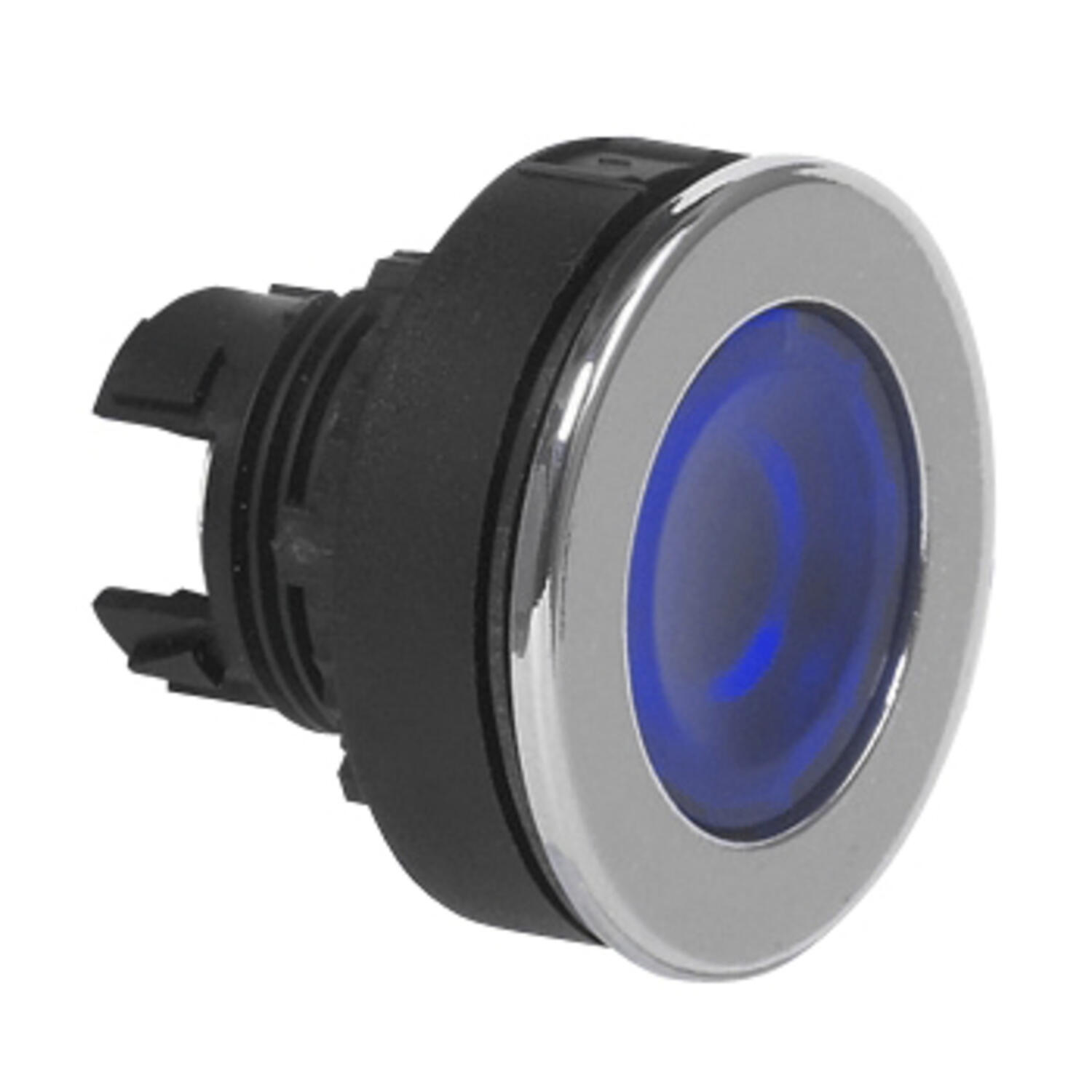

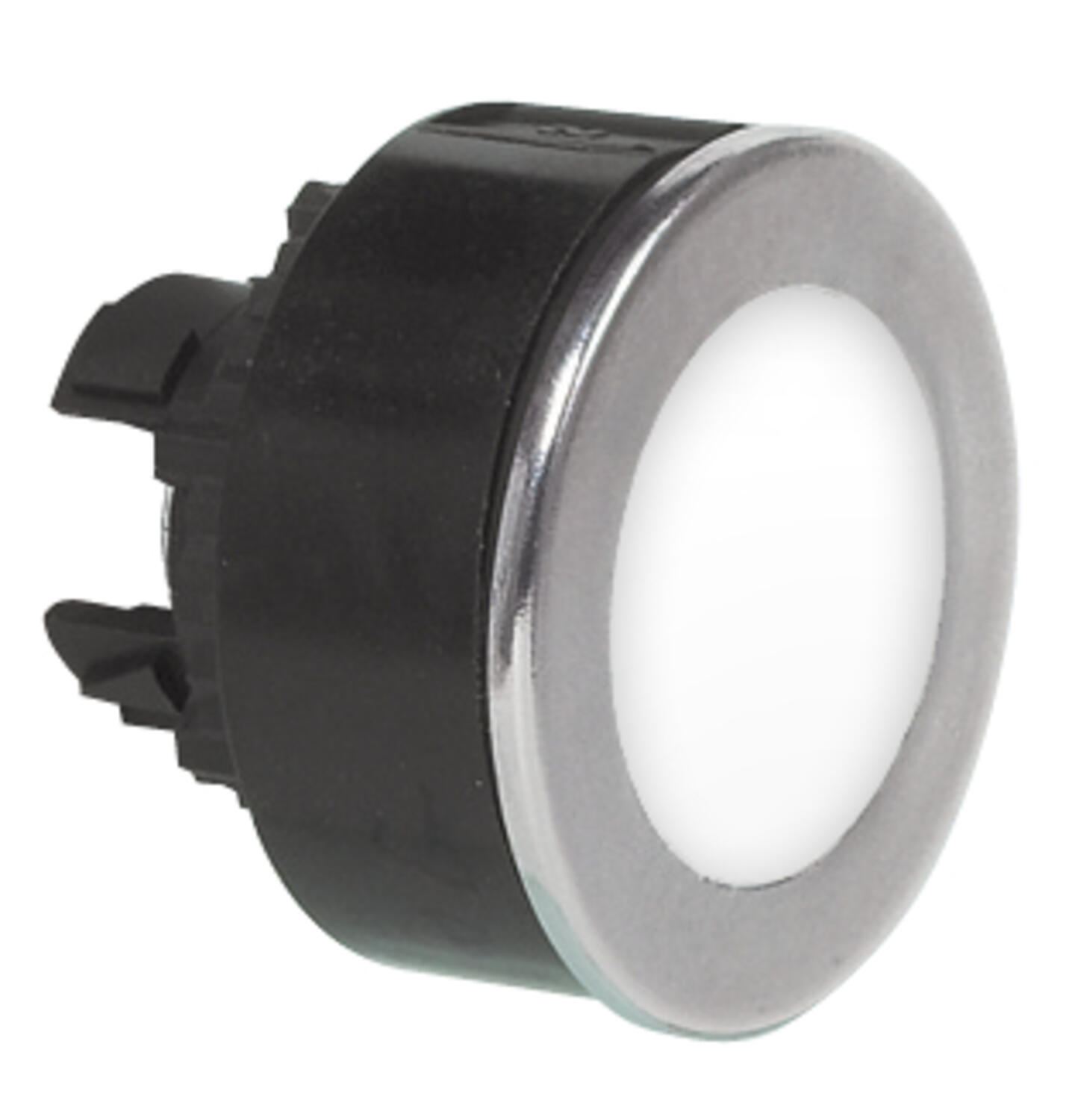

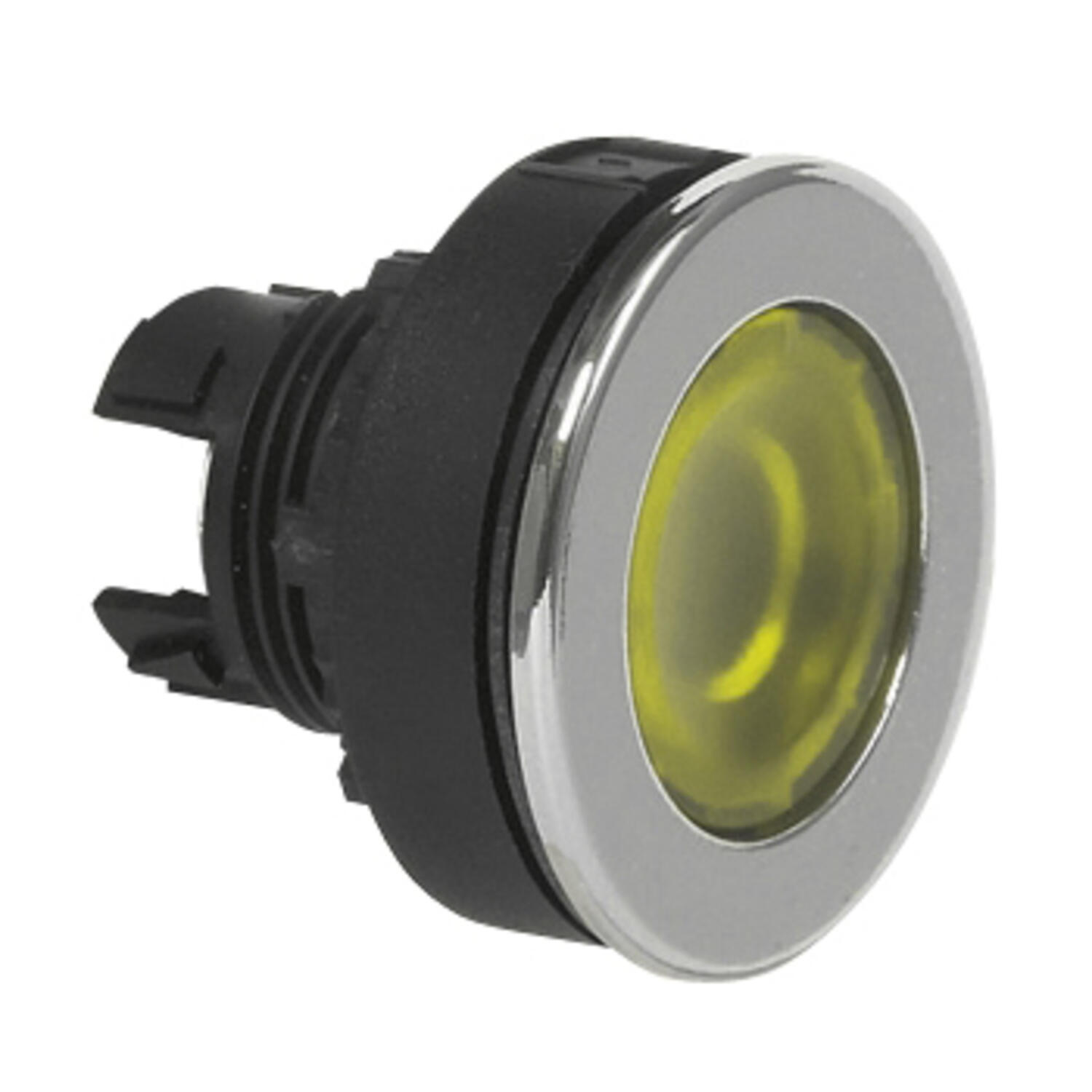

Available in multiple colours in spring return with a metallic chrome bezel.
Optional text or symbol can be added please enquire for more details.
Â
- IP66 / IP69K
- Spring return
- Low profile flush mount
- Illuminate with LED blocks
Selected variant
Technical data
| Type | Super flush pushbutton |
|---|---|
| Function | Spring return |
| Colour | Red |
| Illuminated | Yes |
| IP class | IP66 |
| Impact resistance | IK05 |
| Temperature operational min | -25 °C |
| Temperature operational max | 70 °C |
| Storage temperature min | -40 °C |
| Storage temperature max | 70 °C |
|---|---|
| Mechanical life expectancy | 5 000 000 cycles |
| Approvals | UL 508, CSA 22.2, BV, CB, CE |
| Recommended tightening torque | 3 |
| Climatic resistance - cyclic damp heat | IEC 60068-2-30 |
| Climatic resistance - sea air | IEC 60068-2-52 |
| Climatic resistance - constant humid heat | IEC 60068-2-3 |
Product description
Illuminated super flush pushbutton heads that mount in a 30.5mm hole with protection rating IP66 / IP69K
Ideal for applications where a tamper proof, low profile button is required as only protrudes from front of panel by 2.8mm.
Combine with clip, contact blocks and LED module (must be in centre position) to make complete illuminated pushbutton assembly.
Available in multiple colours in spring return with a metallic chrome bezel.
Optional text or symbol can be added please enquire for more details.
Â
