BACO

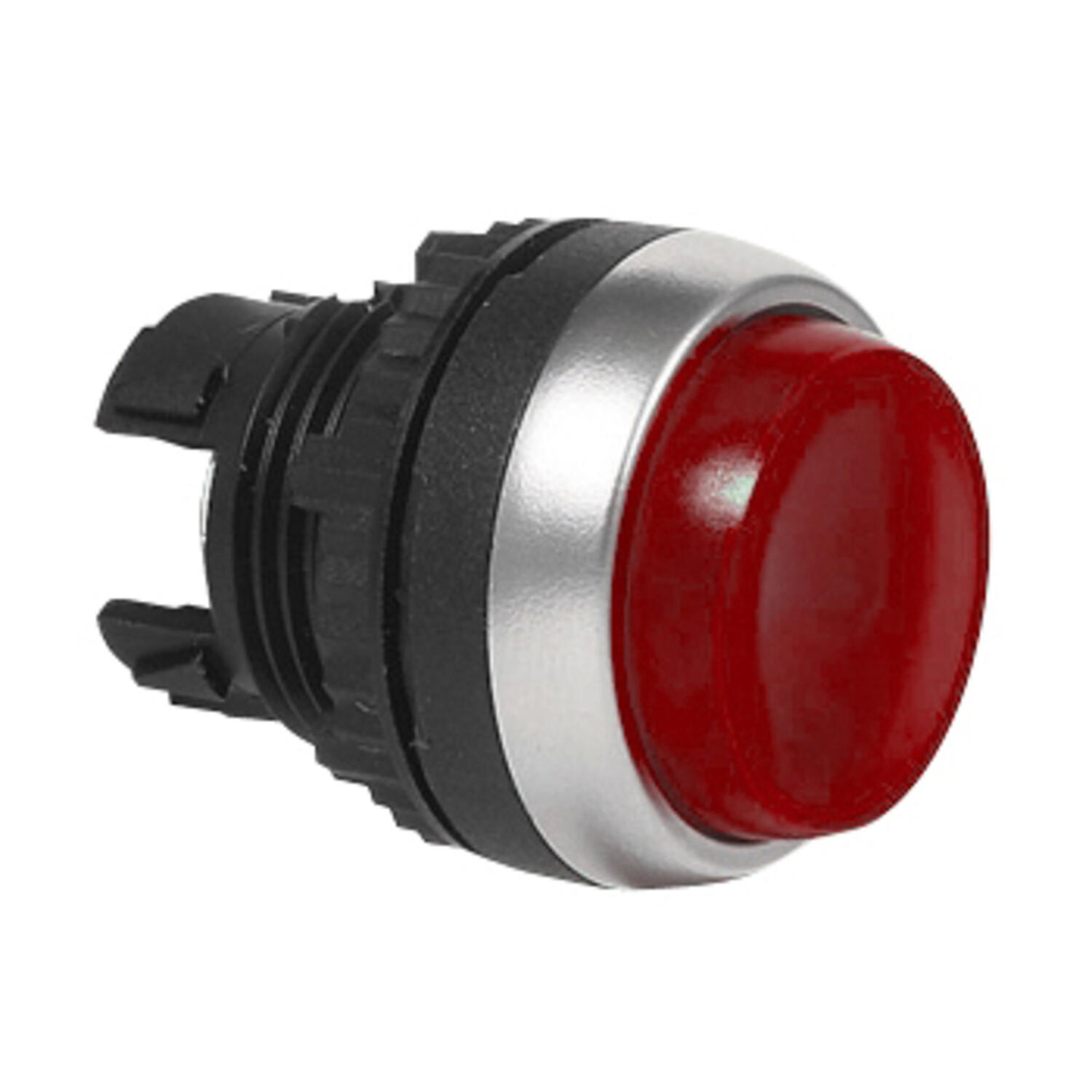

Non-Flush Illuminated Pushbutton L21AK10
Non Flush Head

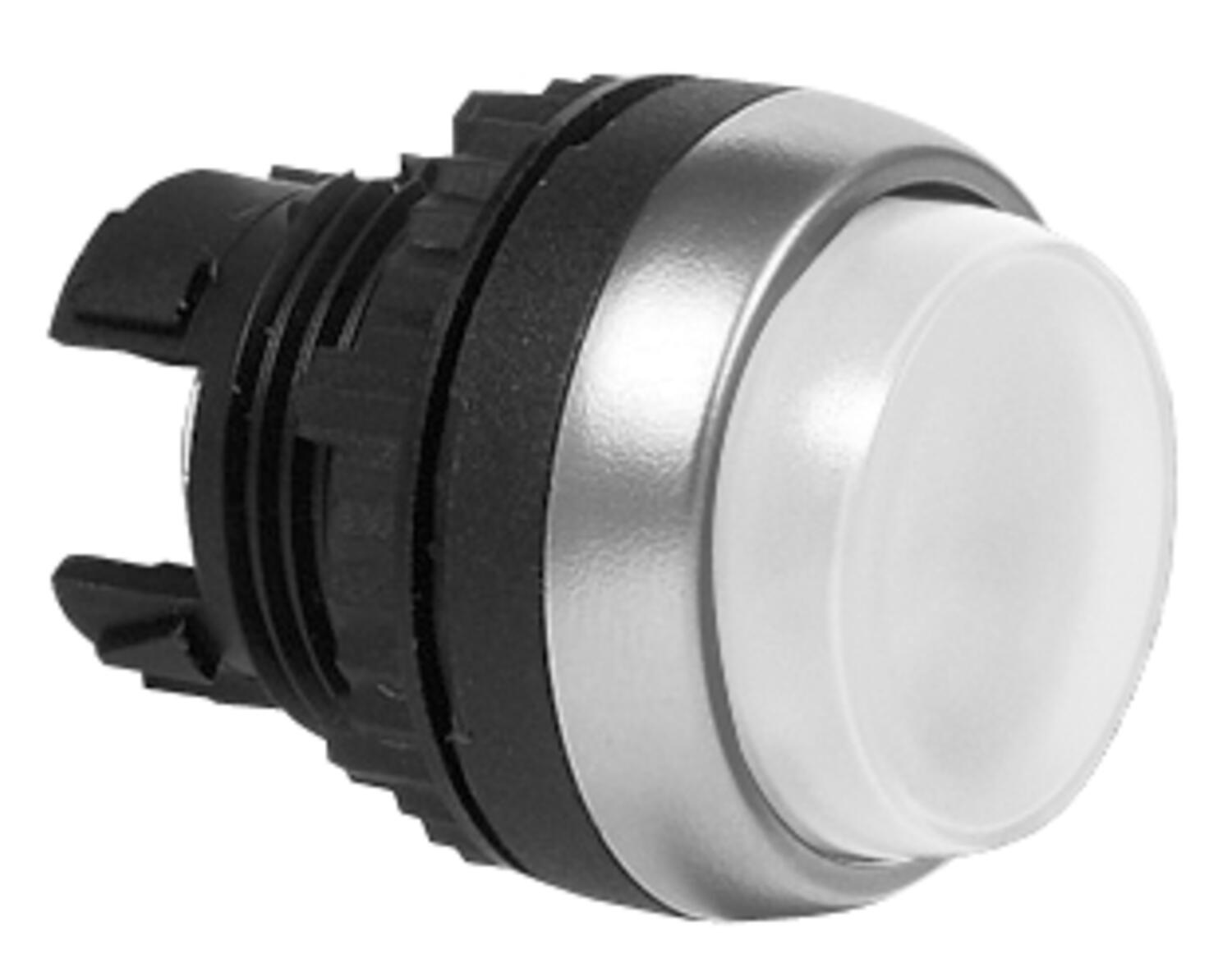

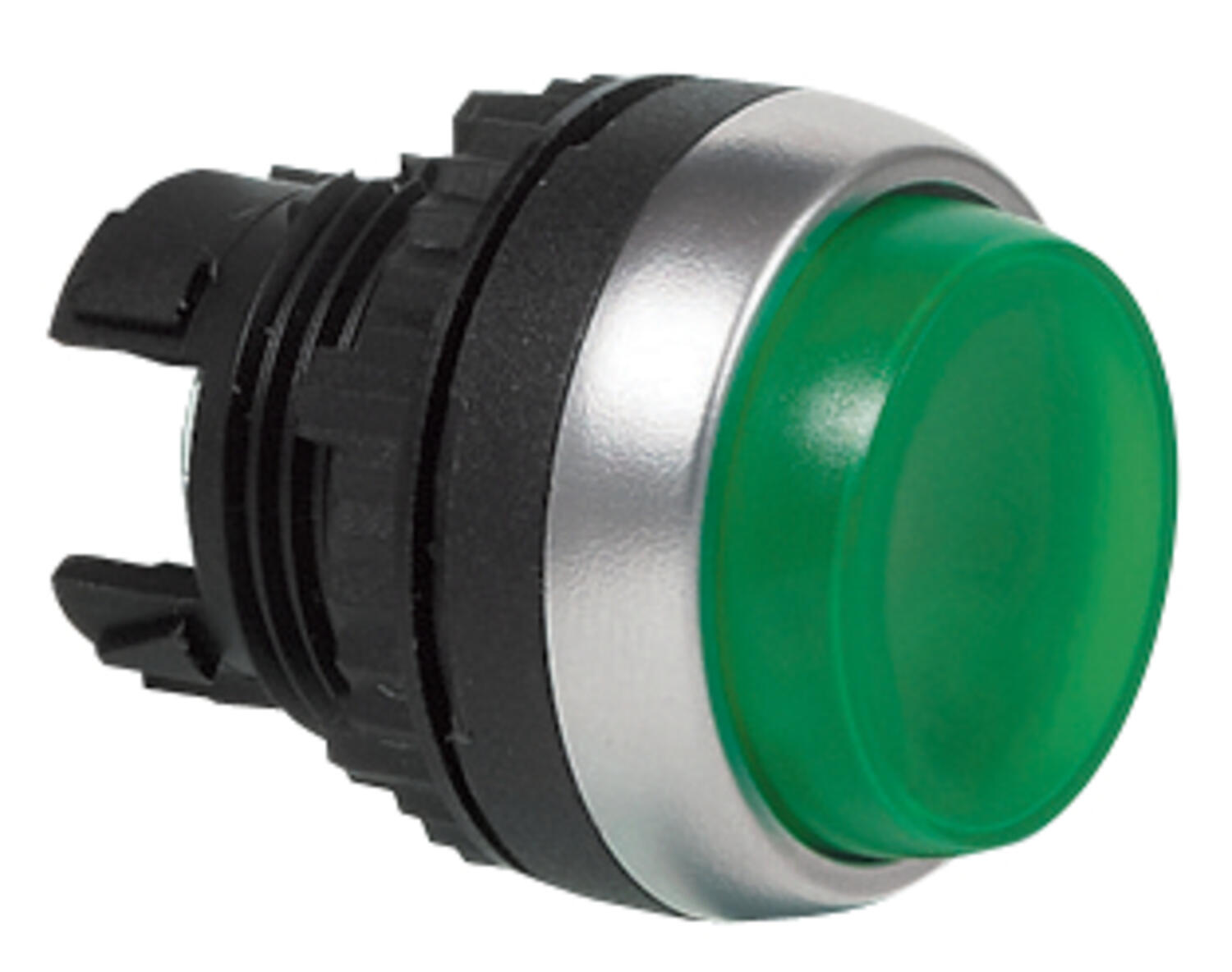

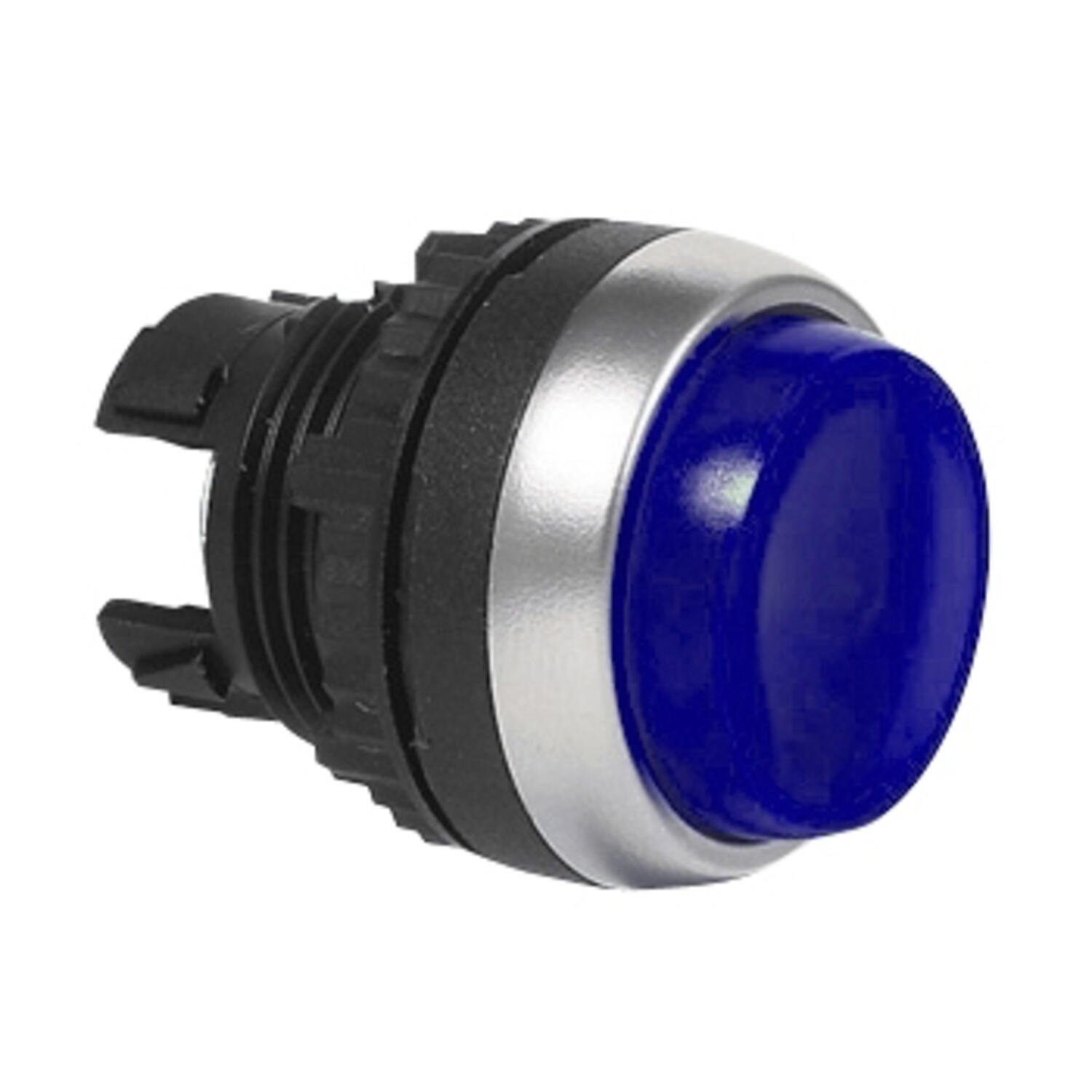

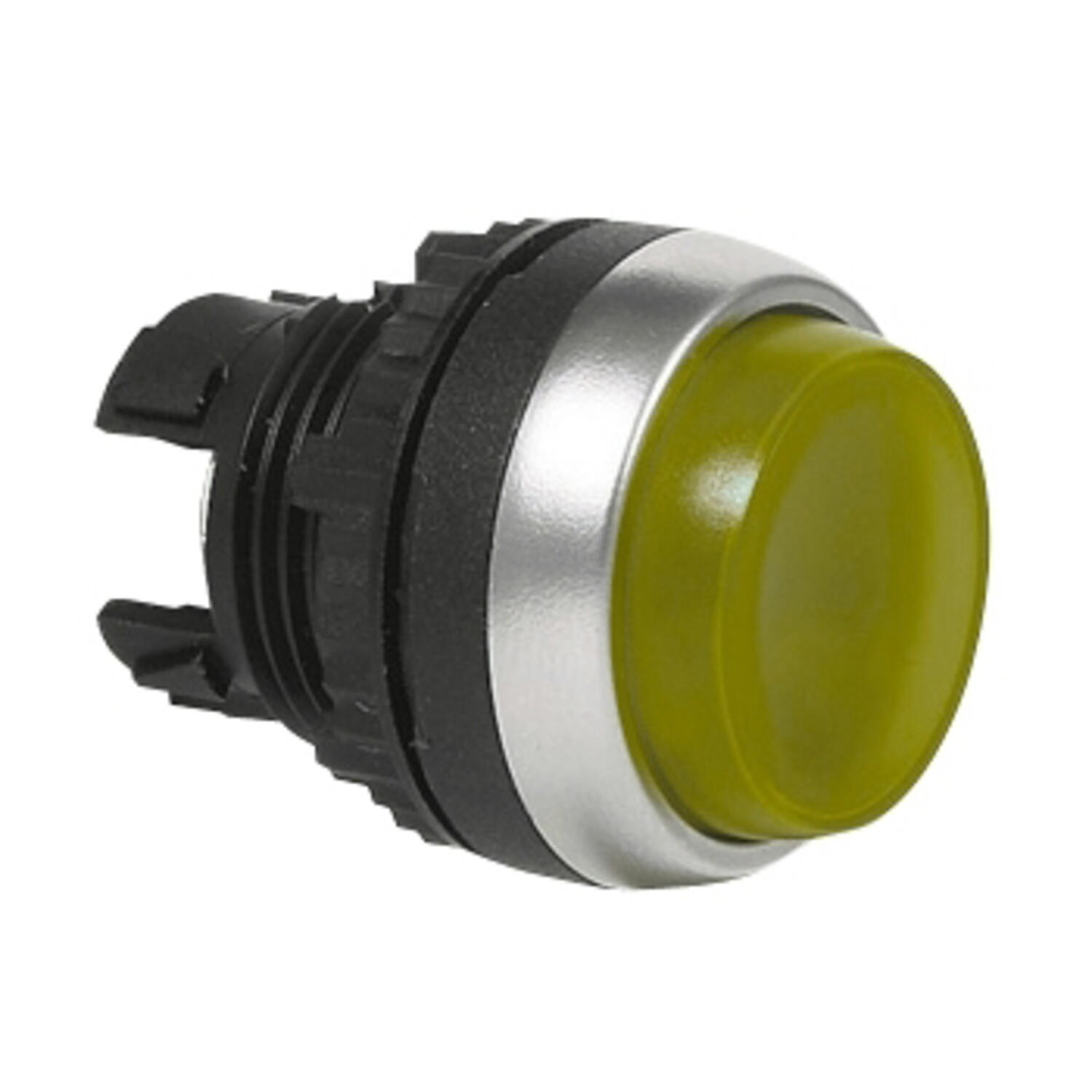

Non flush (projecting) illuminated pushbutton heads that mount in a 22.5mm hole with protection rating IP66 / IP69K
Ideal for applications where an easier activation is required for example when wearing gloves.
Combine with clip, contact blocks and LED module (must be in centre position) to make complete illuminated pushbutton assembly.
Available in multiple colours in spring return or latching.
Supplied with a matt chrome bezel as standard.
For black plastic bezel change the part number from L21xxxx to L22xxxx.
Optional text or symbol can be added please enquire for more details.
Â
- IP66 / IP69K
- Spring return or latching
- Optional text or symbol
- Illuminate with LED blocks
Selected variant
Technical data
| Type | Non flush pushbutton |
|---|---|
| Function | Spring return |
| Colour | Red |
| Illuminated | Yes |
| IP class | IP66, IP69, IP69K |
| Impact resistance | IK05 |
| Protection class | II (double insulated) |
| Temperature operational min | -25 °C |
| Temperature operational max | 70 °C |
| Storage temperature min | -40 °C |
| Storage temperature max | 70 °C |
|---|---|
| Mechanical life expectancy | 5 000 000 cycles |
| Weight | 15.8 g |
| Approvals | UL 508, CSA 22.2, BV, CB, CE |
| Recommended tightening torque | 3 |
| Climatic resistance - cyclic damp heat | IEC 60068-2-30 |
| Climatic resistance - sea air | IEC 60068-2-52 |
| Climatic resistance - constant humid heat | IEC 60068-2-3 |
Product description
Non flush (projecting) illuminated pushbutton heads that mount in a 22.5mm hole with protection rating IP66 / IP69K
Ideal for applications where an easier activation is required for example when wearing gloves.
Combine with clip, contact blocks and LED module (must be in centre position) to make complete illuminated pushbutton assembly.
Available in multiple colours in spring return or latching.
Supplied with a matt chrome bezel as standard.
For black plastic bezel change the part number from L21xxxx to L22xxxx.
Optional text or symbol can be added please enquire for more details.
Â
