BACO

Pushbutton enclosures LBX0100

Approvals	UL 508, CSA 22.2, BV, CB, CE
Cable entry	2xM16/M20
Climatic resistance - constant humid heat	IEC 60068-2-3
Climatic resistance - cyclic damp heat	IEC 60068-2-30
Climatic resistance - sea air	IEC 60068-2-52
Enclosure colour	Grey, Black
Impact resistance	IK07

IP class	IP66
Protection class	II
Storage temperature max	70 °C
Storage temperature min	-40 °C
Temperature operational max	70 °C
Temperature operational min	-25 °C

Parts	Approvals	Enclosure colour
Box Empty Black Base Grey Lid 1 Hole Art: LBX0100 Copied	UL 508, CSA 22.2, BV, CB, CE	Grey, Black

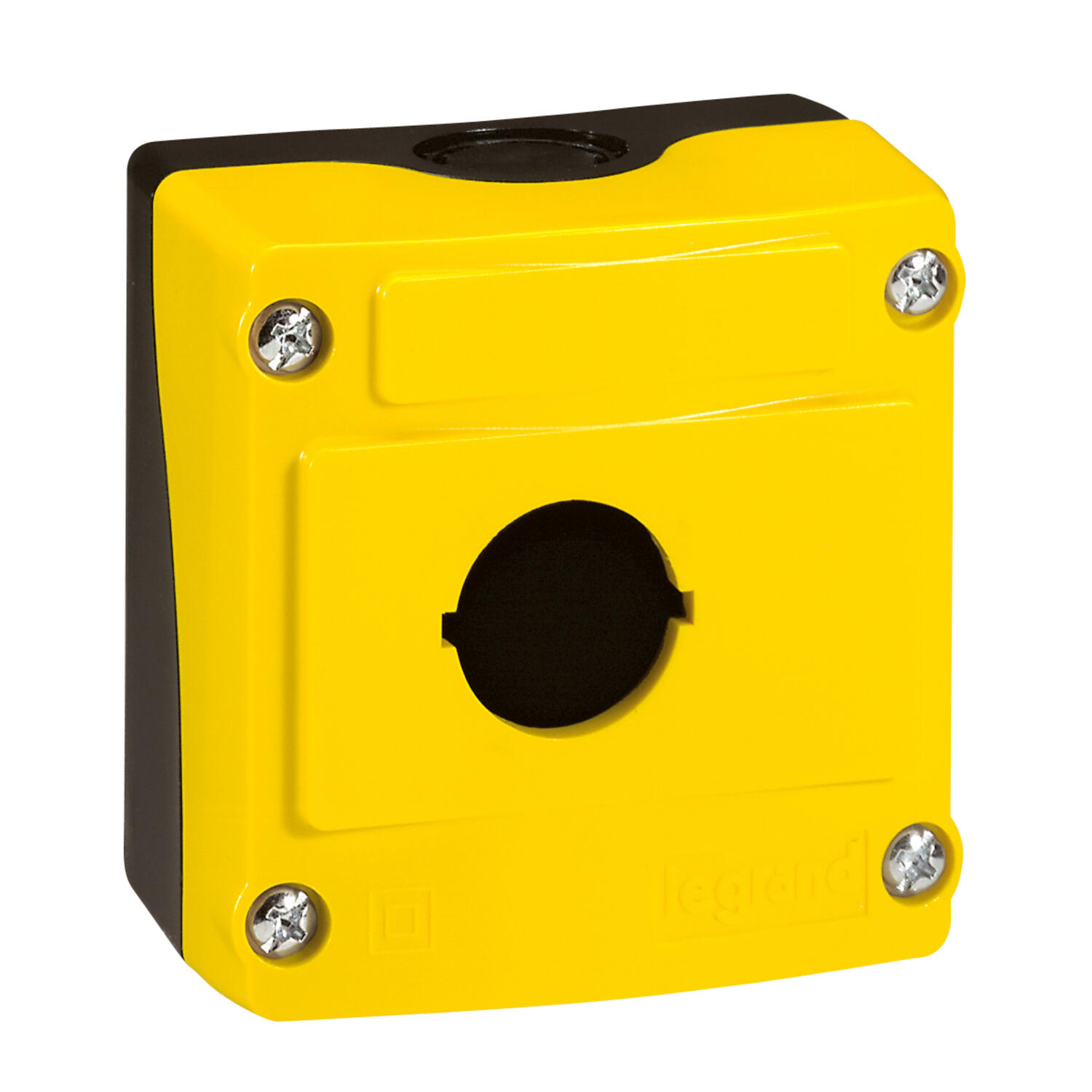

Box Empty Black Base Yellow Lid 1 Hole Art: LBX0100J Copied	UL 508, CSA 22.2, BV, CB, CE	Yellow, Black

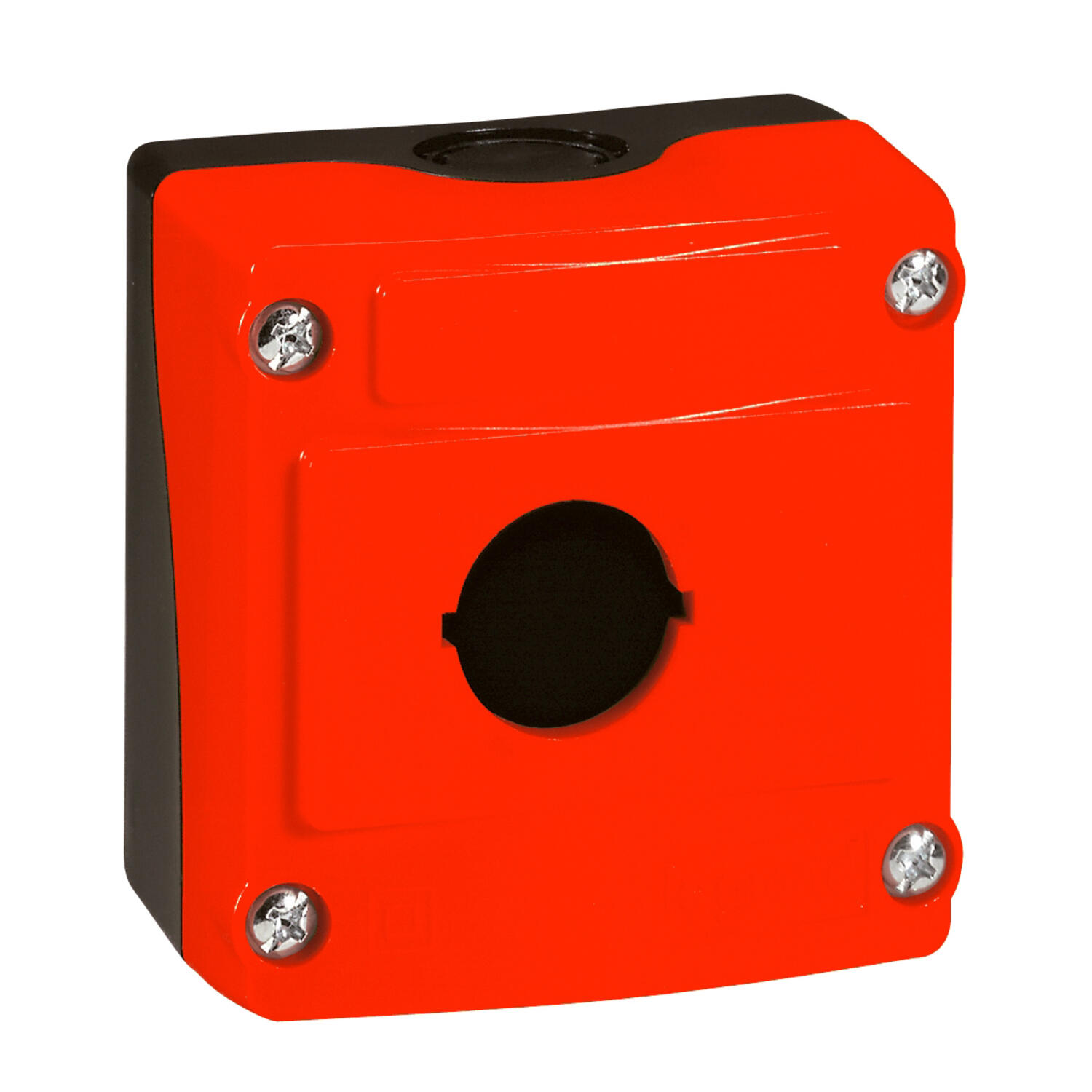

Enclosure Black Base, Red Cover, 1 Hole Art: LBX0100RN Copied	BV, CB, CE, CSA 22.2, UL 508	Red, Black

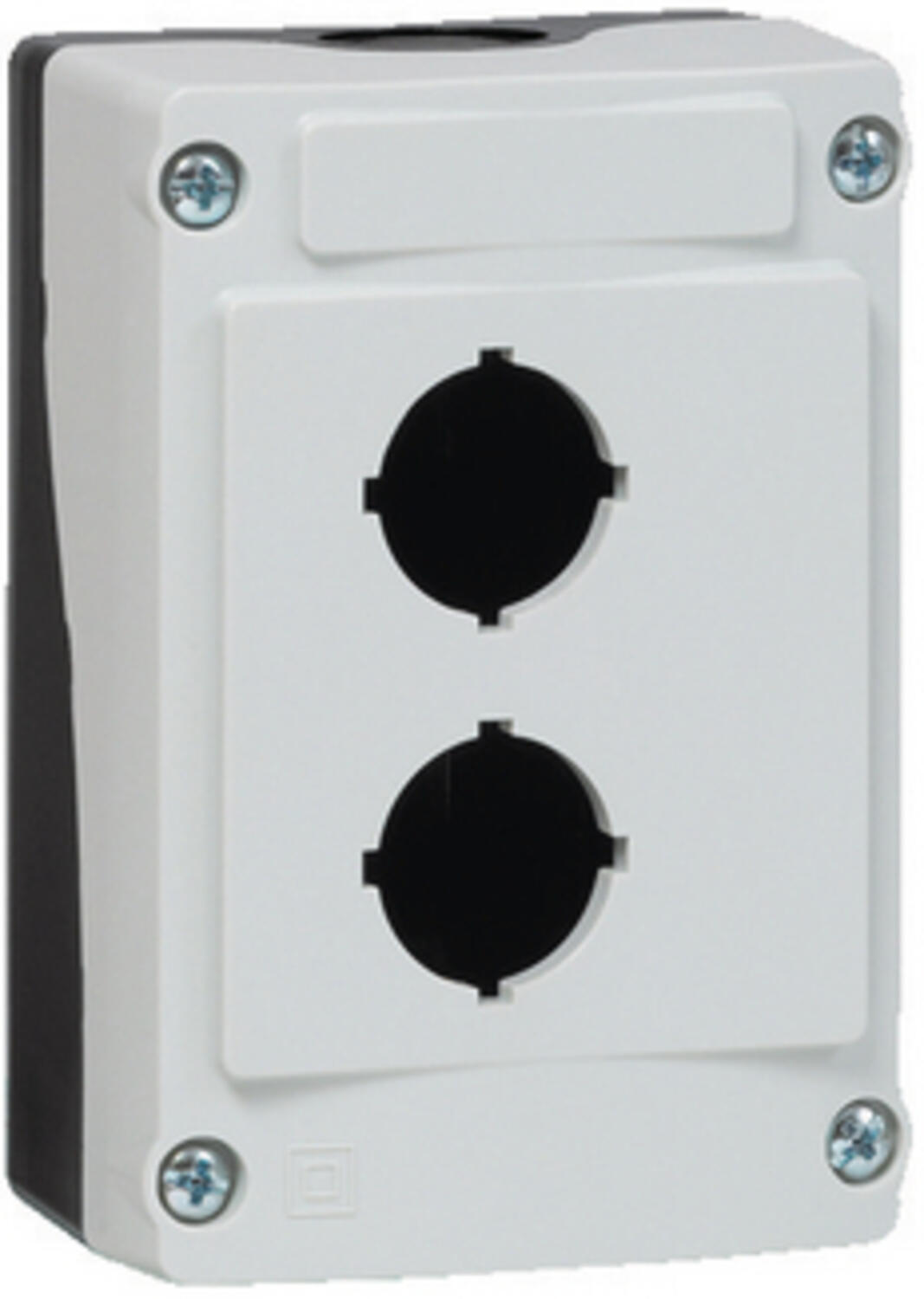

Box Empty Black Base Grey Lid 2 Hole Art: LBX0200 Copied	UL 508, CSA 22.2, BV, CB, CE	Grey, Black

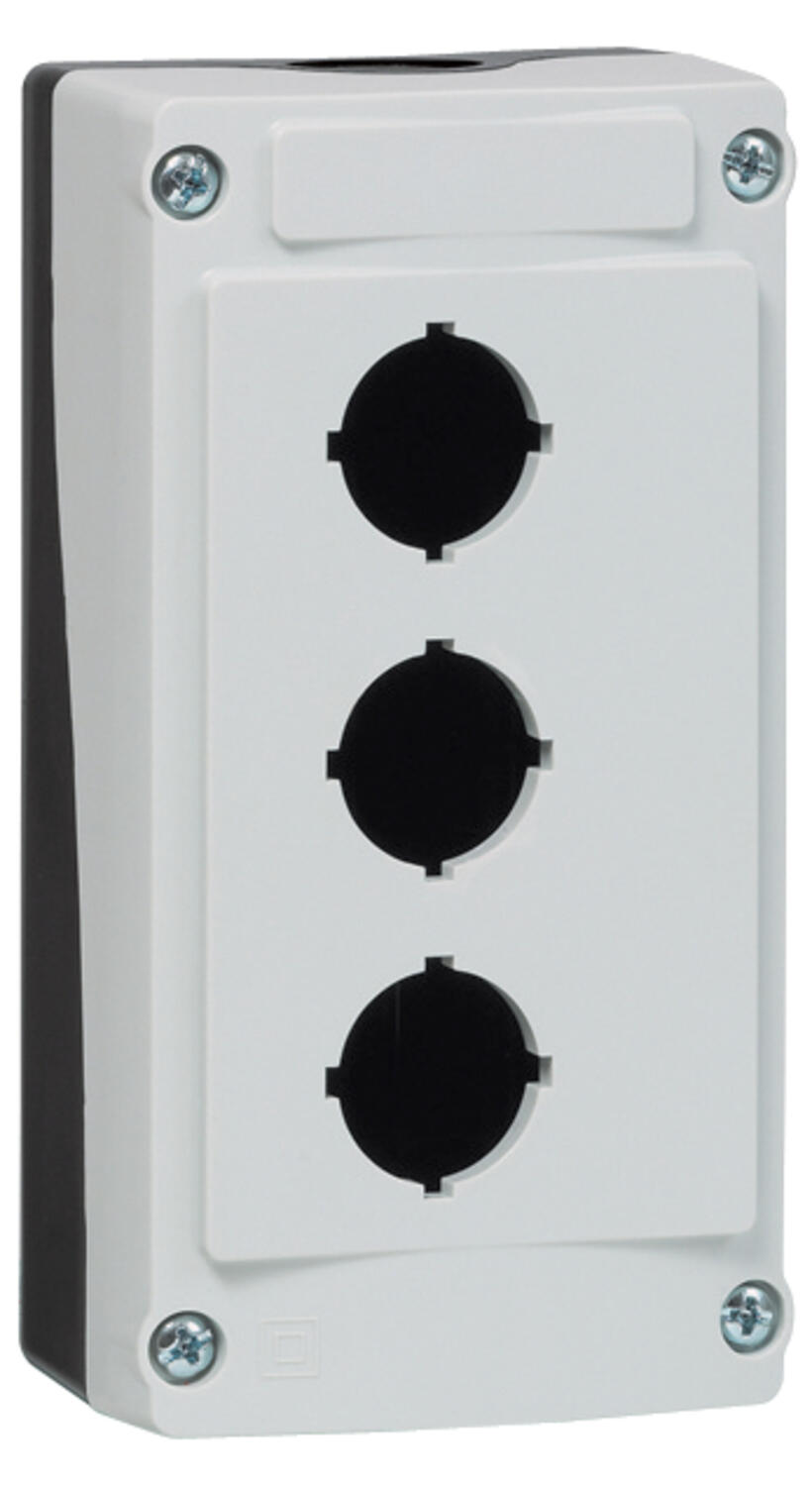

Box Empty Black Base Grey Lid 3 Hole Art: LBX0300 Copied	UL 508, CSA 22.2, BV, CB, CE	Grey, Black

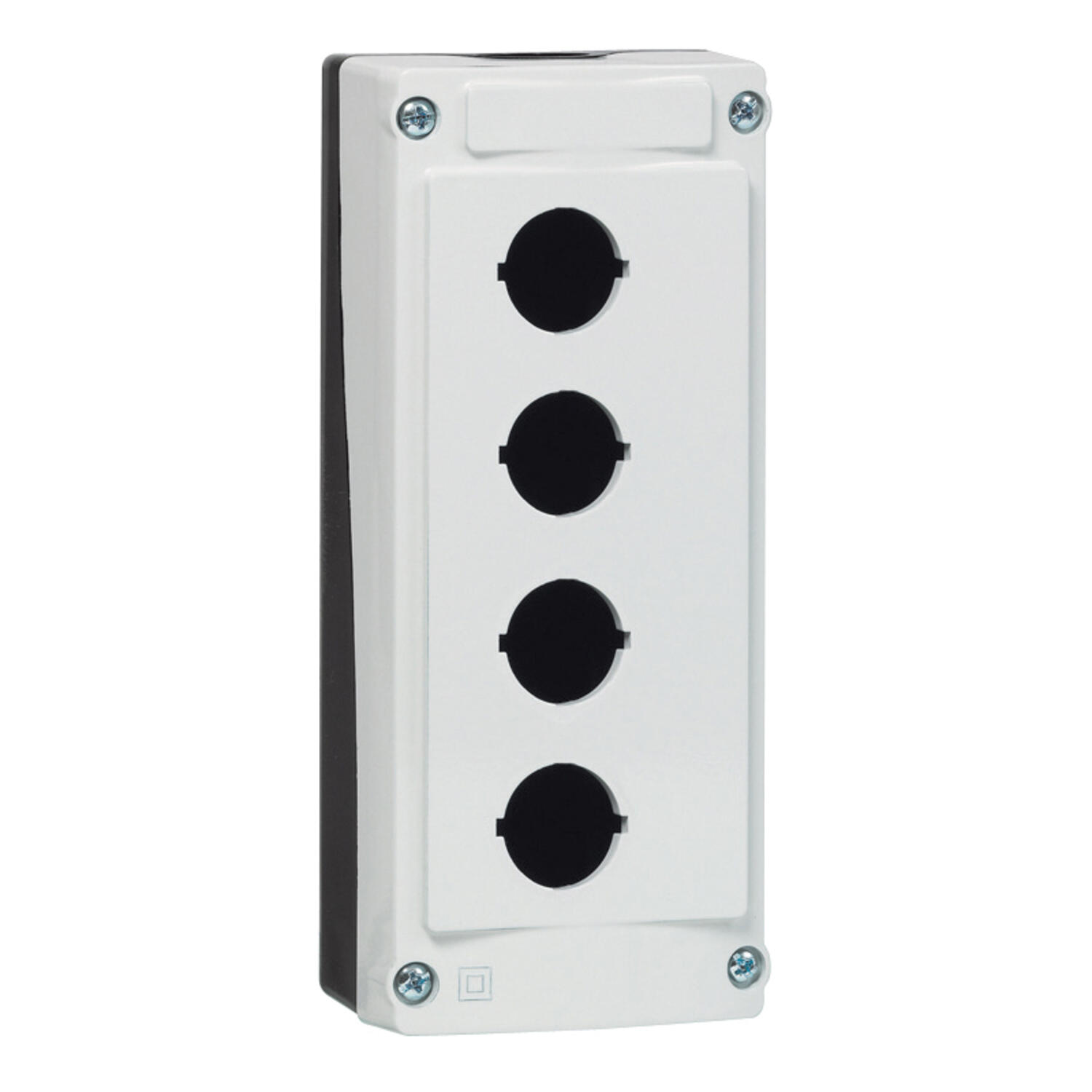

Box Empty Black Base Grey Lid 4 Hole Art: LBX0400 Copied	UL 508, CSA 22.2, BV, CB, CE	Grey, Black

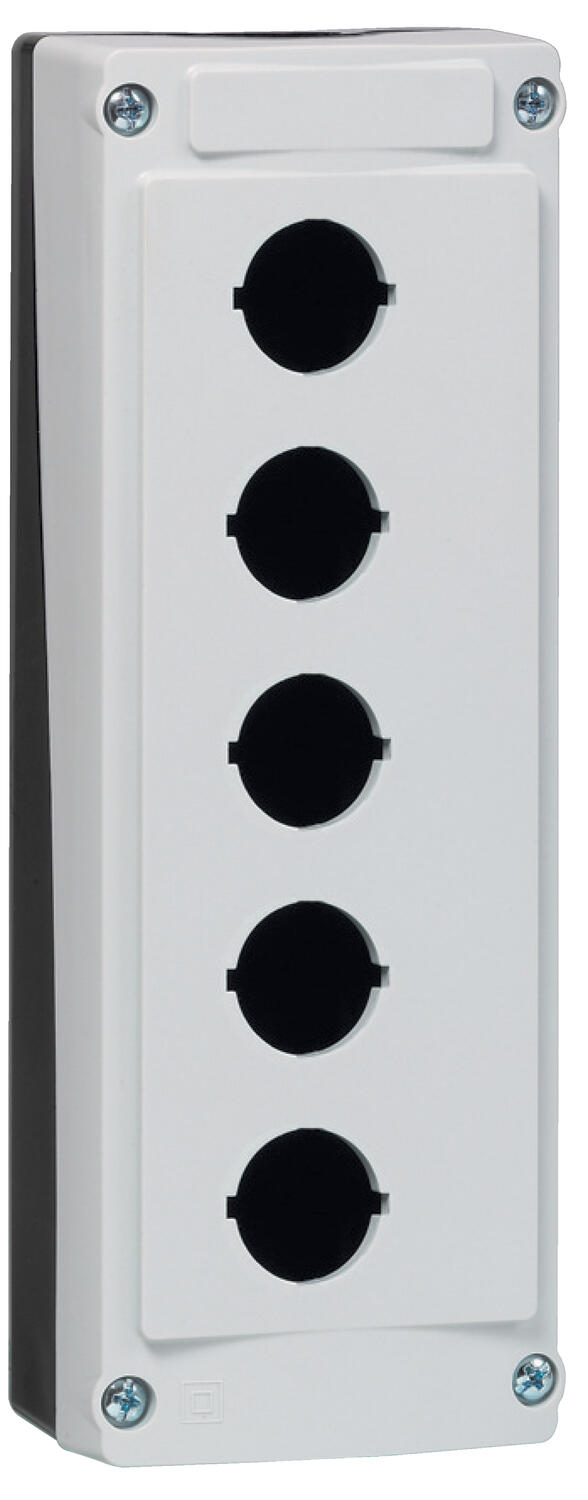

Box Empty Black Base Grey Lid 5 Hole Art: LBX0500 Copied	UL 508, CSA 22.2, BV, CB, CE	Grey, Black
