BACO
Control boxes, complete LBX30430
Enclosures fitted with different functions.
Â
The coated enclosures we present here are a few standard models, and a very small part of what is available. When it comes to coated enclosures and its features, they differ greatly from application to application. We have therefore specialized in customizing enclosures in the Baco range. Everything from smaller to large series.
Â
We customize everything from the various combinations of pushbuttons, knobs, emergency stops, etc., to also arrange special texts or symbols on the enclosure or buttons.
Contact us for more information on this and we will help you to get a good solution.
Â
Of course, it is also easy to order loose parts and assemble them yourself.
Selected variant
Technical data

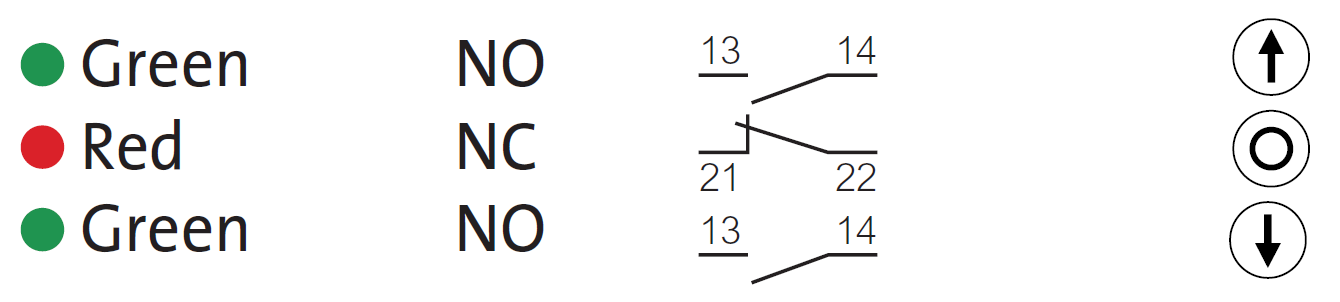

| Contact type | 2 x N/O, 1 x N/C |
|---|---|
| Colour | Green, Red |
| Enclosure colour | Grey, Black |
| IP class | IP66 |
| Impact resistance | IK05, IK07 |
| Cable entry | 2xM16/M20 |
| Temperature operational min | -25 °C |
| Temperature operational max | 70 °C |
| Storage temperature min | -40 °C |
|---|---|
| Storage temperature max | 70 °C |
| Approvals | UL 508, CSA 22.2, BV, CB, CE |
| Climatic resistance - cyclic damp heat | IEC 60068-2-30 |
| Climatic resistance - sea air | IEC 60068-2-52 |
| Climatic resistance - constant humid heat | IEC 60068-2-3 |
Product description
Enclosures fitted with different functions.
Â
The coated enclosures we present here are a few standard models, and a very small part of what is available. When it comes to coated enclosures and its features, they differ greatly from application to application. We have therefore specialized in customizing enclosures in the Baco range. Everything from smaller to large series.
Â
We customize everything from the various combinations of pushbuttons, knobs, emergency stops, etc., to also arrange special texts or symbols on the enclosure or buttons.
Contact us for more information on this and we will help you to get a good solution.
Â
Of course, it is also easy to order loose parts and assemble them yourself.
