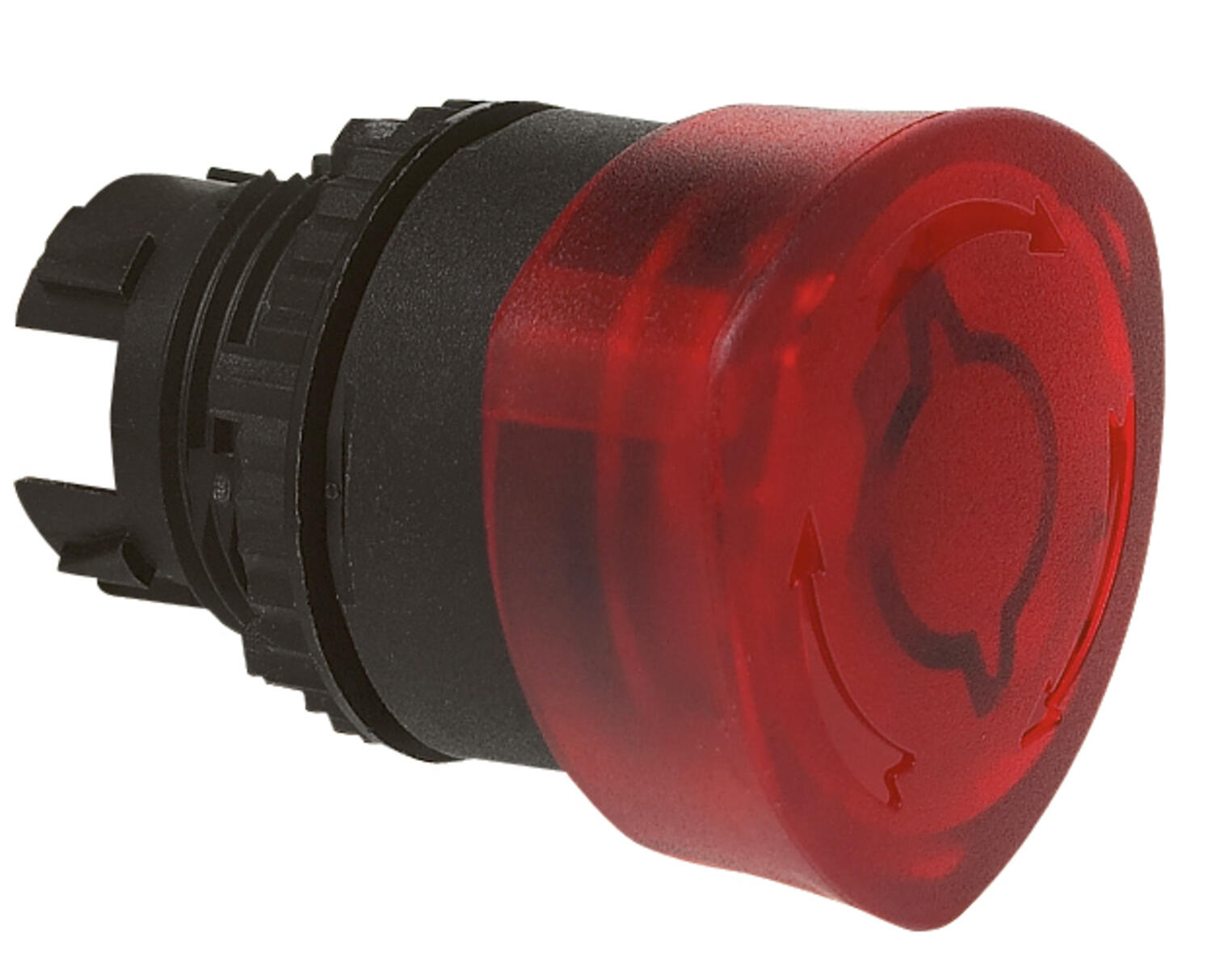

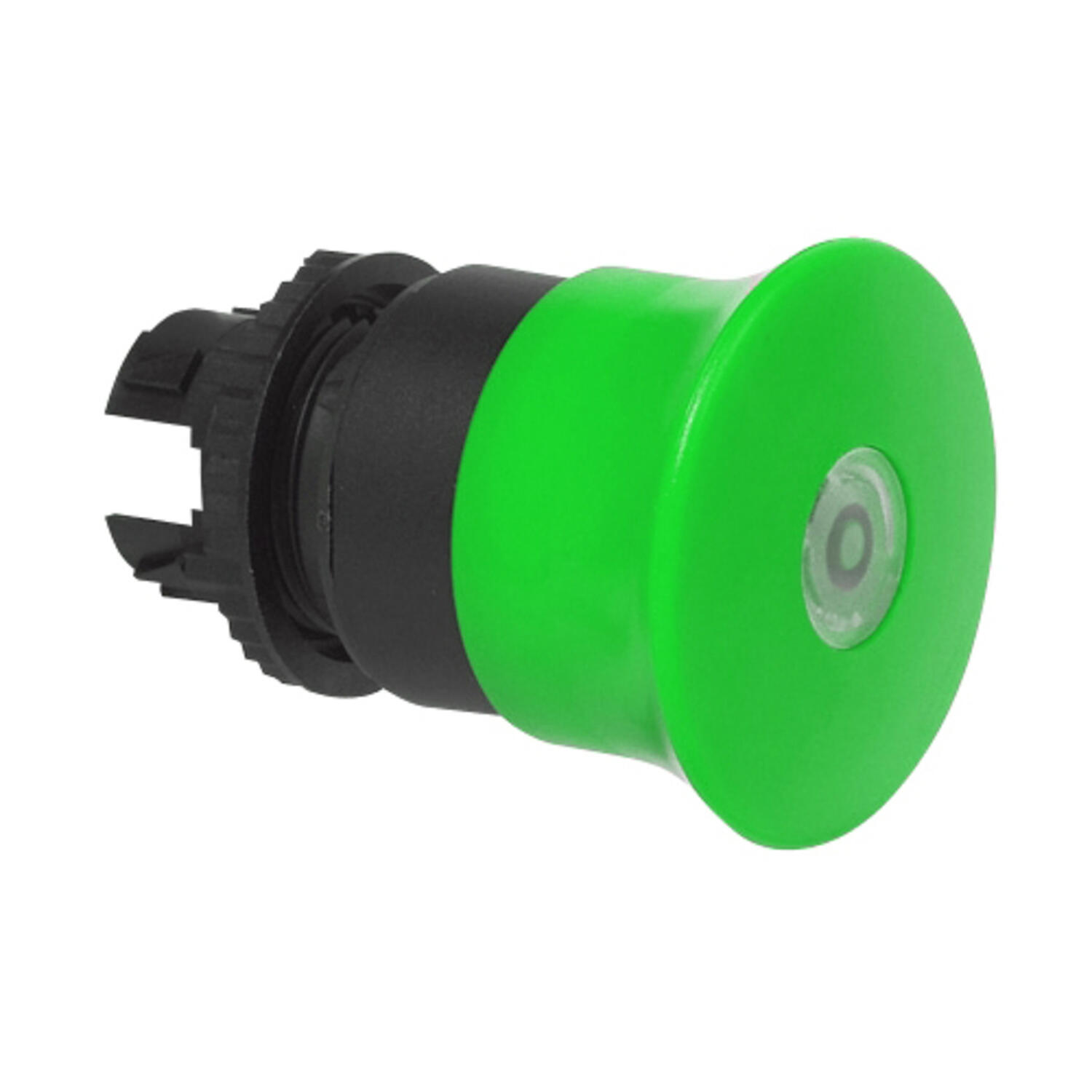

Illuminated Mushroom Heads L22EL10
Illuminated
Illuminated, latching mushroom heads that mount in a 22.5mm hole with protection rating IP66 / IP69K
Available in head sizes Ø32mm & Ø40mm with reset options of pull & turn release.
Combine with separate 3 module clip, LED block (must be in centre position) and contact blocks to make a complete illuminated mushroom head assembly.
- IP66 / IP69K
- Head size Ø32mm or Ø40mm
- Pull or turn reset
- Illuminate with LED blocks
Selected variant
Technical data
| Approvals | UL 508, CSA 22.2, BV, CB, CE |
|---|---|
| Climatic resistance - constant humid heat | IEC 60068-2-3 |
| Climatic resistance - cyclic damp heat | IEC 60068-2-30 |
| Climatic resistance - sea air | IEC 60068-2-52 |
| Colour | Red |
| Function | Turn to reset |
| Illuminated | Yes |
| Impact resistance | IK05 |
| IP class | IP66, IP69, IP69K |
| Mechanical life expectancy | 150 000 cycles |
|---|---|
| Recommended tightening torque | 3 |
| Storage temperature max | 70 °C |
| Storage temperature min | -40 °C |
| Temperature operational max | 70 °C |
| Temperature operational min | -25 °C |

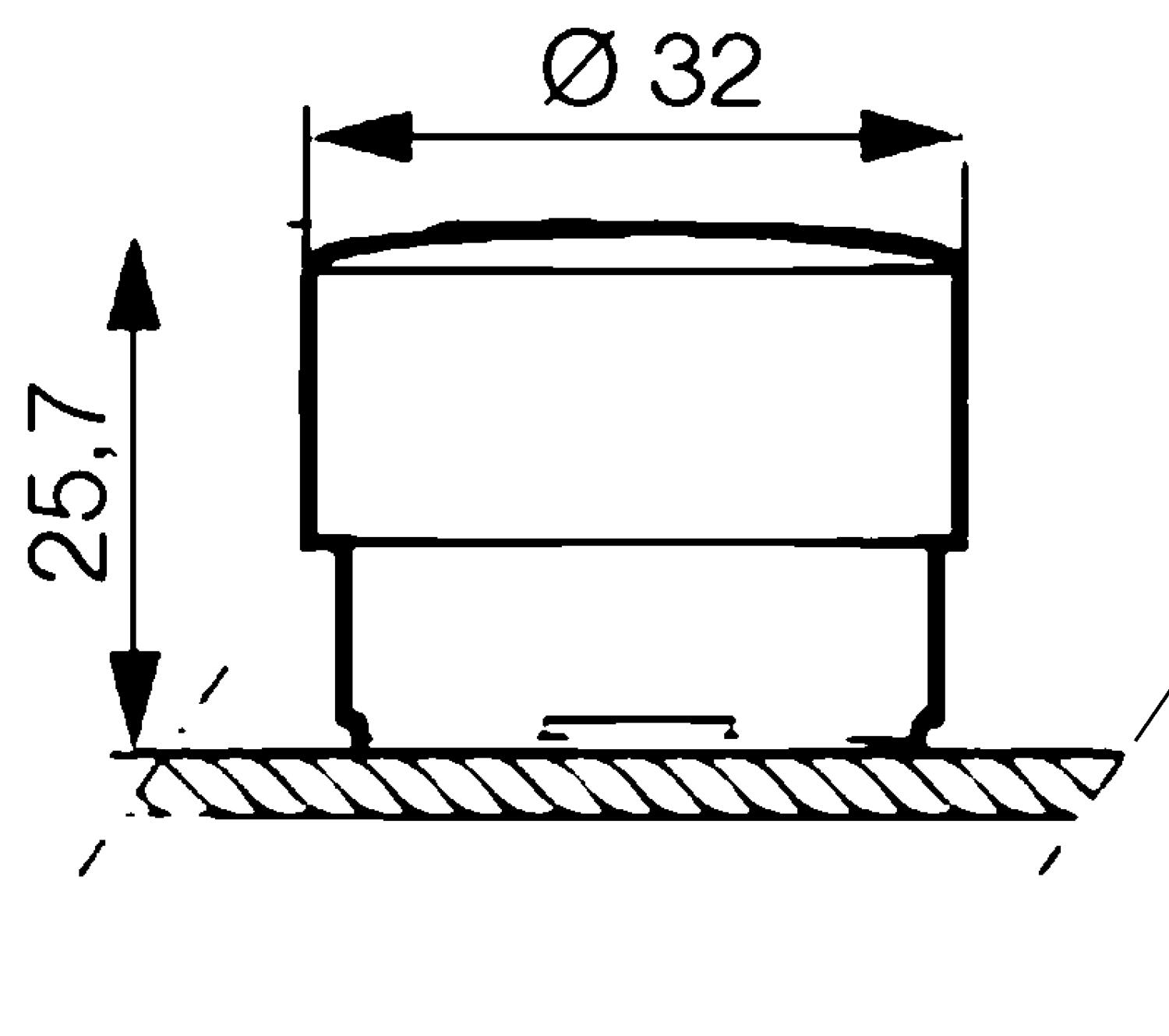

| Type | Mushroom ø32mm |
Product description
Illuminated, latching mushroom heads that mount in a 22.5mm hole with protection rating IP66 / IP69K
Available in head sizes Ø32mm & Ø40mm with reset options of pull & turn release.
Combine with separate 3 module clip, LED block (must be in centre position) and contact blocks to make a complete illuminated mushroom head assembly.
