Selected variant
Technical data
Input data |
|
|---|---|
| Input voltage ac | 100-240 V |
| Input voltage ac min | 90 V AC |
| Input voltage ac max | 264 V AC |
| Inrush current at 120 V ac typical | 15 A |
| Inrush current at 230 V ac typical | 35 A |
| Input voltage range | Wide-range |
| Power factor at 120 V ac, full load. Typical | 0.99 |
| Power factor at 230 V ac, full load. Typical | 0.97 |
| Number of phases | 1 |
Output data |
|
| Output voltage | 24 V DC |
| Output voltage min | 24 V DC |

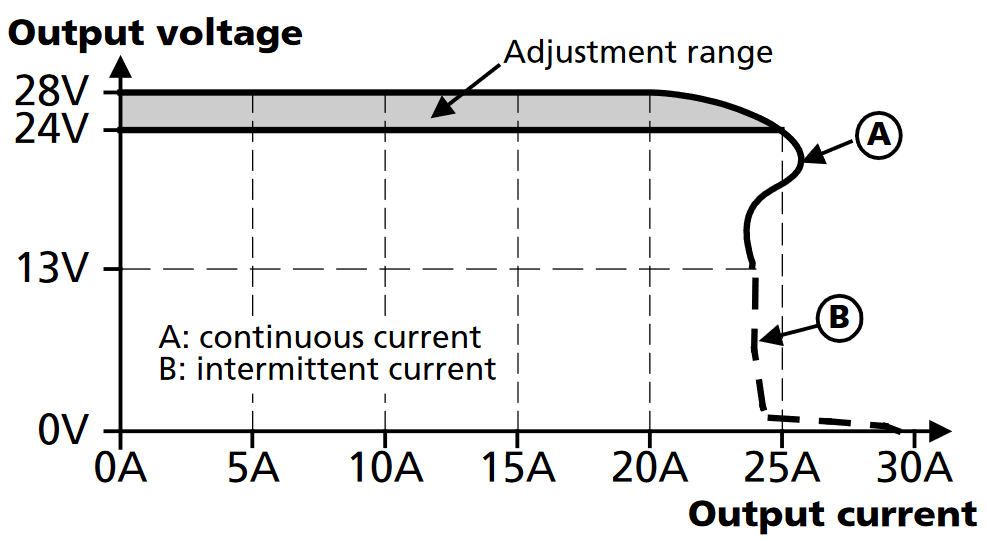

| Output voltage max | 28 V DC |
| Output current | 20 A |
| Power | 480 W |

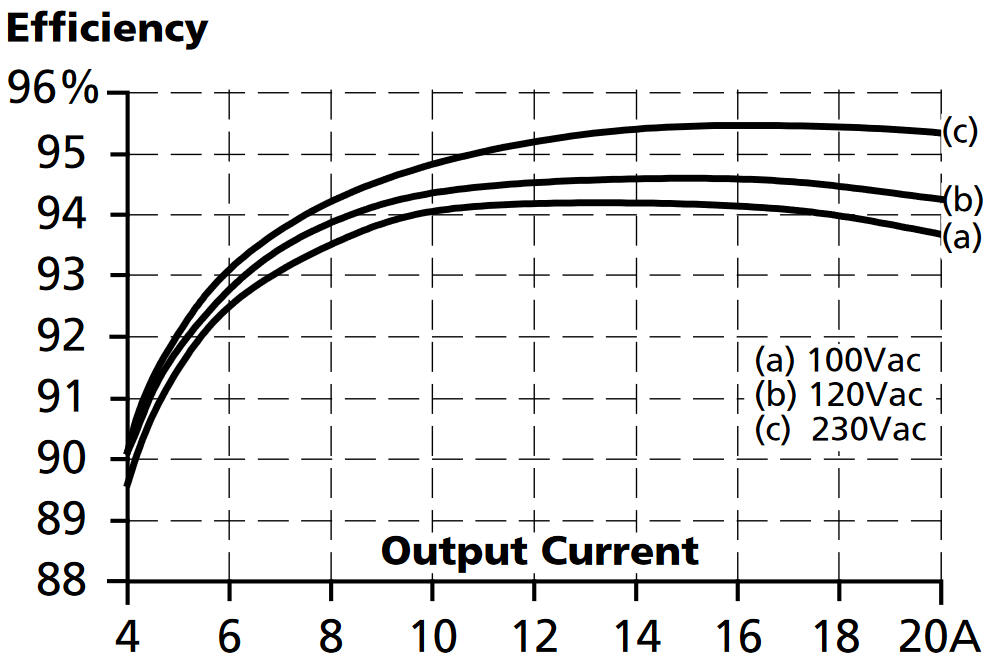

Efficiency / Lifetime / MTBF |
|
| Efficiency at 120 V ac, full load, typical | 93.9 % |
| Efficiency at 230 V ac, typical | 94.2 % |
| Efficiency at 230 V ac, full load, typical | 95 % |
| Lifetime at 120 V ac, full load and +40 ° C | 79000 h |
| Lifetime at 230 V ac, full load and +40 ° C | 102000 h |
| MTBF (IEC 61709) 230 V ac, max load, 40 ° C | 704000 h |

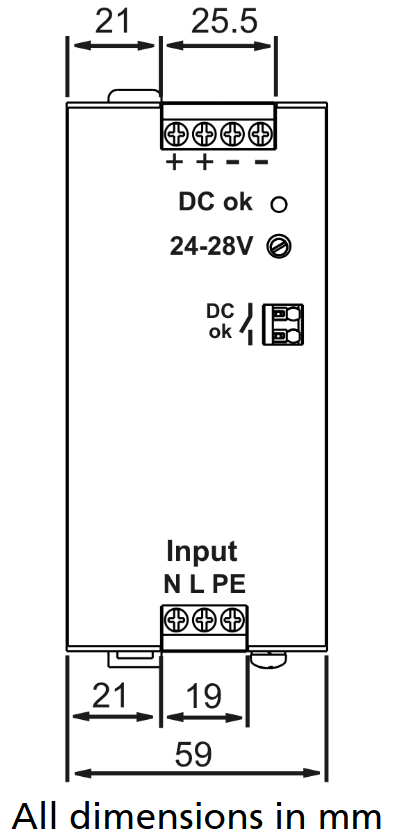

Dimensions |
|
| Width | 59 mm |
| Height | 124 mm |
| Depth | 127 mm |
| Weight | 0.81 kg |
Other |
|
|---|---|
| Approvals | CB, CE, cULus |
| Hold time at 120 V ac, typical full load | 27 ms |
| Hold time at 230 V ac, typical full load | 27 ms |
| IP class | IP20 |
| Clamp type | Screw |
| Cable connection | Screw max 6 mm² solid, 4 mm² stranded |
| Load regulation | <100 mV (0-20 A) |
| Material protection | Aluminium |
| Supply frequency | 50-60 ±6 % |
| Parallel connection for increased current | Not allowed |
| PFA (EN61000-3-2) | Fulfilled (Class A) |
| Primary fuse | Min 10A B type or 6A C type |
| Ripple max | 100 mV pp |
| Series | Piano |
| Series connection for increased voltage | Yes |
| Power consumption 120 V ac | 4.4 A |
| Power consumption 230 V ac | 2.3 A |

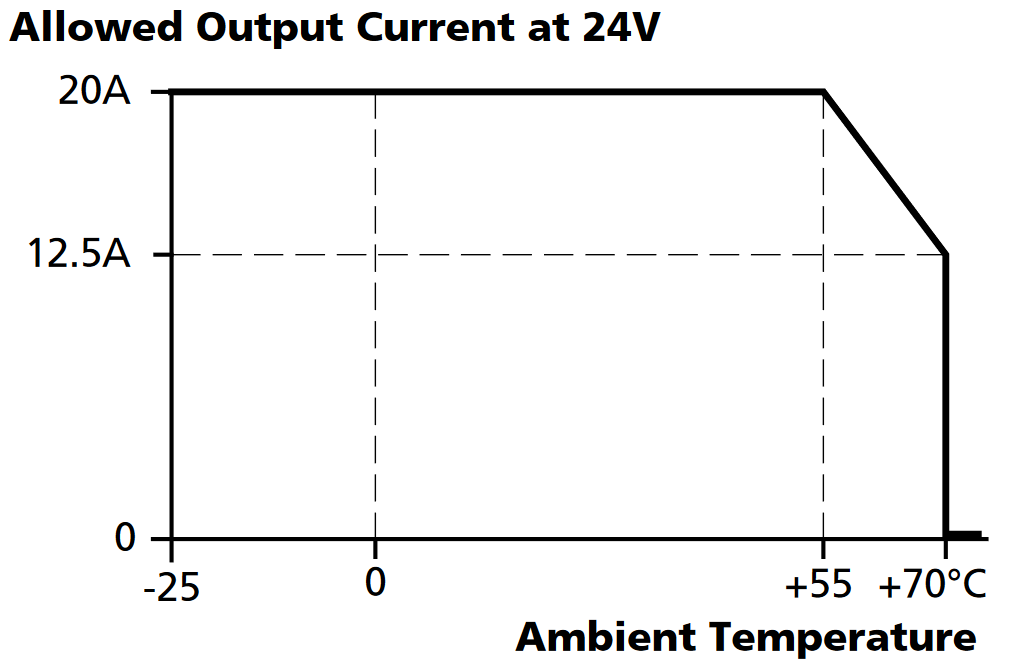

| Power drop from +60 °C to + 70 °C | 8 W/°C |
| Temperature min without derating | -25 °C |
| Temperature max without derating | 55 °C |
| Transient | VDE 0160 (750 V, 0,3 ms) |
| Type Power Supply | AC-DC |
| DC relay output | Yes |
